DTC P1444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-545

C

D

E

F

G

H

I

J

K

L

M

A

EC

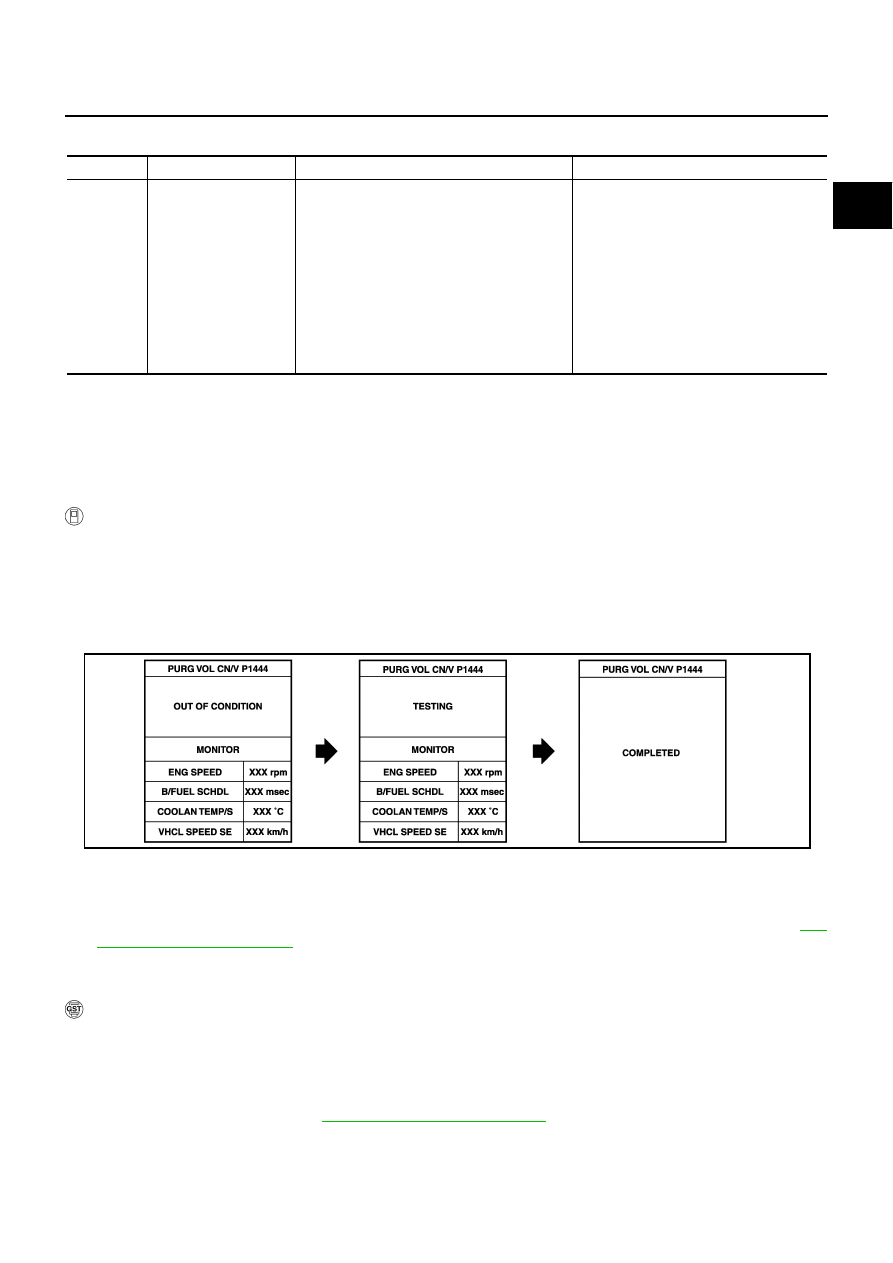

On Board Diagnosis Logic

ABS002QF

DTC Confirmation Procedure

ABS002QG

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5

°

C (41

°

F) or more.

 WITH CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON.

4.

Select “PURG VOL CN/V P1444” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode with
CONSULT-II.

5.

Touch “START”.

6.

Start engine and let it idle until “TESTING” on CONSULT-II changes to “COMPLETED”. (It will take
approximately 10 seconds.)
If “TESTING” is not displayed after 5 minutes, retry from step 2.

7.

Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”. If “NG” is displayed, refer to

EC-

547, "Diagnostic Procedure"

 .

 WITH GST

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Start engine and let it idle for at least 20 seconds.

4.

Select “MODE 7” with GST.

5.

If 1st trip DTC is detected, go to

EC-547, "Diagnostic Procedure"

 .

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1444
1444

EVAP canister purge
volume control solenoid
valve

The canister purge flow is detected during the
specified driving conditions, even when EVAP
canister purge volume control solenoid valve is
completely closed.

●

EVAP control system pressure sensor

●

EVAP canister purge volume control
solenoid valve
(The valve is stuck open.)

●

EVAP canister vent control valve

●

EVAP canister

●

Water separator

●

Hoses
(Hoses are connected incorrectly or
clogged.)

PBIB0839E

EC-546

DTC P1444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

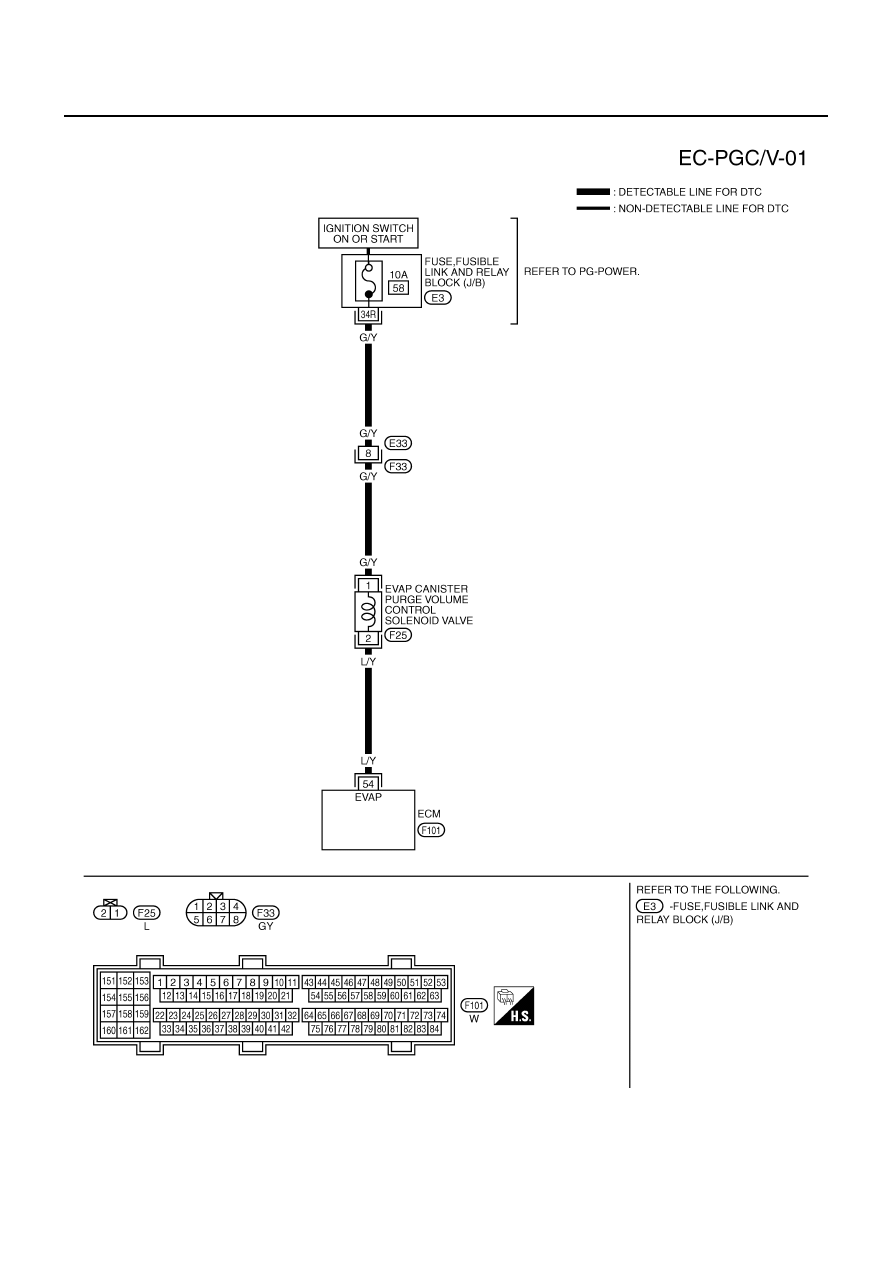

Wiring Diagram

ABS002QH

TBWA0290E

DTC P1444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-547

C

D

E

F

G

H

I

J

K

L

M

A

EC

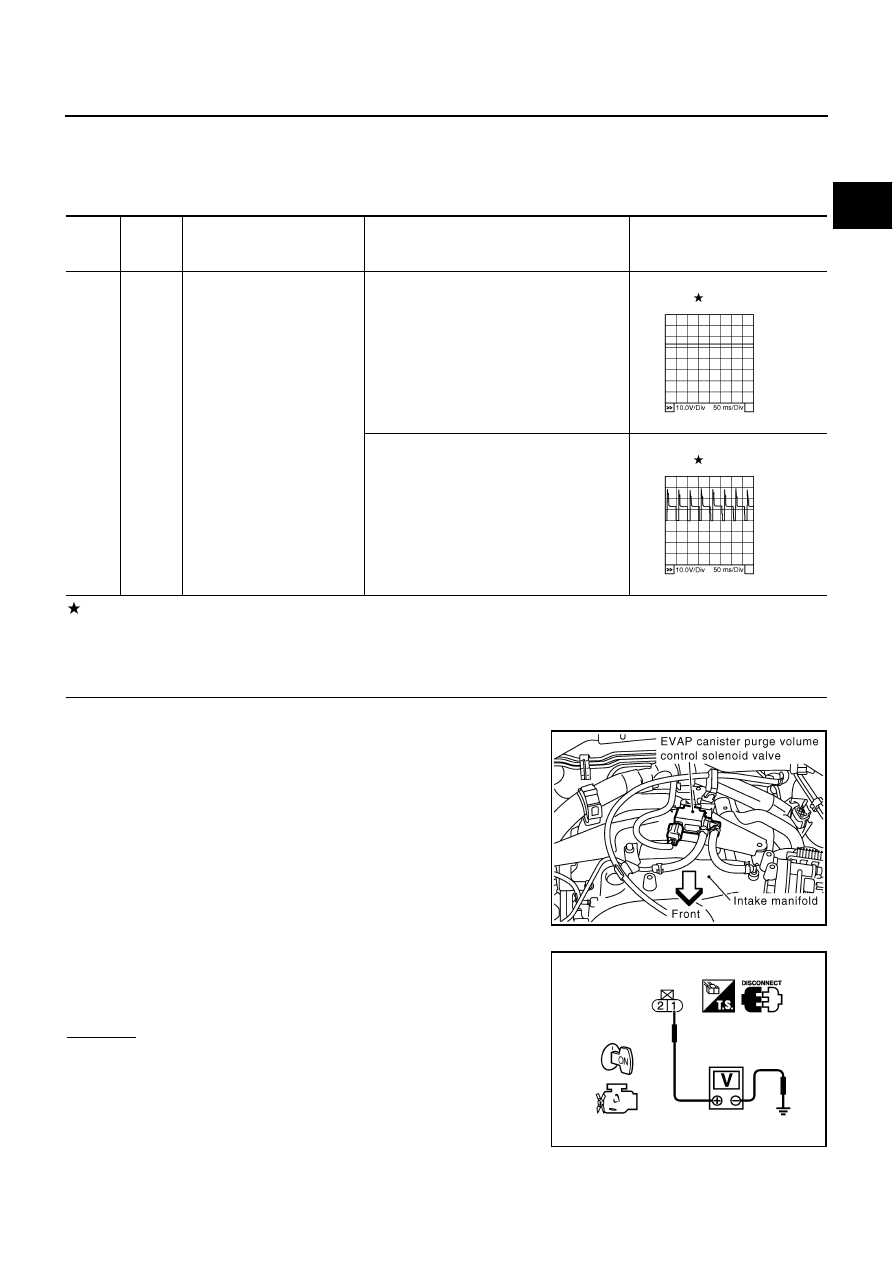

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

ABS002QI

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIR-

CUIT

1.

Turn ignition switch OFF.

2.

Disconnect EVAP canister purge volume control solenoid valve
harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between EVAP canister purge volume control
solenoid valve terminal 1 and ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

54

L/Y

EVAP canister purge volume
control solenoid valve

[Engine is running]

●

Idle speed

BATTERY VOLTAGE

(11 - 14V)

[Engine is running]

●

Engine speed is about 2,000 rpm (More
than 100 seconds after starting engine).

BATTERY VOLTAGE

(11 - 14V)

PBIB0050E

PBIB0051E

PBIB1120E

Voltage: Battery voltage

PBIB0148E

EC-548

DTC P1444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

2.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E33, F33

●

Fuse, fusible link and relay block (J/B) connector E3

●

10A fuse

●

Harness for open or short between EVAP canister purge volume control solenoid valve and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIR-

CUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 54 and EVAP canister purge volume control solenoid
valve terminal 2. Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR

1.

Disconnect EVAP control system pressure sensor harness connector.

2.

Check connectors for water.

OK or NG

OK

>> GO TO 5.

NG

>> Replace EVAP control system pressure sensor.

5.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-361, "Component Inspection"

 .

OK or NG

OK (With CONSULT-II)>>GO TO 6.
OK (Without CONSULT-II)>>GO TO 7.
NG

>> Replace EVAP control system pressure sensor.

Continuity should exist.

Water should not exist.
