DTC P0462, P0463 FUEL LEVEL SENSOR

EC-397

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors M141, B211

●

Harness connectors B61, B261

●

Harness connector-15

●

Harness for open or short between combination meter and “fuel level sensor unit and fuel pump”

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK FUEL LEVEL SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter harness connector.

3.

Check harness continuity between combination meter terminal 31 and “fuel level sensor unit and fuel
pump” terminal 6. Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors M141, B211

●

Harness connectors B61, B261

●

Harness connector-15

●

Harness for open or short between ECM and “fuel level sensor unit and fuel pump”

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK FUEL LEVEL SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between the following;
ECM terminal 119 and “fuel level sensor unit and fuel pump” terminal 5,
ECM terminal 107 and “fuel level sensor unit and fuel pump” terminal 6.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors M135, F105

●

Joint connector-15

●

Harness for open or short between ECM and “fuel level sensor and fuel pump”

>> Repair open circuit or short to ground or short to power in harness or connectors.

Continuity should exist.

Continuity should exist.

EC-398

DTC P0462, P0463 FUEL LEVEL SENSOR

8.

CHECK FUEL LEVEL SENSOR

Refer to

FL-3, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY"

 .

OK or NG

OK

>> GO TO 9.

NG

>> Replace fuel level sensor unit.

9.

CHECK INTERMITTENT INCIDENT

Refer to

EC-132, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

Removal and Installation

ABS002LO

FUEL LEVEL SENSOR

Refer to

FL-3, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY"

 .

DTC P0500 VSS

EC-399

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0500 VSS

PFP:32702

Description

ABS002LP

NOTE:
If DTC P0500 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to

EC-143, "DTC U1000, U1001 CAN COMMUNICATION LINE"

 .

The vehicle speed signal is sent to the combination meter from the VDC/TCS/ABS control unit by CAN com-
munication line. The combination meter then sends a signal to the ECM by CAN communication line.

On Board Diagnosis Logic

ABS002LQ

DTC Confirmation Procedure

ABS002LR

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Steps 1 and 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.

 WITH CONSULT-II

1.

Start engine (VDC switch OFF).

2.

Read “VHCL SPEED SE” in “DATA MONITOR” mode with CONSULT-II. The vehicle speed on CONSULT-
II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to

EC-400, "Diagnostic Procedure"

 .

If OK, go to following step.

3.

Select “DATA MONITOR” mode with CONSULT-II.

4.

Warm engine up to normal operating temperature.

5.

Maintain the following conditions for at least 60 consecutive sec-
onds.

6.

If 1st trip DTC is detected, go to

EC-400, "Diagnostic Procedure"

.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0500
0500

Vehicle speed sensor

The almost 0 km/h (0 MPH) signal from
vehicle speed sensor is sent to ECM
even when vehicle is being driven.

●

Harness or connectors
(The CAN communication line is open or
shorted)

●

Harness or connectors
(The vehicle speed signal circuit is open or
shorted)

●

Wheel sensor

●

Combination meter

●

VDC/TCS/ABS control unit

ENG SPEED

1,400 - 6,000 rpm

COOLAN TEMP/S

More than 70

°

C (158

°

F)

B/FUEL SCHDL

4.5 - 31.9 msec

Selector lever

Except P or N position

PW/ST SIGNAL

OFF

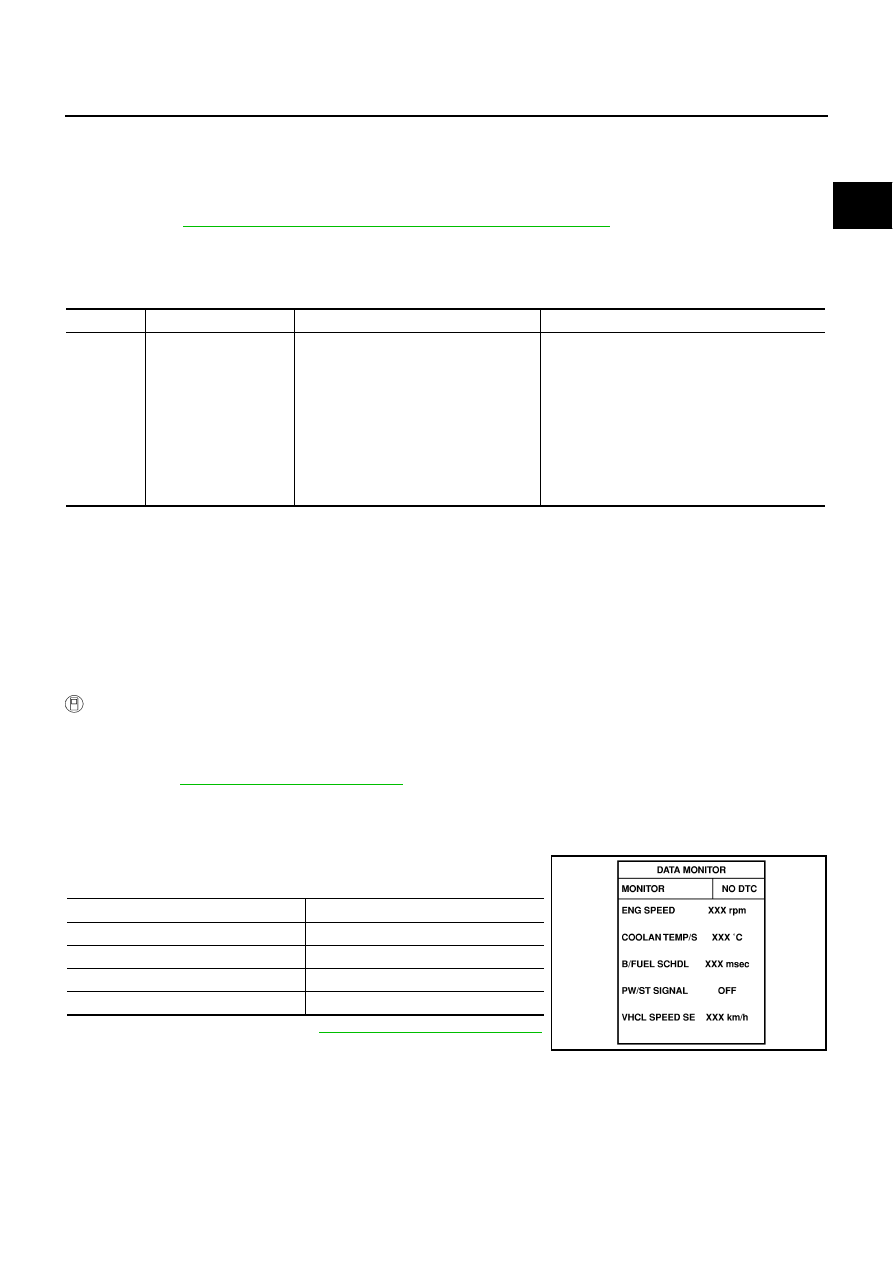

SEF196Y

EC-400

DTC P0500 VSS

Overall Function Check

ABS002LS

Use this procedure to check the overall function of the vehicle speed sensor circuit. During this check, a 1st
trip DTC might not be confirmed.

 WITH GST

1.

Lift up drive wheels.

2.

Start engine.

3.

Read vehicle speed sensor signal in “MODE 1” with GST.
The vehicle speed sensor on GST should be able to exceed 10 km/h (6 MPH) when rotating wheels with
suitable gear position.

4.

If NG, go to

EC-400, "Diagnostic Procedure"

 .

Diagnostic Procedure

ABS002LT

1.

CHECK DTC WITH VDC/TCS/ABS CONTROL UNIT

Refer to

BRC-11, "TROUBLE DIAGNOSIS"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace.

2.

CHECK COMBINATION METER

Check combination meter function.
Refer to

DI-6, "COMBINATION METERS"

 .

>> INSPECTION END
