DTC P0335 CKP SENSOR (POS)
EC-309
C
D
E
F
G
H
I
J
K
L
M
A
EC

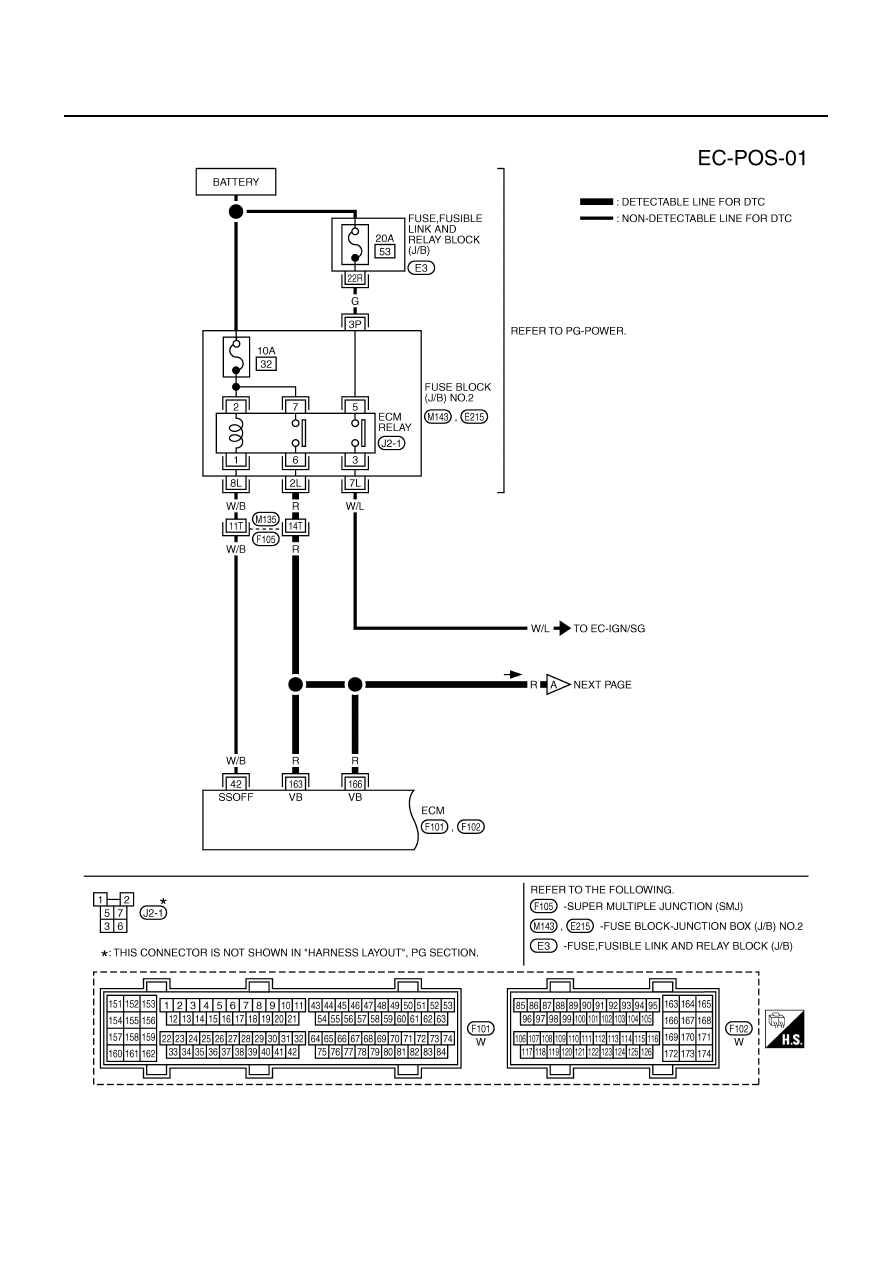

DTC P0335 CKP SENSOR (POS)
PFP:23731

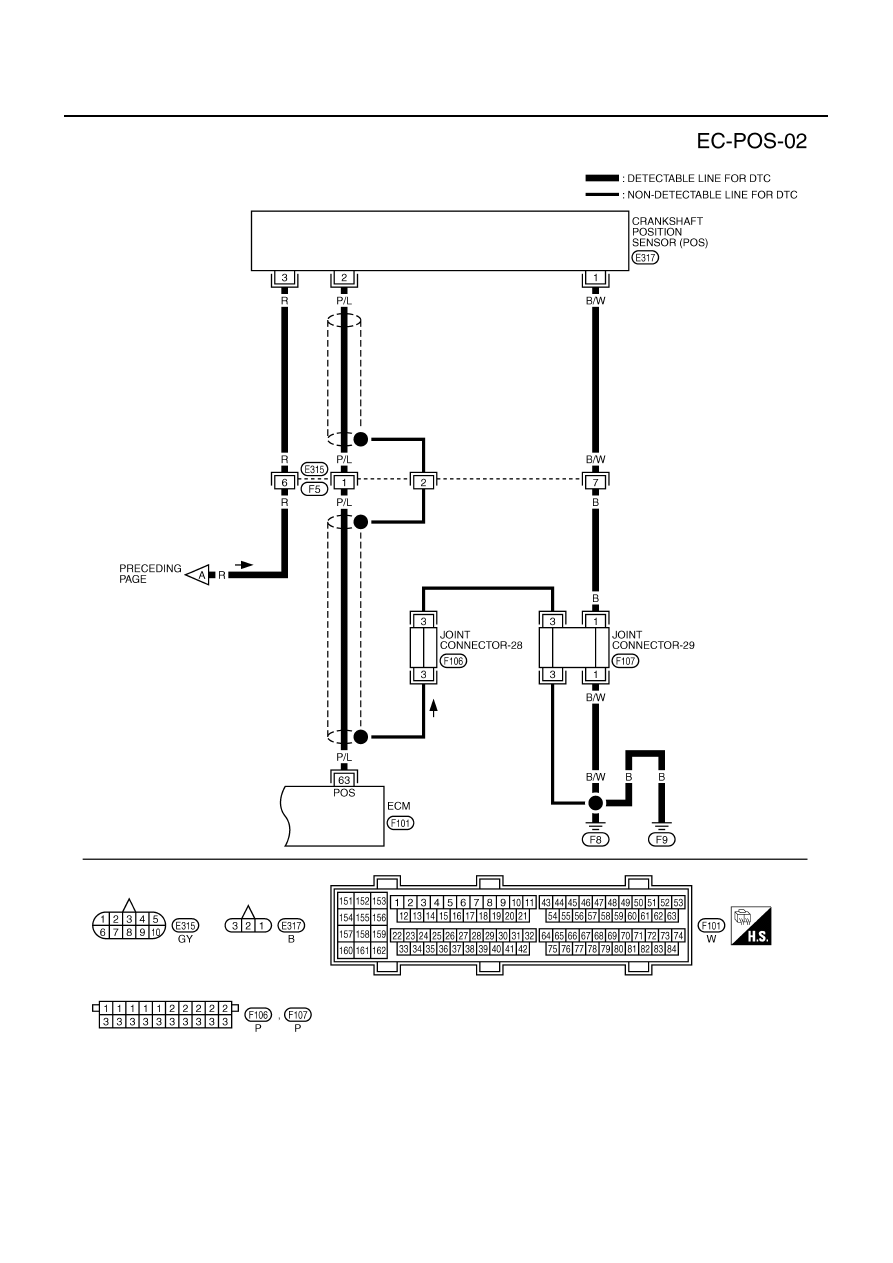

Component Description
ABS002JG

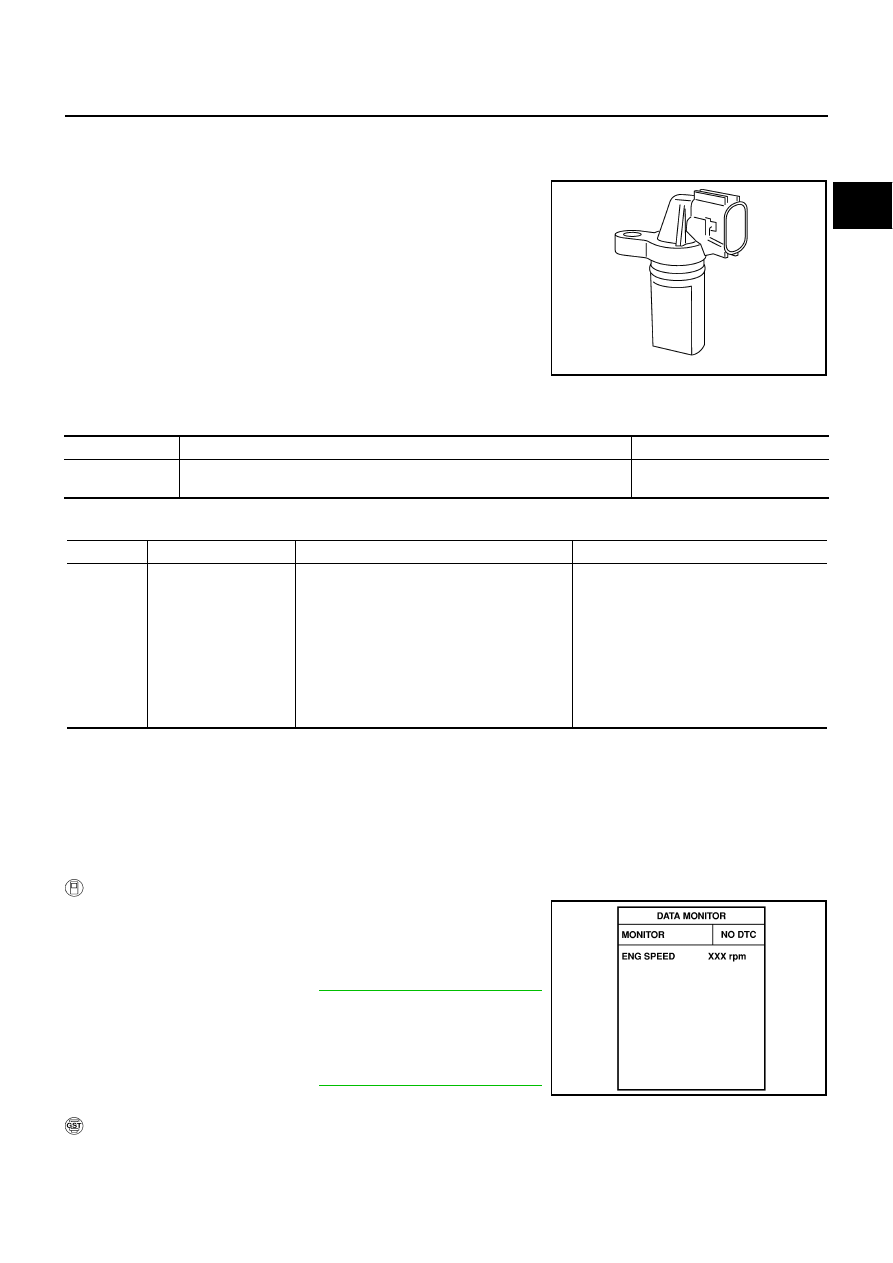

The crankshaft position sensor (POS) is located on the cylinder
block rear housing facing the gear teeth (cogs) of the signal plate at
the end of the crankshaft. It detects the fluctuation of the engine rev-
olution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.The changing gap causes
the magnetic field near the sensor to change. Due to the changing
magnetic field, the voltage from the sensor changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
CONSULT-II Reference Value in Data Monitor Mode
ABS002JH
Specification data are reference values.
On Board Diagnosis Logic
ABS002JI
DTC Confirmation Procedure
ABS002JJ
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
WITH CONSULT-II
1.
Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2.
Crank engine for at least 2 seconds and run it for at least 5 sec-
onds at idle speed.
3.
If 1st trip DTC is detected, go to
EC-313, "Diagnostic Procedure"
.
If 1st trip DTC is not detected, go to next step.
4.
Maintaining engine speed at more than 800 rpm for at least 5
seconds.
5.
If 1st trip DTC is detected, go to
EC-313, "Diagnostic Procedure"
.
WITH GST
Follow the procedure WITH CONSULT-II above.
PBIB0562E
MONITOR ITEM
CONDITION
SPECIFICATION
ENG SPEED
●
Run engine and compare the CONSULT-II value with tachometer indication.
Almost the same speed as the
tachometer indication.
DTC No.
Trouble diagnosis name
DTC detecting condition
Possible cause
P0335
0335
Crankshaft position
sensor (POS) circuit
●
The crankshaft position sensor (POS) signal
is not detected by the ECM during the first
few seconds of engine cranking.
●
The proper pulse signal from the crankshaft
position sensor (POS) is not sent to ECM
while the engine is running.
●
The crankshaft position sensor (POS) signal
is not in the normal pattern during engine
running.
●
Harness or connectors
(The sensor circuit is open or shorted)
●
Crankshaft position sensor (POS)
●
Signal plate
