Infiniti M45 (Y34). Manual - part 401





DTC P0222, P0223 TP SENSOR

EC-293

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC Confirmation Procedure

ABS002IJ

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for 1 second.

4.

If DTC is detected, go to

EC-295, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure WITH CONSULT-II above.

SEF058Y

EC-294

DTC P0222, P0223 TP SENSOR

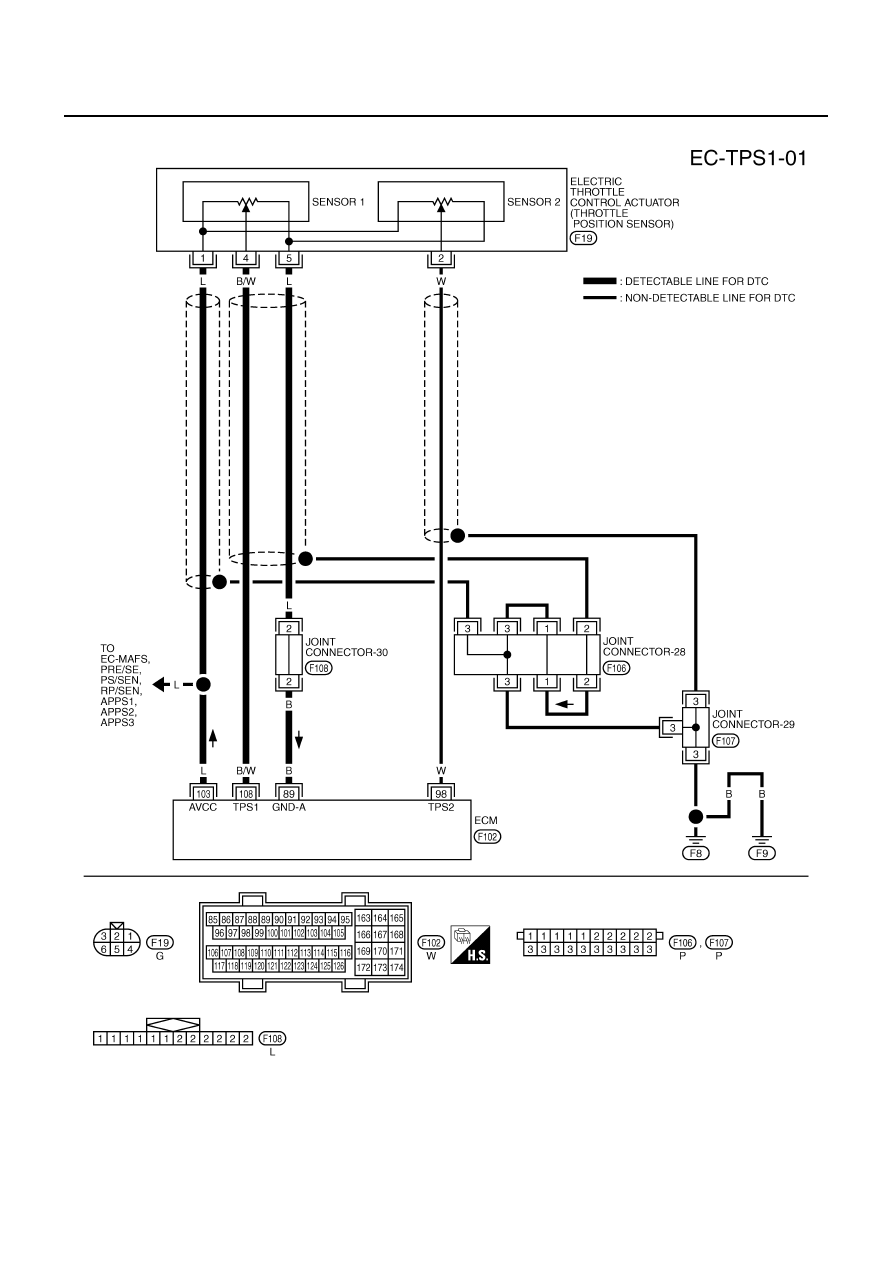

Wiring Diagram

ABS002IK

TBWA0281E

DTC P0222, P0223 TP SENSOR

EC-295

C

D

E

F

G

H

I

J

K

L

M

A

EC

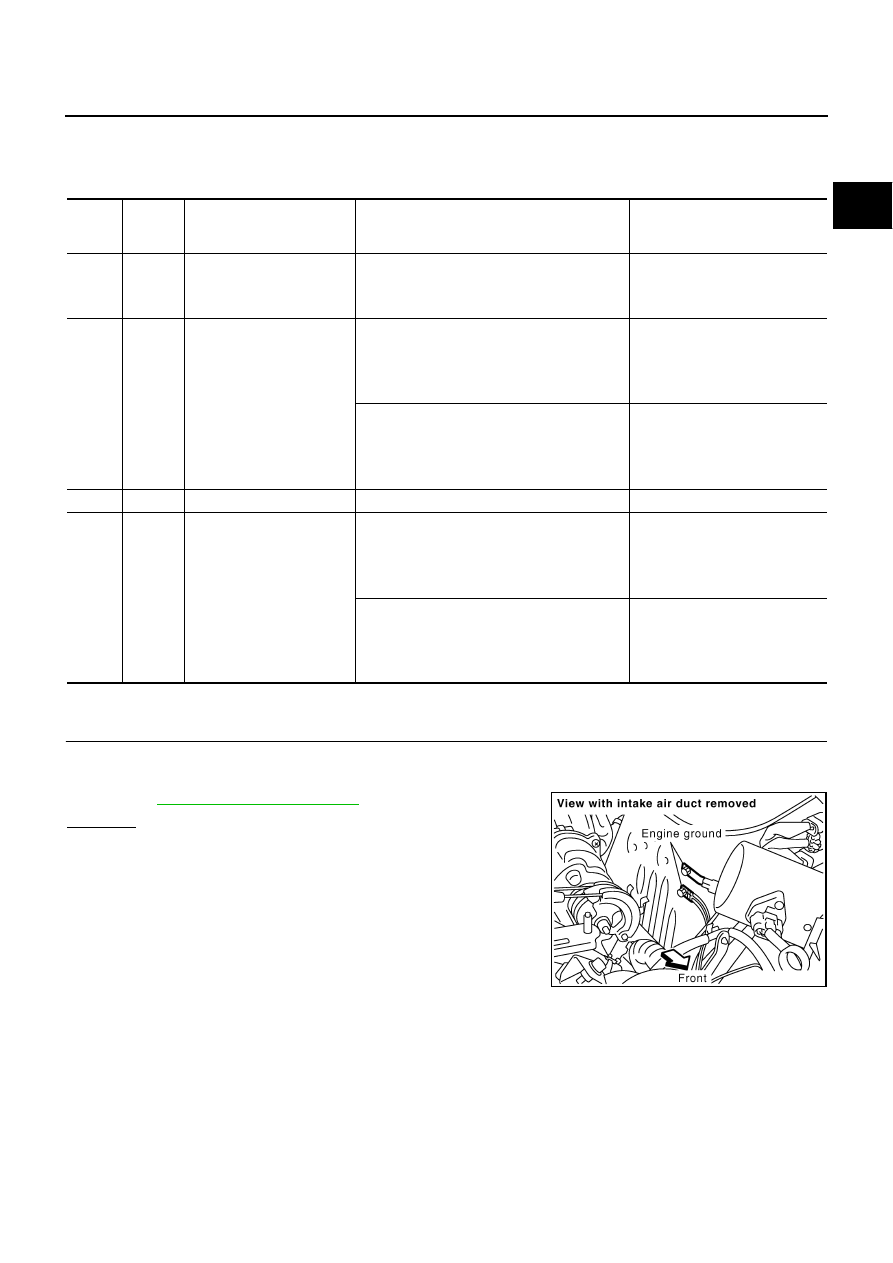

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

ABS002IL

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten two ground screws.
Refer to

EC-141, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

89

B

Sensor ground

[Engine is running]

Warm-up condition

Idle speed

Approximately 0V

98

W

Throttle position sensor 2

[Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully released

Less than 4.75V

[Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully depressed

More than 0.36V

103

L

Sensor power supply

[Ignition switch: ON]

Approximately 5V

108

B/W

Throttle position sensor 1

[Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully released

More than 0.36V

[Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully depressed

Less than 4.75V

PBIB1118E

EC-296

DTC P0222, P0223 TP SENSOR

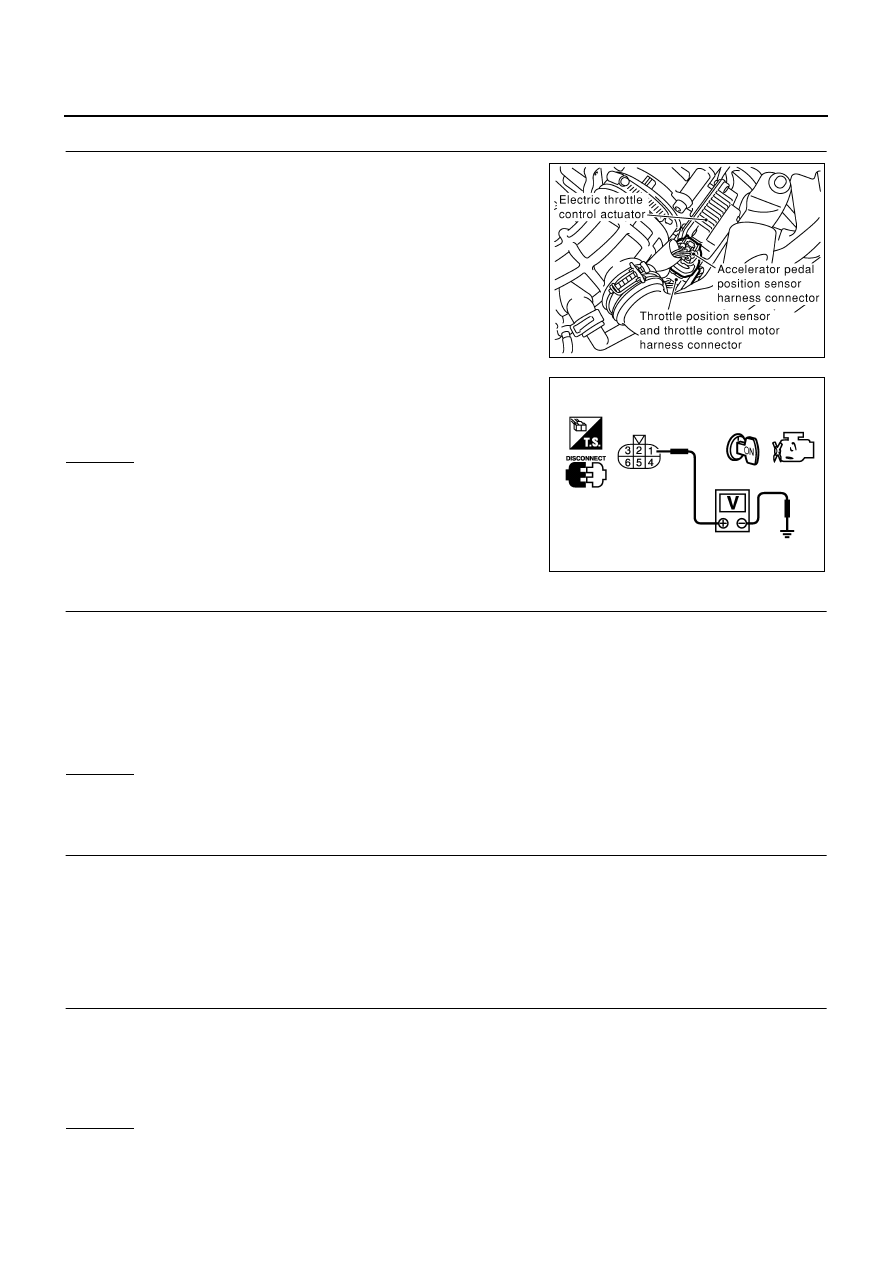

2.

CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT

1.

Disconnect electric throttle control actuator harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

3.

CHECK THROTTLE POSITION SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between electric throttle control actuator terminal 5 and ECM terminal 89.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.

Joint connector-30

Harness for open or short between electric throttle control actuator and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK THROTTLE POSITION SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal 108 and electric throttle control actuator terminal 4.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

PBIB0015E

Voltage: Approximately 5V

PBIB0082E

Continuity should exist.

Continuity should exist.
