DTC P0112, P0113 IAT SENSOR

EC-189

C

D

E

F

G

H

I

J

K

L

M

A

EC

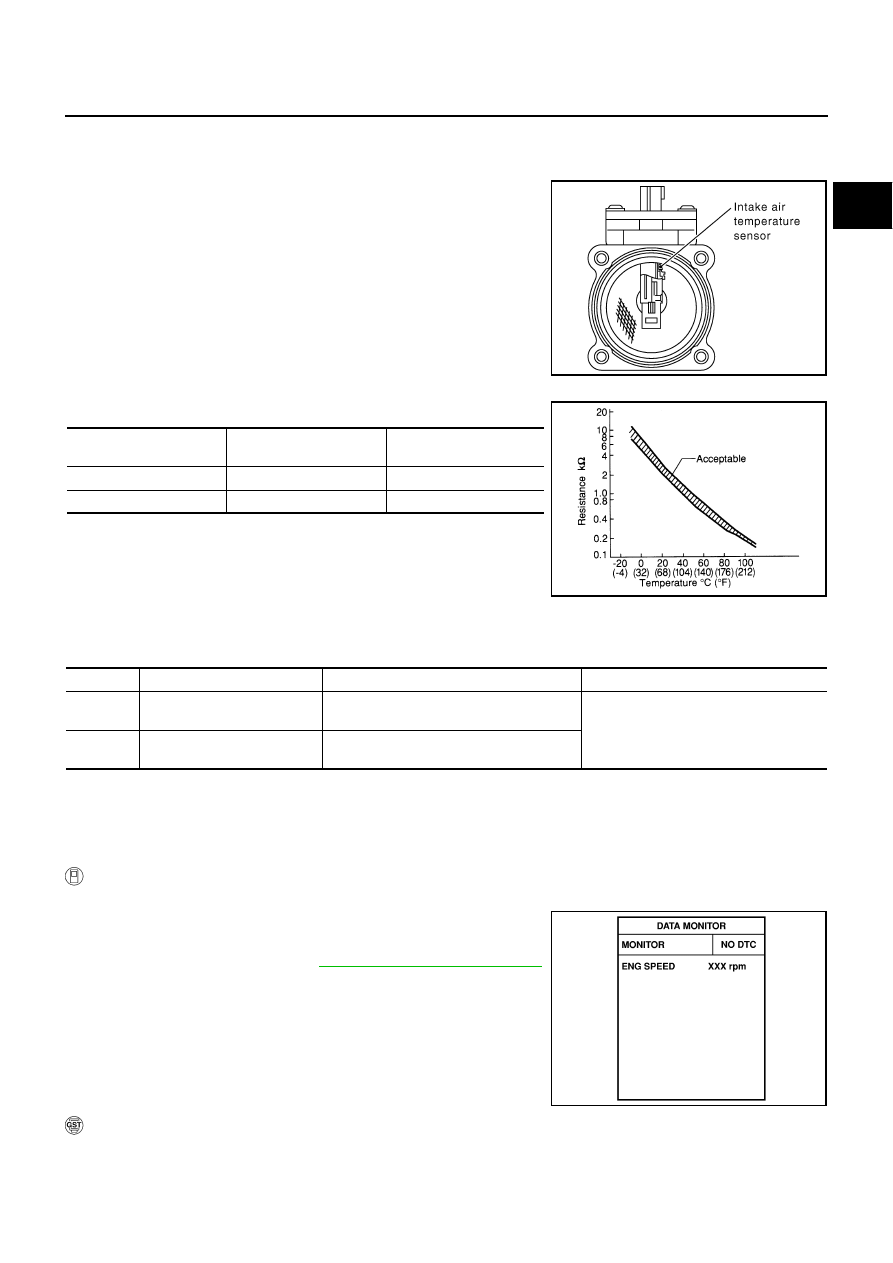

DTC P0112, P0113 IAT SENSOR

PFP:22630

Component Description

ABS002FH

The intake air temperature sensor is built-into mass air flow sensor.
The sensor detects intake air temperature and transmits a signal to
the ECM.
The temperature sensing unit uses a thermistor which is sensitive to
the change in temperature. Electrical resistance of the thermistor
decreases in response to the temperature rise.

<Reference data>

*: This data is reference values and is measured between ECM terminal 99 (Intake
air temperature sensor) and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.

On Board Diagnosis Logic

ABS002FI

DTC Confirmation Procedure

ABS002FJ

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If 1st trip DTC is detected, go to

EC-191, "Diagnostic Procedure"

.

 WITH GST

Follow the procedure WITH CONSULT-II above.

SEC266C

Intake air temperature

°

C (

°

F)

Voltage*

V

Resistance

k

Ω

25 (77)

3.32

1.9 - 2.1

80 (176)

1.23

0.31 - 0.37

SEF012P

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0112
0112

Intake air temperature sensor
circuit low input

An excessively low voltage from the sensor
is sent to ECM.

●

Harness or connectors
(The sensor circuit is open or shorted.)

●

Intake air temperature sensor

P0113
0113

Intake air temperature sensor
circuit high input

An excessively high voltage from the sensor
is sent to ECM.

SEF058Y

EC-190

DTC P0112, P0113 IAT SENSOR

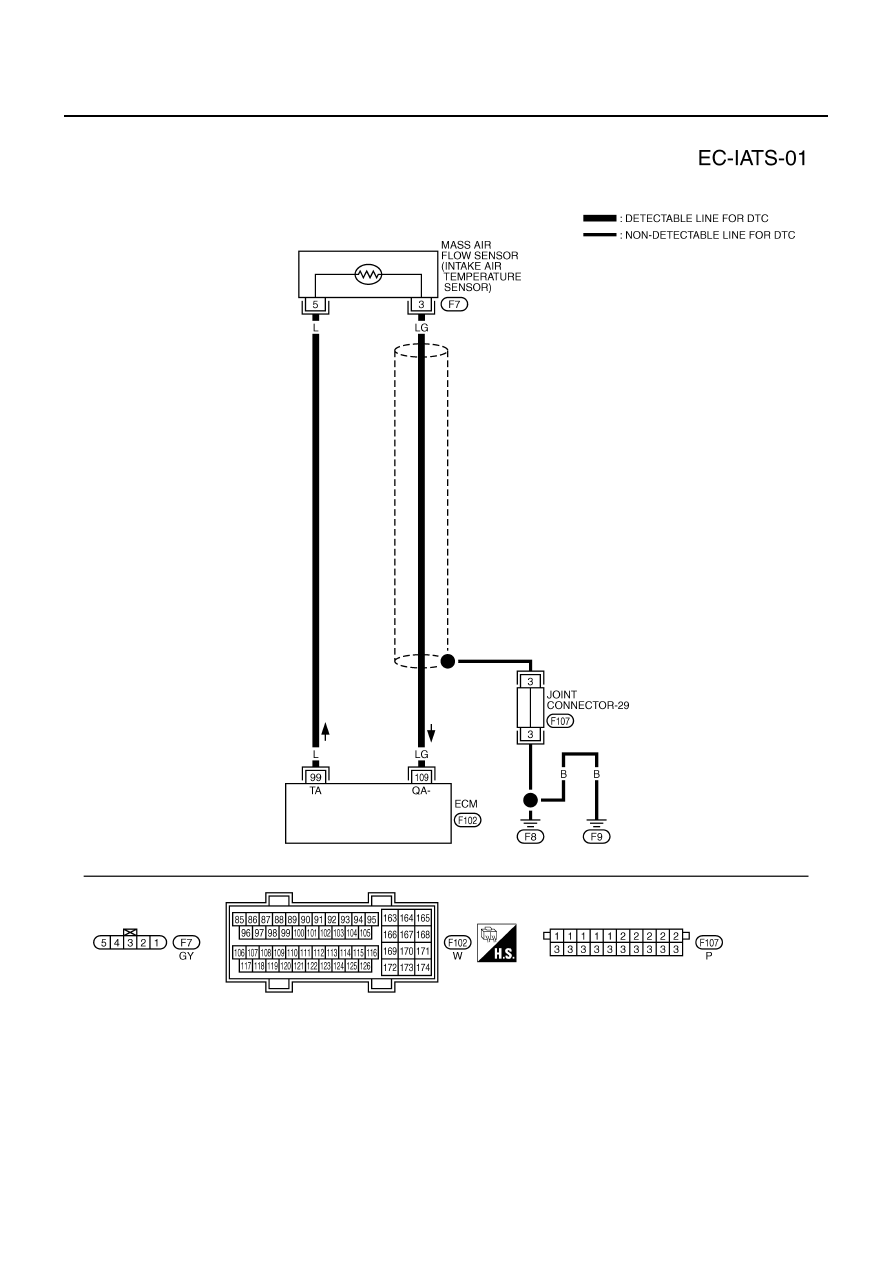

Wiring Diagram

ABS002FK

TBWA0272E

DTC P0112, P0113 IAT SENSOR

EC-191

C

D

E

F

G

H

I

J

K

L

M

A

EC

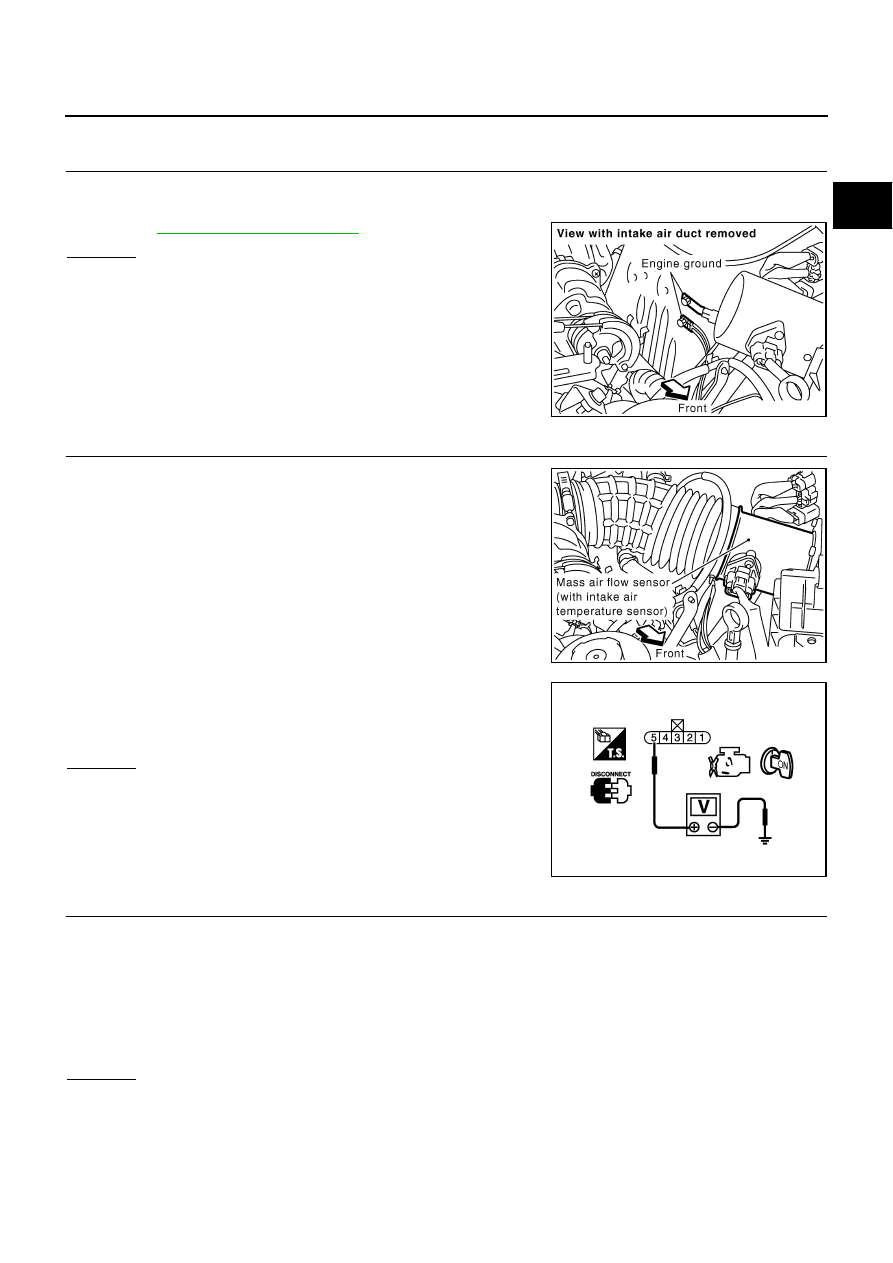

Diagnostic Procedure

ABS002FL

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten two ground screws.
Refer to

EC-141, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect mass air flow sensor (intake air temperature sensor
is built-into) harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between mass air flow sensor terminal 5 and
ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

3.

CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between mass air flow sensor terminal 3 and ECM terminal 109.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

PBIB1118E

PBIB1119E

Voltage: Approximately 5V

PBIB0066E

Continuity should exist.

EC-192

DTC P0112, P0113 IAT SENSOR

4.

CHECK INTAKE AIR TEMPERATURE SENSOR

Refer to

EC-191, "Diagnostic Procedure"

 .

OK or NG

OK

>> GO TO 5.

NG

>> Replace mass air flow sensor (with intake air temperature sensor).

5.

CHECK INTERMITTENT INCIDENT

Refer to

EC-132, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

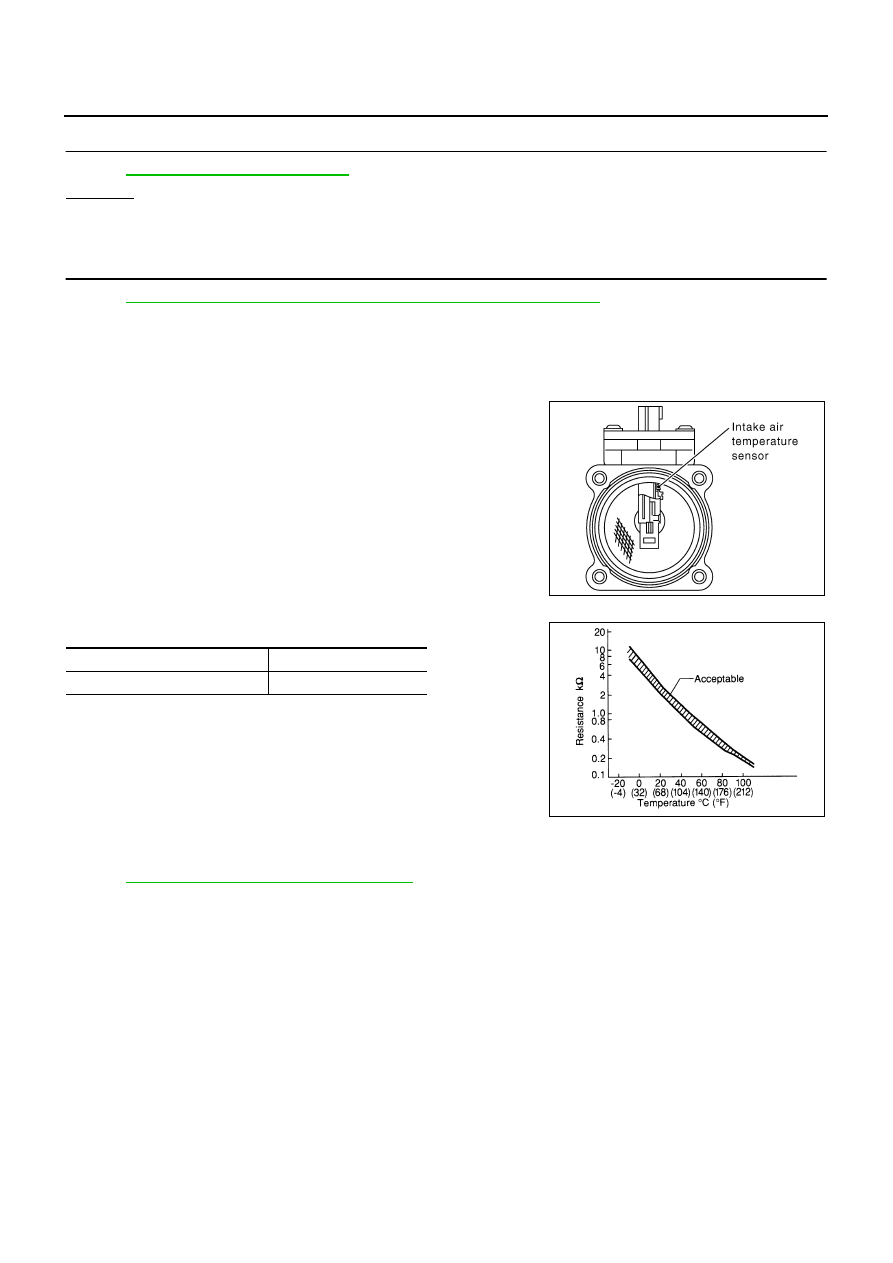

Component Inspection

ABS002FM

INTAKE AIR TEMPERATURE SENSOR

1.

Check resistance between intake air temperature sensor termi-
nals 3 and 5 under the following conditions.

<Reference data>

2.

If NG, replace mass air flow sensor (with intake air temperature
sensor).

Removal and Installation

ABS002FN

MASS AIR FLOW SENSOR

Refer to

EM-16, "AIR CLEANER AND AIR DUCT"

 .

SEC266C

Intake air temperature

°

C (

°

F)

Resistance k

Ω

25 (77)

1.9 - 2.1
