VOICE ACTIVATED CONTROL SYSTEM

PFP:28337

System Description

AKS004E8

OUTLINE

The VACS (Voice-Activated Control System) provides a safe
and convenient way of controlling vehicle systems such as the
audio, auto A/C and navigation (if so equipped). The system is

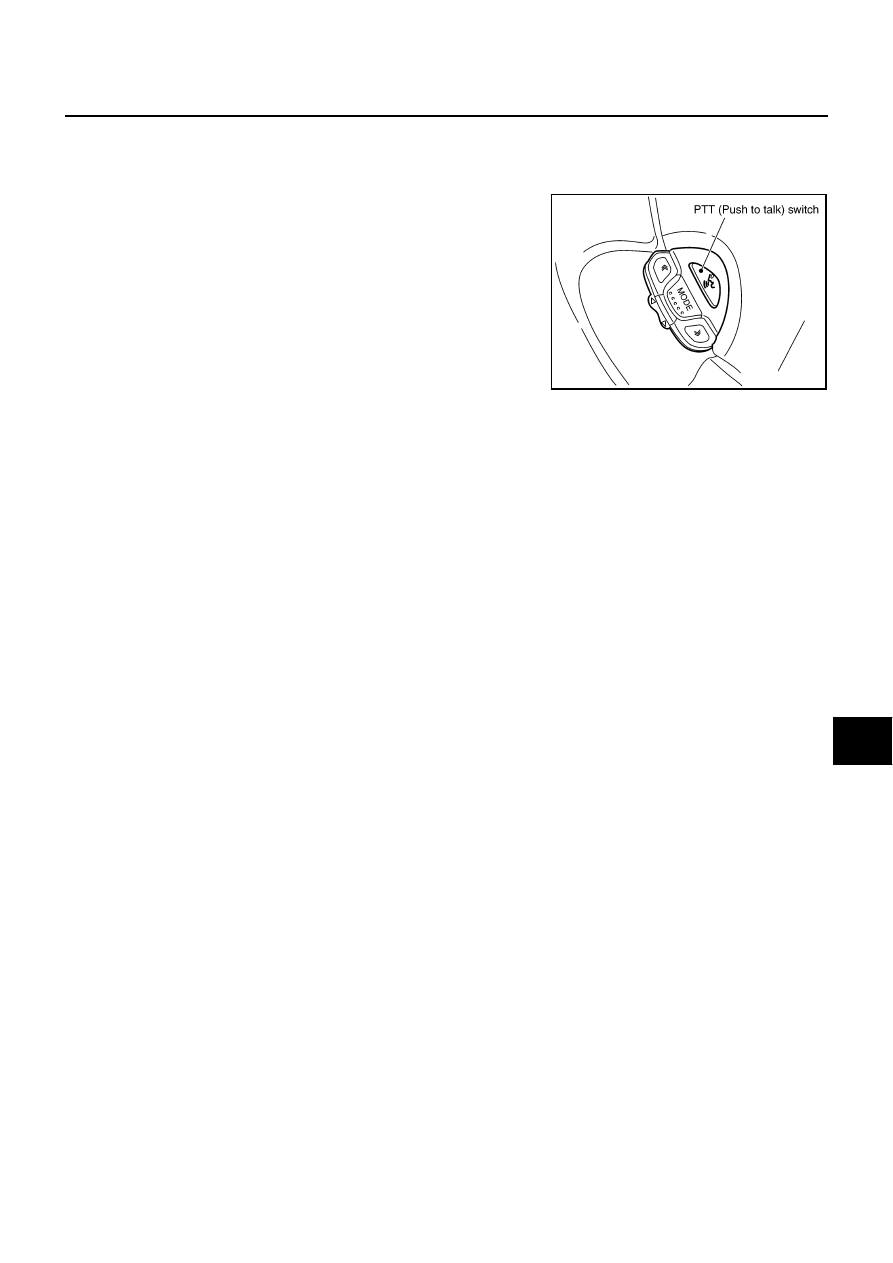

controlled by the PTT (Push to talk) switch. Voice commands
are picked up by a microphone. When giving a command, voice
feedback will be heard through the speaker, and messages will
be shown on the display. Voice feedback can be turned off. Per-
sonal directories of nametags for radio station presets can be
created, and spoken command help is provided.

Refer to Owner’s Manual for voice activated control system
operating instructions.

Power is supplied at all times

through 15A fuse [No. 52, located in fuse, fusible link and relay block (J/B)]

to Voice Activated Control Module terminal 13.

With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 21, located in the fuse block (J/B) No. 1]

to Voice Activated Control Module terminal 20.

Ground is also supplied

to Voice Activated Control Module terminal 14

through grounds B17 and B57.

VOICE ACTIVATED CONTROL FUNCTION

When PTT switch pushed ON, signal is sent

from steering switch terminal 2

to multifunction switch terminal 7, then

via multifunction switch, display and AV and NAVI control unit terminals 47 and 48 (with navigation sys-
tem) or AV control unit terminals 49 and 50 (without navigation system) with AV communication line

to voice activated control module terminals 35 and 36.

Voice activated control module displays “LISTENING” on screen when PTT switch is ON.
When any voice is input into microphone, voice signal is sent

from microphone terminals 4 and 5

to voice activated control module terminals 33 and 34.

When voice activated control module identifies voice signal as a command, it sends the signal

form voice activated control module terminals 35 and 36

to AV and NAVI control unit terminals 47 and 48 (with navigation system) or AV control unit (without navi-
gation system) terminals 49 and 50 with AV communication line.

Then AV and NAVI control unit (with navigation system) or AV control unit (without navigation system) sends
operational signal

to display and audio unit and performs the voice command.

While voice activated control system is in operation, voice activated control module sends voice signal

from voice activated control module terminals 25 and 26

to BOSE speaker amp. terminals 26 and 42, and guides various operations.

Also at the same time voice activated control module sends mute signal

from voice activated control module terminal 27

to audio unit terminal 9.

in order to prevent any noise input into microphone.

SKIA9341E

DI-138

VOICE ACTIVATED CONTROL SYSTEM

AV COMMUNICATION LINE

Voice Activated Control Module is connected to the following units through AV Communication Line. Each unit
transmits/receives data with AV communication line.

AV and NAVI control unit (with navigation system)

AV control unit (without navigation system)

Display

Audio unit

Multifunction switch

VOICE ACTIVATED CONTROL SYSTEM

DI-139

C

D

E

F

G

H

I

J

L

M

A

B

DI

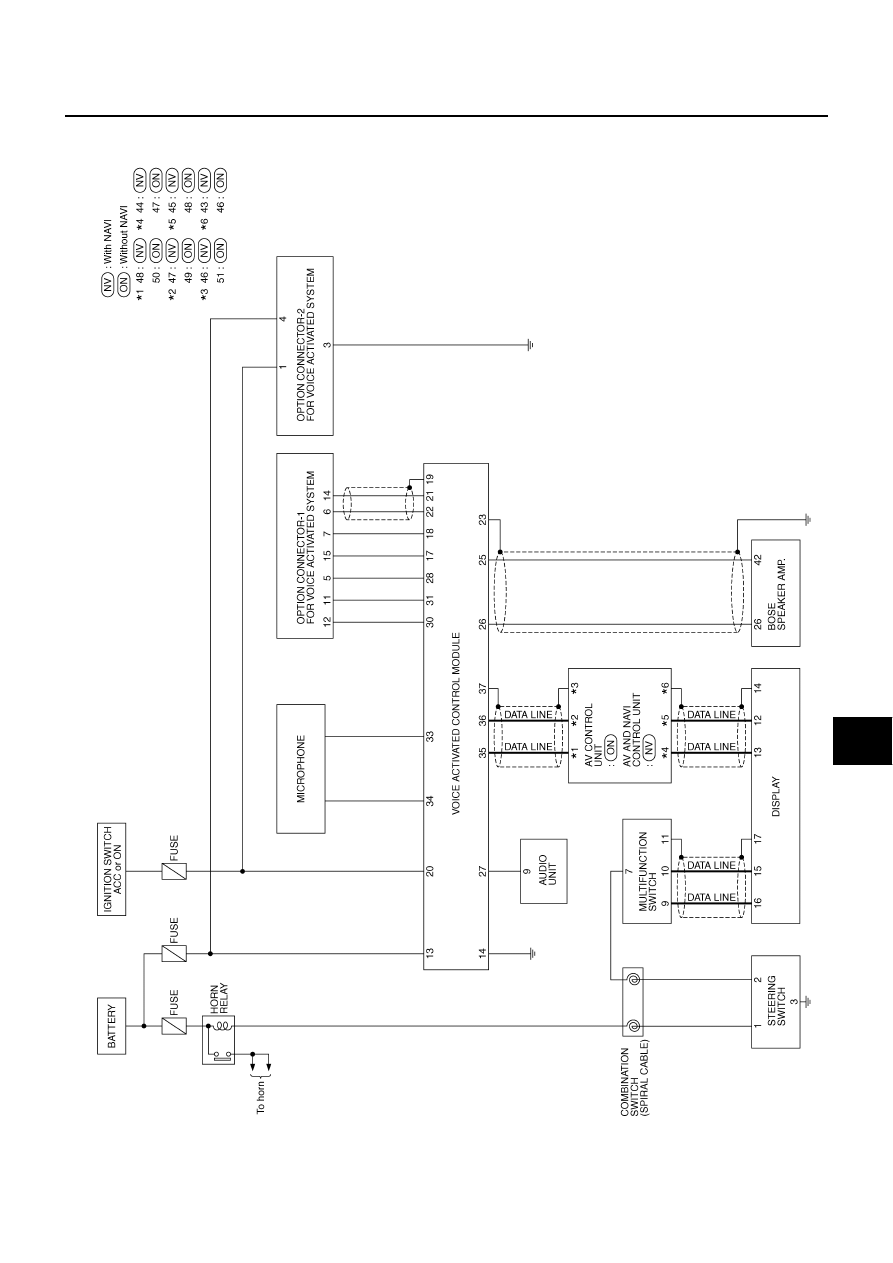

Schematic

AKS004E9

TKWA0620E

DI-140

VOICE ACTIVATED CONTROL SYSTEM

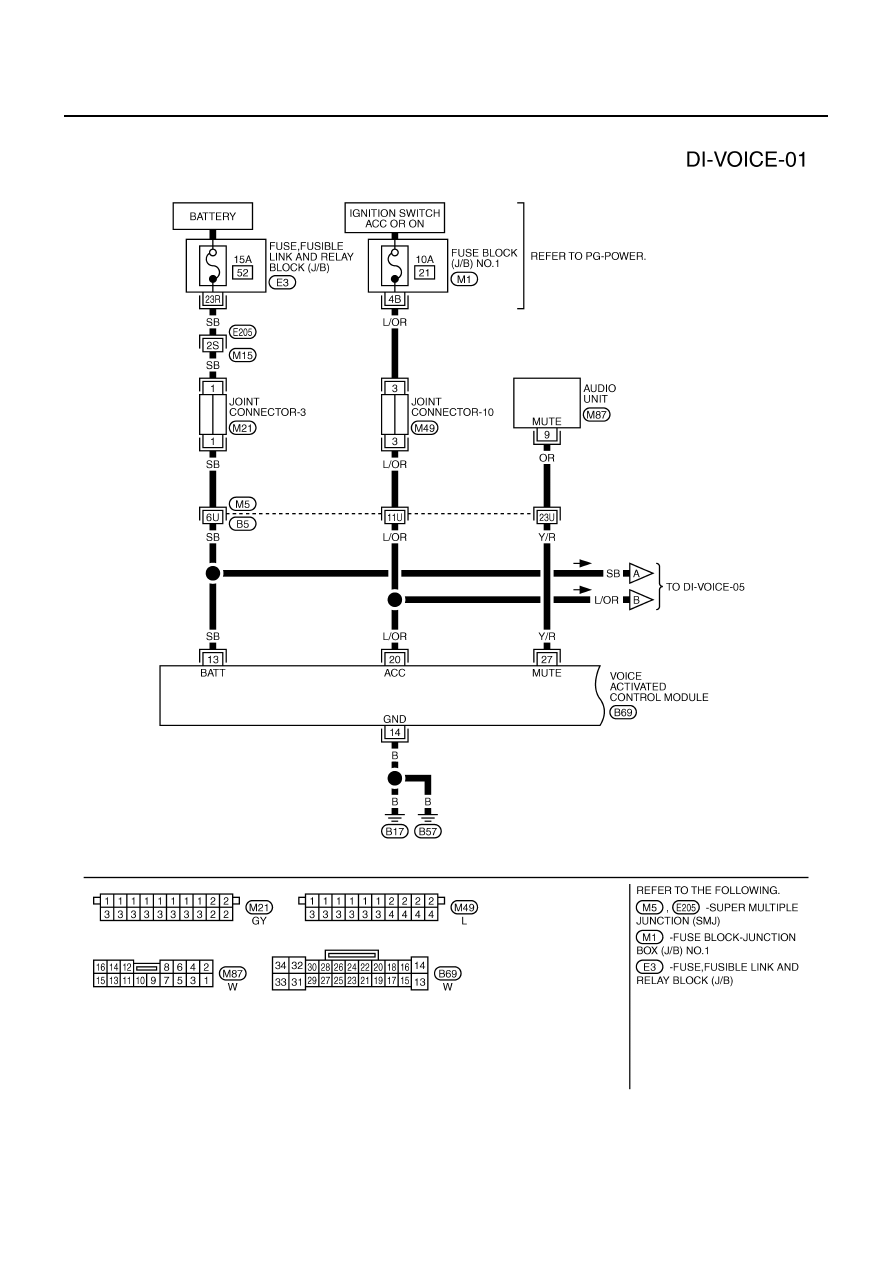

Wiring Diagram — VOICE —

AKS004EA

TKWA0621E
