Infiniti M45 (Y34). Manual - part 322





VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-133

C

D

E

F

G

H

I

J

L

M

A

B

DI

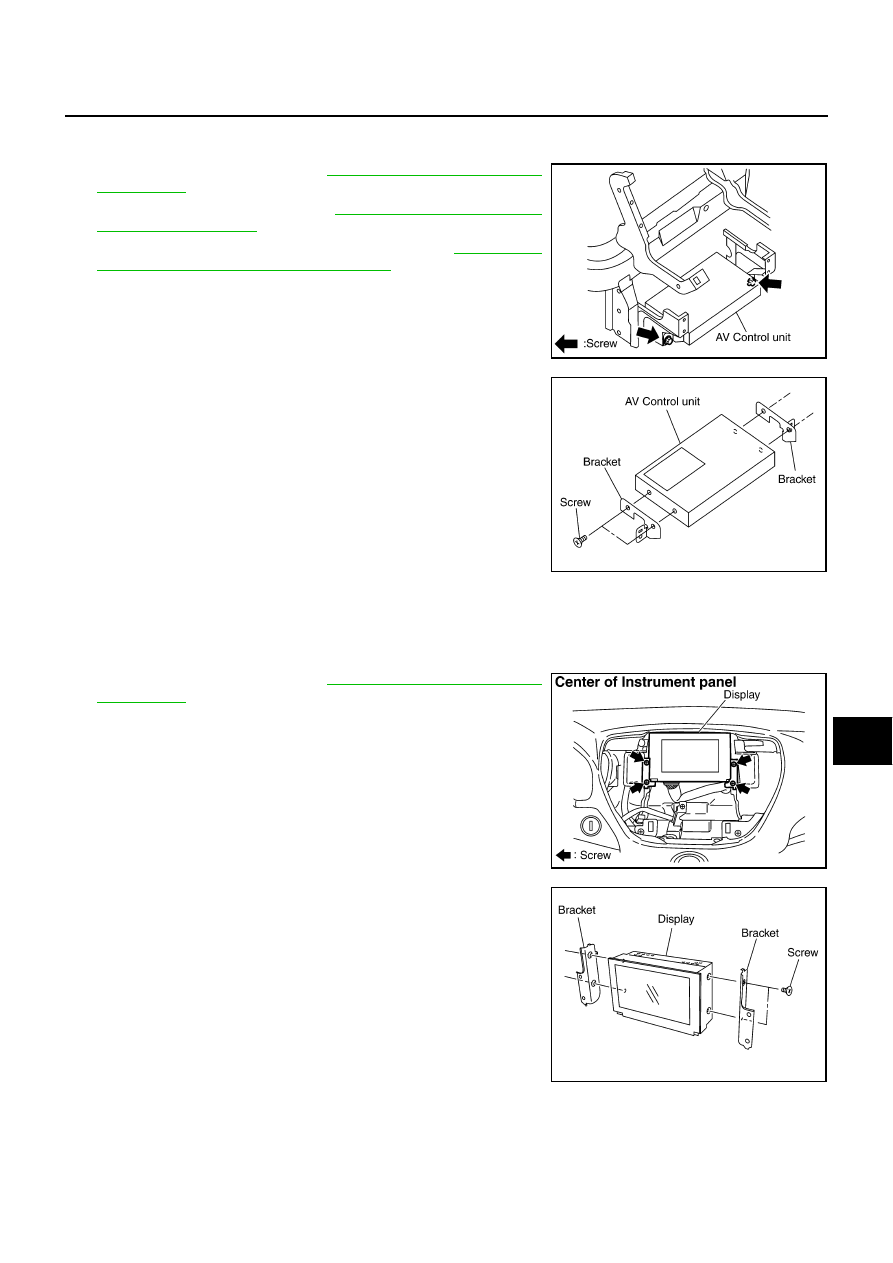

Removal and Installation of AV Control Unit

AKS0040M

REMOVAL

1.

Remove cluster lid C. Refer to

IP-10, "INSTRUMENT PANEL

ASSEMBLY"

 .

2.

Remove warning chime. Refer to

DI-64, "Removal and Installa-

tion of Warning Chime"

 .

3.

Remove tire pressure warning control unit. Refer to

WT-8, "TIRE

PRESSURE WARNING CONTROL UNIT"

 .

4.

Remove screws (2), and remove AV control unit with power tool.

5.

Remove screws (4), and remove bracket.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Display

AKS0040K

REMOVAL

1.

Remove cluster lid C. Refer to

IP-10, "INSTRUMENT PANEL

ASSEMBLY"

 .

2.

Remove screws (4), and remove display.

3.

Remove screws (4), and remove bracket.

INSTALLATION

Install in the reverse order of removal.

PKIA1673E

PKIA1674E

PKIA1669E

PKIA1670E

DI-134

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

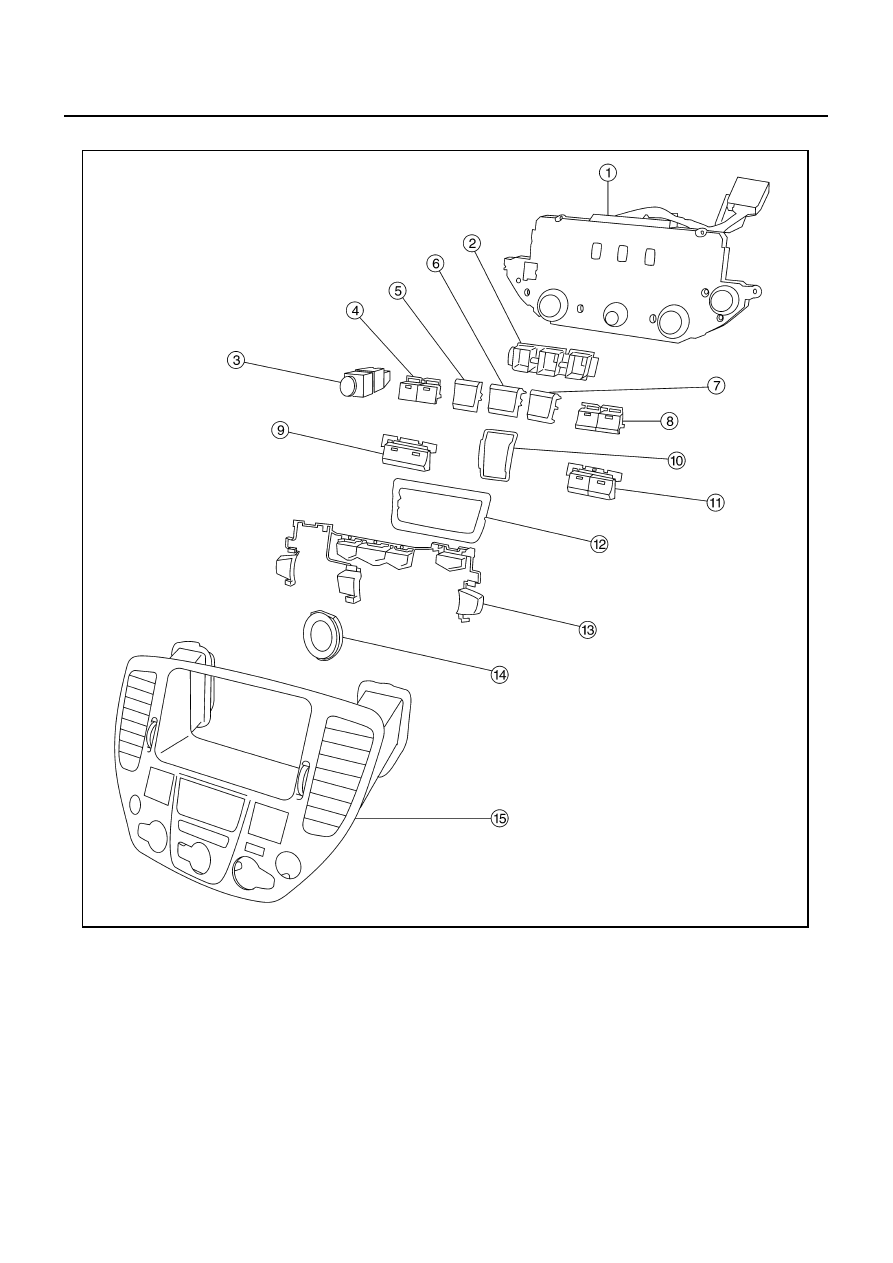

Disassembly and Assembly of Multifunction Switch

AKS0040L

DISASSEMBLY

1.

Remove screw (8).

2.

Remove switches.

ASSEMBLY

Assemble in the reverse order of disassembly.

1.

Multifunction switch

2.

Escutcheon

3.

Hazard switch

4.

Defroster, rear defogger switch

5.

Function switch

6.

Function switch

7.

Function switch

8.

TAPE and DISC switch

9.

A/C switch

10. Escutcheon

11. AM and FM switch

12. Escutcheon

13. Switch assembly

14. Escutcheon

15. Cluster lid C

PKIA1671E

CLOCK

DI-135

C

D

E

F

G

H

I

J

L

M

A

B

DI

CLOCK

PFP:25820

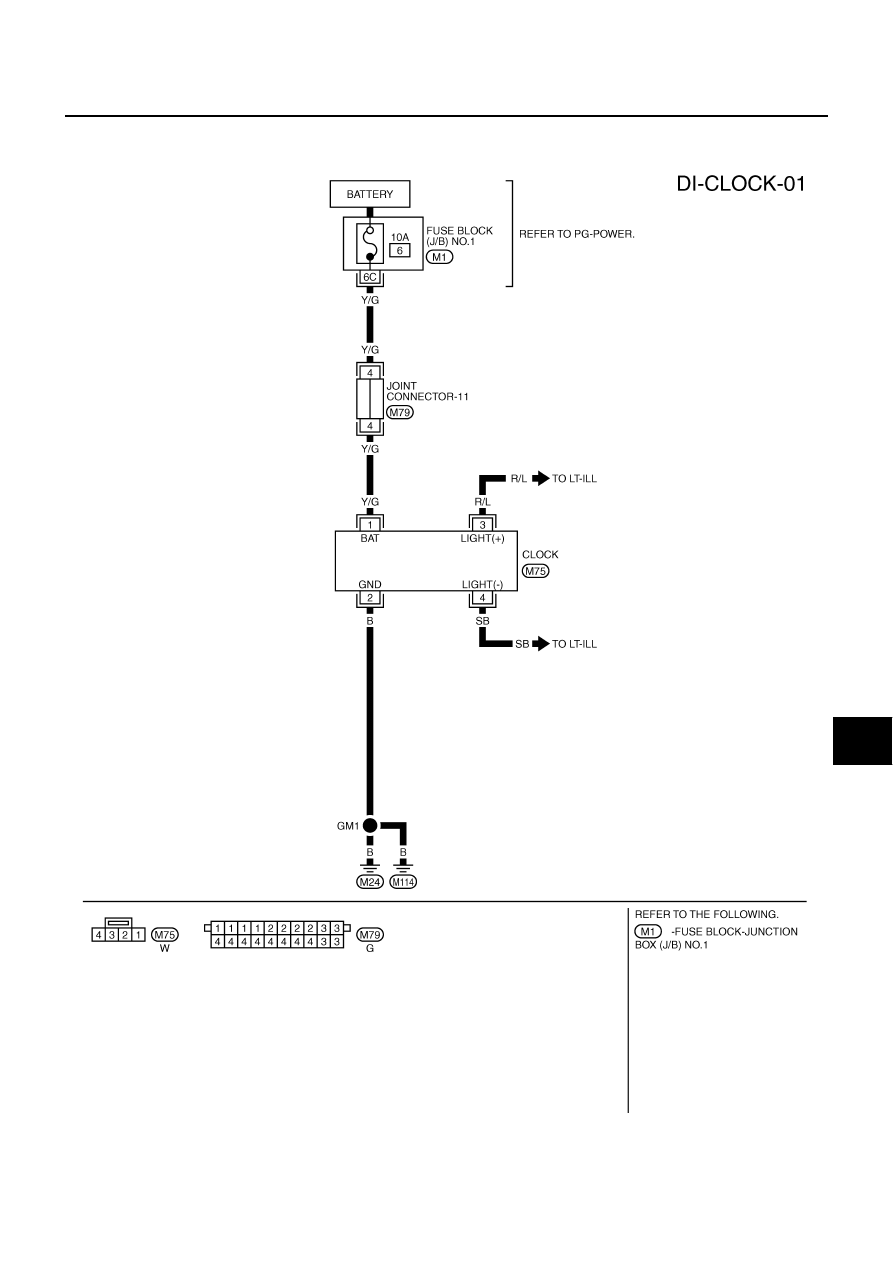

Wiring Diagram — CLOCK —

AKS002K9

TKWM0093E

DI-136

CLOCK

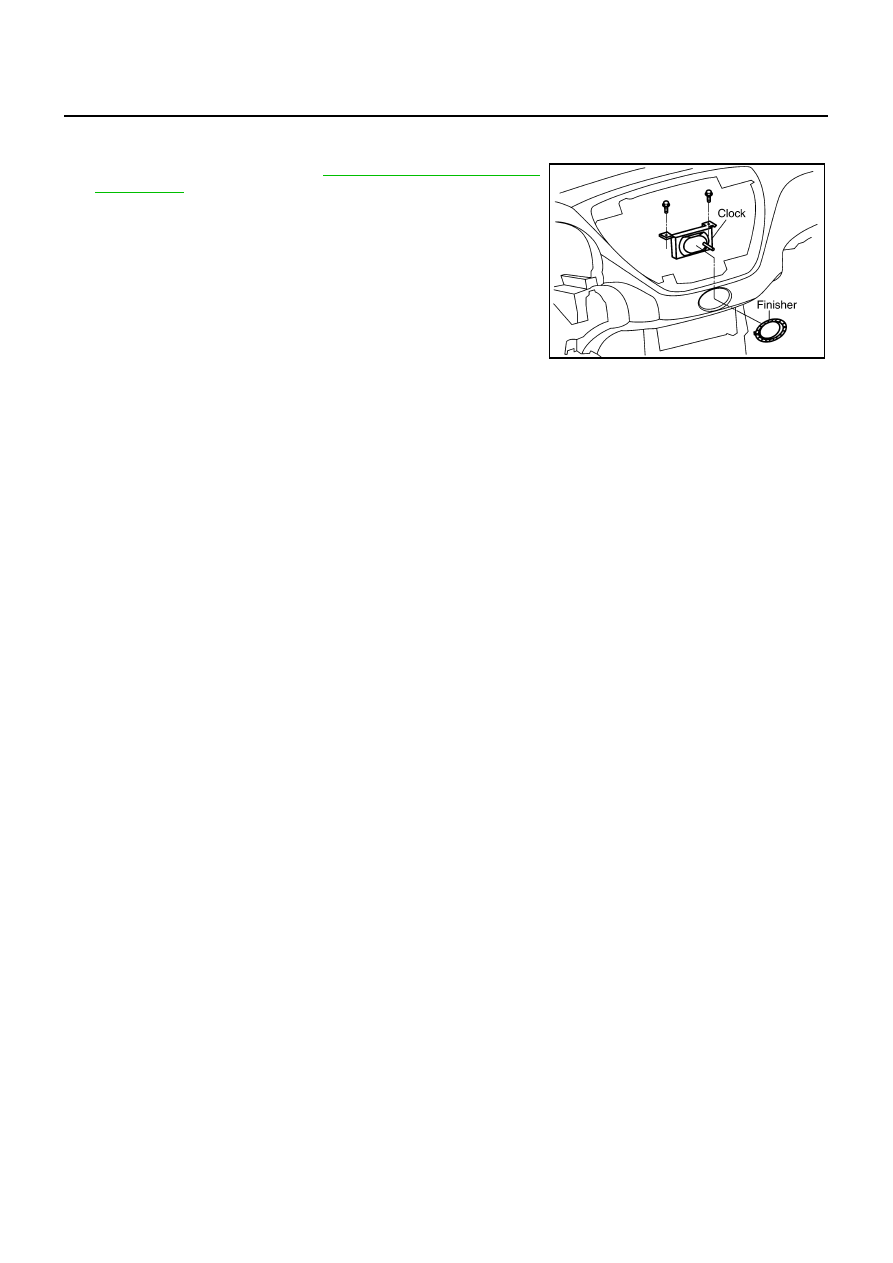

Removal and Installation

AKS002KA

REMOVAL

1.

Remove cluster lid C, refer to

IP-10, "INSTRUMENT PANEL

ASSEMBLY"

 .

2.

Remove screws (2), and remove clock.

INSTALLATION

Install in the reverse order of removal.

PKIA1677E
