VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-93

C

D

E

F

G

H

I

J

L

M

A

B

DI

3.

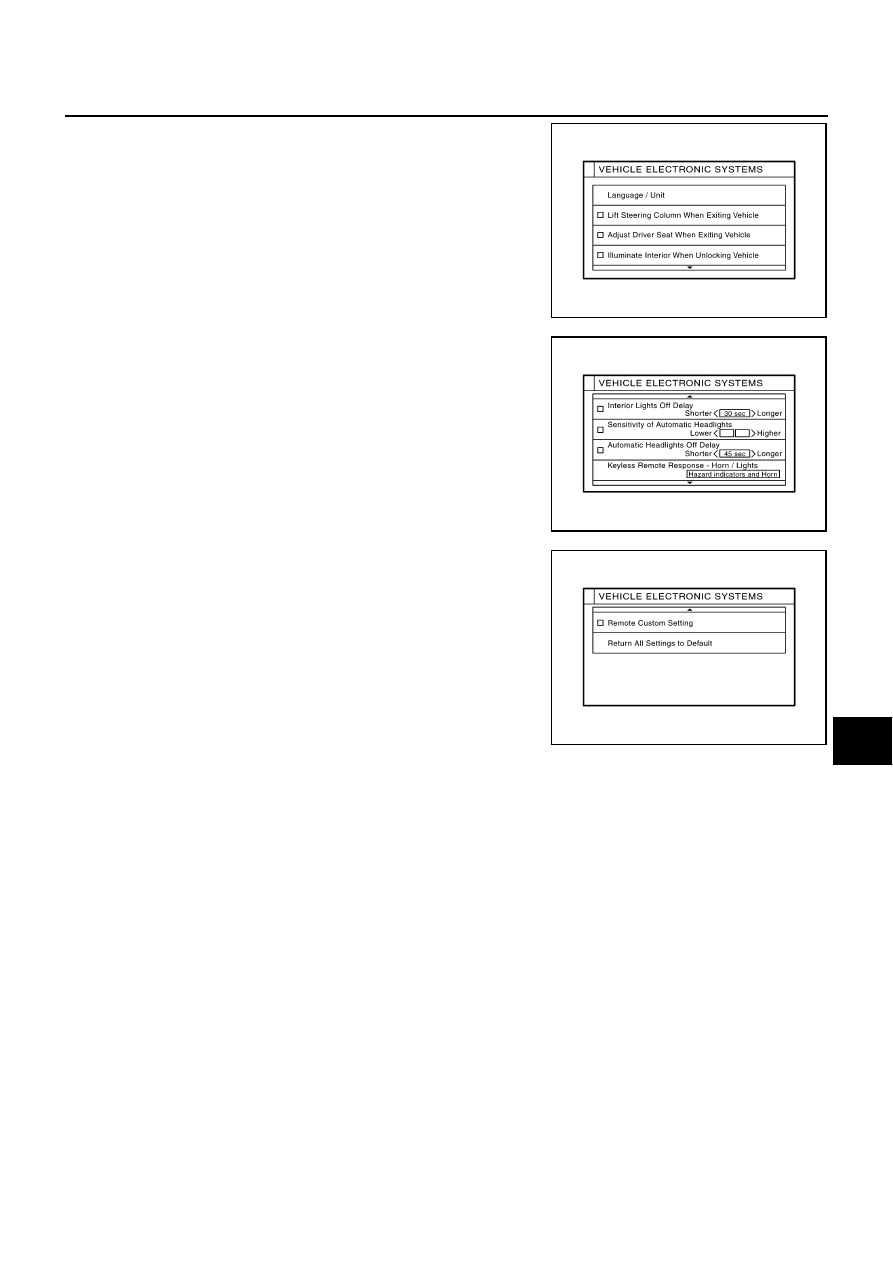

Select a vehicle status shown on the display.

Adjustable vehicle status

Language/Unit

Lift Steering Column When Exiting Vehicle

Adjust Driver Seat When Exiting Vehicle

Illuminate Interior When Unlocking Vehicle

Interior Lights Off Delay

Sensitivity of Automatic Headlights

Automatic Headlights Off Delay

Keyless Remote Response - Horn/Lights

Remote Custom Setting

Return All Settings to Default

SKIA9347E

SKIA9348E

SKIA9349E

DI-94

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

Adjustable Vehicle Status

WARNING INDICATIONS

When combination meter receives warning signal from some control units or sensors, then combination meter
warning lamp is illuminated.
Then combination meter sends warning signal to AV control unit to display warning indications on the screen.

Setting items

Setting variations

Initial

setting

Operation

Language/Unit

Language: English/Français

English

Language and unit can be changed in this mode.

Unit: US/Metric

US

Lift Steering Column When Exiting
Vehicle

ON/OFF

ON

The steering column automatically tilts up when the
driver gets out, and returns to the original position
when the driver gets on.

When driver door is closed and key removed from
ignition key cylinder, the steering column tilts up.

When driver door is open and key is turned to
OFF, the steering column tilts up.

Adjust Driver Seat When Exiting
Vehicle

ON/OFF

ON

The driver’s seat automatically slides backward
when the driver gets out, and returns to the original
position when the driver gets on.

Illuminate Interior When Unlocking
Vehicle

ON/OFF

ON

The interior room lamps are illuminate automatically
when the door unlocked with key or key fob.

Interior Lights Off Delay

OFF/15/30/45 sec.

30 sec.

Interior room lamp timer period can be changed in
this mode. Selects interior room lamp timer.

Sensitivity of Automatic Headlights

1/2/3/4

3

Sensitivity of auto light sensor can be adjusted.

Automatic Headlights Off Delay

OFF/20/45/90/120/150/180

sec.

45 sec.

Auto light delay off timer period can be changed in
this mode. Selects auto light delay off timer.

Keyless Remote Response - Horn/
Lights

Hazard indicators only

/Hazard indicators and horn

Hazard

indica-

tors only

Hazard indicators Only:

Lock operation: The hazard warning lamp flash
twice when lock the doors with key fob.

Unlock operation: No response.

Hazard indicators and horn:

Lock operation: The hazard warning lamp flash
twice and horn sounds once when lock the doors
with key fob.

Unlock operation; The hazard warning lamp flash
once when unlock the doors with key fob.

Remote Custom Settings

ON/OFF

ON

The driving position -seat and steering column- and
the audio setting -current source and radio station
presets- are set to the same condition you made last
time by identifying the key fob ID.

This function operates when unlock the doors by
using the key fob.

NOTE:
It is necessary to memorize the driving position
before using this function.

Return All Settings to Default

None

None

If this key is selected, all vehicle electronic systems
setting are return to default.

Warning indicators

Warning lamps in

instrument panel

Warning detection and cancel conditions

Cases of malfunction

DOOR OPEN

Door

Detection condition

Vehicle is running [approx. 5 km/h
(3 MPH) or faster] and door ajar of
any of the doors is detected.

Door is open

Cancel condition

Vehicle is stopped and all the
doors lock.

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-95

C

D

E

F

G

H

I

J

L

M

A

B

DI

Precautions for AV Control Unit Replacement

AKS003ZR

The AV control unit has the following information stored in its memory. Record the memory contents before
replacing the control unit, and input them in the new unit as necessary.

NOTE:
Only removing the battery does not erase the memory.

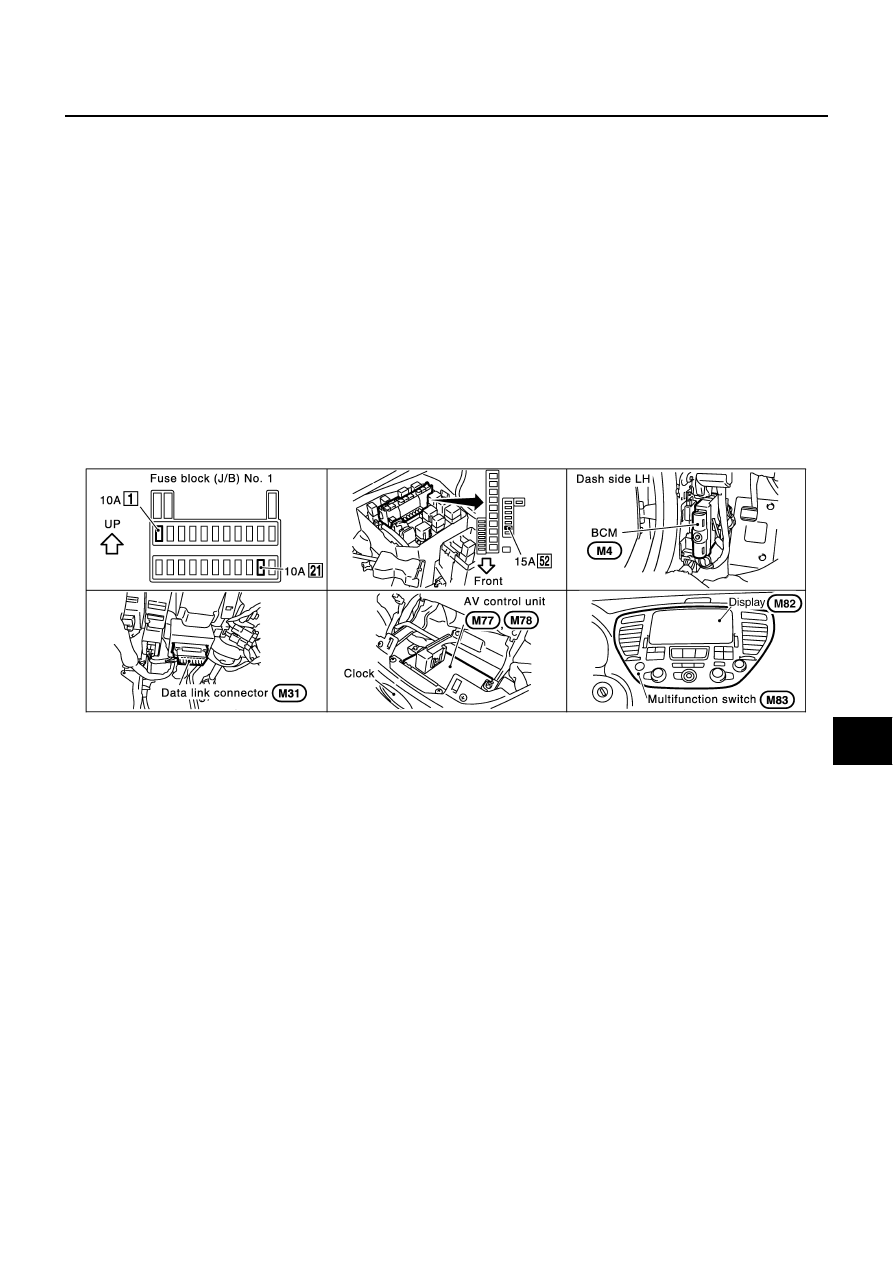

Component Parts and Harness Connector and Harness Connector Location

AKS003ZS

<FM·AM>

Preset frequency

Area for indicating station, selection of overlapped stations

<CD>

Program status

<Sound quality>

Volume balance memory set values

Equalizer memory set values

<Image quality>

Brightness of light when ON/OFF

Dimming switching

Display color switching

SKIA9346E

DI-96

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

Schematic

AKS003ZT

TKWA0604E
