VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITH NAVIGA-

TION SYSTEM

DI-81

C

D

E

F

G

H

I

J

L

M

A

B

DI

DIAGNOSIS ITEM

Self-Diagnosis Mode

AKS004DU

Refer to

AV-69, "Self-Diagnosis Mode"

 .

Confirmation/Adjustment Mode

AKS004DV

Refer to

AV-73, "Confirmation/Adjustment Mode"

 .

CONSULT-ll Function

AKS004DW

Refer to

AV-79, "CONSULT-II Function"

 .

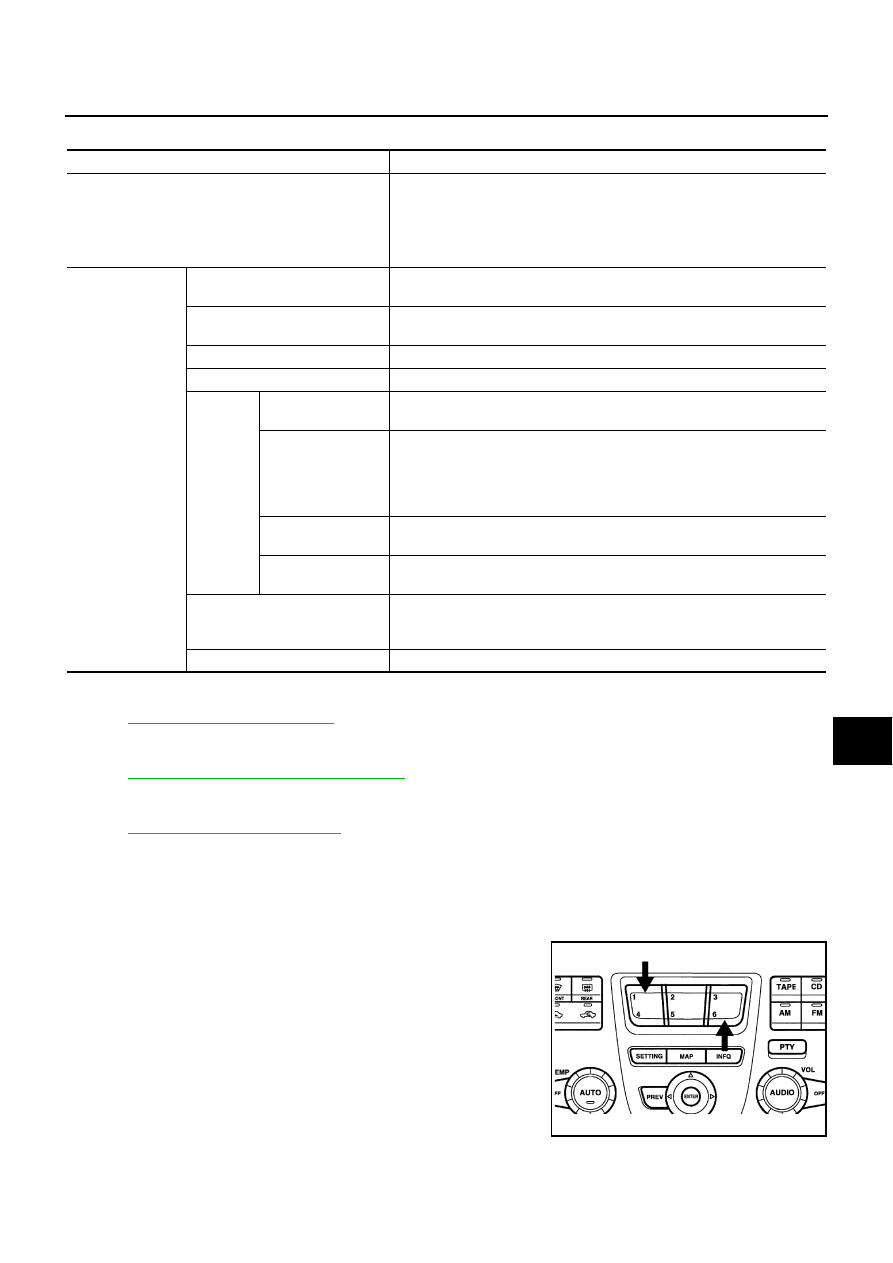

Multifunction Switch Self-Diagnosis Function

AKS004DX

It can check ON/OFF operation of each switch in the multifunction switch and diagnose the input signals to the
rear control switch (audio) and steering switch (audio).

STARTING THE SELF-DIAGNOSIS MODE

1.

Turn ignition switch from OFF to ACC.

2.

 Within 10 seconds press and hold the function switches “1” and
“6” simultaneously for 5 seconds.

Then the self-diagnosis operates.

Mode

Description

Self-diagnosis

AV and NAVI Control unit diagnosis (DVD-ROM drive will not be diag-
nosed when no map DVD-ROM is in it.)

Analyzes connection between the AV and NAVI control unit and the GPS
antenna connection between the AV and NAVI control unit and each unit,
and operation of each unit.

CONFIRMATION/
ADJUSTMENT

Display diagnosis

Color tone and shading of the screen can be checked by the display of a
color bar and a gray scale.

Vehicle signals

Analyzes the following vehicle signals: Vehicle speed signal, parking brake
signal, light signal, ignition switch signal, and reverse signal.

Speaker Test

Checks the connection of each speaker using a test tone.

Auto Climate Control

Turns all A/C screens on display and A/C switch indicator lamp on.

Navigation

Display Longitude &
Latitude

Display the map.Use the joystick to adjust position. Longitude and latitude
will be displayed.

Speed Calibration

Under ordinary conditions, the navigation system distance measuring func-
tion will automatically compensate for minute decreases in wheel and tire
diameter caused by tire wear or low pressure.Speed calibration immediately
restores system accuracy in cases such as when distance calibration is
needed because of the use of tire chains in inclement weather.

Angle Adjustment

Corrects difference between actual turning angle of a vehicle and turning
angle of the car mark on the display.

Initialize Location

This mode is for initializing the current location. Use when the vehicle is
transported a long distance on a trailer, etc.

History of Errors

Diagnosis results previously stored in the memory (before turning ignition
switch ON) are displayed in this mode. Time and location when/where the
errors occurred are also displayed.

Rear View Camera

Changes position of the aiming line overlapped on the rear view image.

SKIA0609E

DI-82

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITH NAVIGA-

TION SYSTEM

EXITING THE SELF-DIAGNOSIS MODE

Turn ignition switch OFF, or press and hold the function switches “1” and “6” simultaneously for 5 seconds.
Then the self-diagnosis ends.

DIAGNOSIS FUNCTION

It can illuminate all the indicators (LED) in the multifunction switch.

It can check for continuity of the switches by sounding the buzzer when the multifunction switch is
pressed.

It can check for continuity of harness between multifunction switch and rear control switch (audio), or
steering switch (audio).

NOTE:
When it check continuity of harness between multifunction switch and rear control switch (audio), rear
control cancel switch is OFF position.

Power Supply and Ground Circuit Check for AV and NAVI Control Unit

AKS004DY

Refer to

AV-83, "Power Supply and Ground Circuit Check"

 .

Power Supply and Ground Circuit Inspection for Display

AKS004DZ

1.

CHECK FUSES

Check 15A fuse [No. 52, located in fuse, fusible link and relay block (J/B)] is blown.

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to

PG-

2, "POWER SUPPLY ROUTING"

 .

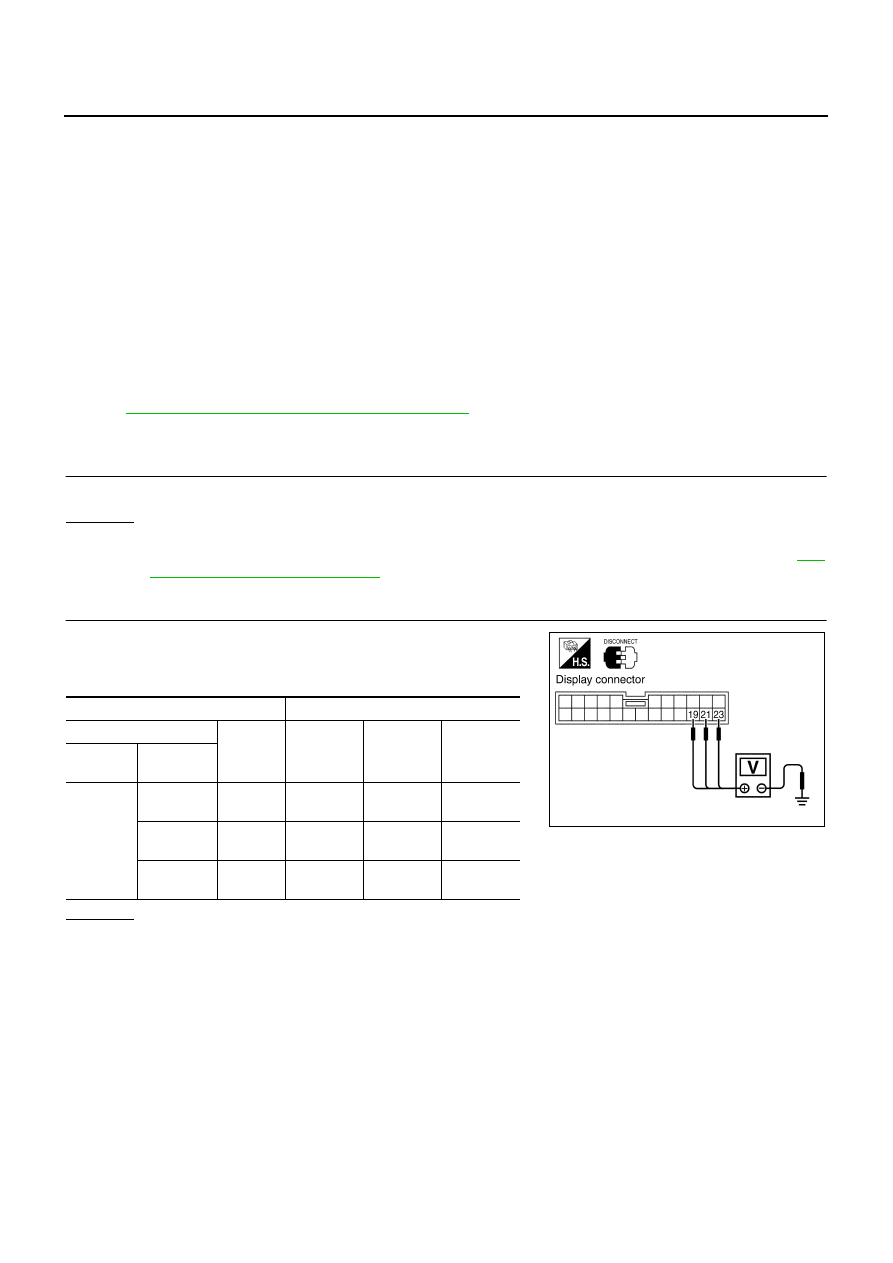

2.

CHECK POWER SUPPLY CIRCUIT

1.

Disconnect display connector.

2.

Check voltage between display harness connector M82 termi-
nals and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check harness for open or short between display and fuse.

Terminals

Ignition switch position

(+)

(–)

OFF

ACC

ON

Connector

Terminal

(Wire color)

M82

19 (L/B)

Ground

0V

Battery
voltage

Battery
voltage

21 (SB)

Ground

Battery
voltage

Battery
voltage

Battery
voltage

23 (SB)

Ground

Battery
voltage

Battery
voltage

Battery
voltage

SKIA0552E

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITH NAVIGA-

TION SYSTEM

DI-83

C

D

E

F

G

H

I

J

L

M

A

B

DI

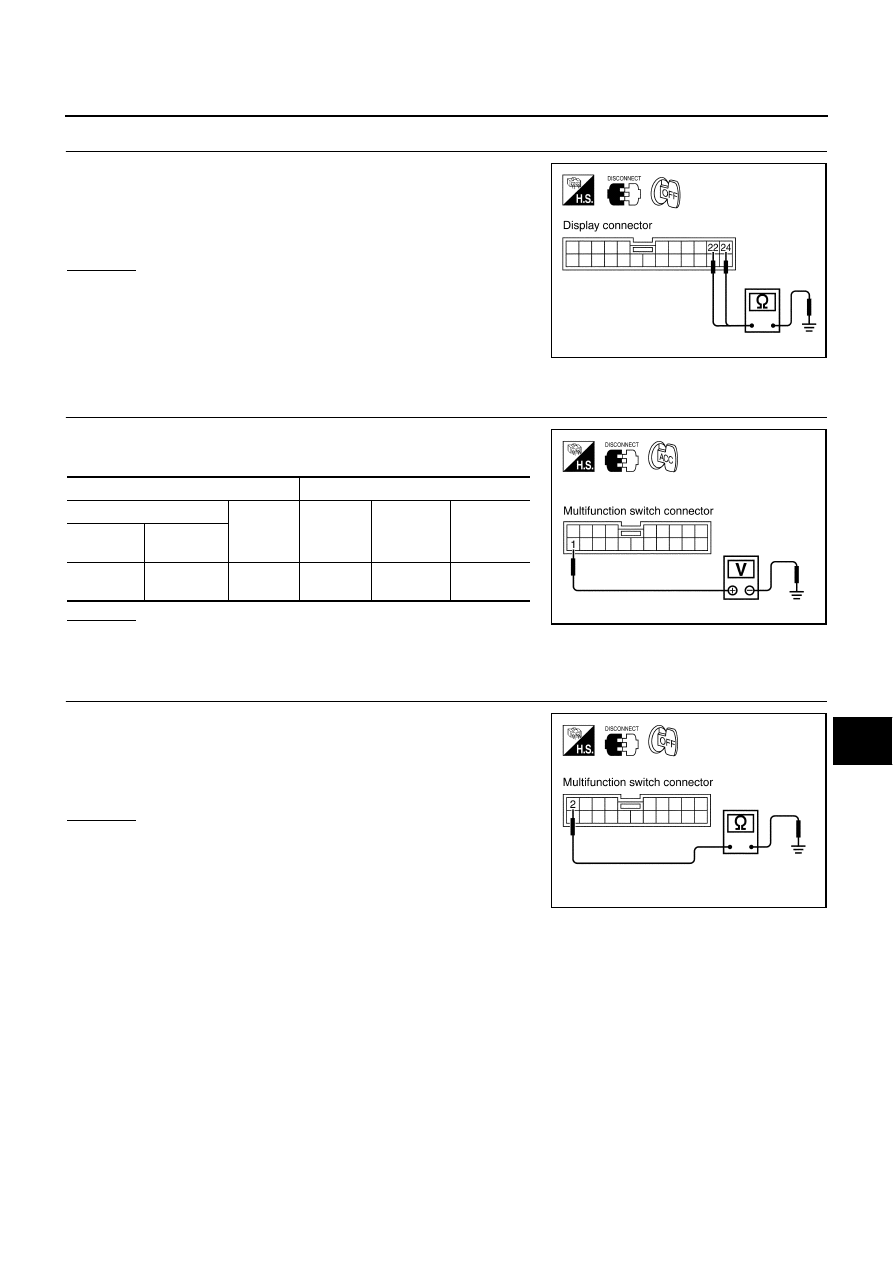

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between display harness connector M82 termi-
nals 22 (B), 24 (B) and ground.

OK or NG

OK

>> Inspection end.

NG

>> Repair harness or connector.

Power Supply and Ground Circuit Inspection for Multifunction Switch

AKS004E0

1.

CHECK POWER SUPPLY CIRCUIT

1.

Disconnect multifunction switch connector.

2.

Check voltage between multifunction switch and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Check harness for open or short between multifunction switch and fuse.

2.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between multifunction switch harness connec-
tor M83 terminal 2 (B) and ground.

OK or NG

OK

>> Inspection end.

NG

>> Repair harness or connector.

Continuity should exist.

SKIA0553E

Terminals

Ignition switch position

(+)

(–)

OFF

ACC

ON

Connector

Terminal

(Wire color)

M83

1 (L/B)

Ground

0V

Battery
voltage

Battery
voltage

SKIA0534E

Continuity should exist.

SKIA0535E

DI-84

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITH NAVIGA-

TION SYSTEM

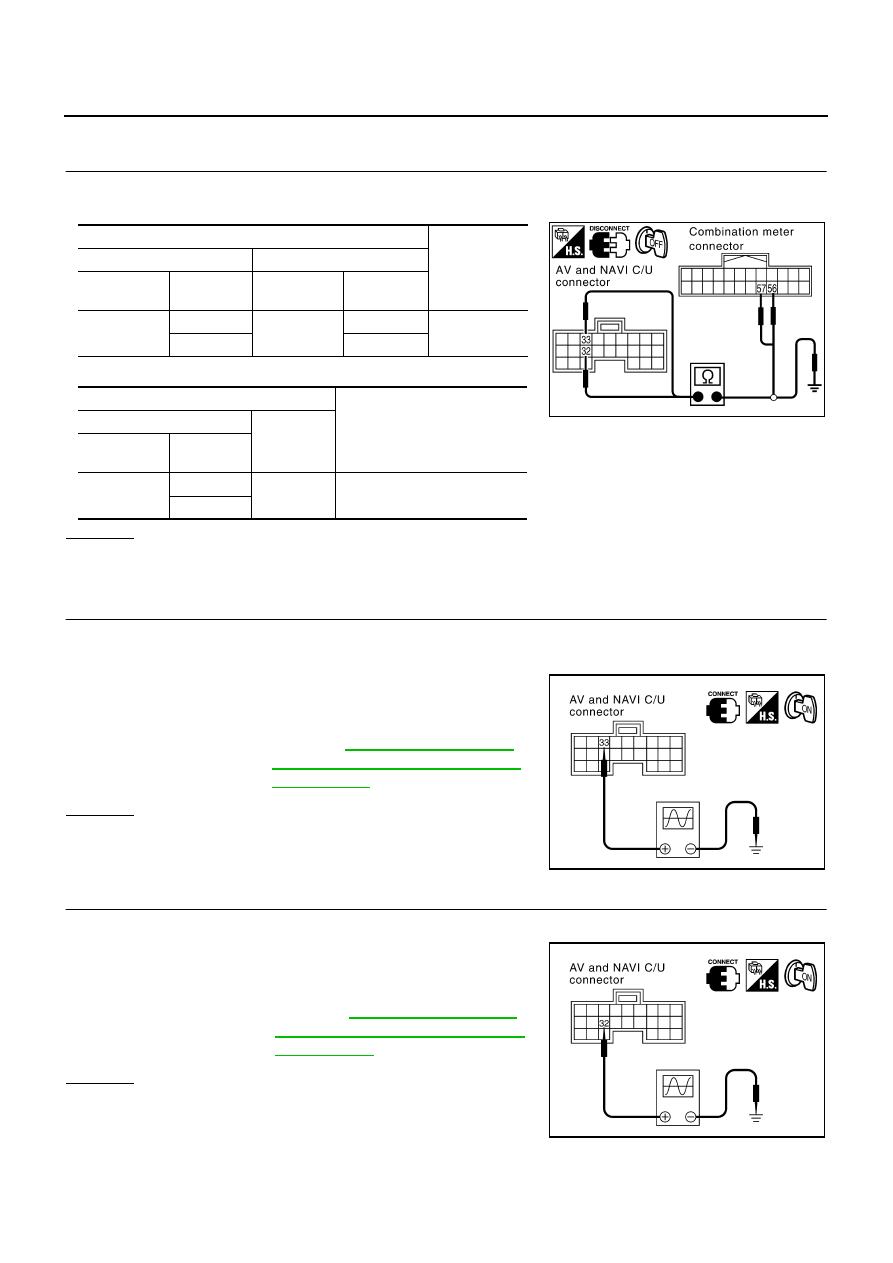

No Fuel Information is Displayed/No Warning Message is Displayed

AKS004E1

1.

CHECK HARNESS

1.

Disconnect connectors of combination meter, BCM, and AV and NAVI control unit.

2.

Check continuity between AV and NAVI control unit and combination meter.

3.

Check continuity between AV and NAVI control unit and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Repair harness or connector.

2.

CHECK COMMUNICATION SIGNAL (AV-ME)

1.

Connect connectors of combination meter, BCM, and AV and NAVI control unit.

2.

Turn ignition switch ON.

3.

Check voltage signal between AV and NAVI control unit harness
connector B29 terminal 33 (LG) and ground with CONSULT-ll or
oscilloscope.

OK or NG

OK

>> GO TO 3.

NG

>> Replace AV and NAVI control unit

3.

CHECK COMMUNICATION SIGNAL (ME–AV)

1.

Turn ignition switch ON and display “VEHICLE ELECTRONIC SYSTEMS” screen.

2.

Check voltage signal between AV and NAVI control unit harness
connector B29 terminal 32 (PU) and ground with CONSULT-ll or
oscilloscope.

OK or NG

OK

>> Replace AV and NAVI control unit.

NG

>> Replace combination meter.

Terminals

Continuity

AV and NAVI control unit (+)

Combination meter (–)

Connector

Terminal

(Wire color)

Connector

Terminal

(Wire color)

B29

33 (LG)

M42

56 (LG)

Yes

32 (PU)

57 (PU)

Terminals

Continuity

AV and NAVI control unit (+)

(–)

Connector

Terminal

(Wire color)

B29

33 (LG)

Ground

No

32 (PU)

SKIA4205E

33 (LG) - Ground

: Refer to

AV-64, "Terminals and

Reference Value for AV and NAVI
Control Unit"

 .

PKIA6801E

32 (PU) - Ground

: Refer to

AV-64, "Terminals and

Reference Value for AV and NAVI
Control Unit"

 .

PKIA6802E
