COMBINATION METERS

DI-9

C

D

E

F

G

H

I

J

L

M

A

B

DI

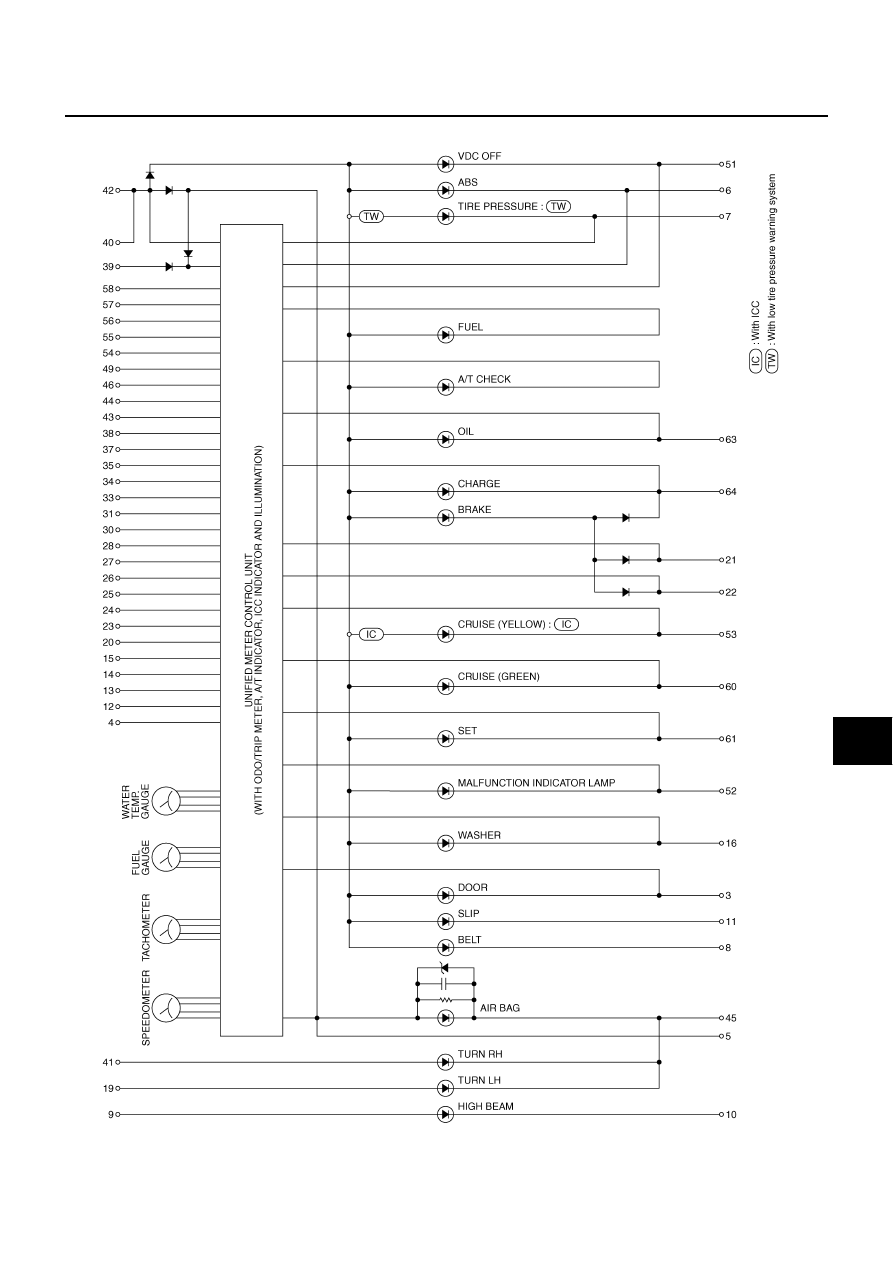

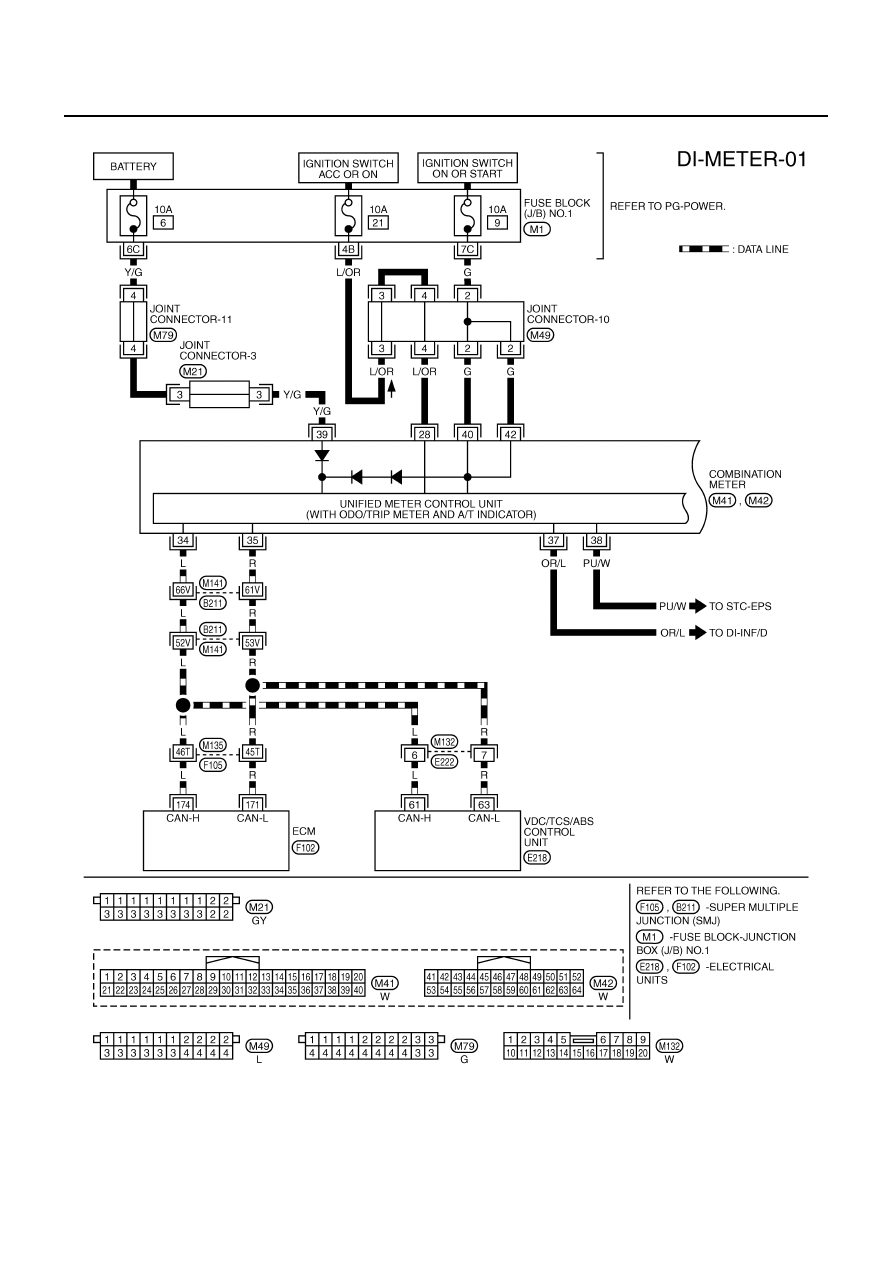

Schematic

AKS002HR

TKWA0578E

DI-10

COMBINATION METERS

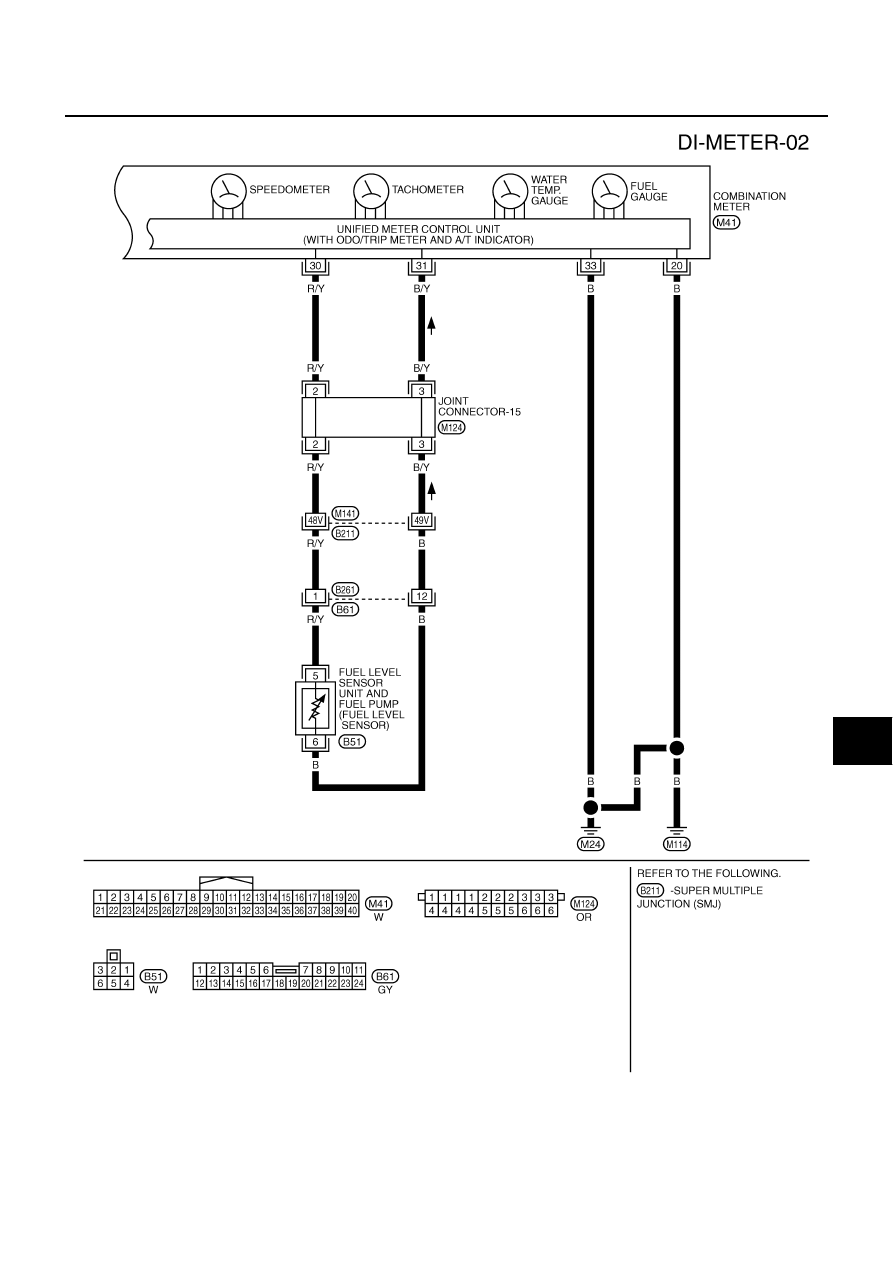

Wiring Diagram — METER —

AKS002HS

TKWA0579E

COMBINATION METERS

DI-11

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWA0580E

DI-12

COMBINATION METERS

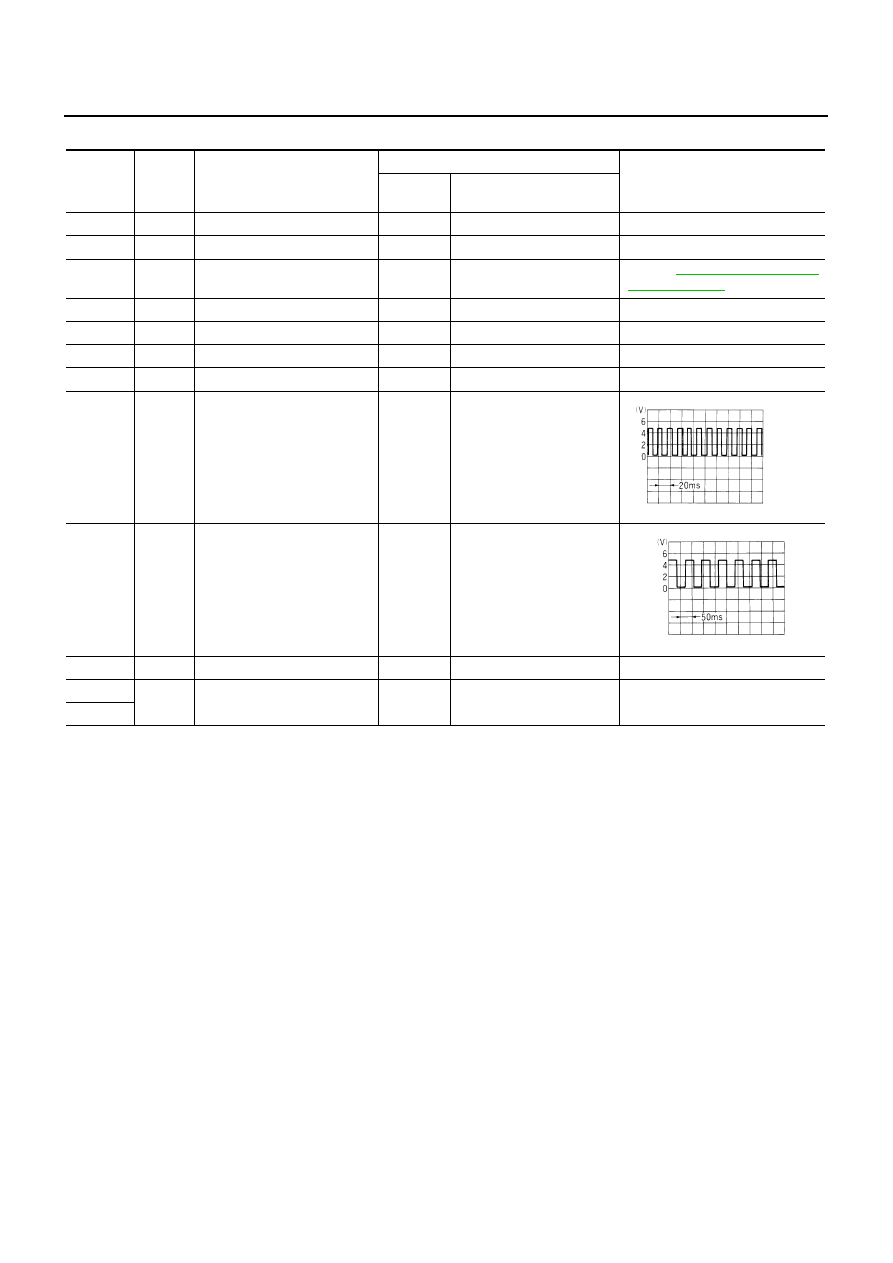

Terminals and Reference Value for Combination Meter

AKS002HU

Meter/Gauges Operation, Odo/Trip Meter, A/T Indicator and ICC System Display

AKS002HV

SELF–DIAGNOSIS FUNCTION

●

Odo/trip meter segment, A/T indicator segment and ICC system display can be checked in self-diagnosis
mode.

●

Meters/gauges can be checked in self-diagnoses mode.

HOW TO ALTERNATE DIAGNOSIS MODE

1.

Turn ignition switch ON, and switch the odo/ trip meter to “trip A” or “trip B”.

NOTE:
If the diagnosis function is activated with the trip meter A displayed, the mileage on the trip meter A is
reset to 0.0 km (same as the trip meter B display).

2.

Turn ignition switch OFF.

3.

While pushing the odo/trip meter switch, turn ignition switch ON again.

4.

Check that the trip meter displays “0000.0”.

5.

Push the odo/trip meter switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)

Terminal

No.

Wire

color

Item

Measuring condition

Reference value (V)

Ignition

switch

Operation or condition

20

B

Ground

ON

—

Approx. 0

28

L/OR

Ignition switch ACC or ON

ACC

—

Battery voltage

30

R/Y

Fuel level senor signal

—

—

Refer to

DI-19, "Electrical Compo-

nents Inspection"

 .

31

B/Y

Fuel level sensor ground

—

—

—

33

B

Ground

ON

—

Approx. 0

34

L

CAN H

—

—

—

35

R

CAN L

—

—

—

37

OR/L

Vehicle speed signal (8-pulse)

ON

Speedometer operated
[When vehicle speed is
approx. 40 km/h (25 MPH)]

38

PU/W

Vehicle speed signal (2-pulse)

ON

Speedometer operated
[When vehicle speed is
approx. 40 km/h (25 MPH)]

39

Y/G

Battery power source

OFF

—

Battery voltage

40

G

Ignition switch ON or START

ON

—

Battery voltage

42
