Infiniti M45 (Y34). Manual - part 283





OVERHEATING CAUSE ANALYSIS

CO-5

C

D

E

F

G

H

I

J

K

L

M

A

CO

OVERHEATING CAUSE ANALYSIS

PFP:00012

Troubleshooting Chart

ABS004R1

Symptom

Check items

Cooling sys-
tem parts
malfunction

Poor heat transfer

Water pump malfunction

Worn or loose drive belt

Thermostat stuck closed

Damaged fins

Dust contamination or
paper clogging

Physical damage

Clogged radiator cooling
tube

Excess foreign material
(rust, dirt, sand, etc.)

Reduced air flow

Cooling fan does not oper-
ate

Fan assembly

High resistance to fan rota-
tion

Damaged fan blades

Damaged radiator shroud

Improper engine coolant
mixture ratio

Poor engine coolant quality

Engine coolant density

Insufficient engine coolant

Engine coolant leaks

Cooling hose

Loose clamp

Cracked hose

Water pump

Poor sealing

Radiator cap

Loose

Poor sealing

Radiator

O-ring for damage, deterio-
ration or improper fitting

Cracked radiator tank

Cracked radiator core

Reservoir tank

Cracked reservoir tank

Overflowing reservoir tank

Exhaust gas leaks into
cooling system

Cylinder head deterioration

Cylinder head gasket dete-
rioration

CO-6

OVERHEATING CAUSE ANALYSIS

Except cool-
ing system
parts mal-
function

Overload on engine

Abusive driving

High engine rpm under no
load

Driving in low gear for
extended time

Driving at extremely high
speed

Powertrain system mal-
function

Installed improper size
wheels and tires

Dragging brakes

Improper ignition timing

Blocked or restricted air
flow

Blocked bumper

Blocked radiator grille

Installed car brassiere

Mud contamination or
paper clogging

Blocked radiator

Blocked condenser

Blocked air flow

Installed large fog lamp

Symptom

Check items

COOLING SYSTEM

CO-7

C

D

E

F

G

H

I

J

K

L

M

A

CO

COOLING SYSTEM

PFP:21020

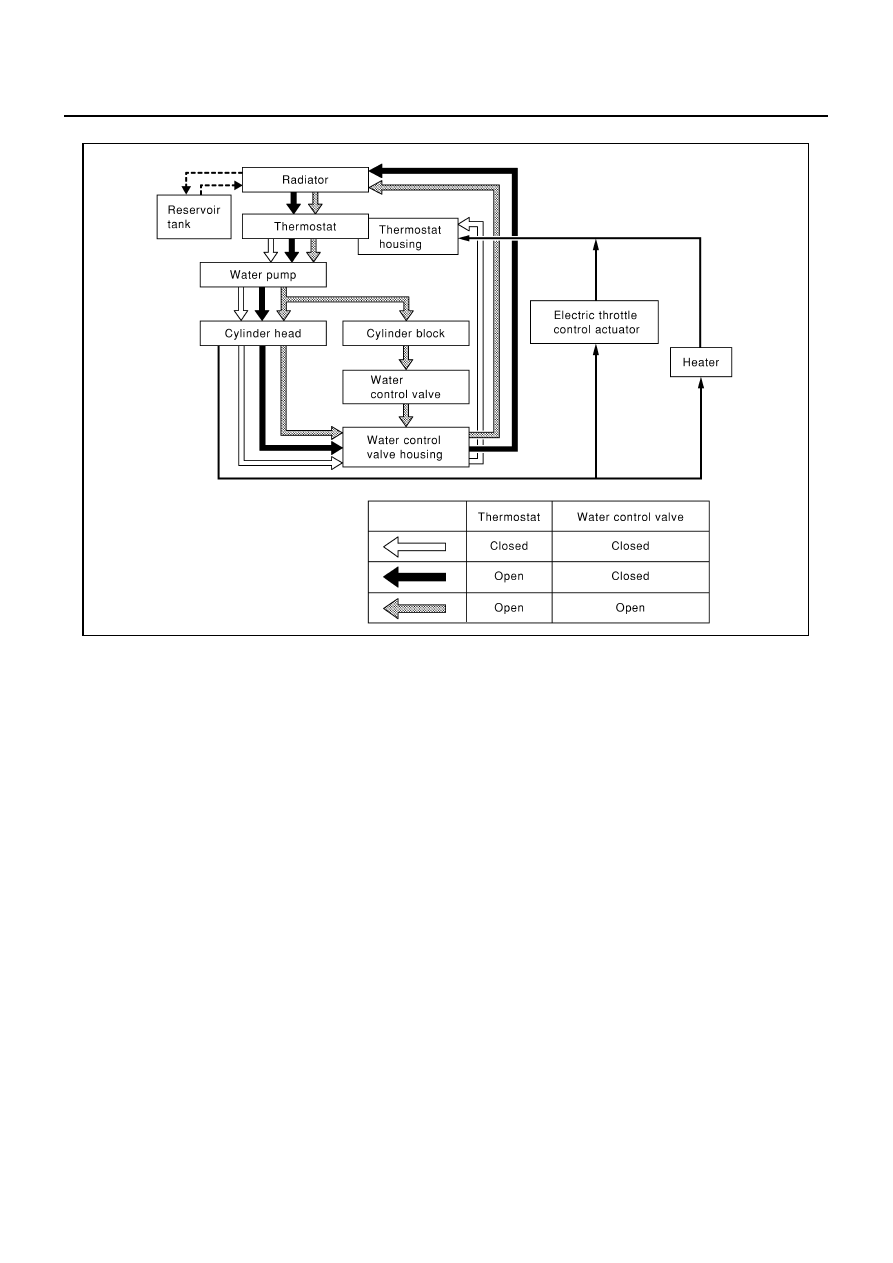

Cooling Circuit

ABS004R2

SBIA0340E

CO-8

COOLING SYSTEM

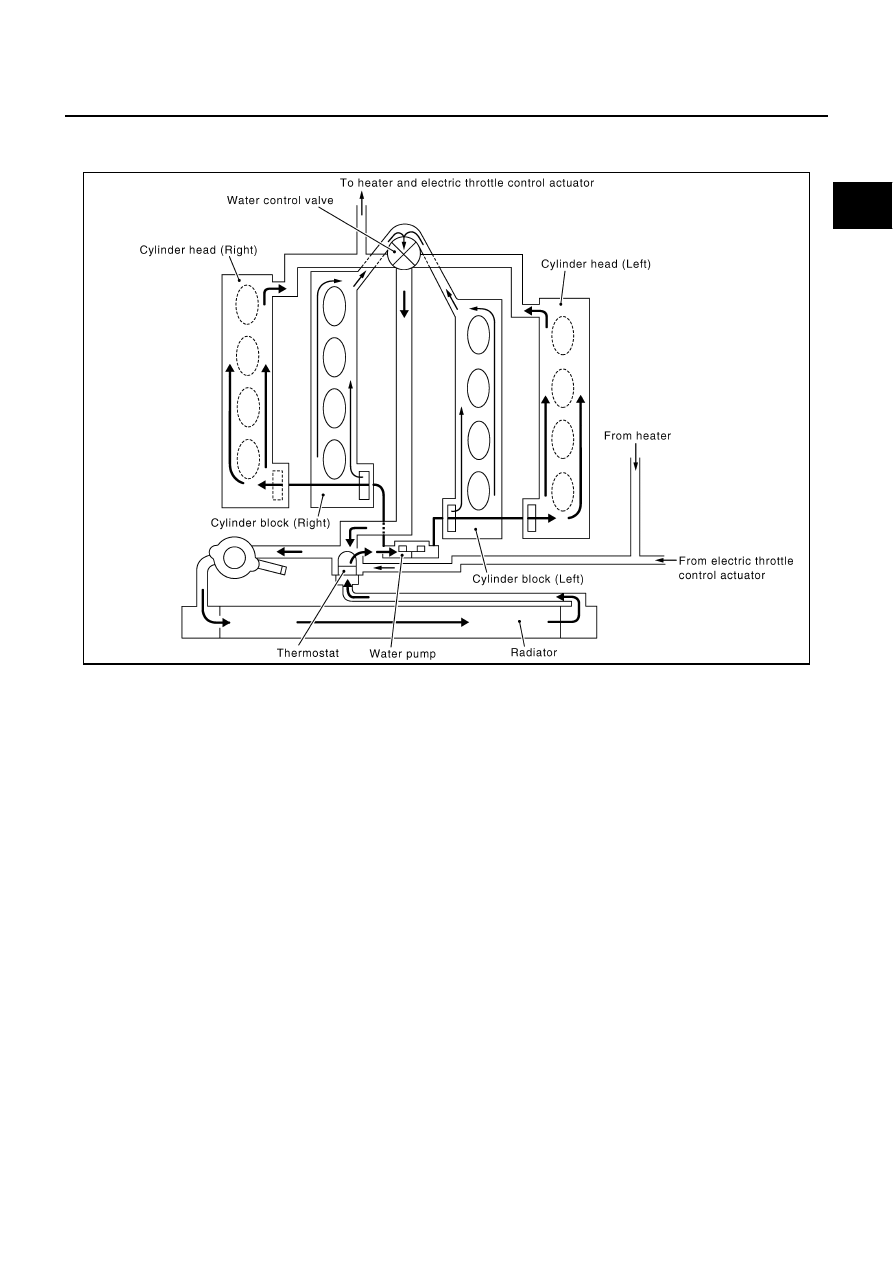

System Drawing

ABS004R3

PBIC0160E
