Infiniti M45 (Y34). Manual - part 246





BODY REPAIR

BL-209

C

D

E

F

G

H

J

K

L

M

A

B

BL

2004 M45

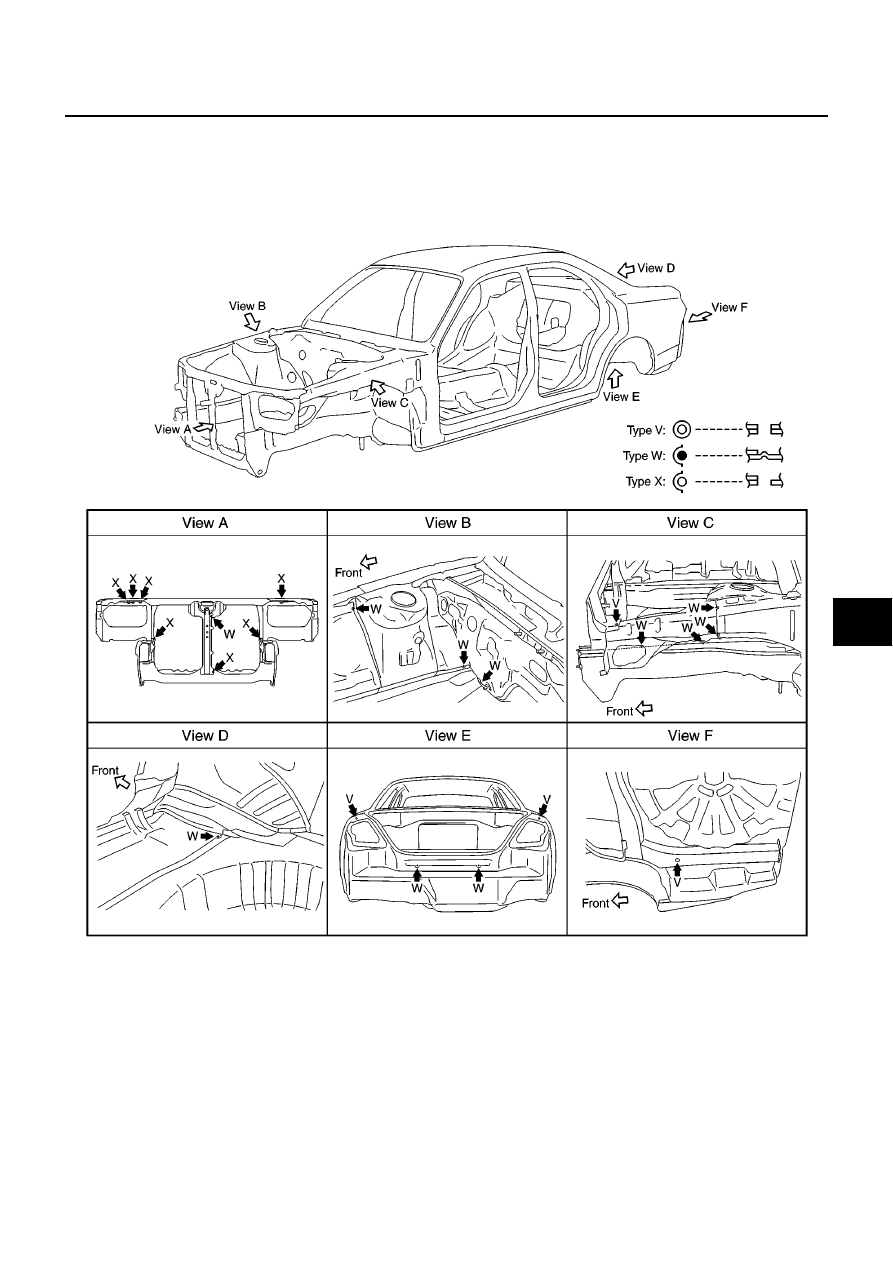

PANEL PARTS MATCHING MARKS

A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.

PIIA0765E

BL-210

BODY REPAIR

2004 M45

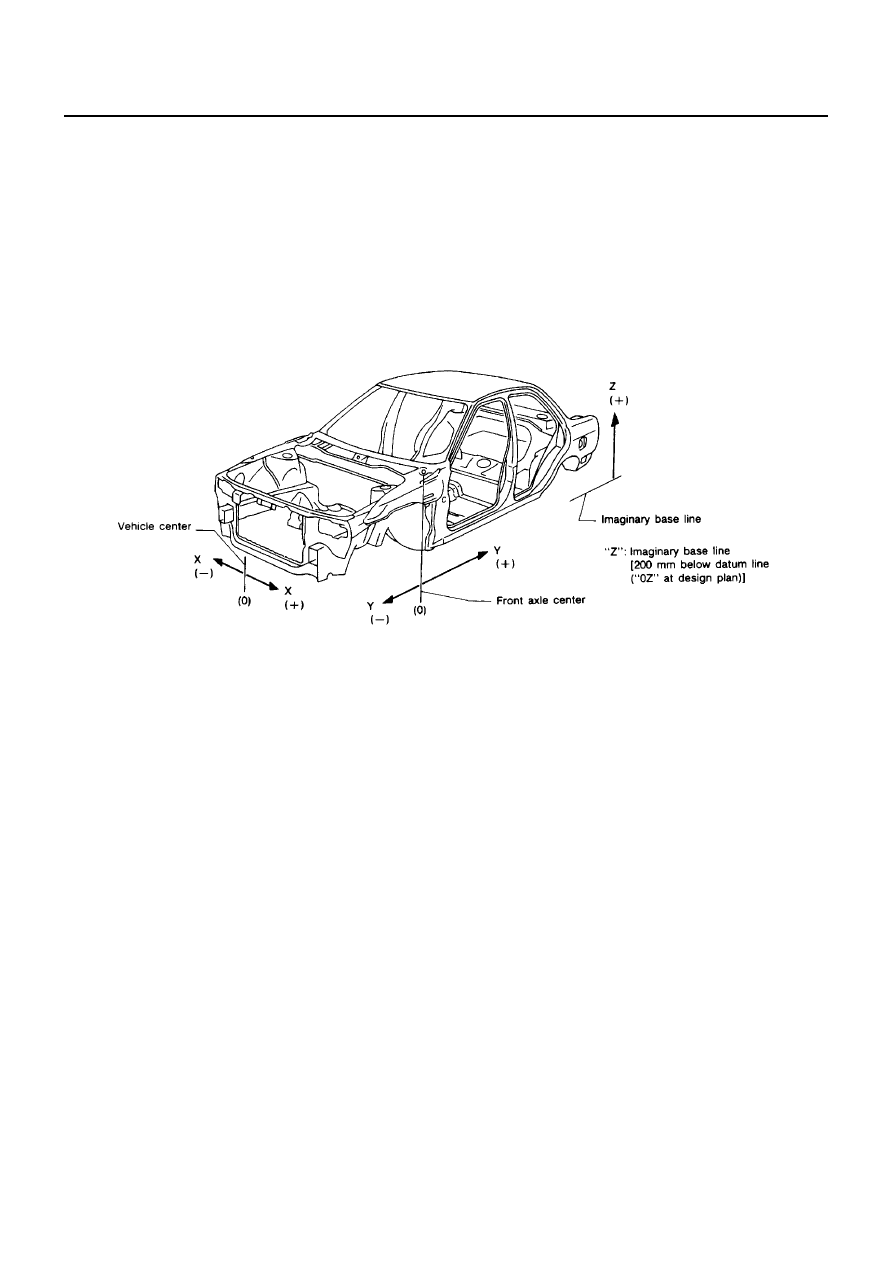

DESCRIPTION

All dimensions indicated in the figures are actual.

When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.

When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

Measurements should be taken at the center of the mounting holes.

An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.

The coordinates of the measurement points are the distances measured from the standard line of "X", "Y"
and "Z".

PIIA0104E

BODY REPAIR

BL-211

C

D

E

F

G

H

J

K

L

M

A

B

BL

2004 M45

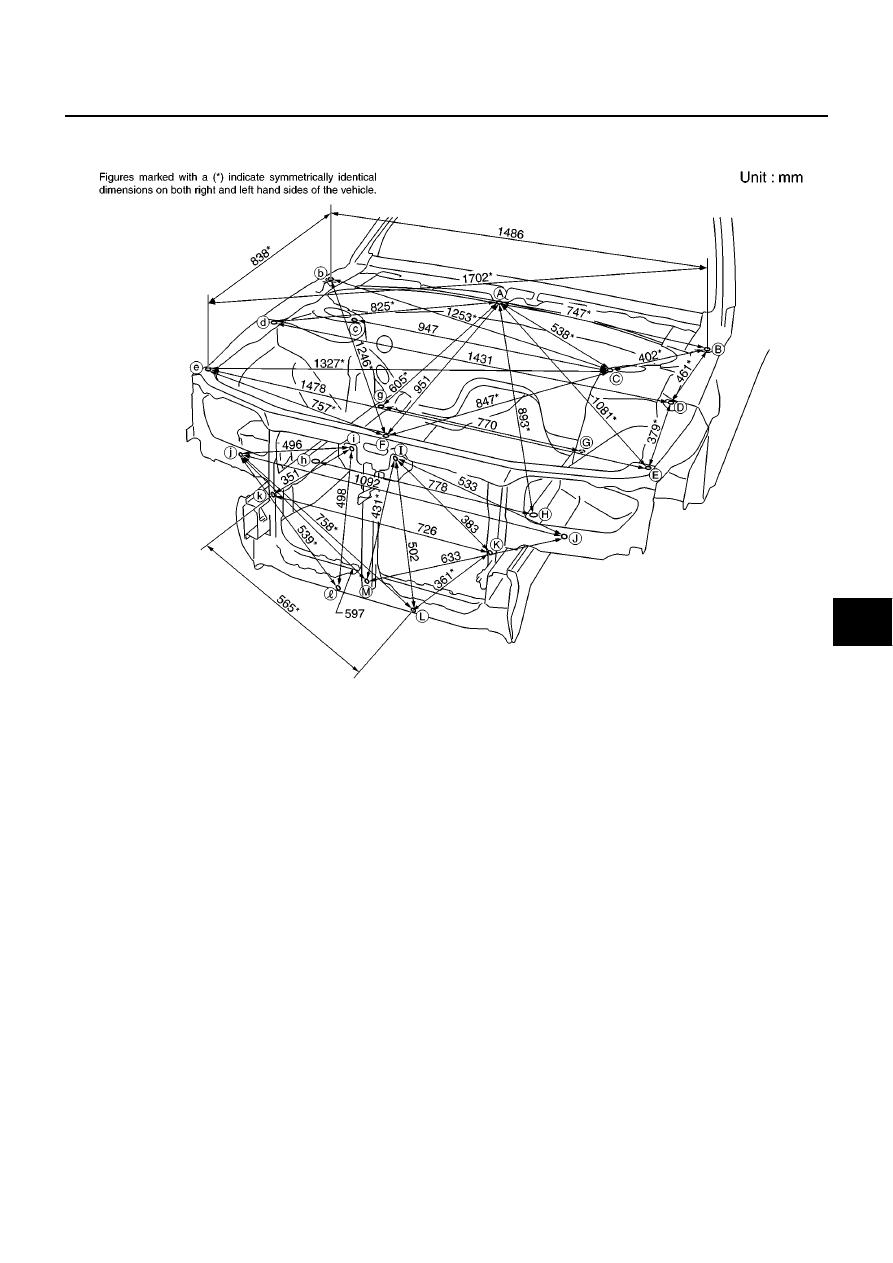

ENGINE COMPARTMENT
Measurement

SIIA1907E

BL-212

BODY REPAIR

2004 M45

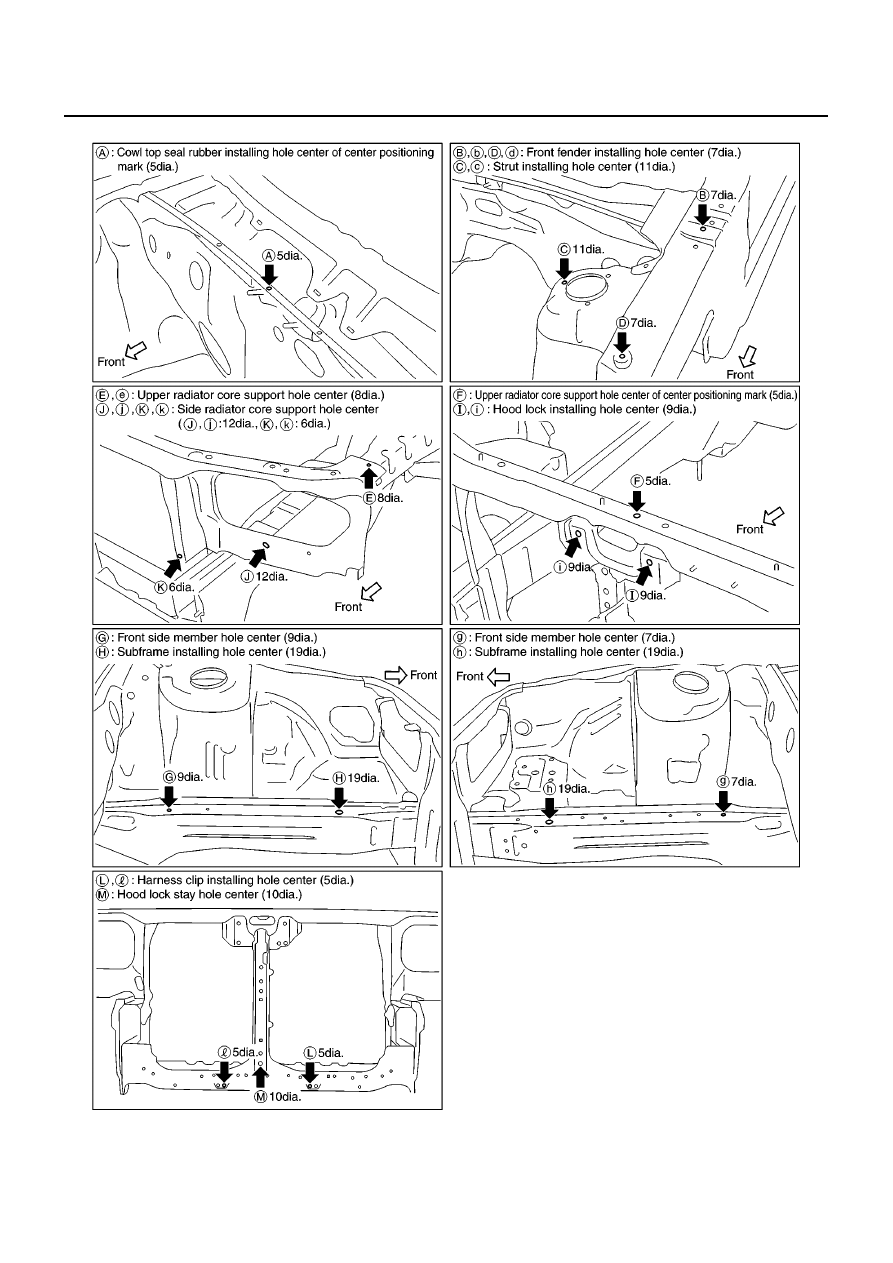

Measurement Points

PIIA0772E
