BODY REPAIR

BL-197

2004 M45

Radiator core support assembly

Upper radiator core support

Side radiator core support

Lower radiator core support

Hood lock stay

Hoodledge assembly (RH&LH)

Upper hoodledge (RH&LH)

Lower front hoodledge (RH&LH)

Battery support bracket (RH)

10.

Hoodledge reinforcement assembly (RH&LH)

11.

Rear hoodledge reinforcement (RH&LH)

12.

Upper dash assembly

13.

Upper dash crossmember assembly

14.

Side cowl top

15.

Lower dash

16.

Side dash (RH&LH)

17.

Front floor center

18.

Front floor

19.

Inner sill (RH&LH)

20.

Rear floor front

21.

Rear floor rear

22.

Rear seat crossmember reinforcement

23.

Rear seat crossmember assembly

24.

Rear floor seat belt anchor reinforcement

25.

Rear seat back support assembly

26.

Rear floor side (RH&LH)

27.

Spare tire clamp bracket

28.

Muffler mounting bracket

29.

Front side member assembly (RH&LH)

30.

Front side member (RH&LH)

31.

Front side member outrigger assembly (RH&LH)

32.

Front suspension mounting bracket (RH&LH)

33.

Front side member closing plate assembly (RH&LH)

34.

Front side member front closing plate (RH&LH)

35.

Front side member rear extension (RH&LH)

36.

Rear side member assembly (RH&LH)

37.

Rear side member extension (RH&LH)

38.

Center Rear crossmember

BL-198

BODY REPAIR

2004 M45

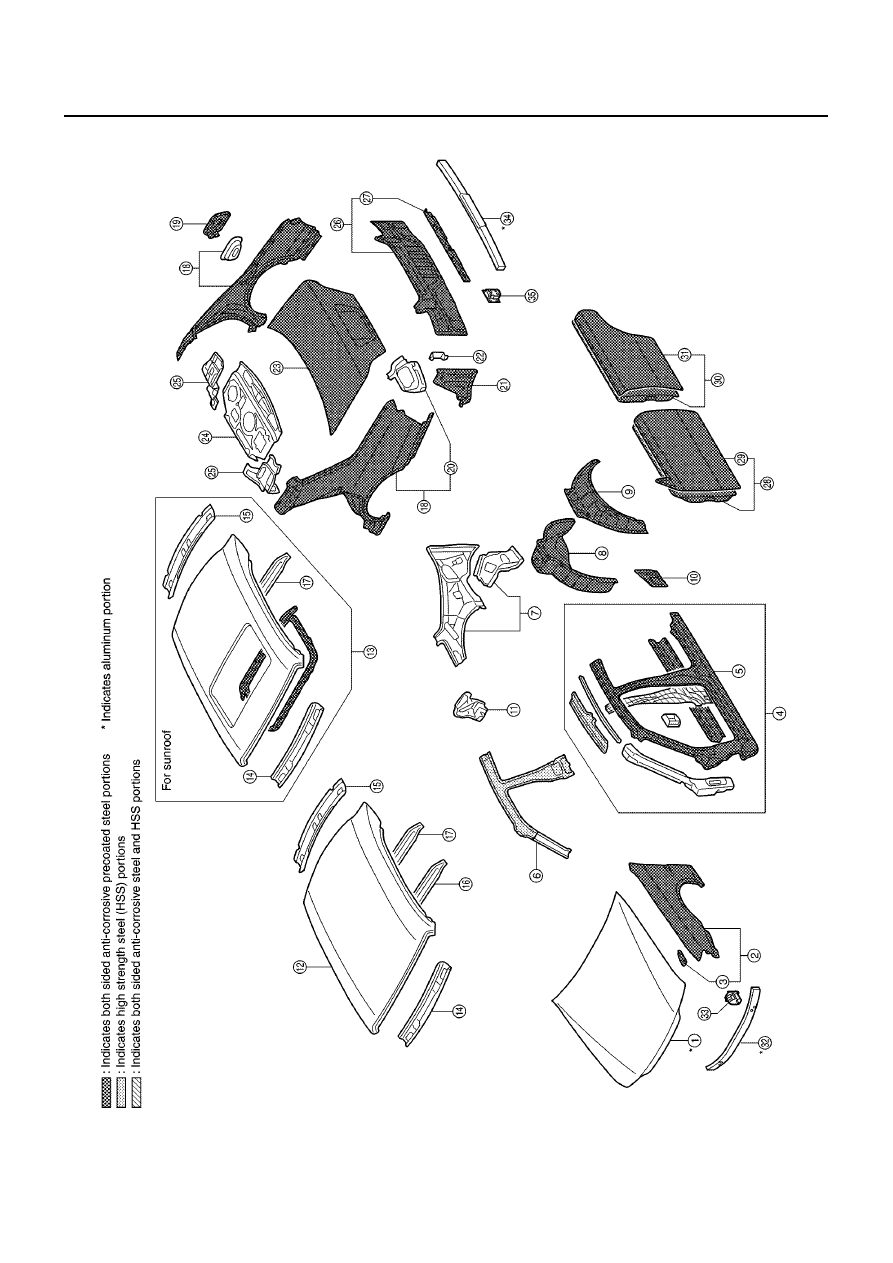

BODY COMPONENT PARTS

SIIA2385E

BODY REPAIR

BL-199

2004 M45

Hood

Front fender assembly (RH&LH)

Front fender bracket (RH&LH)

Side body assembly (RH&LH)

Outer side body (RH&LH)

Inner side roof rail assembly (RH&LH)

Inner rear pillar assembly (RH&LH)

Inner rear wheelhouse (RH&LH)

Outer rear wheelhouse (RH&LH)

10.

Outer rear wheelhouse extension (RH&LH)

11.

Seat back support (RH&LH)

12.

Roof

13.

Roof assembly

14.

Front roof rail

15.

Rear roof rail

16.

Front roof bow

17.

Rear roof bow

18.

Rear fender assembly

19.

Fuel filler lid (RH)

20.

Rear combination lamp base (RH&LH)

21.

Rear fender extension (RH&LH)

22.

Harness clip bracket (LH)

23.

Trunk lid

24.

Parcel shelf with rear waist

25.

Side parcel shelf

26.

Rear panel assembly

27.

Upper rear bumper retainer

28.

Front door assembly (RH&LH)

29.

Outer front door panel (RH&LH)

30.

Rear door assembly (RH&LH)

31.

Outer rear door panel (RH&LH)

32.

Front bumper reinforcement

33.

Front bumper stay (RH&LH)

34.

Rear bumper reinforcement

35.

Rear bumper stay (RH&LH)

BL-200

BODY REPAIR

2004 M45

Corrosion Protection

AIS004UN

DESCRIPTION

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in
NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-
rosive measures.

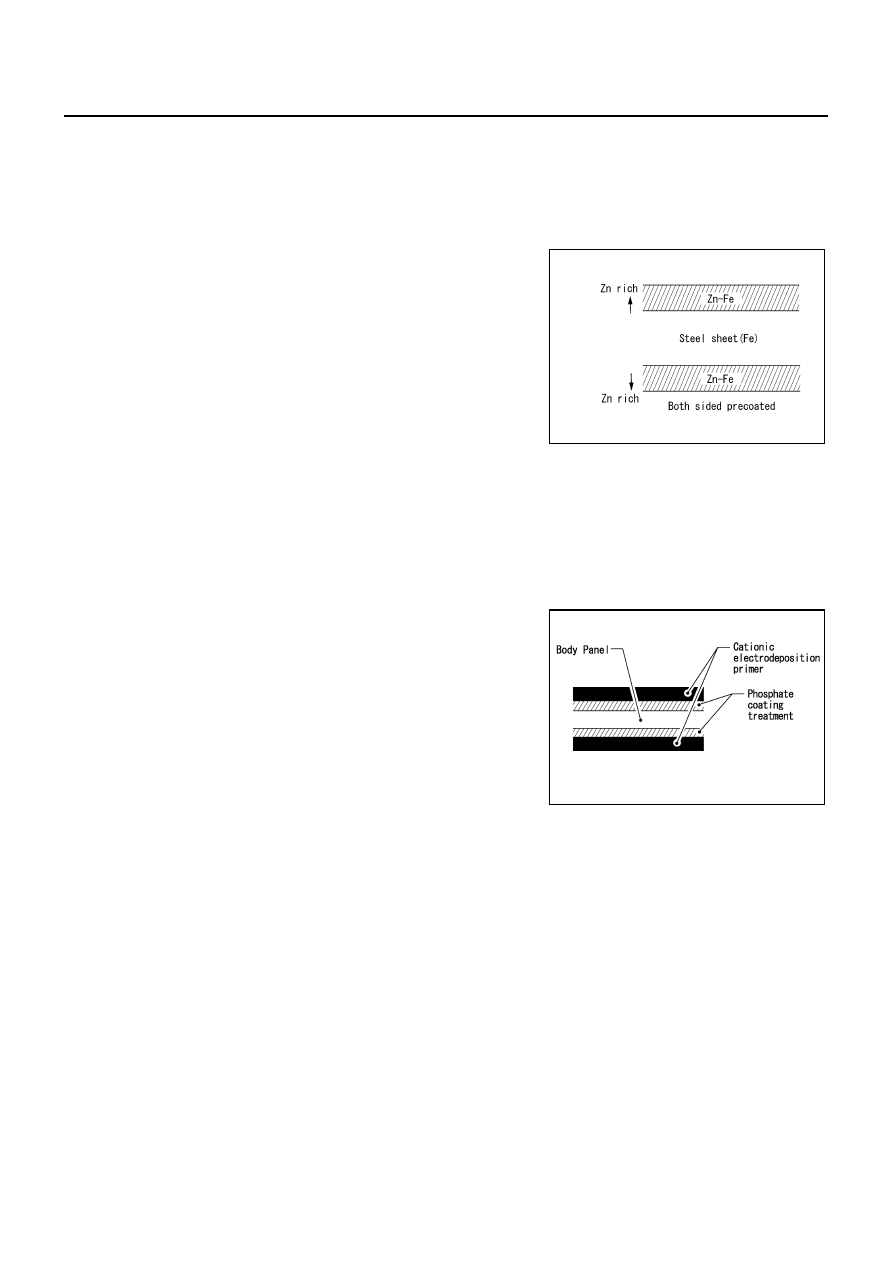

Anti-Corrosive Precoated Steel (Galvannealed Steel)

To improve repairability and corrosion resistance, a new type of anti-
corrosive precoated steel sheet has been adopted replacing conven-
tional zinc-coated steel sheet.
Galvannealed steel is electroplated and heated to form Zinc-iron
alloy, which provides excellent and long term corrosion resistance
with cationic electrodeposition primer.

Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that
GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-
mance built into the vehicle at the factory.

Phosphate Coating Treatment and Cationic Electrodeposition Primer

A phosphate coating treatment and a cationic electrodeposition primer, which provide excellent corrosion pro-
tection, are employed on all body components.

CAUTION:

Confine paint removal during welding operations to an absolute
minimum.

Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-
INE NISSAN PARTS or equivalent be used for panel replacement to maintain anti-corrosive performance built
into the vehicle at the factory.

SIIA2294E

PIIA0095E
