Infiniti M45 (Y34). Manual - part 234

ELECTRONIC KEY SYSTEM

BL-161

C

D

E

F

G

H

J

K

L

M

A

B

BL

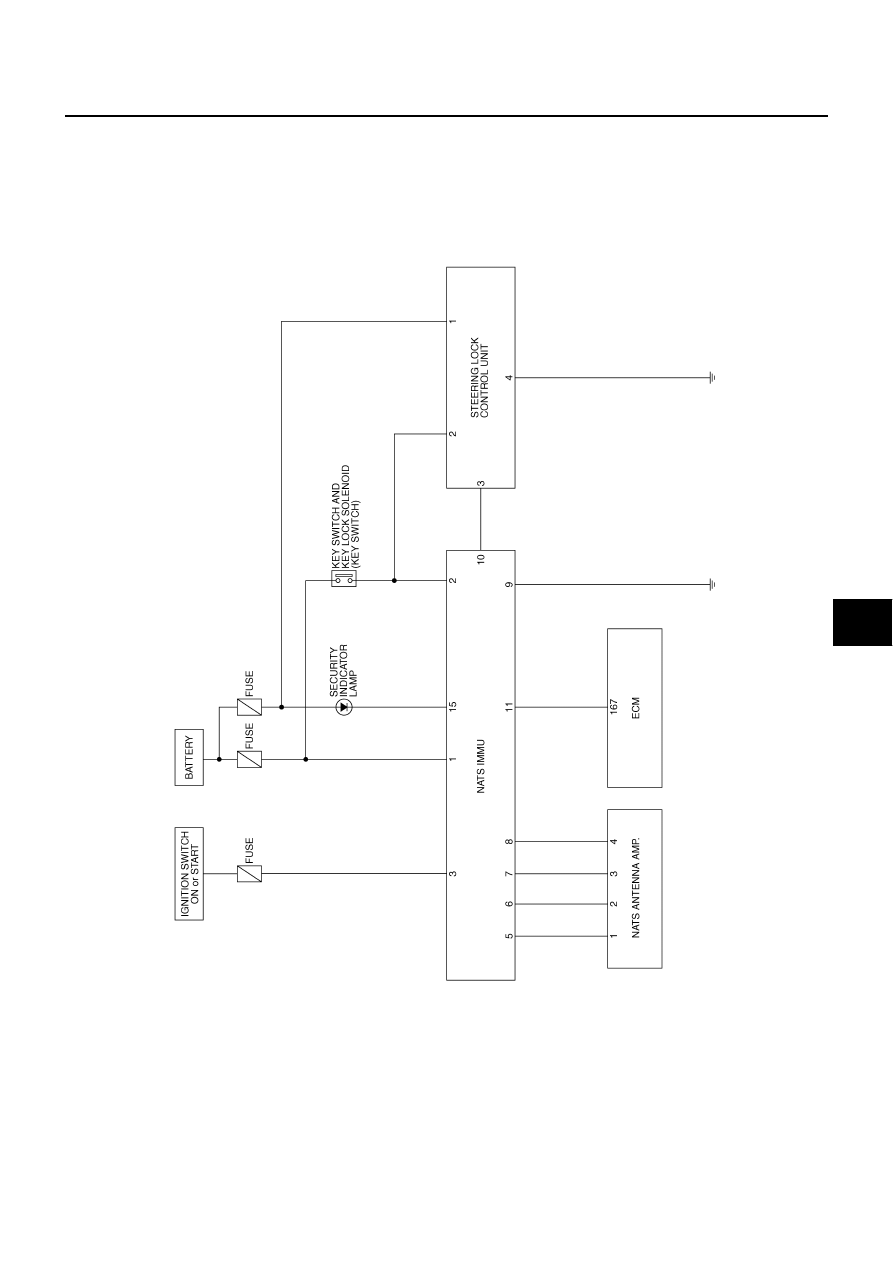

Schematic

AIS001QF

TIWA0207E

BL-162

ELECTRONIC KEY SYSTEM

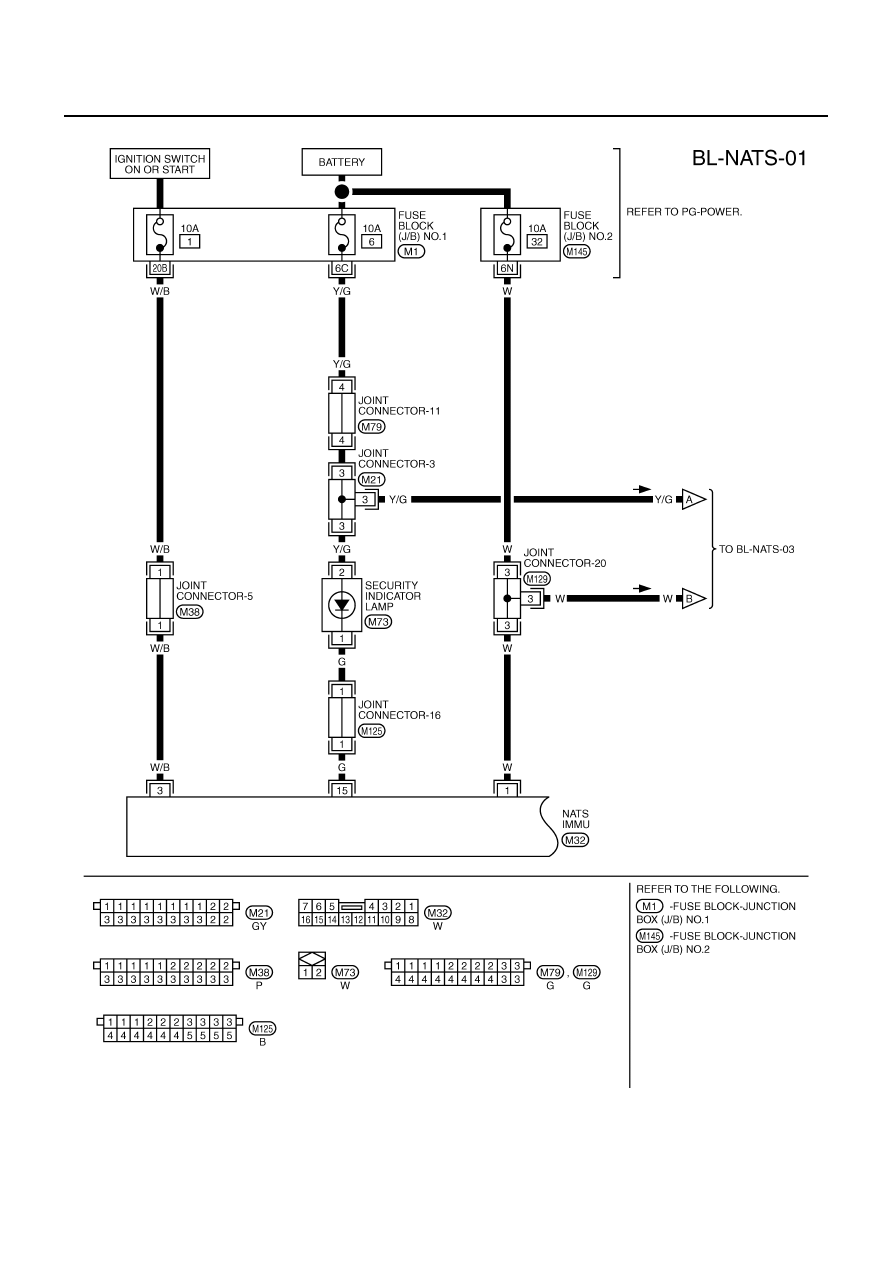

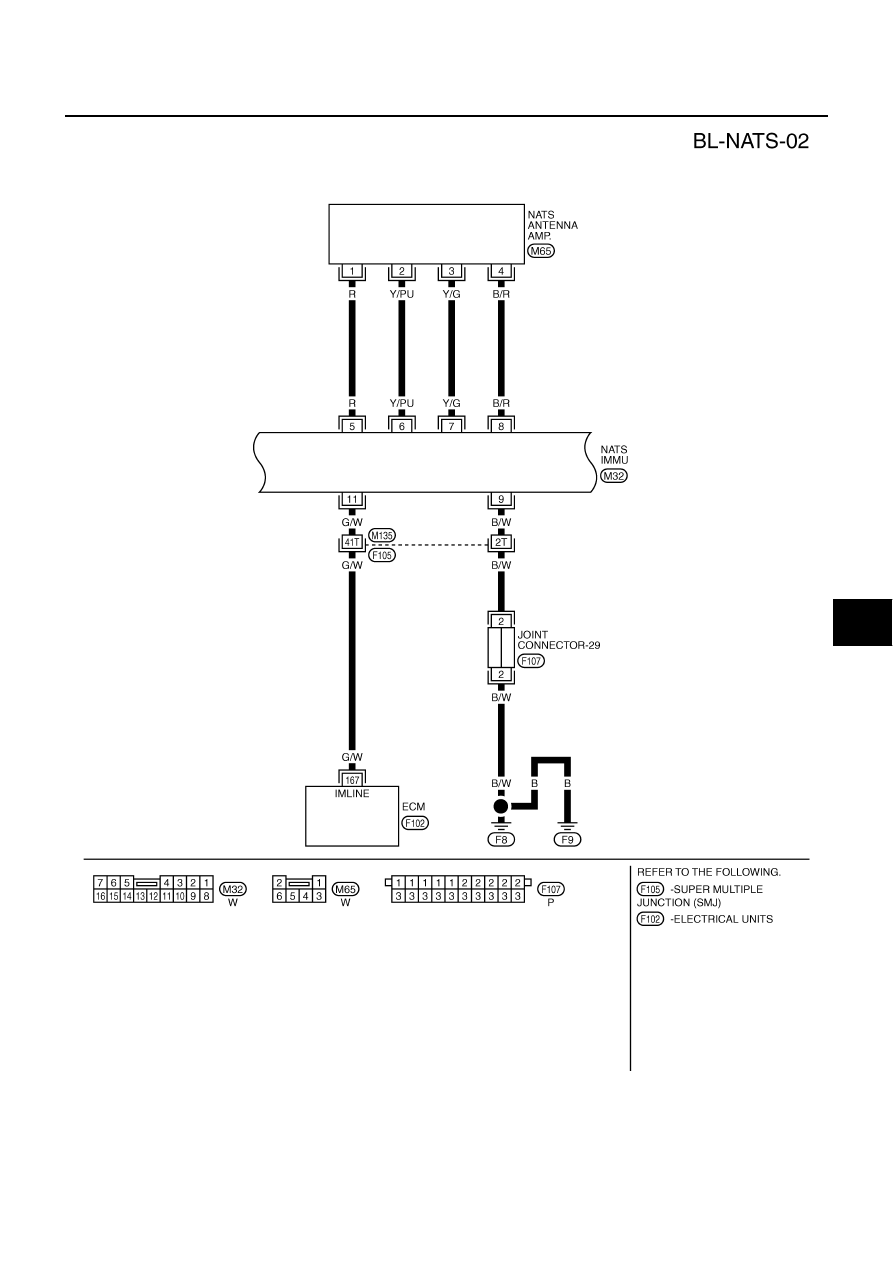

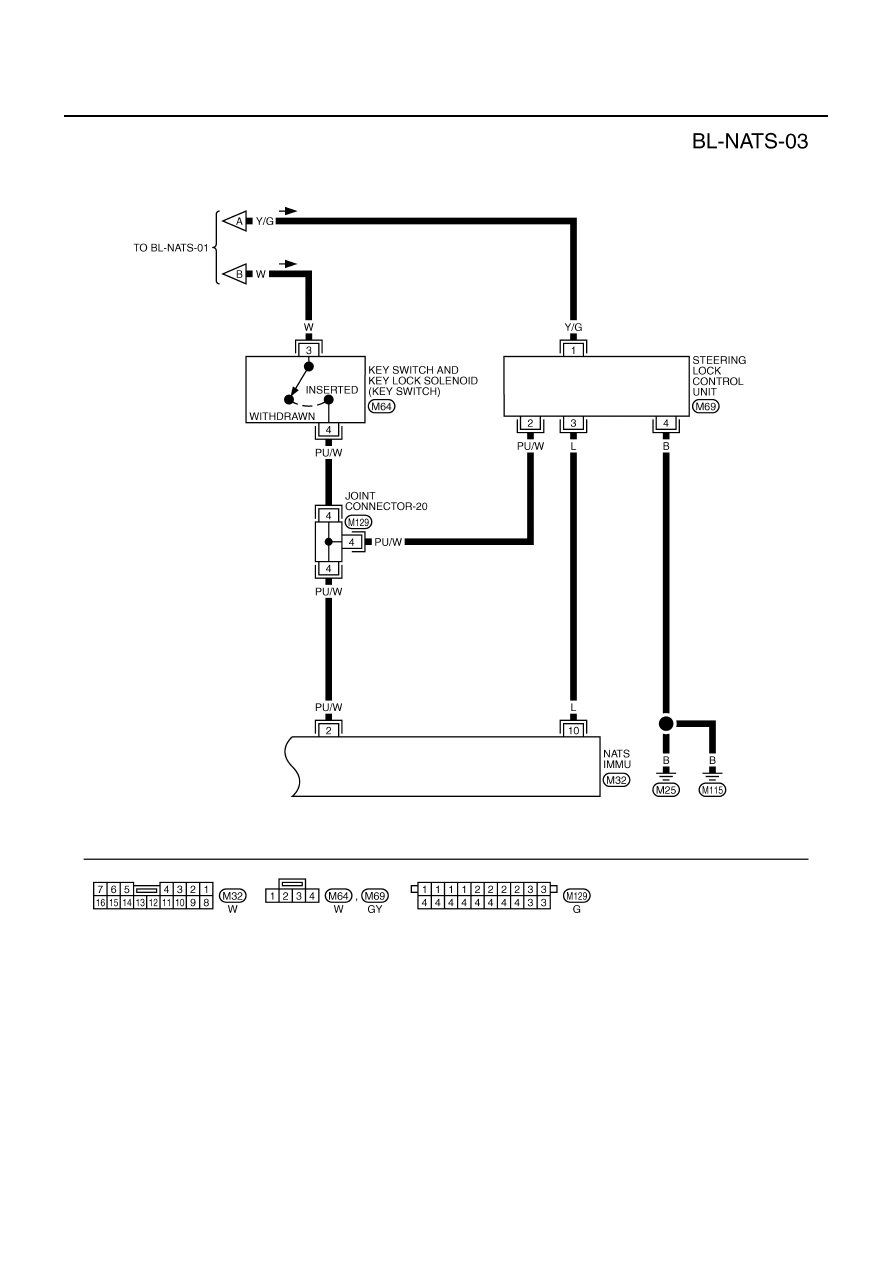

Wiring Diagram — NATS —

AIS001QG

TIWA0208E

ELECTRONIC KEY SYSTEM

BL-163

C

D

E

F

G

H

J

K

L

M

A

B

BL

TIWA0209E

BL-164

ELECTRONIC KEY SYSTEM

TIWA0210E
