VEHICLE SECURITY (THEFT WARNING) SYSTEM

BL-141

C

D

E

F

G

H

J

K

L

M

A

B

BL

8.

Touch “THEFT WARNING SYSTEM” on the “SELECT TEST
ITEM” screen.

●

WORK SUPPORT, DATA MONITOR and ACTIVE TEST are
available for the vehicle security system.

Trouble Diagnosis

AIS001EW

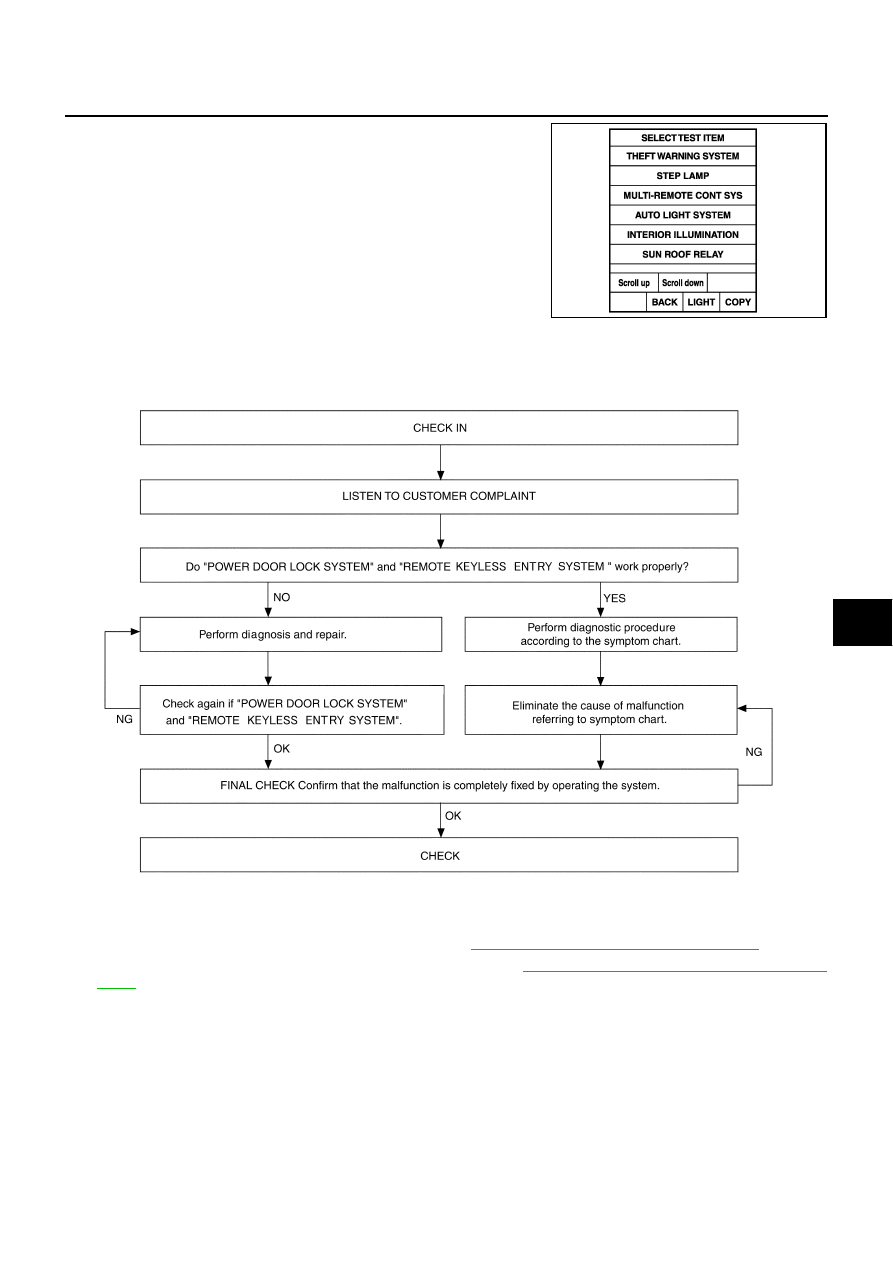

WORK FLOW

●

“POWER DOOR LOCK SYSTEM” Diagnosis, refer to

BL-18, "POWER DOOR LOCK SYSTEM"

 .

●

“REMOTE KEYLESS ENTRY SYSTEM” Diagnosis, refer to

BL-51, "REMOTE KEYLESS ENTRY SYS-

TEM"

 .

PIIA2797E

LIIA0123E

BL-142

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Preliminary Check

AIS001EX

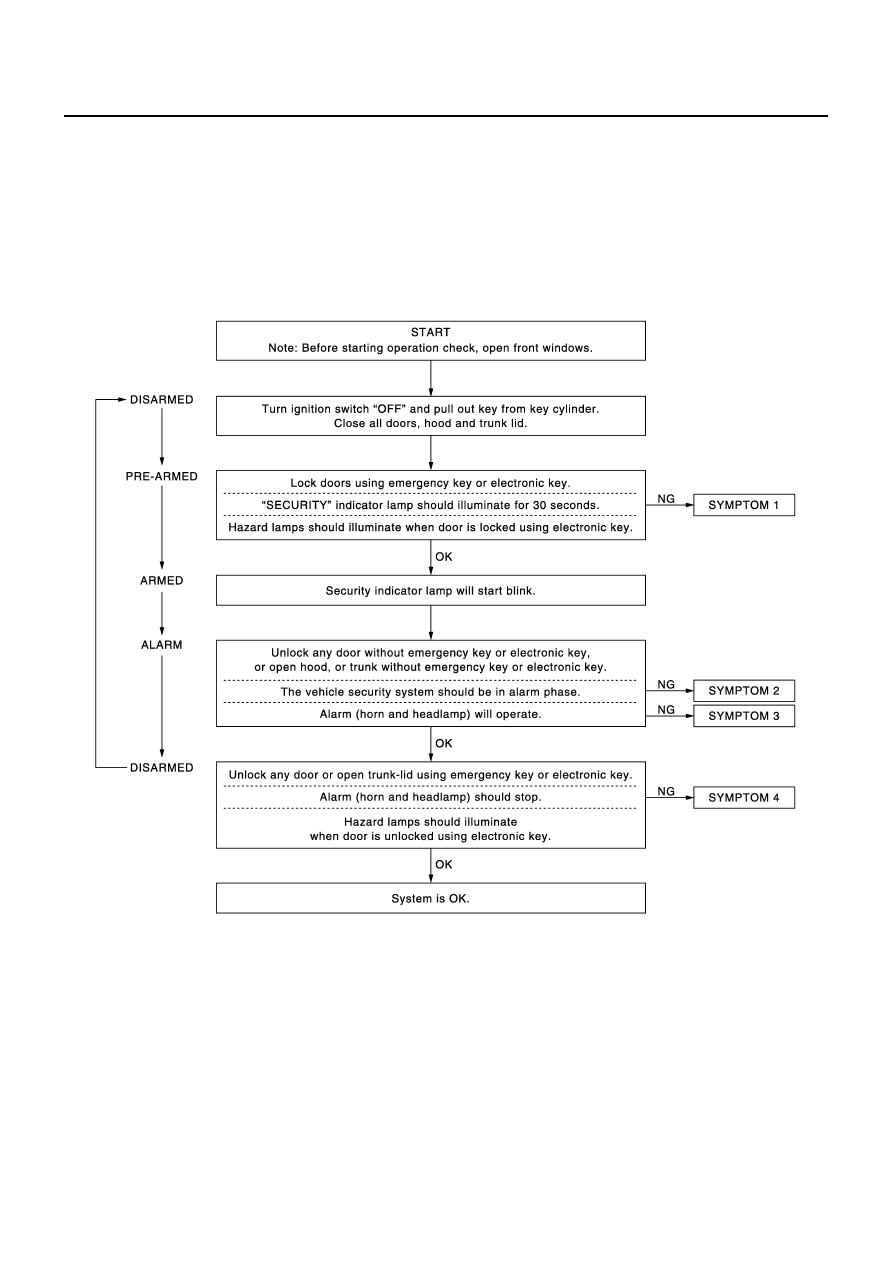

The system operation is canceled by turning ignition switch to “ACC” at any step between START and ARMED
in the following flow chart.
NOTE:
Before performing PRELIMINARY CHECK, disconnect IVCS unit connectors not to operate INFINITI commu-
nicator.

After performing preliminary check, go to symptom chart.

PIIA2861E

VEHICLE SECURITY (THEFT WARNING) SYSTEM

BL-143

C

D

E

F

G

H

J

K

L

M

A

B

BL

Symptom Chart

AIS001EY

*1: Make sure the system is in the armed phase.

PROCEDURE

Diagnostic procedure

SYMPTOM

1

Vehicle security
system cannot be
set by ····

All items

●

Door out side key,

●

Electronic key

Diagnostic Procedure 1 (Door, hood and trunk room lamp switch check)
Refer to

BL-144, "Diagnostic Procedure 1"

 .

Diagnostic Procedure 3 (Door unlock sensor check)
Refer to

BL-147, "Diagnostic Procedure 3"

 .

Diagnostic Procedure 5 (Trunk lid key unlock signal check)
Refer to

BL-153, "Diagnostic Procedure 5"

 .

Diagnostic Procedure 8 (ACC power supply check)
Refer to

BL-157, "Diagnostic Procedure 8"

 .

If the above systems are “OK”, replace BCM.

Door outside key

Diagnostic Procedure 4 (Door key cylinder switch check)
Refer to

BL-150, "Diagnostic Procedure 4"

 .

If the above systems are “OK”, check driver door control unit (LCU01).

Security indicator does not turn ON.

Diagnostic Procedure 2 (Security indicator lamp check)
Refer to

BL-146, "Diagnostic Procedure 2"

 .

If the above systems are “OK”, replace BCM.

2

*1
Vehicle security
system does not
alarm when ····

Any door is opened.

Diagnostic Procedure 1 (Door, hood and trunk room lamp switch check)
Refer to

BL-144, "Diagnostic Procedure 1"

 .

If the above systems are “OK”, replace BCM.

Any door is unlocked without
using electronic key

Diagnostic Procedure 3 (Door unlock sensor check)
Refer to

BL-147, "Diagnostic Procedure 3"

 .

If the above system is “OK”, check driver door control unit (LCU01) or door
control unit.

3

Vehicle security
alarm does not
activate.

Horn alarm

Diagnostic Procedure 6 (Theft warning horn alarm check)
Refer to

BL-154, "Diagnostic Procedure 6"

 .

Check horn system.
Refer to

WW-31, "HORN"

 .

If the above systems are “OK”, replace BCM.

Headlamp alarm

Diagnostic Procedure 7 (Headlamp alarm check)
Refer to

BL-156, "Diagnostic Procedure 7"

 .

If the above systems are “OK”, replace BCM.

4

Vehicle security
system cannot be
canceled by ····

Door outside key

Diagnostic Procedure 4 (Door key cylinder switch check)
Refer to

BL-150, "Diagnostic Procedure 4"

 .

If the above systems are “OK”, check driver door control unit (LCU01).

Trunk lid key

Diagnostic Procedure 5 (Trunk lid key cylinder switch check)
Refer to

BL-153, "Diagnostic Procedure 5"

 .

If the above systems are “OK”, replace BCM.

BL-144

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Diagnostic Procedure 1

AIS001EZ

1 – 1 CHECK DOOR SWITCH

1.

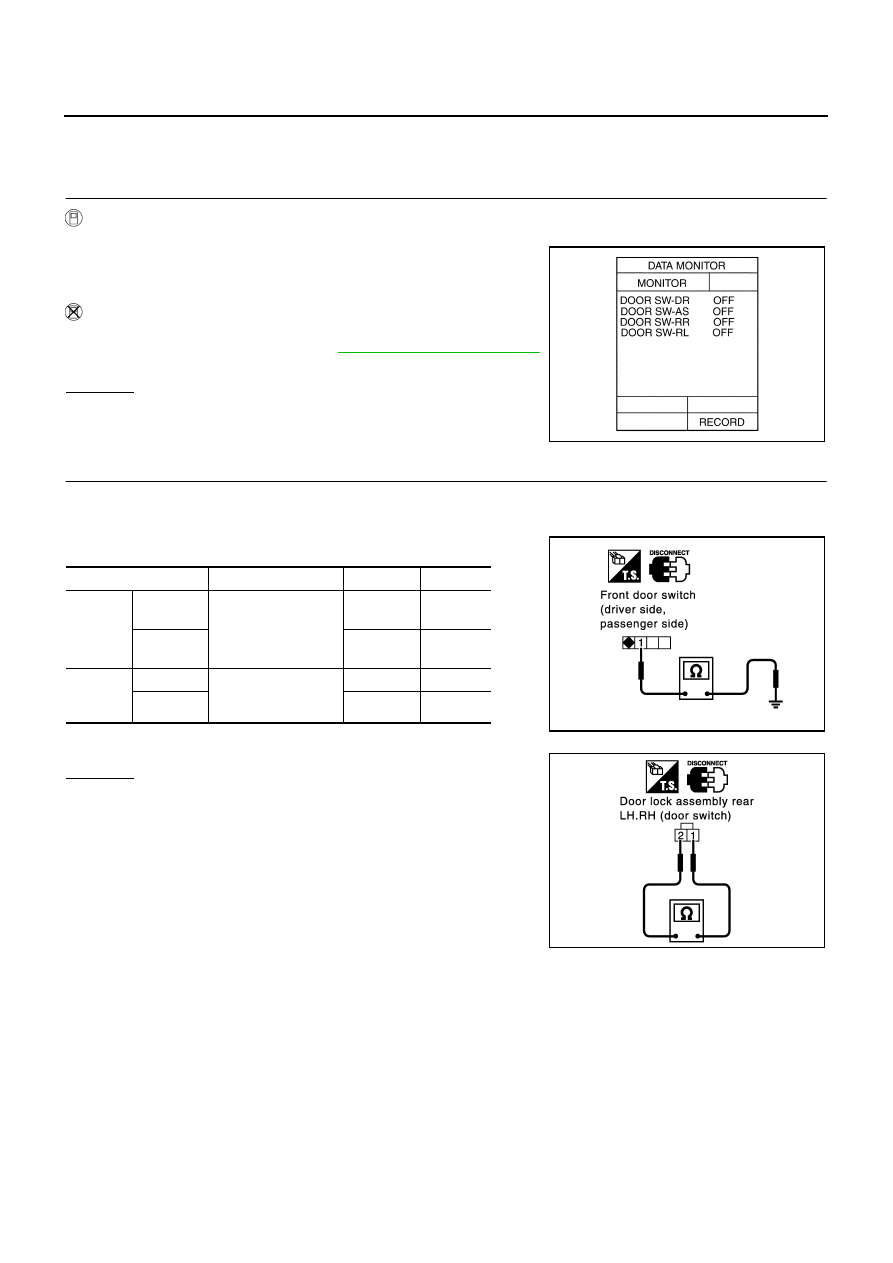

CHECK DOOR SWITCH INPUT SIGNAL

 With CONSULT-II

Check door switch (“DOOR SW”) in “DATA MONITOR” mode with CONSULT

−

II.

 Without CONSULT-II

Check all door switches in Switch monitor mode.
Refer to Remote keyless entry system,

BL-79, "SWITCH MONITOR"

.

OK or NG

OK

>> Door switch is OK.

NG

>> GO TO 2.

2.

CHECK DOOR SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect door switch connector.

3.

Check continuity between following terminals and ground.

OK or NG

OK

>> Check the following. Repair or replace following item,

when there is a malfunction.

●

Door switch ground condition (front door) or door
switch ground circuit (rear door)

●

Harness for open or short between door switch and
BCM

NG

>> Replace door switch.

When door is open

: DOOR SW ON

When door is closed

: DOOR SW OFF

PIIA0340E

Door switch connector

Terminal

Condition

Continuity

Front
door
switch

driver side:
B20

1

−

 Case ground

Pressed

No

passenger
side: B220

Repressed

Yes

Rear
door
switch

LH: D62

1

−

 2

Pressed

No

RH: D82

Repressed

Yes

PIIA2798E

PIIA2799E
