INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Rear Door

AIS001ON

REMOVAL

CAUTION:

When removing and installing the rear door assembly, support the door with a jack and cloth to
protect the door and body.

When removing and installing rear door assembly, be sure to carry out the fitting adjustment Refer
to

BL-103, "Fitting Adjustment"

 .

Operate with two workers, because of its heavy weight.

Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.

After installing, check operation.

1.

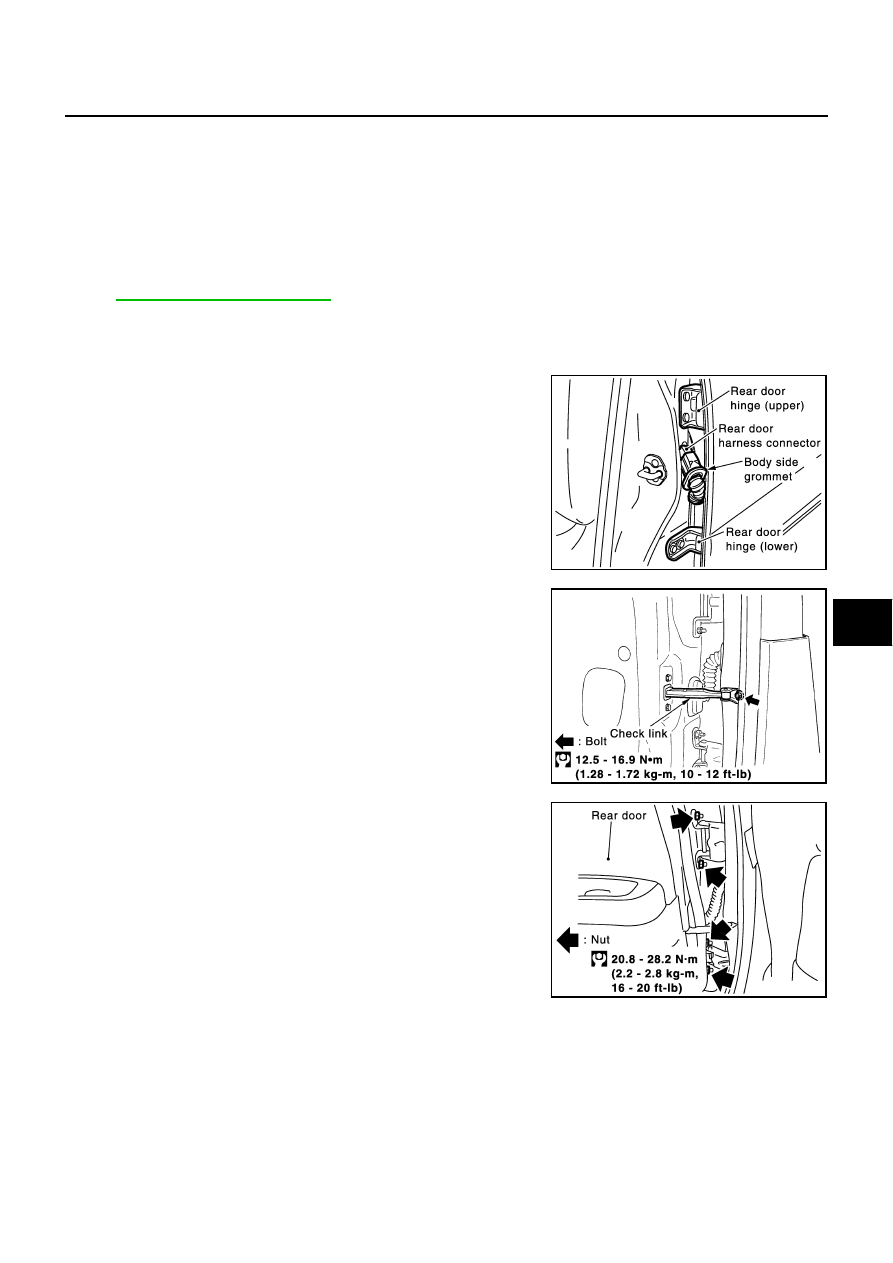

Grommet is pulled out, and the Rear door harness connector is
detached.

2.

Remove the mounting bolts of the check link on the vehicle.

3.

Remove the door-side hinge mounting nuts, and remove the
door assembly.

INSTALLATION

Install in the reverse order of assembly.

PIIA2787E

PIIA2788E

PIIA3058E

BL-106

DOOR

Door Weatherstrip

AIS001EB

REMOVAL

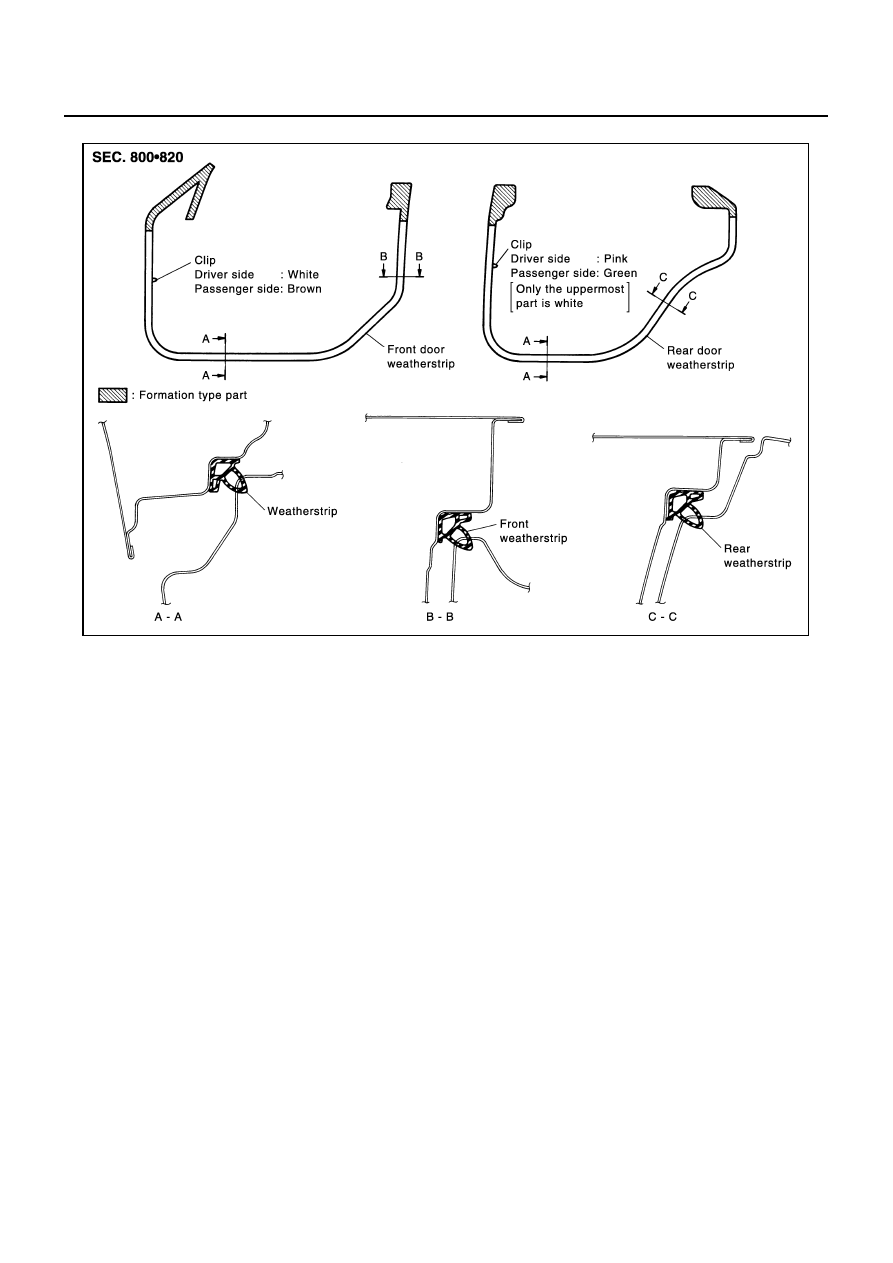

Remove the weatherstrip clips and remove weatherstrip.

CAUTION:

After removal, do not pull strongly on the weatherstrip.

INSTALLATION

Install in the reverse order of removal.

PIIA3062E

FRONT DOOR LOCK

BL-107

C

D

E

F

G

H

J

K

L

M

A

B

BL

FRONT DOOR LOCK

PFP:80502

Component Structure

AIS001EC

Inspection and Adjustment

AIS001ED

1.

Remove the front door finisher. Refer to

EI-31, "Removal and Installation"

 .

2.

Remove the sealing screen assembly.

3.

Remove the front door window. Refer to

GW-47, "Removal and Installation"

 .

BELL CRANK ADJUSTMENT

CAUTION:

Before adjusting bell crank, make sure that rod is installed to inside handle.

After installing door lock and inside handle, set them in the lock position.

Using a flat-bladed screwdriver, expand rod holder.

Remove rod free play at joining area and set rod in position.

After adjusting bell crank adjustment have been made, operate
door lock knob, door lock switch and door key to make sure that
they lock and unlock properly.

1.

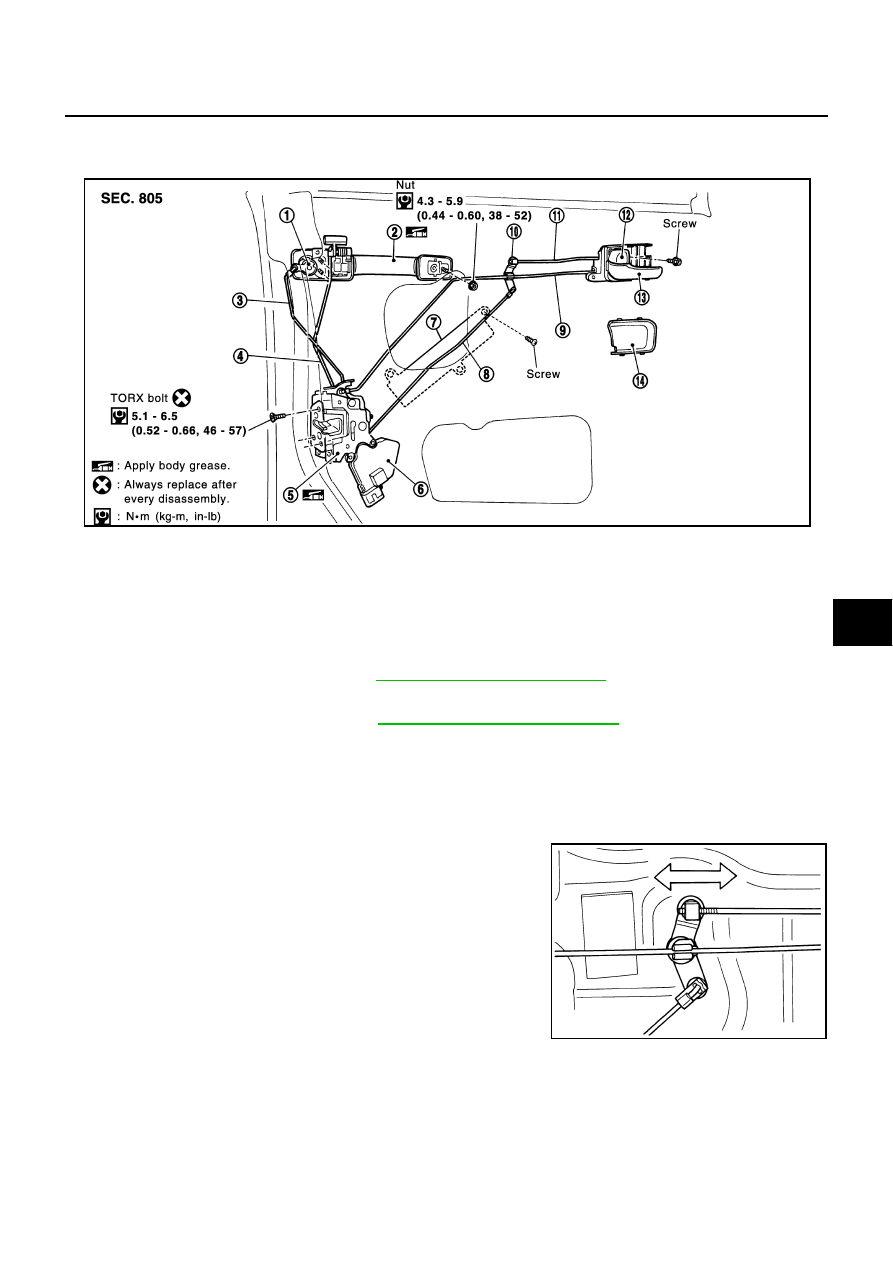

Key cylinder (driver side only)

2.

Outside handle

3.

Key lock rod (driver side only)

4.

Outside handle rod

5.

Door lock assembly

6.

Door lock actuator

7.

Knob rod protector

8.

Lock knob rod

9.

Inside handle rod

10. Bell crank

11.

Lock knob rod

12. Lock knob

13. Inside handle

14. Inside handle escutcheon A

PIIA2776E

PIIA2777E

BL-108

FRONT DOOR LOCK

EXTERIOR HANDLE ROD ADJUSTMENT

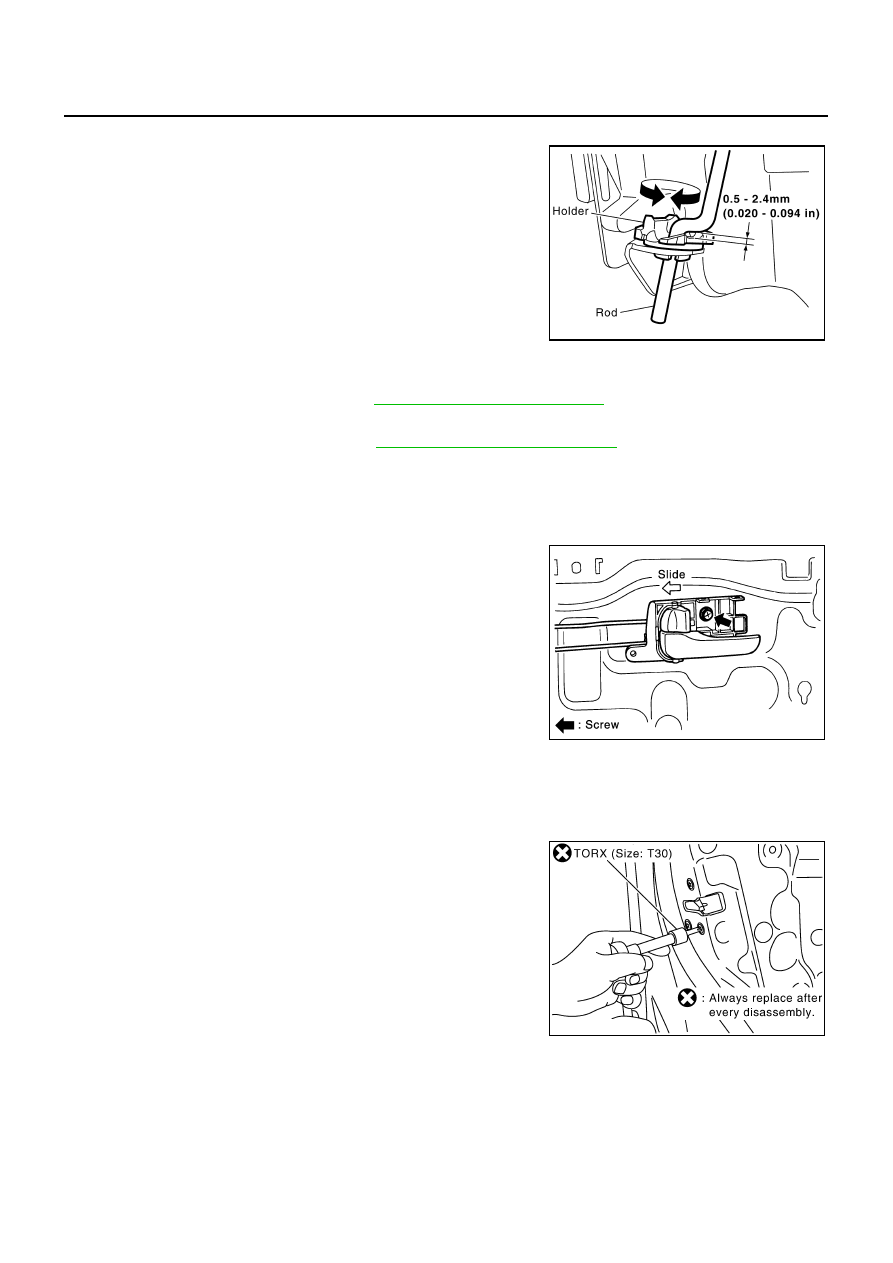

Rotate the bushing to adjust so that the clearance between the bush-
ing and rod becomes as shown in the figure.

CAUTION:

Be careful not to make the clearance 0 mm (0 in) or the rod
pressed continuously.

Removal and Installation

AIS001EE

REMOVAL

1.

Remove the front door finisher. Refer to

EI-31, "Removal and Installation"

 .

2.

Remove the sealing screen assembly.

3.

Remove the front door window. Refer to

GW-47, "Removal and Installation"

 .

4.

Remove the inside handle escutcheon A.

5.

Remove the mounting screw, and remove the inside handle.

6.

Disconnect bell crank lock knob rod at the joints.

7.

Disconnect inside handle rod door lock assembly side.

8.

Slide inside handle rearward and remove it.

9.

Remove the mounting screws, remove the knob rod protector.

10. Reach to separate the key cylinder rod (driver side only) and exterior handle rod connection (on the han-

dle).

11. Disconnect the door lock actuator connector.

12. Remove the mounting bolts (TORX T30), remove the door lock

assembly.

SBT978

PIIA2778E

PIIA1090E
