POWER DOOR LOCK SYSTEM

BL-33

C

D

E

F

G

H

J

K

L

M

A

B

BL

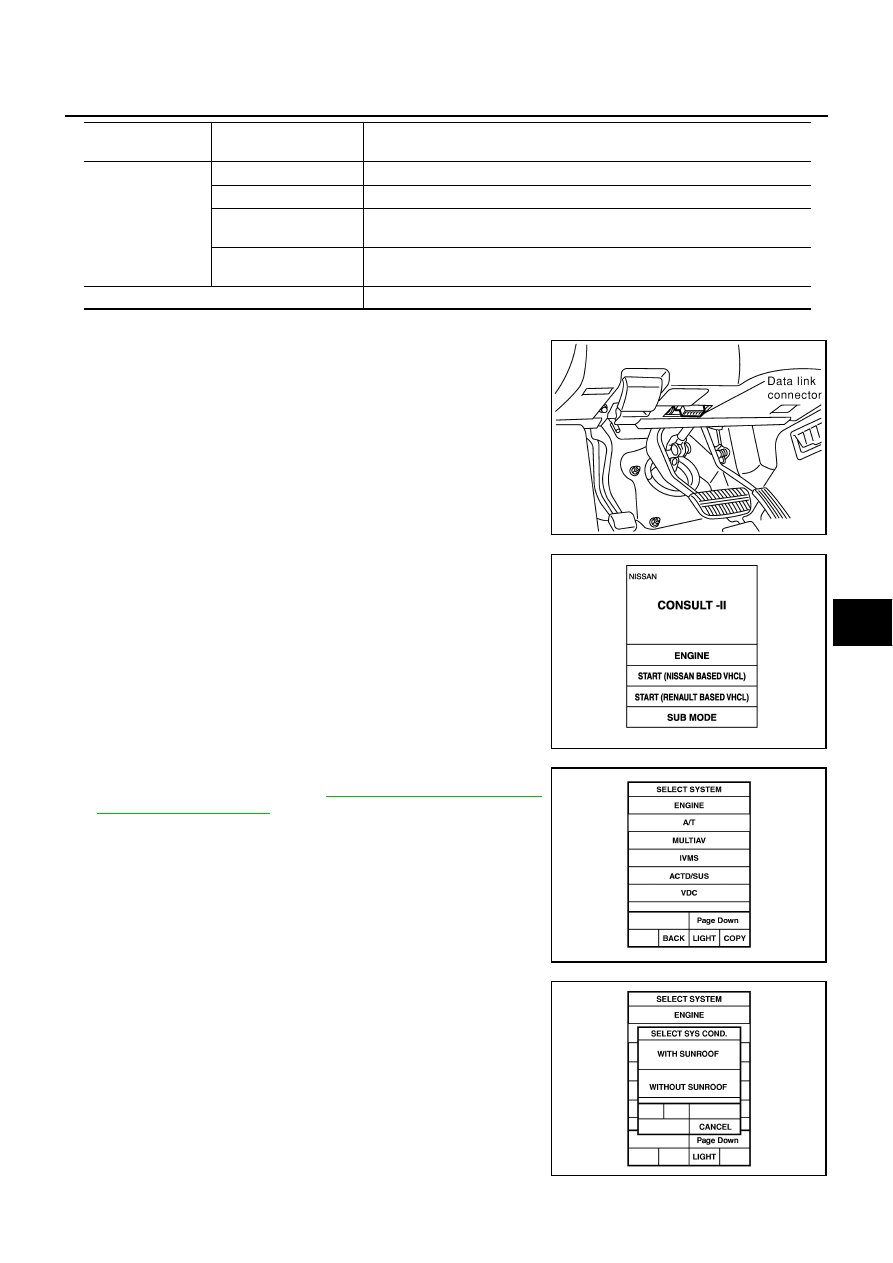

CONSULT-II BASIC OPERATION PROCEDURE

1.

With the ignition switch OFF, connect “CONSULT-II” and “CON-
SULT-II CONVERTER” to the data link connector, and turn the
ignition switch ON.

2.

Touch “START (NISSAN BASED VHCL)”.

3.

Touch “IVMS”.
If “IVMS” is not indicated, go to

GI-38, "CONSULT-II Data Link

Connector (DLC) Circuit"

 .

4.

Check the model specification, touch either “WITH SUNROOF”
or “WITHOUT SUNROOF”.

5.

Touch “OK”. If the selection is wrong, touch “CANCEL”.

Each system
inspection

Work support

Changes the setting for each function.

Self-diagnosis results

Carries out self-diagnosis.

Data monitor

Displays data relative to the body control module (BCM) input signals and var-
ious control related data for each system.

Active test

Turns on/off actuators, relay and according to the commands transmitted by
the CONSULT-II unit.

BCM PART NUMBER

Displays BCM part No.

IVMS diagnosis

position

 Diagnosis mode

Description

PBIB0196E

MBIB0233E

PIIA0183E

PIIA0184E

BL-34

POWER DOOR LOCK SYSTEM

6.

Select the desired part to be diagnosed on the “SELECT TEST ITEM” screen.

IVMS COMMUNICATION INSPECTION

IVMS contains the IVMS communication diagnosis and wake-up diagnosis.

IVMS Communication Diagnosis

IVMS communication diagnosis consists of the communication diagnosis, sleep diagnosis, and inactive
communication diagnosis between BCM and each local unit (LCU), and display the results on the CON-
SULT-ll screen.

NOTE:
Sleep is a power saving function when a vehicle is stationary (all BCM related electrical equipment: OFF,
and the timer: OFF).

The function also stores the communication malfunction records and inactive communication records, and
displays the data on the CONSULT-II screen (Malfunction record diagnosis)

*: malfunctioning item record

Operation Procedure

1.

Touch “IVMS-COMM CHECK” on “SELECT TEST ITEM”.

2.

Touch “IVMS-COMM DIAGNOSIS” on “SELECT DIAG ITEM” screen.

3.

Touch “START” on “IVMS-COMM DIAGNOSIS” screen to start the diagnosis.

4.

After the diagnosis is completed, the malfunctioning system is displayed.

5.

When the malfunctioning items are displayed, touch “PRINT” to record.

6.

Touch “ERASE”.

7.

Perform the communication inspection again to make sure that any malfunctioning item is displayed.

8.

Check the displayed items.

Wake-Up Diagnosis

The wake-up diagnosis is carried out when BCM detects the wake-up signal from each local unit (LCU). When
the switch shown on the screen is operated as instructed, each local control unit (LCU) outputs the wake-up
signal. If BCM cannot detect a wake-up signal, it is judged malfunctioning. The malfunctioning local control
unit (LCU) is displayed on the screen.

NOTE:
If any unspecified switch is operated, “Switch data not match” is displayed as a malfunctioning system.

Operation Procedure

1.

Touch “IVMS-COMM CHECK” on “SELECT TEST ITEM” screen.

2.

Touch “WAKE-UP DIAGNOSIS” on “SELECT DIAG ITEM” screen.

3.

Touch “START” on “WAKE-UP DIAGNOSIS” screen to start the diagnosis.

4.

Touch “NEXT” to select the local control unit (LCU) to be diagnosed.

5.

Make sure that any malfunction is displayed. If necessary, touch “PRINT” to record.

6.

Perform the inspection to the malfunctioning item.

Malfunction description

CONSULT-II

display item

Description

Communication malfunc-
tion

COMM DATA

Communicating with each LCU is judged sound when the communication is normally
completed and the transmitted data and received data are identically the same. In
other cases, it is judged malfunctioning. If the communication is inactive, no diagno-
sis result is displayed.

Inactive communication

NO RESPONSE

Communicating with each LCU is judged sound when at least one time communica-
tion is normally completed within three trials. In other cases, it is judged malfunction-
ing.

Sleep malfunction

SLEEP

Make sure that each LCU enters sleep mode.

Communication malfunc-
tion *

PAST COMM
DATA

The records when communication signal malfunctions were continuously detected
while the communication was normal are displayed. Or the records when a malfunc-
tion is detected during the past sleep mode are displayed.

Inactive communication*

PAST NO
RESPONSE

The records when inactive communications were continuously detected while the
communication was normal are displayed.

POWER DOOR LOCK SYSTEM

BL-35

C

D

E

F

G

H

J

K

L

M

A

B

BL

Malfunction Code Table

NOTE:

For a specific local control unit (LCU), either “PAST COMM DATA” or “PAST NO RESPONSE” may be displayed instead of the
above results. This is caused by the data record, so erase the records.
(The display only shows the incident records, they are not malfunctions caused during the diagnosis. One possible cause is that an
reproducible incident symptom occurred.)

Follow the steps below to erase the memory
Perform either disconnect BCM battery power supply or erase memory with CONSULT-II.

With the battery connected, if the local control unit (LCU) connector is disconnected and left for approximately 1 minute, the BCM
stores “NO RESPONSE” record.

Malfunctioning

item

Display unit

CONSULT-II IVMS communication diag-

nosis content

Self-diagnosis

trouble code

No.

Malfunctioning system and

reference

COMM DATA

One LCU is dis-
played.

POWER WINDOW  C/U-DR
“COMM DATA”

24

Replace the displayed
LCU.

DOOR MIRROR  C/U-RH
“COMM DATA”

27

DOOR MIRROR  C/U-LH
“COMM DATA”

37

POWER SEAT  C/U-DR
“COMM DATA”

47

Multiple LCUs
are displayed

BCM
“COMM FAIL1”, “COMM FAIL2”

Displays in
order of 24

27

37

47

and cycles

from 24.

Communication system A:
Refer to

BL-39, "COMMU-

NICATION SYSTEM A"

 .

NO
RESPONSE

One LCU is dis-
played.

POWER WINDOW C/U-DR
“NO RESPONSE”

25

Communication system B:
Refer to

BL-39, "COMMU-

NICATION SYSTEM B"

 .

DOOR MIRROR C/U-RH
“NO RESPONSE”

28

DOOR MIRROR C/U-LH
“NO RESPONSE”

38

POWER SEAT C/U-DR
“NO RESPONSE”

48

Multiple LCUs
are displayed

BCM/HARNESS

Displays in
order of
25

28

38

4

8 and cycles
from 25.

Communication system C:
Refer to

BL-39, "COMMU-

NICATION SYSTEM C"

 .

SLEEP malfunc-
tion

One LCU is dis-
played.

POWER WINDOW C/U-DR “SLEEP”

No self-diagno-
sis function

Replace the displayed
LCU.

DOOR MIRROR C/U-RH
“SLEEP”

DOOR MIRROR C/U-LH
“SLEEP”

POWER SEAT C/U-DR
“SLEEP”

Multiple LCUs
are displayed

All the above control units are displayed.

No self-diagno-
sis function

Communication system A:
Refer to

BL-39, "COMMU-

NICATION SYSTEM A"

 .

BL-36

POWER DOOR LOCK SYSTEM

SELF-DIAGNOSIS RESULTS
Operation Procedure

1.

Touch “DOOR LOCK” on the “SELECT TEST ITEM” screen.

2.

Touch “SELF-DIAG RESULTS” on the “SELECT DIAG MODE” screen.

3.

Touch “START” on the “SELF DIAG RESULTS” screen.

4.

Door lock actuator automatically locks/unlocks all the doors before the door lock actuator self-diagnosis
start.

5.

After the diagnosis is completed, the malfunctioning system name is displayed.

6.

When the malfunctioning items are displayed, touch “PRINT” to keep the records.

7.

Touch “ERASE”.

8.

Perform the self-diagnosis again to make sure that any malfunctioning item is displayed.

9.

Perform out the inspection to the displayed items. If “No failure” is displayed, the malfunctioning item
recorded at first shall be checked.

Self-Diagnostic Result List

DATA MONITOR

ACTIVE TEST

Malfunctioning system.

Malfunction detecting condition

DOOR LOCK MOTOR-DR

The circuit for the driver side door lock actuator/unlock sensor is malfunctioning.

DOOR LOCK MOTOR-AS

The circuit for the passenger side door lock actuator/unlock sensor is malfunctioning.

DOOR LOCK MOTOR-RR/RH

The circuit for the rear RH side door lock actuator/unlock sensor is malfunctioning.

DOOR LOCK MOTOR-RR/LH

The circuit for the rear LH side door lock actuator/unlock sensor is malfunctioning.

NO DTC IS DETECTED/FUR-
THER TESTING MAY BE
REQUIRED

No malfunction in the above items.

Monitored item

Description

IGN ON SW

Indicates [ON/OFF] condition of ignition switch.

IGN KEY SW

Indicates [ON/OFF] condition of electronic key switch.

DOOR LK SW-LK

Indicates [ON/OFF] condition of lock signal from lock/unlock switch front LH.

DOOR LK SW-UN

Indicates [ON/OFF] condition of unlock signal from lock/unlock switch front LH.

LOCK SIG-DR

Indicates [ON/OFF] condition of driver door unlock signal from door unlock sensor.

LOCK SIG-AS

Indicates [ON/OFF] condition of passenger door unlock signal from door unlock sensor.

LOCK SIG-RR/RH

Indicates [ON/OFF] condition of rear RH door unlock signal from door unlock sensor.

LOCK SIG-RR/LH

Indicates [ON/OFF] condition of rear LH door unlock signal from door unlock sensor.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

KEY CYL UN-DR

Indicates [ON/OFF] condition of unlock signal from driver door key cylinder.

KEY CYL LK-DR

Indicates [ON/OFF] condition of lock signal from driver door key cylinder.

MAIN/S LOCK AS

Indicates [ON/OFF] condition of lock signal from lock/unlock switch front RH

MAIN/S UNLK AS

Indicates [ON/OFF] condition of unlock signal from lock/unlock switch front RH

Test item.

Malfunction detecting condition

DR LOCK MTR-ALL

This test is able to check all door lock actuators lock operation.
These actuators lock when “ON” on CONSULT-II screen is touched.
