HOOD

PFP:F5100

Fitting Adjustment

AIS001D2

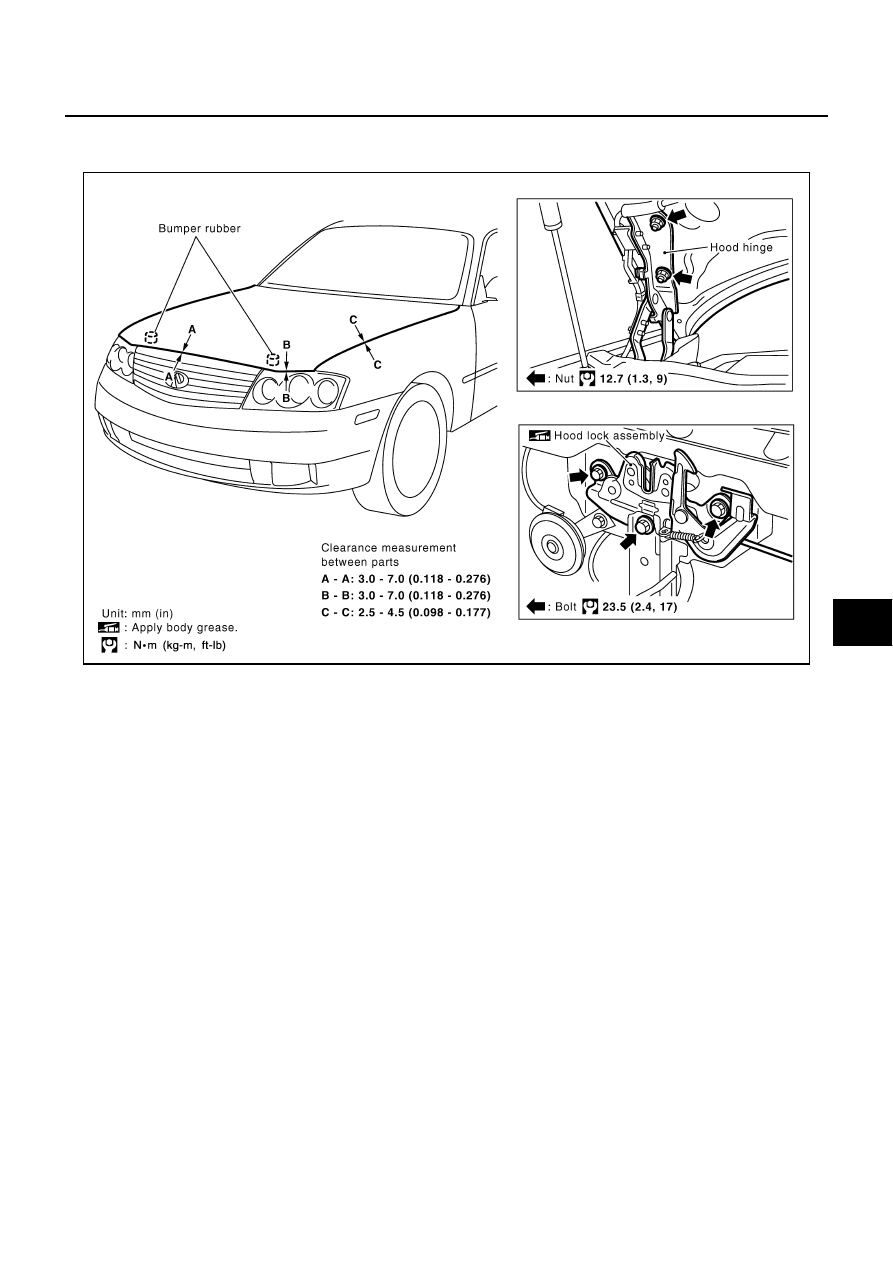

LONGITUDINAL AND LATERAL CLEARANCE ADJUSTMENT

1.

Remove hood lock assembly, loosen the hood hinge nuts and close the hood.

2.

Adjust the lateral and longitudinal clearance, and open the hood to tighten the hood hinge mounting bolts
to the specified torque.

3.

Install the hood lock temporarily, and align the hood striker and lock so that the centers of striker and lock
become vertical viewed from the front, by moving the hood lock laterally.

4.

Tighten hood lock mounting bolts to the specified torque.

CAUTION:

Adjust right/left clearance between hood and each part to the following specification.

FRONT END HEIGHT ADJUSTMENT

1.

Remove the hood lock and adjust the height by rotating the bumper rubber until the hood becomes 1 to1.5
mm (0.04 to 0.059 in) lower than the fender.

2.

Temporarily tighten the hood lock, and position it by engaging it with the hood striker. Check the lock and
striker for looseness, and tighten the hood lock mounting bolts to the specified torque.

SURFACE HEIGHT ADJUSTMENT

1.

Remove the hood lock, and adjust the surface height difference of the hood and fender according to the
fitting standard dimension, by rotating RH and LH bumper rubbers.

2.

Install the hood lock temporarily, and align the food striker and lock so that the centers of striker and lock
become vertical viewed from the front, by moving the hood lock laterally.

PIIA2873E

Hood and headlamp (B–B)

: Less than 1.5 mm (0.59 in)

Hood and fender (C–C)

: Less than 1.5 mm (0.59 in)

Hood and fender (C–C)

: 0

±

1.0 mm (0.04 in)

BL-14

HOOD

3.

Check that the secondary latch is properly engaged with the
secondary striker with hood's own weight by dropping it from
approx. 200 mm (7.87 in) height or by pressing it lightly approx.
3 kg (29 N).

CAUTION:

Do not drop the hood from 300 mm (11.81 in) height or
higher.

4.

Move the hood lock-up and down so that the striker and lock are
engaged firmly with the hood closed.

5.

Tighten the lock mounting bolts to the specified torque.

Removal and Installation of Hood Assembly

AIS001D3

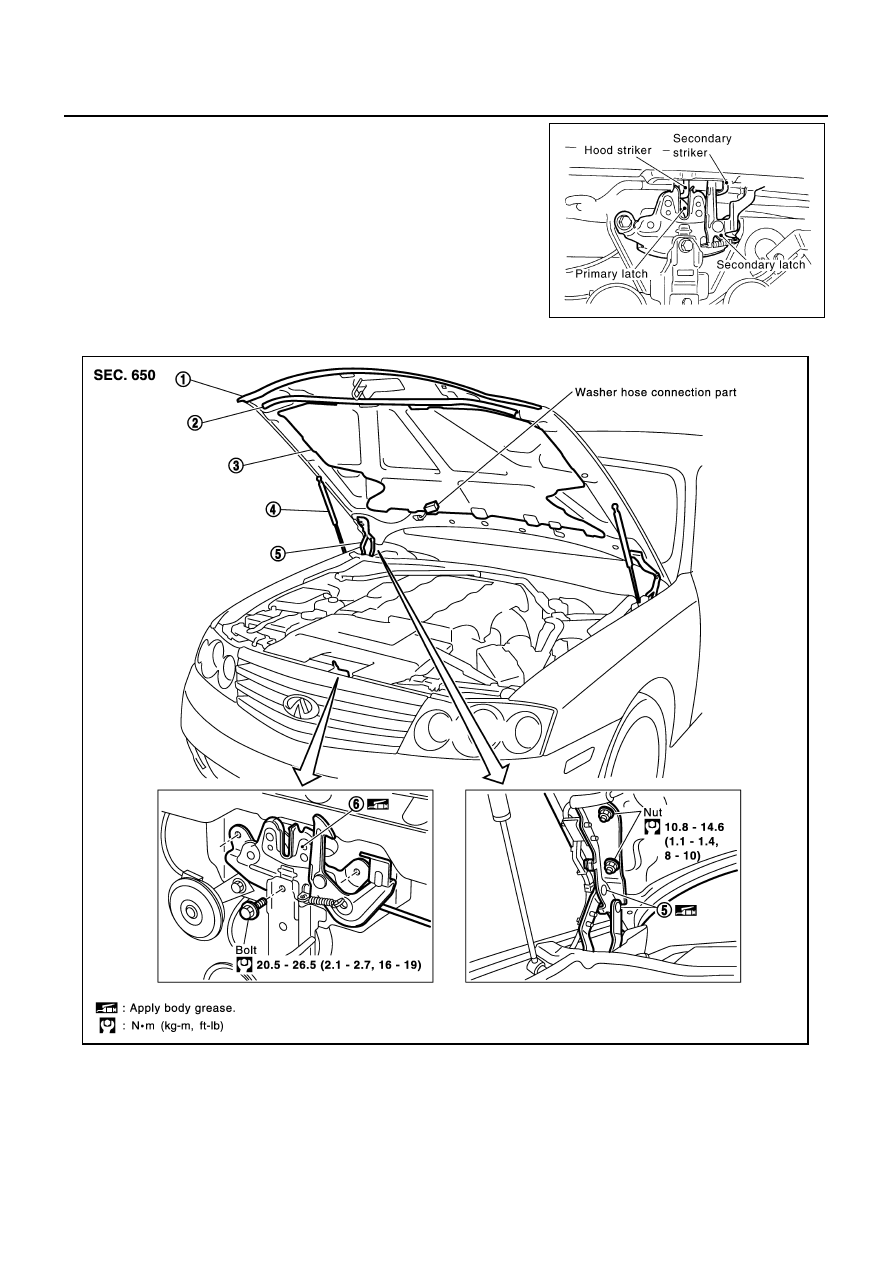

PIIB1082E

1.

Hood assembly

2.

Hood front sealing rubber

3.

Hood insulator

4.

Hood stay

5.

Hood hinge

6.

Hood lock assembly

PIIA2874E

HOOD

BL-15

C

D

E

F

G

H

J

K

L

M

A

B

BL

REMOVAL

1.

Washer hose is separated in the connection part.

2.

Support the hood striker with a proper material to prevent it from
falling.

WARNING:

Body injury may occur if no supporting rod is holding the
hood open when removing the damper stay.

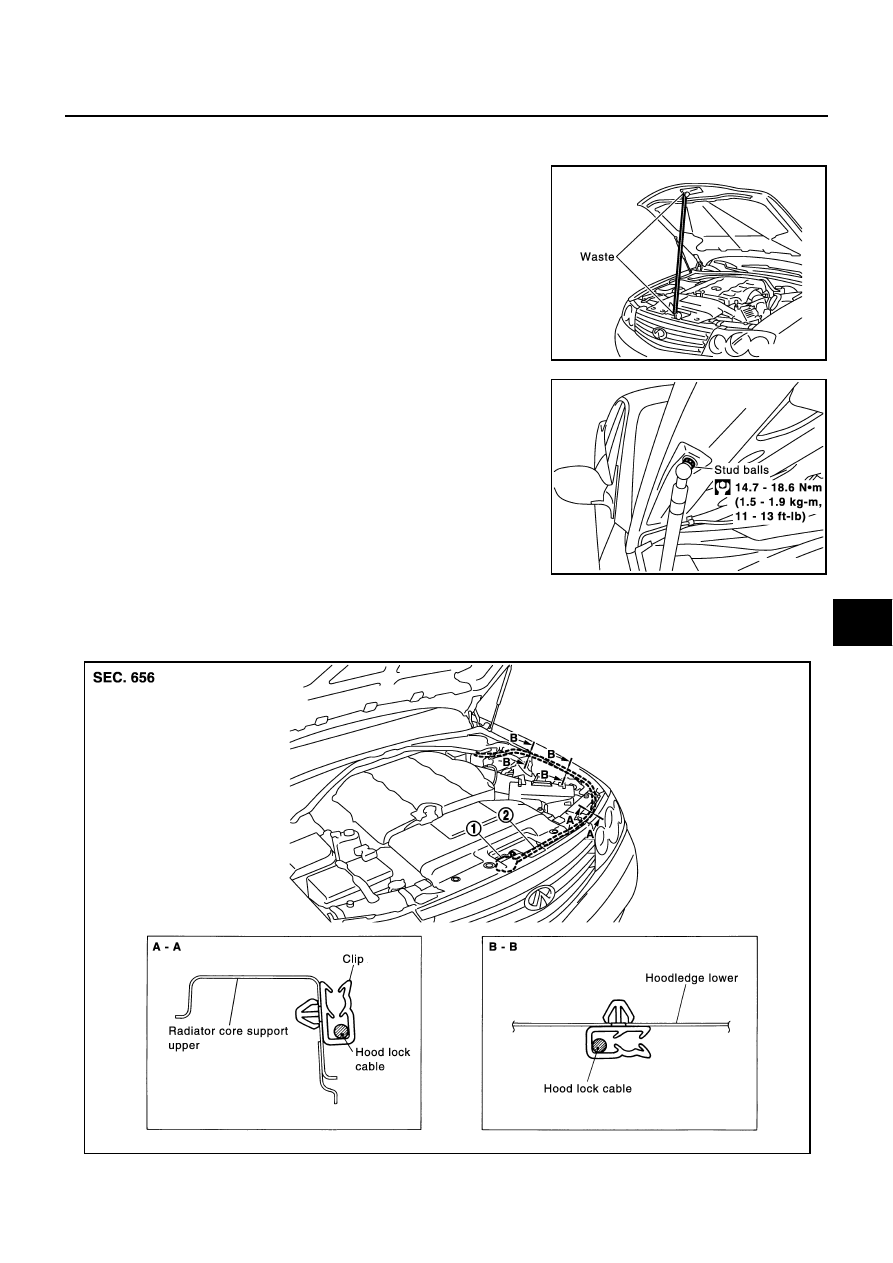

3.

Remove stud balls on the hood stays at the body side.

4.

Remove the hinge mounting nuts on the hood to remove the
hood assembly.

CAUTION:

Operate with two workers, because of its heavy weight.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Hood Lock Control

AIS001D4

PIIA3059E

PIIA3439E

1.

Hood lock assembly

2.

Hood lock cable

PIIA2875E

BL-16

HOOD

REMOVAL

1.

Remove the front grill. Refer to

EI-19, "FRONT GRILLE"

 .

2.

Remove the fender protector. Refer to

EI-21, "FENDER PROTECTOR"

 .

3.

Remove the hood lock assembly. Refer to

BL-15, "Removal and Installation of Hood Lock Control"

 .

4.

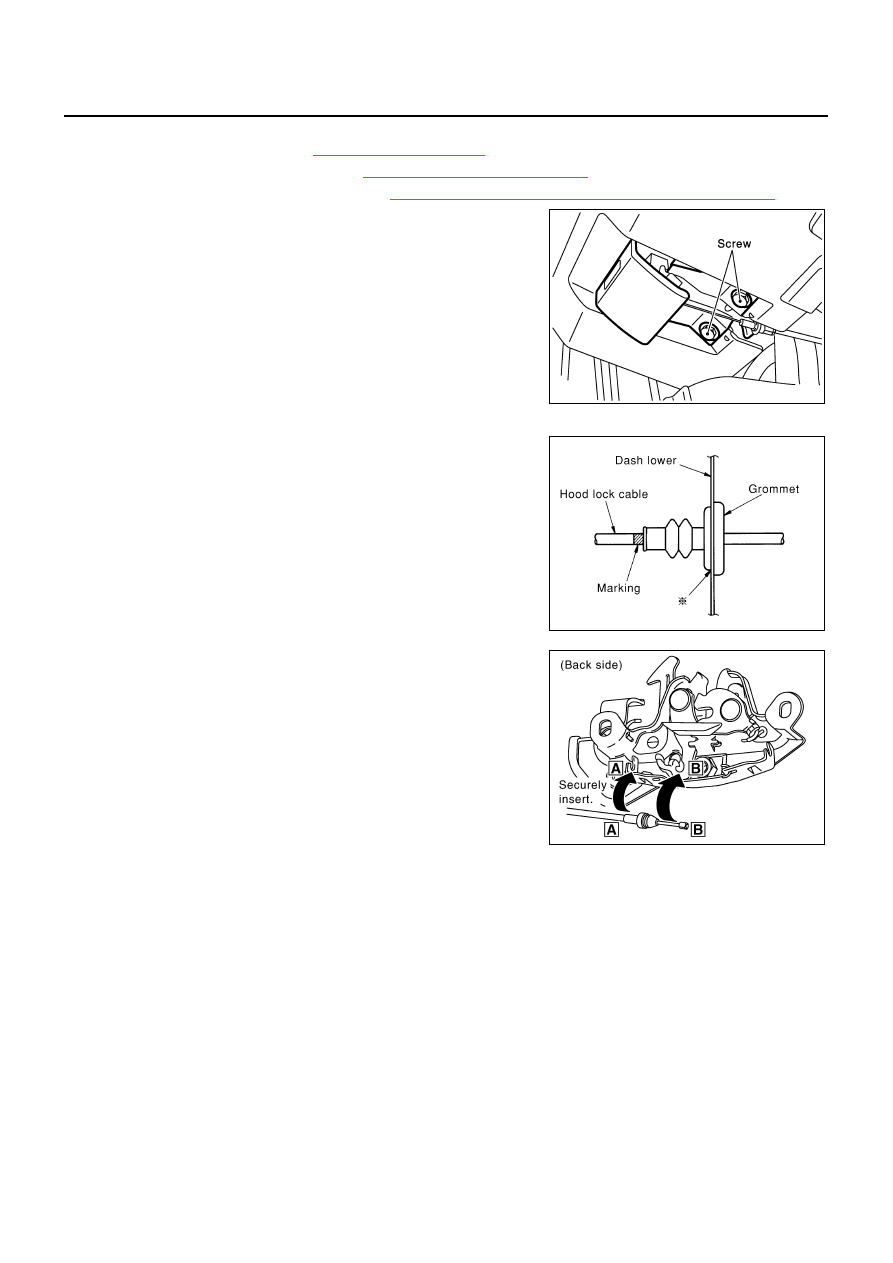

Disconnect the hood lock cable from the hood lock, and clip it
from the radiator core support upper and hood ledge.

5.

Remove the mounting screws, and remove the hood opener.

6.

Remove the grommet on the dash lower, and pull the hood lock
cable toward the passenger room.

CAUTION:

While pulling, be careful not to damage (peeling) the out-
side of the hood lock cable.

INSTALLATION

1.

Pull the hood lock cable through the panel hole to the engine
room.

CAUTION:

Be careful not to bend the cable too much, keeping the
radius 100 mm (3.94 in) or more.

2.

Make sure that the cable is not offset from the positioning grom-
met, and push the grommet into the panel hole securely.

3.

Apply the sealant to the grommet (at * mark) properly.

4.

Install the cable securely to the lock.

5.

After installing, check the hood lock adjustment and hood
opener operation.

PIIA2789E

PIIA0173E

PIIB1379E
