Infiniti M45 (Y34). Manual - part 189





NAVIGATION SYSTEM

AV-89

C

D

E

F

G

H

I

J

L

M

A

B

AV

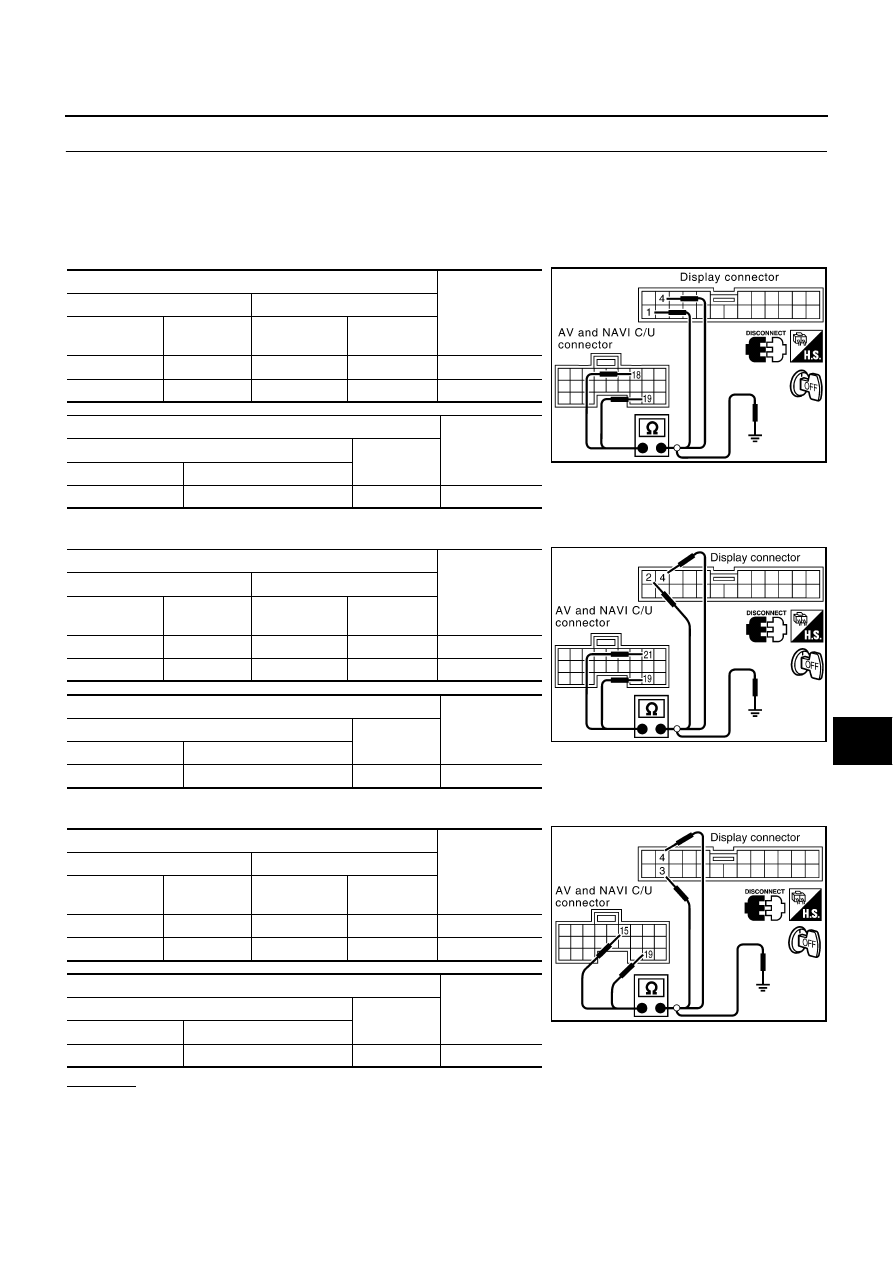

2.

HARNESS CHECK

1.

Turn ignition switch OFF.

2.

Disconnect AV and NAVI control unit connector and Display connector.

3.

Check continuity between AV and NAVI control unit and Display.

4.

Check continuity between AV and NAVI control unit and ground.

When the screen looks bluish

When the screen looks reddish

When the screen looks yellowish

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness.

Terminals

Continuity

AV and NAVI control unit (+)

Display (–)

Connector

Terminal

(Wire color)

Connector

Terminal

(Wire color)

B30

18  (R/L)

M82

1 (R/L)

YES

B30

19

M82

4

YES

Terminals

Continuity

AV and NAVI control unit(+)

(–)

Connector

Terminal (Wire color)

B30

18 (R/L),19

Ground

NO

SKIA3521E

Terminals

Continuity

AV and NAVI control unit (+)

Display (–)

Connector

Terminal

(Wire color)

Connector

Terminal

(Wire color)

B30

21 (R/W)

M82

2 (R/W)

YES

B30

19

M82

4

YES

Terminals

Continuity

AV and NAVI control unit(+)

(–)

Connector

Terminal (Wire color)

B30

19,21 (R/W)

Ground

NO

SKIA3522E

Terminals

Continuity

AV and NAVI control unit (+)

Display (–)

Connector

Terminal

(Wire color)

Connector

Terminal

(Wire color)

B30

15 (B)

M82

3 (B)

YES

B30

19

M82

4

YES

Terminals

Continuity

AV and NAVI control unit(+)

(–)

Connector

Terminal (Wire color)

B30

19,15 (B)

Ground

NO

SKIA3523E

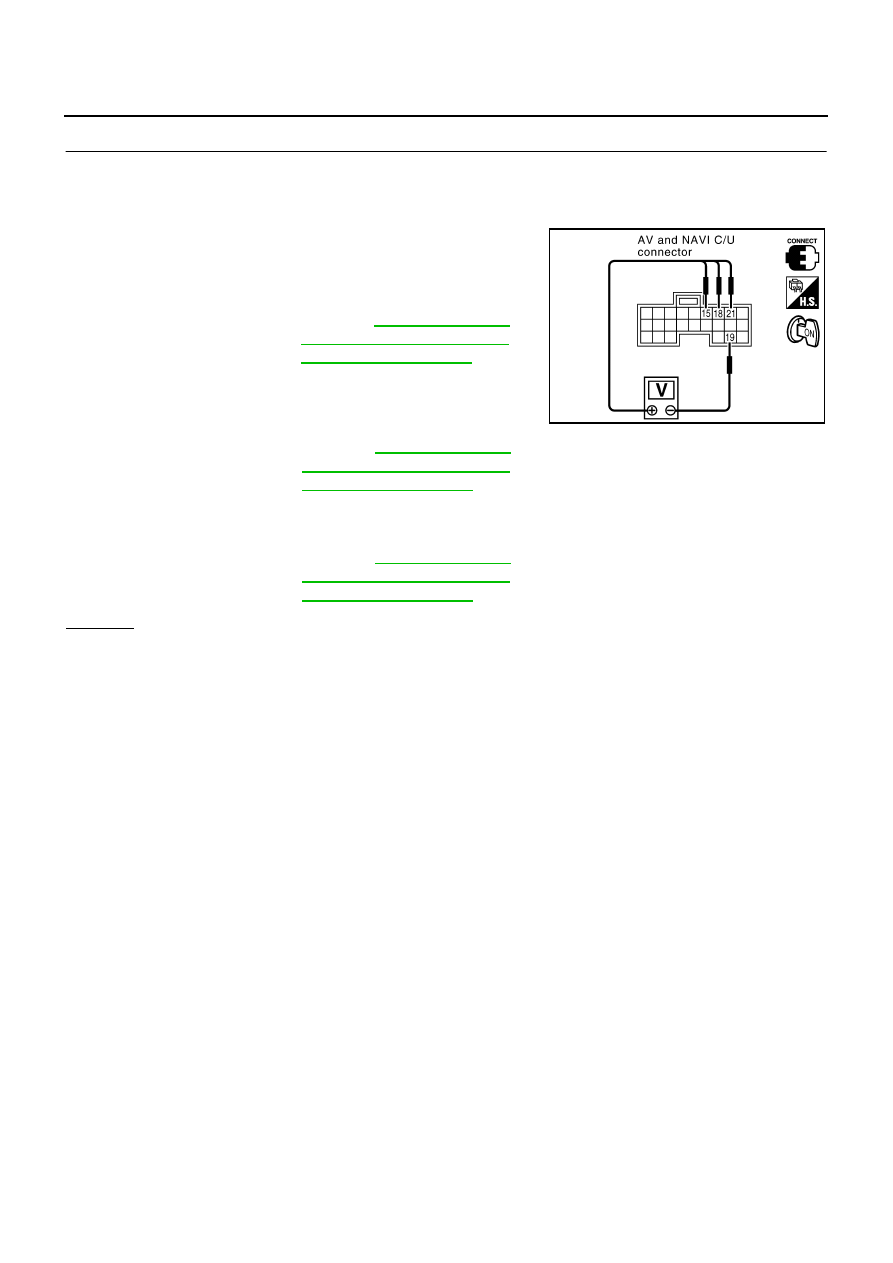

AV-90

NAVIGATION SYSTEM

3.

RGB SIGNAL CHECK

1.

Connect AV and NAVI control unit connector and Display connector.

2.

Turn ignition switch ON.

3.

Display “Color bar” by “Confirmation/Adjustment Mode” mode.

4.

Check the following with CONSULT-ll or oscilloscope.

When the screen looks bluish.
Voltage signal between AV and NAVI control unit connector B30
terminal 18 (R/L) and 19.

When the screen looks reddish.
Voltage signal between AV and NAVI control unit connector B30
terminal 21 (R/W) and 19.

When the screen looks yellowish.
Voltage signal between AV and NAVI control unit connector B30 terminal 15 (B) and 19.

OK or NG

OK

>> Replace Display.

NG

>> Replace AV and NAVI control unit.

18 (R/L) - 19

: Refer to

AV-64, "Terminals

and Reference Value for AV
and NAVI Control Unit"

 .

21 (R/W) - 19

: Refer to

AV-64, "Terminals

and Reference Value for AV
and NAVI Control Unit"

 .

15 (B) - 19

: Refer to

AV-64, "Terminals

and Reference Value for AV
and NAVI Control Unit"

 .

SKIA3524E

NAVIGATION SYSTEM

AV-91

C

D

E

F

G

H

I

J

L

M

A

B

AV

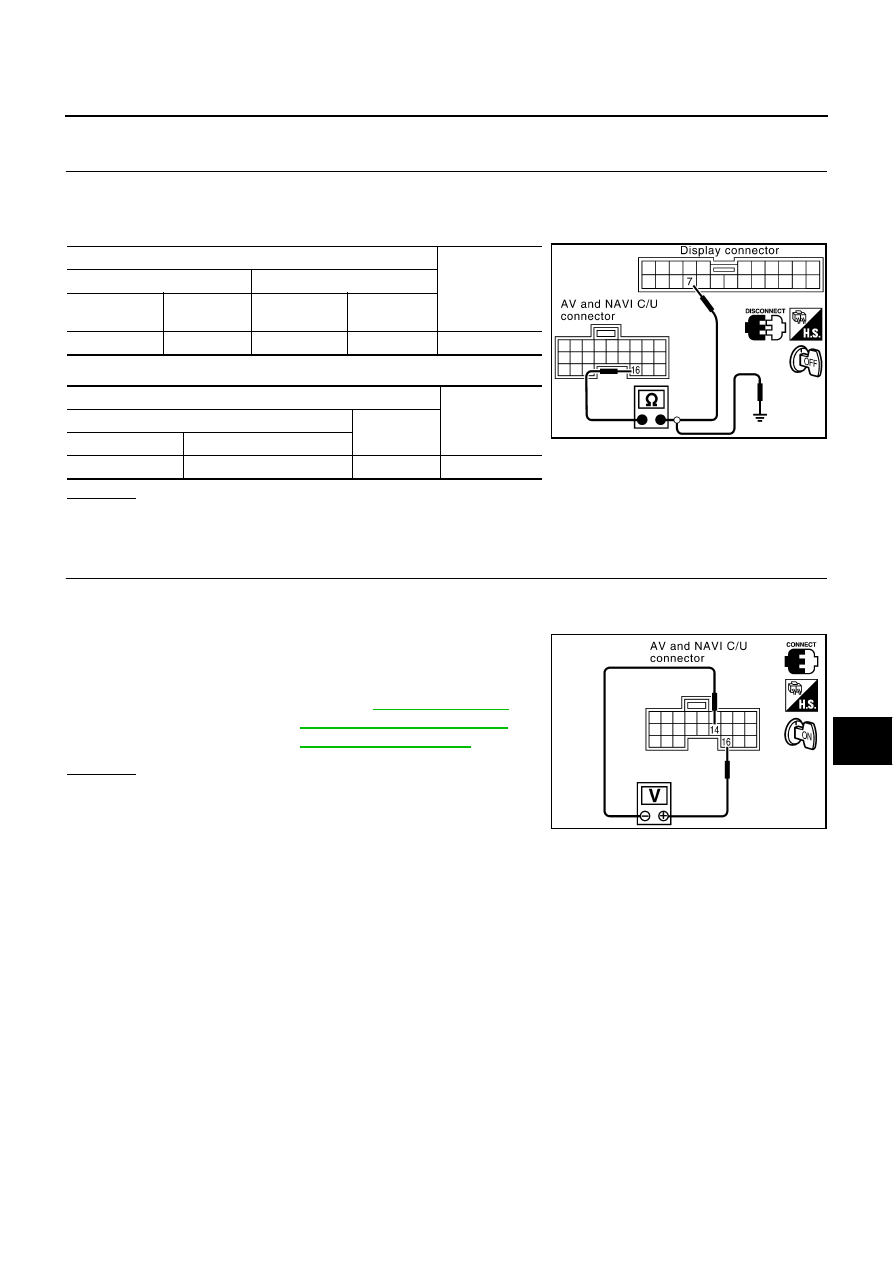

RGB Screen is Rolling

AKS003XU

1.

HARNESS CHECK

1.

Turn ignition switch OFF.

2.

Disconnect AV and NAVI control unit connector and Display connector.

3.

Check continuity between AV and NAVI control unit and Display.

4.

Check continuity between AV and NAVI control unit and ground.

OK or NG

OK

>> GO TO 2.

NG

>> Repair harness.

2.

RGB SYNCHRONIZING SIGNAL CHECK

1.

Connect AV and NAVI control unit connector and Display connector.

2.

Turn ignition switch ON.

3.

Check the signal between AV and NAVI control unit harness
connector B30 terminals 16(G) and 14 with CONSULT-ll or oscil-
loscope.

OK or NG

OK

>> Replace Display.

NG

>> Replace AV and NAVI control unit.

Terminals

Continuity

AV and NAVI control unit (+)

Display (–)

Connector

Terminal

(Wire color)

Connector

Terminal

(Wire color)

B30

16 (G)

M82

7 (G)

YES

Terminals

Continuity

AV and NAVI control unit (+)

(–)

Connector

Terminal (Wire color)

B30

16 (G)

Ground

NO

SKIA3525E

16(G) - 14

: Refer to

AV-64, "Terminals

and Reference Value for AV
and NAVI Control Unit"

 .

SKIA3526E

AV-92

NAVIGATION SYSTEM

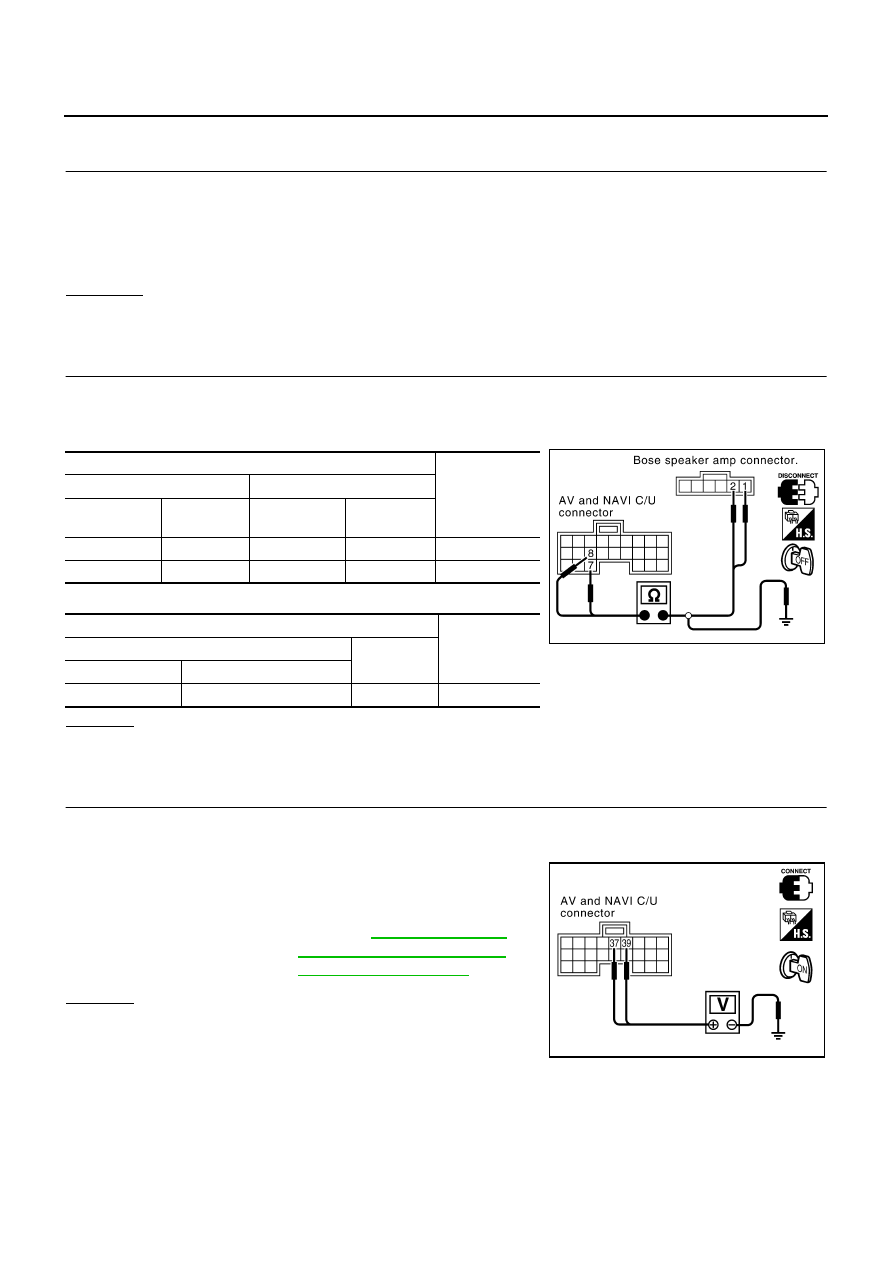

Guide Sound is Not Heard

AKS003XV

1.

CHECK VOICE GUIDE SETTING

While driving in the dark pink route, voice guide does not operate. (note)

Is volume setting not switched ON?

NOTE:
Voice guide is only available at intersections that satisfy certain conditions (indicated by

 on the map). There-

fore, guidance may not be given even when the route on the map changes direction.

YES or NO

YES

>> GO TO 2.

NO

>> Switch the setting ON and turn the volume up.

2.

HARNESS CHECK

1.

Turn ignition switch OFF.

2.

Disconnect AV and NAVI control unit connector and Bose speaker amp. connector.

3.

Check continuity between AV and NAVI control unit and Bose speaker amp.

4.

Check continuity between AV and NAVI control unit and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness.

3.

VOICE GUIDE CHECK

1.

Connect AV and NAVI control unit connector and Bose speaker amp. connector.

2.

Turn ignition switch ON.

3.

Check the signal between AV and NAVI control unit harness
connector B30 terminal 7 (R) and 8 (L) with CONSULT-ll or
oscilloscope.

OK or NG

OK

>> Replace Bose speaker amp.

NG

>> Replace AV and NAVI control unit.

Terminals

Continuity

AV and NAVI control unit (+)

Bose speaker amp. (–)

Connector

Terminal

(Wire color)

Connector

Terminal

(Wire color)

B30

7 (R)

B231

1 (P)

YES

B30

8 (L)

B231

2 (L)

YES

Terminals

Continuity

AV and NAVI control unit(+)

(–)

Connector

Terminal (Wire color)

B30

7 (R),8 (L)

Ground

NO

SKIA3560E

7 (R) - 8 (L)

: Refer to

AV-64, "Terminals

and Reference Value for AV
and NAVI Control Unit"

 .

SKIA3529E
