NAVIGATION SYSTEM

AV-73

C

D

E

F

G

H

I

J

L

M

A

B

AV

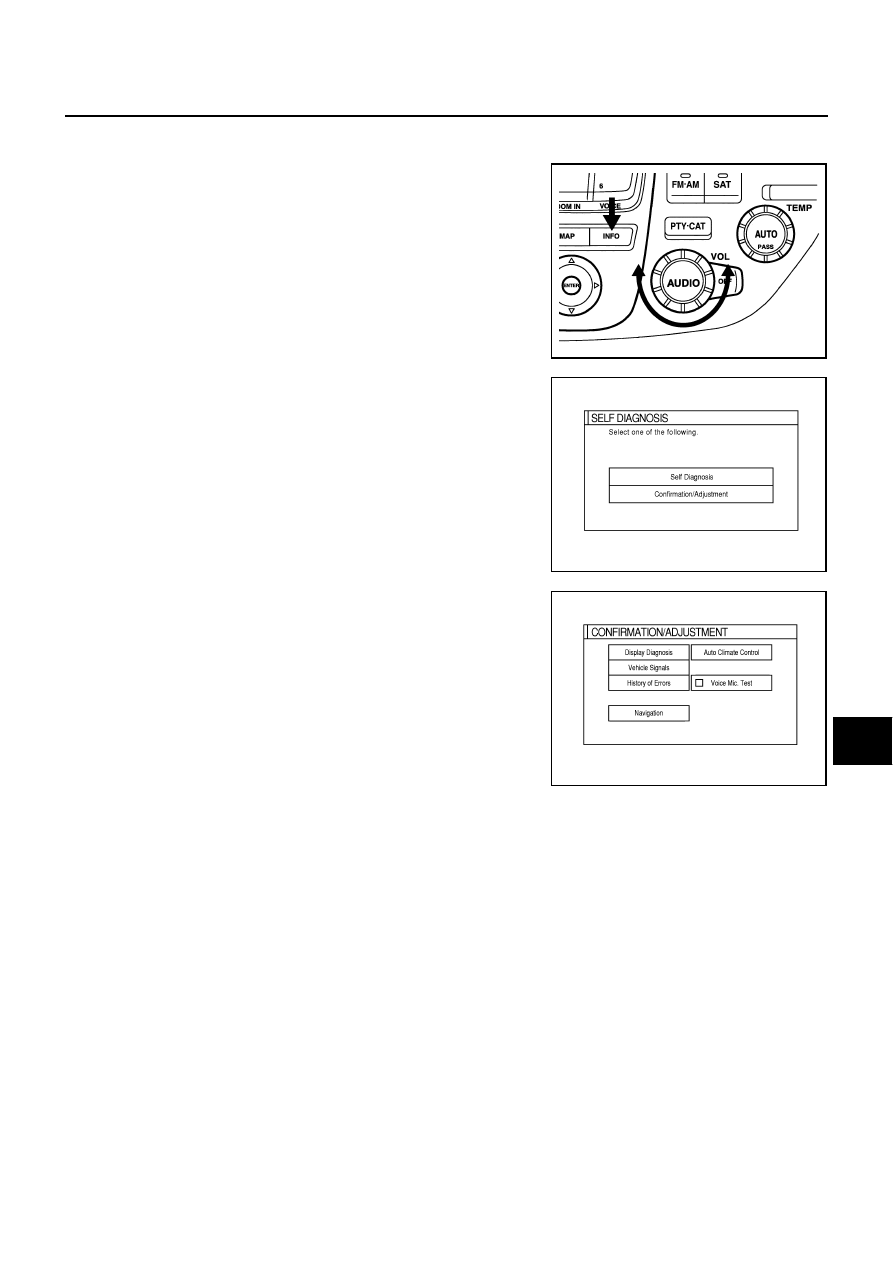

Confirmation/Adjustment Mode

AKS003XL

OPERATION PROCEDURE

1.

Start the engine.

2.

Turn the audio system off.

3.

While pressing the “INFO” switch, turn the volume control dial
clockwise or counterclockwise for 30 clicks or more. (When the
self-diagnosis mode is started, a short beep will be heard.)

●

Shifting from current screen to previous screen is performed
by pressing “PREV” switch.

4.

The initial trouble diagnosis screen will be shown, and items
“Self Diagnosis” and “Confirmation/Adjustment” will become
selective.

5.

When “Confirmation/Adjustment Mode” is selected on the initial
trouble diagnosis screen, the operation will enter the Confirma-
tion/Adjustment Mode mode. In this mode, check and adjust-
ment of each item will become possible.

6.

Select each switch on “CONFIRMATION/ADJUSTMENT”
screen to display the relevant diagnosis screen.

SKIA3512E

SKIA0381E

SKIA3922E

AV-74

NAVIGATION SYSTEM

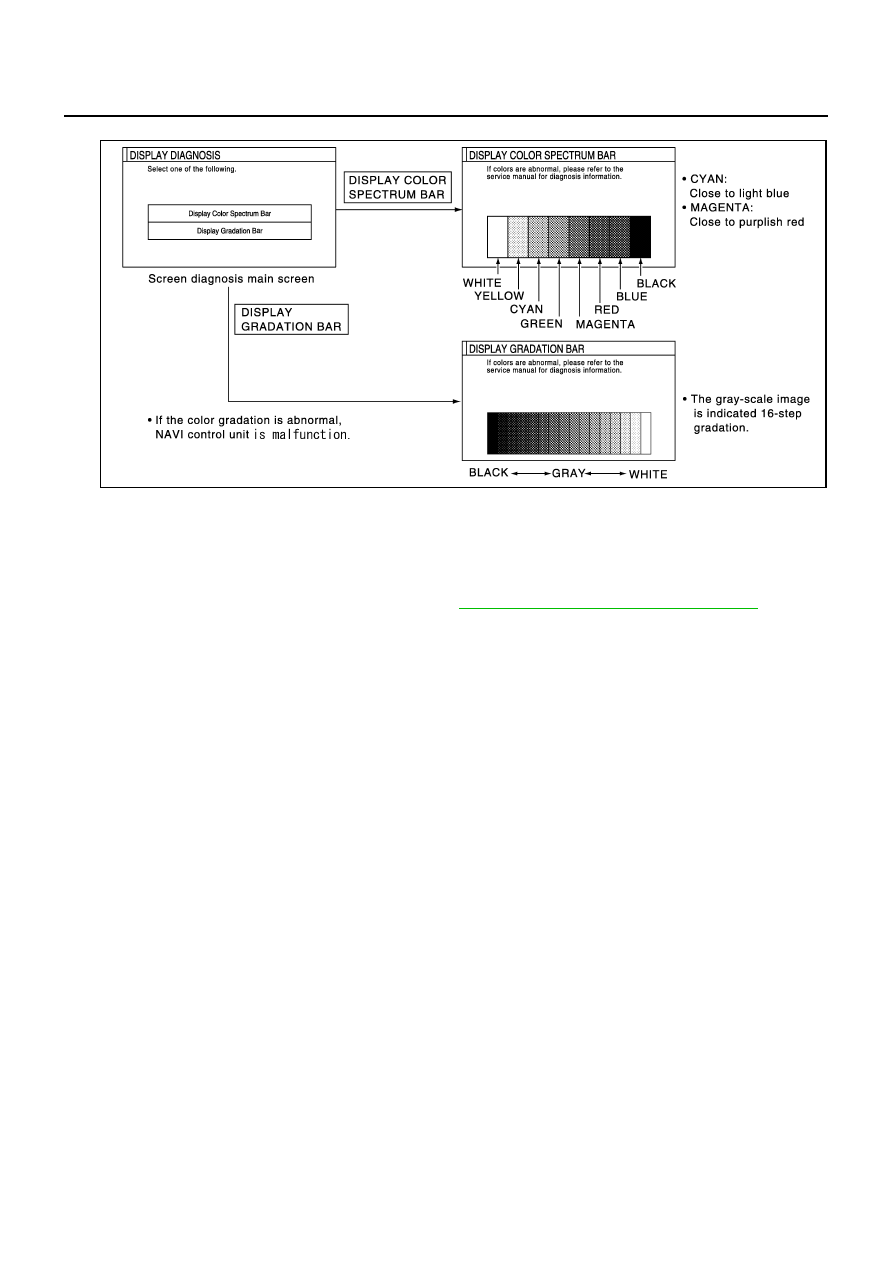

DISPLAY DIAGNOSIS

●

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.

●

When the color of the screen looks unusual, refer to

AV-88, "Color of RGB Image is Not Proper"

 .

SKIA0362E

R (red) signal error

: Screen looks bluish

G (green) signal error

: Screen looks yellowish

B (blue) signal error

: Screen looks reddish

NAVIGATION SYSTEM

AV-75

C

D

E

F

G

H

I

J

L

M

A

B

AV

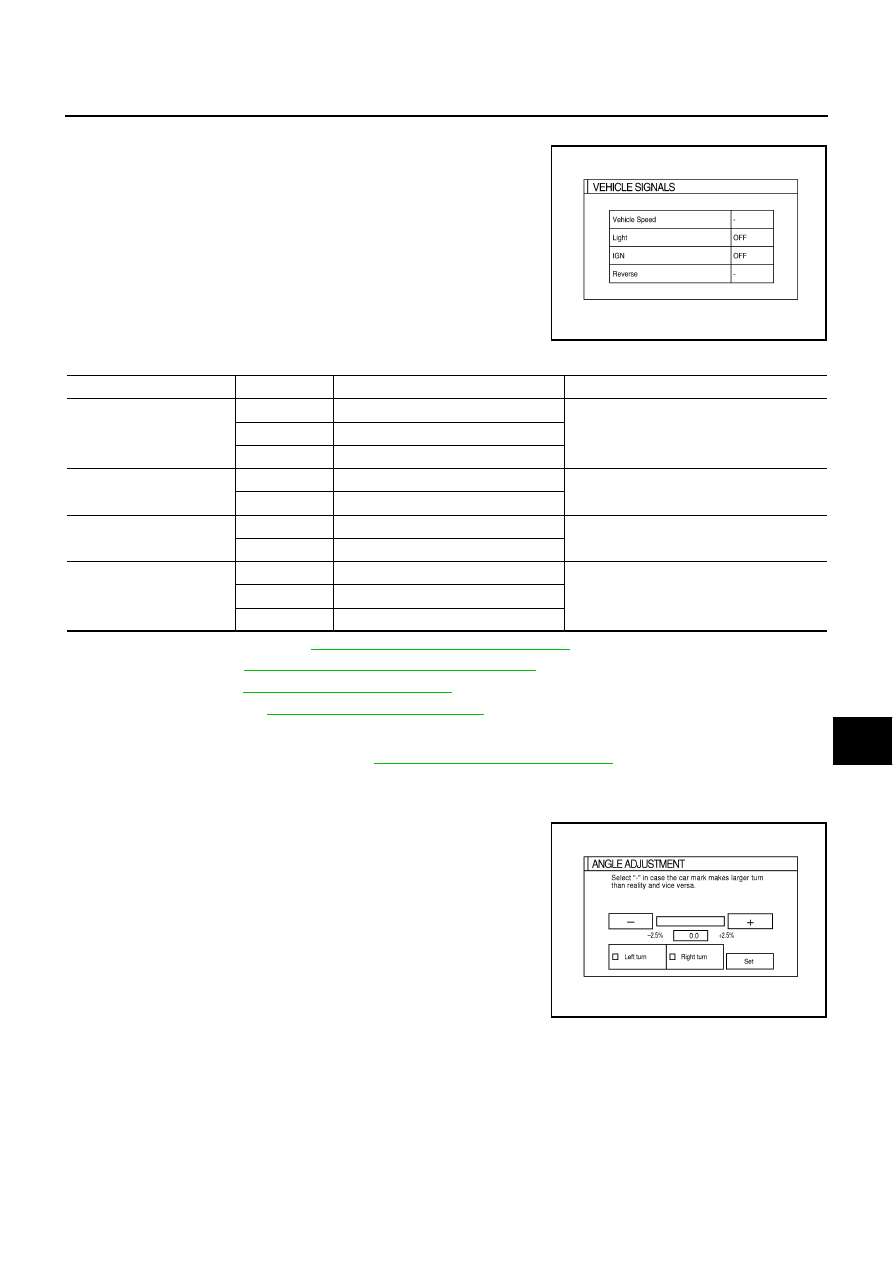

VEHICLE SIGNALS

●

A comparison check can be made of each actual vehicle signal
and the signals recognized by the system.

●

If vehicle speed is NG, refer to

AV-84, "Vehicle Speed Signal Check"

 .

●

If light is NG, refer to

AV-84, "Illumination Control Signal Check"

 .

●

If IGN is NG, refer to

AV-85, "Ignition Signal Check"

 .

●

If reverse is NG, refer to

AV-86, "Reverse Signal Check"

 .

AUTO CLIMATE CONTROL

●

Refer to ATC Automatic Air Conditioner

ATC-49, "Self-Diagnosis Function"

  for details.

NAVIGATION
Angle Adjustment

●

Adjusts turning angle output detected by the gyroscope.

SKIA3722E

Diagnosis item

Display

Condition

Remarks

Vehicle speed

ON

Vehicle speed > 0 km/h  (0 MPH)

Changes in indication may be delayed by
approx. 1.5 seconds. This is normal.

OFF

Vehicle speed = 0 km/h  (0 MPH)

-

Ignition switch in ACC position

Light

ON

Lighting switch ON

-

OFF

Lighting switch OFF

IGN

ON

Ignition switch ON

-

OFF

Ignition switch ACC or OFF

Reverse

ON

Selector lever in R-position

Changes in indication may be delayed by
approx. 1.5 seconds. This is normal.

OFF

Selector lever in other than R-position

-

Ignition switch in ACC position

SKIA0364E

AV-76

NAVIGATION SYSTEM

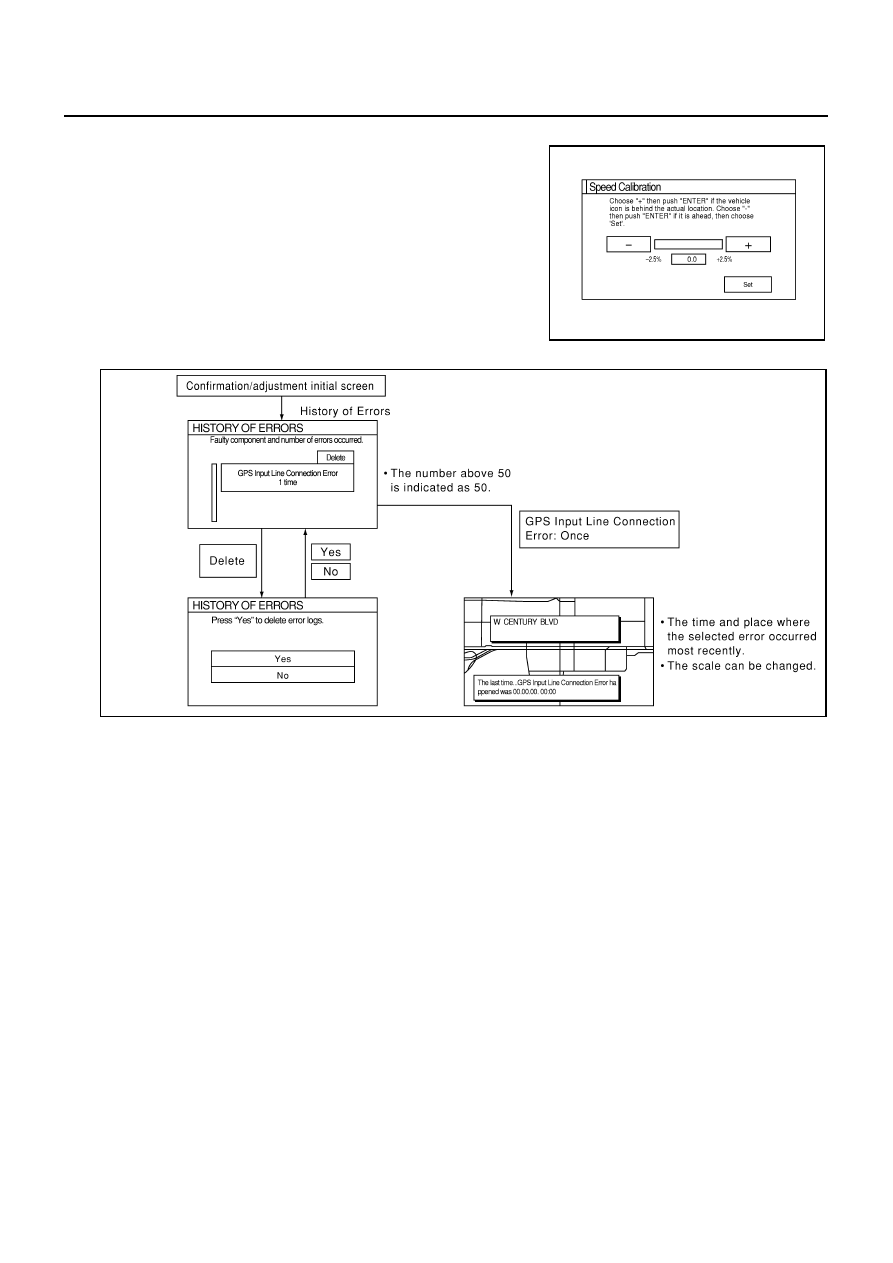

Speed Calibration

●

During normal driving, distance error caused by tire wear and
tire pressure change is automatically adjusted for by the auto-
matic distance correction function. This function, on the other
hand, is for immediate adjustment, in cases such as driving with
tire chain fitted on tires.

HISTORY OF ERRORS

SKIA0365E

SKIA0366E
