NAVIGATION SYSTEM

AV-69

C

D

E

F

G

H

I

J

L

M

A

B

AV

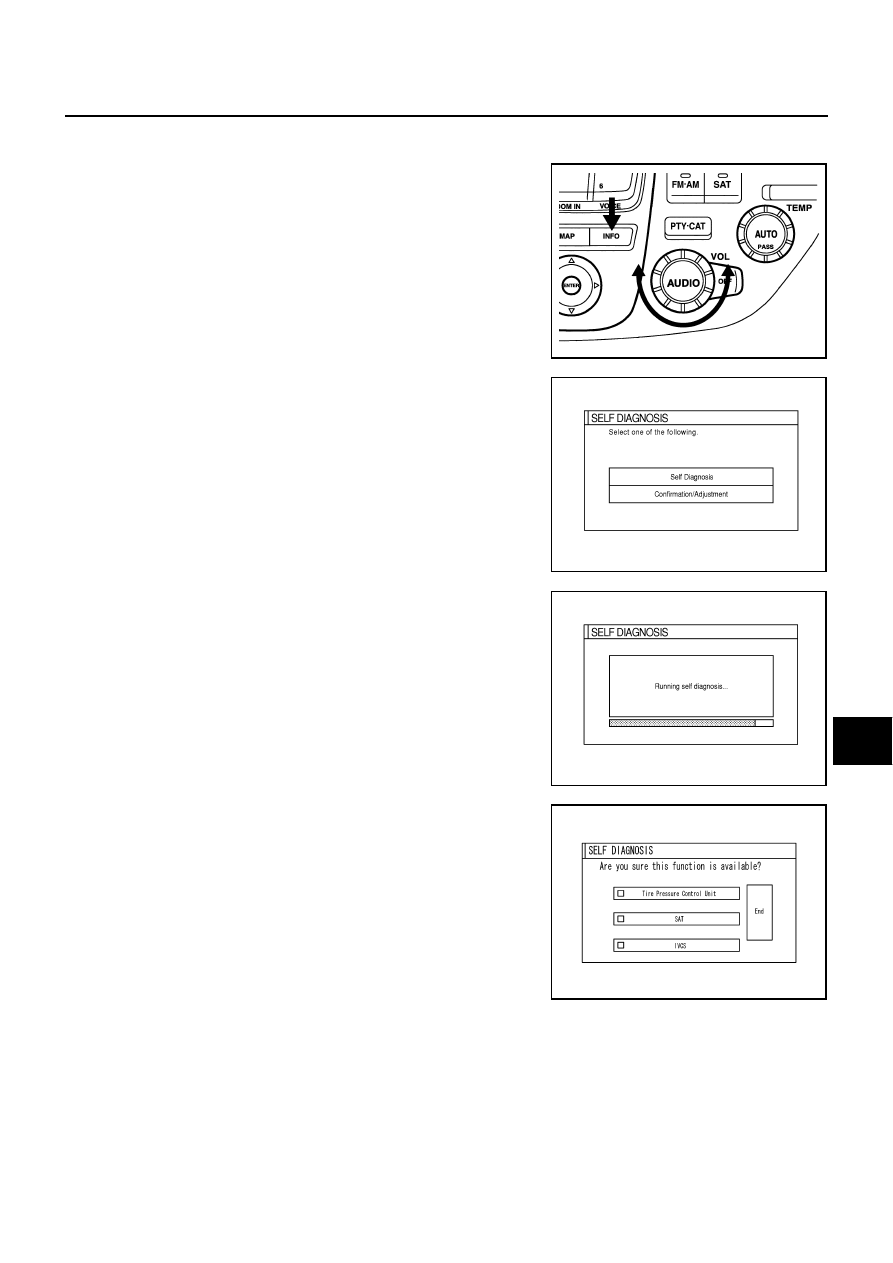

Self-Diagnosis Mode

AKS003XK

OPERATION PROCEDURE

1.

Start the engine.

2.

Turn the audio system off.

3.

While pressing the “INFO” switch, turn the volume control dial
clockwise or counterclockwise for 30 clicks or more. (When the
self diagnosis mode is started, a short beep will be heard.)

Shifting from current screen to previous screen is performed
by pressing “PREV” switch.

4.

The initial trouble diagnosis screen will be shown, and items
“Self Diagnosis” and “Confirmation/Adjustment” will become
selective.

5.

Perform self-diagnosis by selecting the “Self Diagnosis”.

Self-diagnosis subdivision screen will be shown and the oper-
ation enters the self-diagnosis mode.

A bar graph shown below the self-diagnosis subdivision
screen indicates progress of the diagnosis.

6.

When the self-diagnosis completes, optional part confirmation
screen will be shown.

When connection of an optional part is judged error, a screen
to check if the optional part is actually fitted on the vehicle or
not will be shown. When fitted, select the switch of the part on
the screen and press “END”. Then the “SELF DIAGNOSIS”
screen will be shown.

When the optional part is connected normally, the switch for
the part will not appear on the screen.

SKIA3512E

SKIA0381E

SKIA0382E

SKIA3513E

AV-70

NAVIGATION SYSTEM

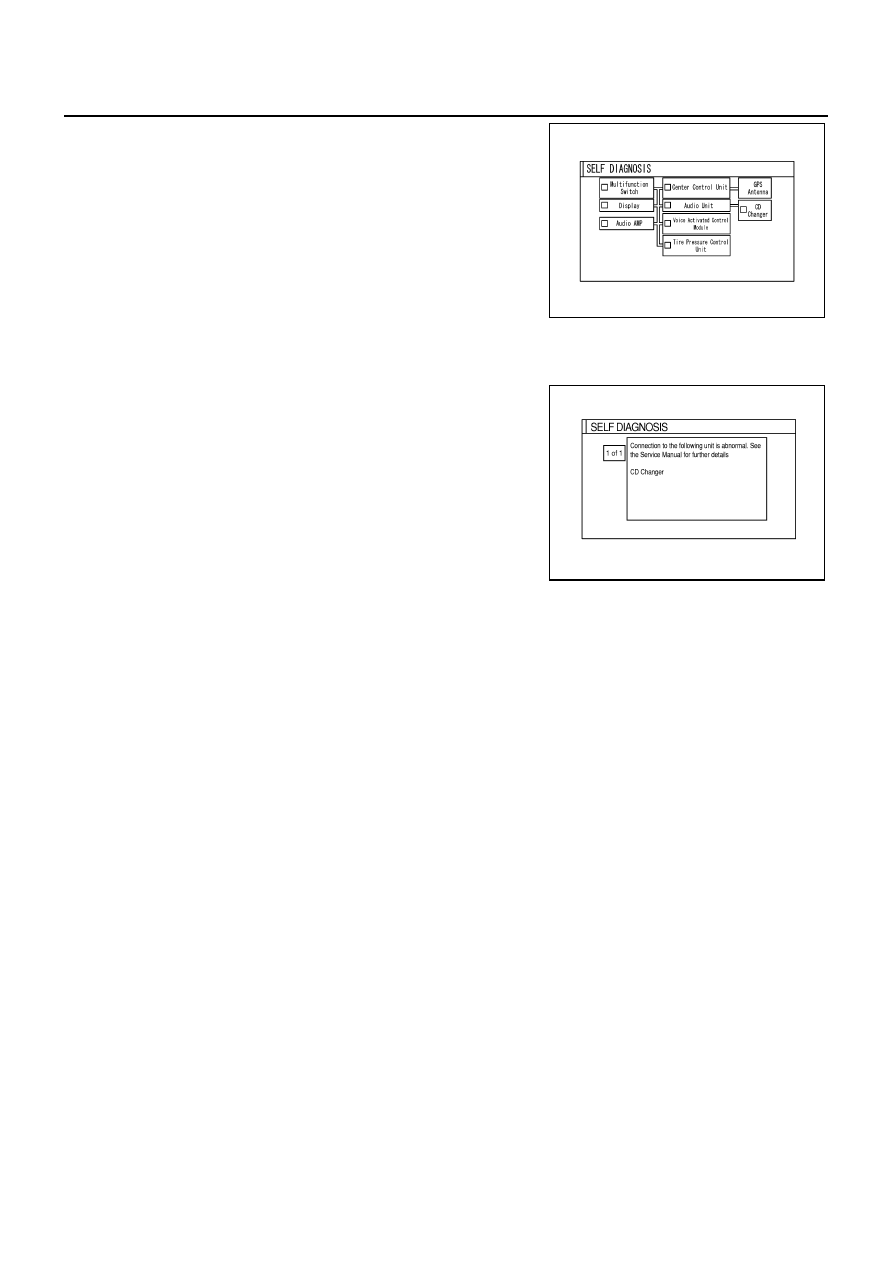

7.

On the “SELF DIAGNOSIS” screen, each unit name will be col-
ored according to the diagnosis result, as follows.

If several malfunctions are present in a unit, color of its switch
on the screen will be either red, yellow, or gray, determined by
the malfunction of the highest priority.

CAUTION:

“Tire Pressure Control Unit” on the screen will be illuminated in yellow when performing self-diag-
nosis with ignition switch in ACC position.

8.

Select a switch on the “SELF DIAGNOSIS” screen and com-
ments for the diagnosis results will be shown.

When the switch is green, the following comment will be
shown. “Self-diagnosis was successful. Further diagnosis and
adjustments are recommended. Follow the “confirmation and
adjustments” menu or refer to the service manual.”.

When the switch is yellow, the following comment will be
shown. “Connection to the following unit is abnormal. See the
service manual for further details”.

When the switch is red, the following comment will be shown.
“Center Control Unit is abnormal”.

When the switch is gray, the following comment will be shown. “Self-diagnosis for DVD-ROM DRIVER
of NAVI was not conducted because no DVD-ROM was available.”.

Green

: No malfunctioning.

Yellow

: Cannot be judged by self-diagnosis results.

Red

: Unit is malfunctioning.

Gray

: Diagnosis has not been done.

SKIA3921E

SKIA0385E

NAVIGATION SYSTEM

AV-71

C

D

E

F

G

H

I

J

L

M

A

B

AV

SELF-DIAGNOSIS RESULT
Quick Reference Table

1.

Select an applicable diagnosis No. in the diagnosis result quick reference table.

2.

Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to

AV-60,

"Wiring Diagram — COMM —"

 .

3.

Turn ignition switch OFF and perform self-diagnosis again.

*: Center Control unit = AV and NAVI control unit

CAUTION:

When multifunction switch has an incident, you can not start.

Check the following when the self-diagnosis mode can not be used.

AV communication line between AV and NAVI control unit and Display, AV communication line
between Display and multifunction switch.

multifunction switch power supply and ground circuit

When an error is in the AV communication line, it cannot be detected on the screen because
self-diagnosis is inoperative. However, the error can be detected with CONSULT-II.

Screen switch

Diagnosis No.

Switch

color

Center control

unit*

Display

Tire pressure

control unit

Audio

unit

CD auto
changer

Audio

amp.

Voice activated

control module

GPS

antenna

Red

×

1

Gray

×

2

Yellow

×

×

3

×

×

4

×

×

×

5

×

6

×

×

7

×

×

8

×

×

9

×

×

10

×

×

11

×

×

×

×

12

AV-72

NAVIGATION SYSTEM

Self-Diagnosis Codes

Diagnosis

No.

Possible cause

1

AV and NAVI control unit malfunction

2

No map DVD-ROM is inserted in the AV and NAVI control unit.

3

Display power supply and ground circuit

4

Low tire pressure warning control unit power supply and ground circuit, AV communication line between low tire pres-
sure warning control unit and multifunction switch.

5

Audio unit power supply and ground circuit

6

CD auto changer power supply and ground circuit, AV communication line between CD auto changer and audio unit.

7

Audio amplifier power supply and ground circuit.

8

Voice activated control module power supply and ground circuit.

9

GPS antenna system

1. Visually check for a broken wire in the GPS antenna coaxial cable.

2. Disconnect the GPS antenna connector, and make sure approximately 5V is supplied from the AV and NAVI control

unit. If not, the AV and NAVI control unit is malfunctioning. If 5V is supplied, replace the GPS antenna. If the connec-
tion is still malfunction after the replacement of the GPS antenna, the AV and NAVI control unit is malfunctioning.

10

AV communication line between voice activated control unit and the AV and NAVI control unit.

11

AV communication line between audio amplifier and audio unit. Audio amplifier internal communication circuit.

12

AV communication line between audio unit and multifunction switch. Audio control unit communication circuit.
