Infiniti M45 (Y34). Manual - part 183

NAVIGATION SYSTEM

AV-65

C

D

E

F

G

H

I

J

L

M

A

B

AV

16 (G)

14

RGB syn-

chronizing

signal

Output

ON

Press the “MAP”

switch.

RGB screen is

rolling.

18 (R/L)

19

RGB signal

(R: red)

Output

ON

Select “SCREEN

ADJUSTMENT” of

Confirmation/

Adjustment Mode

function.

RGB screen
looks bluish.

19

-

RGB ground

-

-

-

-

-

21 (R/W)

19

RGB signal

(G: green)

Output

ON

Select “SCREEN

ADJUSTMENT” of

Confirmation/

Adjustment Mode

function.

RGB screen

looks reddish.

25 (R/L)

Ground

Illumination

control signal

Input

ON

Light-

ing

switch

ON

(posi-

tion 1)

Optical

sensor is

exposed

to light.

Approx. 12V

Screen does not

switch between

daytime mode

and nighttime

mode.

Optical

sensor is

not

exposed

to light.

Approx. 0V

26 (W/G)

Ground

Ignition signal

Input

ON

-

Battery voltage

A/C operation is

not possible.

Vehicle informa-

tion setting is not

possible.

27 (R/B)

Ground

Reverse sig-

nal

Input

ON

AT selector lever in

R-position

Battery voltage

The navigation

current-location

mark moves

strangely when

the vehicle is

moving back-

wards.

AT selector lever not

in R-position

Approx. 0V

28

(OR/L)

Ground

Vehicle

speed signal

(8-pulse)

Input

ON

When vehicle speed

is approx. 40 km/h

(25 MPH)

Navigation cur-

rent-location

mark does not

indicate the cor-

rect position.

30 (B)

Ground

Illumination

ground

-

ON

-

Approx. 0V

-

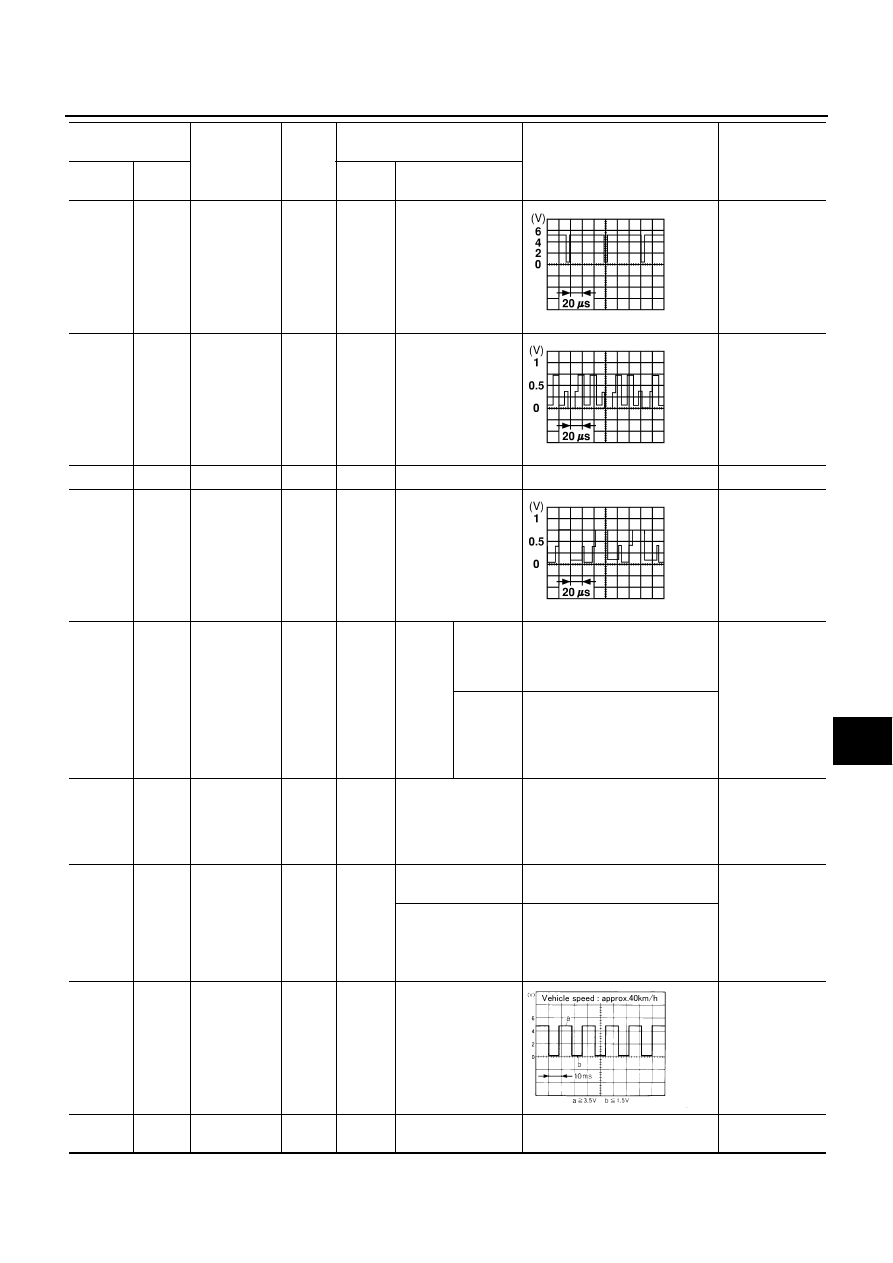

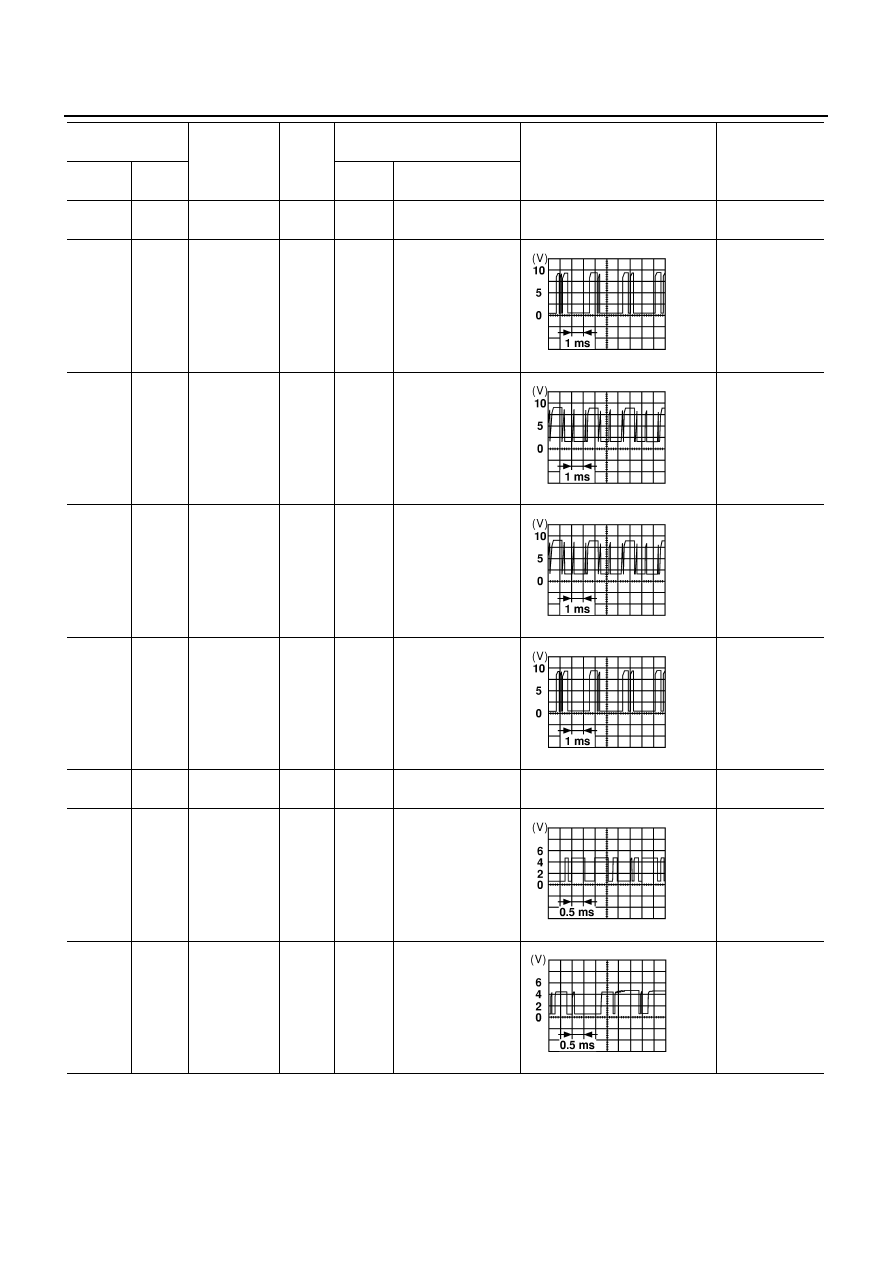

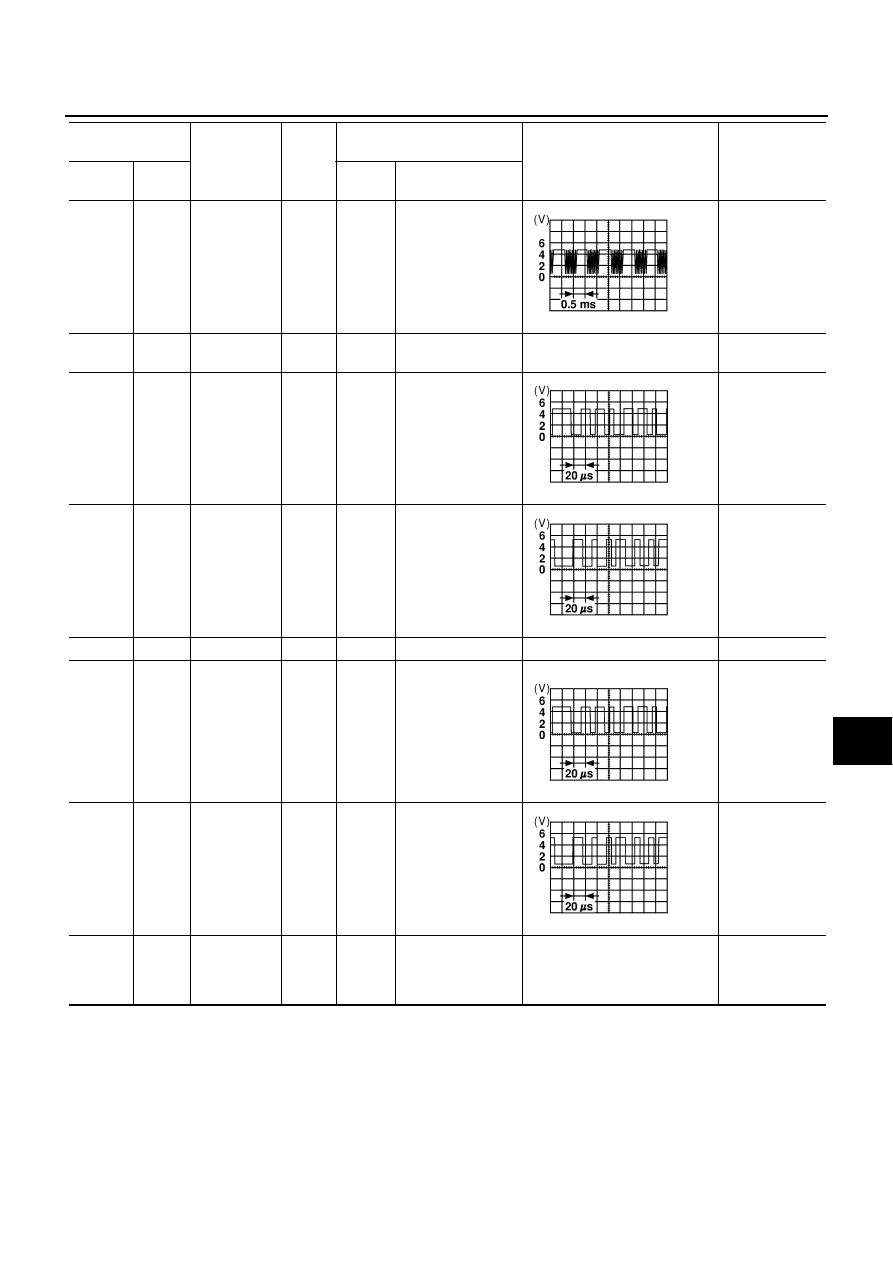

Terminal No.

 (Wire color)

Item

Signal

input/

output

Condition

Voltage

Example of

symptom

+

–

Ignition

switch

Operation

SKIA0164E

SKIA0165E

SKIA0166E

SKIA0168E

AV-66

NAVIGATION SYSTEM

31

-

Shield

ground

-

-

-

-

-

32 (PU)

Ground

Communica-

tion signal

(ME-AV)

Input

ON

Perform various set-

tings on the vehicle
information screen.

Clock cannot be

adjusted.

Vehicle informa-

tion screen is

not shown.

33 (LG)

Ground

Communica-

tion signal

(AV-ME)

Output

ON

Display the vehicle

information screen.

Clock cannot be

adjusted.

Vehicle informa-

tion screen is

not shown.

34 (P)

Ground

CONSULT-II

communica-

tion signal

(AV-CN)

Output

ON

Perform CONSULT-

II.

Diagnosis with

CONSULT-II is

not possible.

35

 (BR/Y)

Ground

CONSULT-II

communica-

tion signal

(CN-AV)

Input

ON

Perform CONSULT-

II.

Diagnosis with

CONSULT-II is

not possible.

36

-

Shield

ground

-

-

-

-

-

37 (L/W)

Ground

A/C commu-

nication sig-
nal (AC-AV)

Input

ON

-

A/C status is not

indicated cor-

rectly.

38 (L)

Ground

A/C commu-

nication sig-
nal (AV-AC)

Output

ON

-

A/C operation is

not possible.

Terminal No.

 (Wire color)

Item

Signal

input/

output

Condition

Voltage

Example of

symptom

+

–

Ignition

switch

Operation

SKIA0170E

SKIA0169E

SKIA0169E

SKIA0170E

SKIA0173E

SKIA0172E

NAVIGATION SYSTEM

AV-67

C

D

E

F

G

H

I

J

L

M

A

B

AV

39 (L/R)

Ground

A/C clock sig-

nal

Input

ON

-

A/C status is not

indicated cor-

rectly.

43

-

Shield

ground

-

-

-

-

-

44 (W/R)

Ground

Communica-

tion signal (+)

Input/

output

ON

-

System does not

work properly.

45 (B/R)

Ground

Communica-

tion signal (-)

Input/

output

ON

-

System does not

work properly.

46

-

Shield

-

-

-

-

-

47 (G)

Ground

Communica-

tion signal (+)

Input/

output

ON

-

System does not

work properly.

48 (R)

Ground

Communica-

tion signal (-)

Input/

output

ON

-

System does not

work properly.

66

67

GPS signal

Input

ON

Connector is not

connected.

Approx. 5 V

Navigation sys-

tem GPS correc-

tion is not

possible.

Terminal No.

 (Wire color)

Item

Signal

input/

output

Condition

Voltage

Example of

symptom

+

–

Ignition

switch

Operation

SKIA0174E

SKIA0175E

SKIA0176E

SKIA0175E

SKIA0176E

AV-68

NAVIGATION SYSTEM

On Board Self-Diagnosis Function (Without CONSULT-II)

AKS003XJ

DESCRIPTION

●

Diagnosis function consists of the self-diagnosis mode performed automatically and the Confirmation/
Adjustment Mode mode operated manually.

●

Self-diagnosis mode checks for connections between the units constituting this system, analyzes each
individual unit at the same time, and displays the results on the LCD screen.

●

Confirmation/Adjustment Mode mode is used to perform trouble diagnosis that require operation and
judgment by an operator (malfunction that cannot be automatically judged by the system), to check/
change the set value, and to display the History of Errors of the navigation system.

DIAGNOSIS ITEM

Mode

Description

Self-diagnosis

●

AV and NAVI control unit diagnosis (DVD-ROM drive will not be diagnosed
when no map DVD-ROM is in it.).

●

Analyzes connection between the AV and NAVI control unit and the GPS
antenna connection between the AV and NAVI control unit and each unit,
and operation of each unit.

Confirmation/
Adjustment Mode

Display diagnosis

Color tone and shading of the screen can be checked by the display of a color
bar and a gray scale.

Vehicle signals

Analyzes the following vehicle signals: Vehicle speed signal, parking brake
signal, light signal, ignition switch signal, and reverse signal.

Auto Climate Control

Turns all A/C screens on display and A/C switch indicator lamp on.

Navigation

Display Longitude
& Latitude

Display the map. Use the joystick to adjust position. Longitude and latitude will
be displayed.

Speed Calibration

Under ordinary conditions, the navigation system distance measuring function
will automatically compensate for minute decreases in wheel and tire diameter
caused by tire wear or low pressure. Speed calibration immediately restores
system accuracy in cases such as when distance calibration is needed
because of the use of tire chains in inclement weather.

Angle adjustment

Corrects difference between actual turning angle of a vehicle and turning
angle of the car mark on the display.

Initialize Location

This mode is for initializing the current location. Use when the vehicle is trans-
ported a long distance on a trailer, etc.

History of Errors

Diagnosis results previously stored in the memory (before turning ignition
switch ON) are displayed in this mode. Time and location when/where the
errors occurred are also displayed.
