AUDIO

AV-33

C

D

E

F

G

H

I

J

L

M

A

B

AV

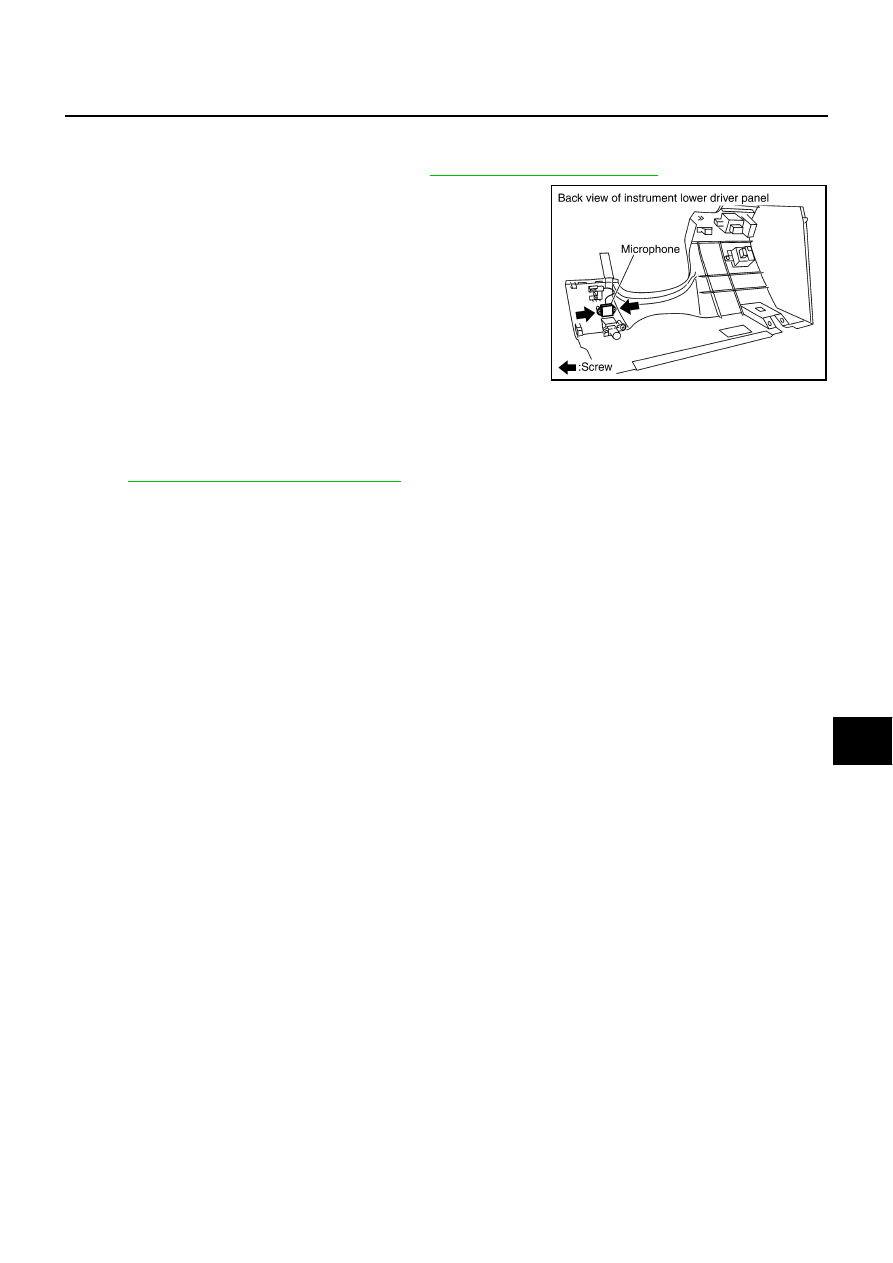

Removal and Installation of Microphone

AKS00ABT

REMOVAL

1.

Remove instrument lower driver panel. Refer to

IP-11, "Removal and Installation"

 .

2.

Remove screws (2), and microphone.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Steering Wheel Switch

AKS002O5

Refer to

SRS-38, "DRIVER AIR BAG MODULE"

 .

SKIA9285E

AV-34

AUDIO ANTENNA

AUDIO ANTENNA

PFP:28200

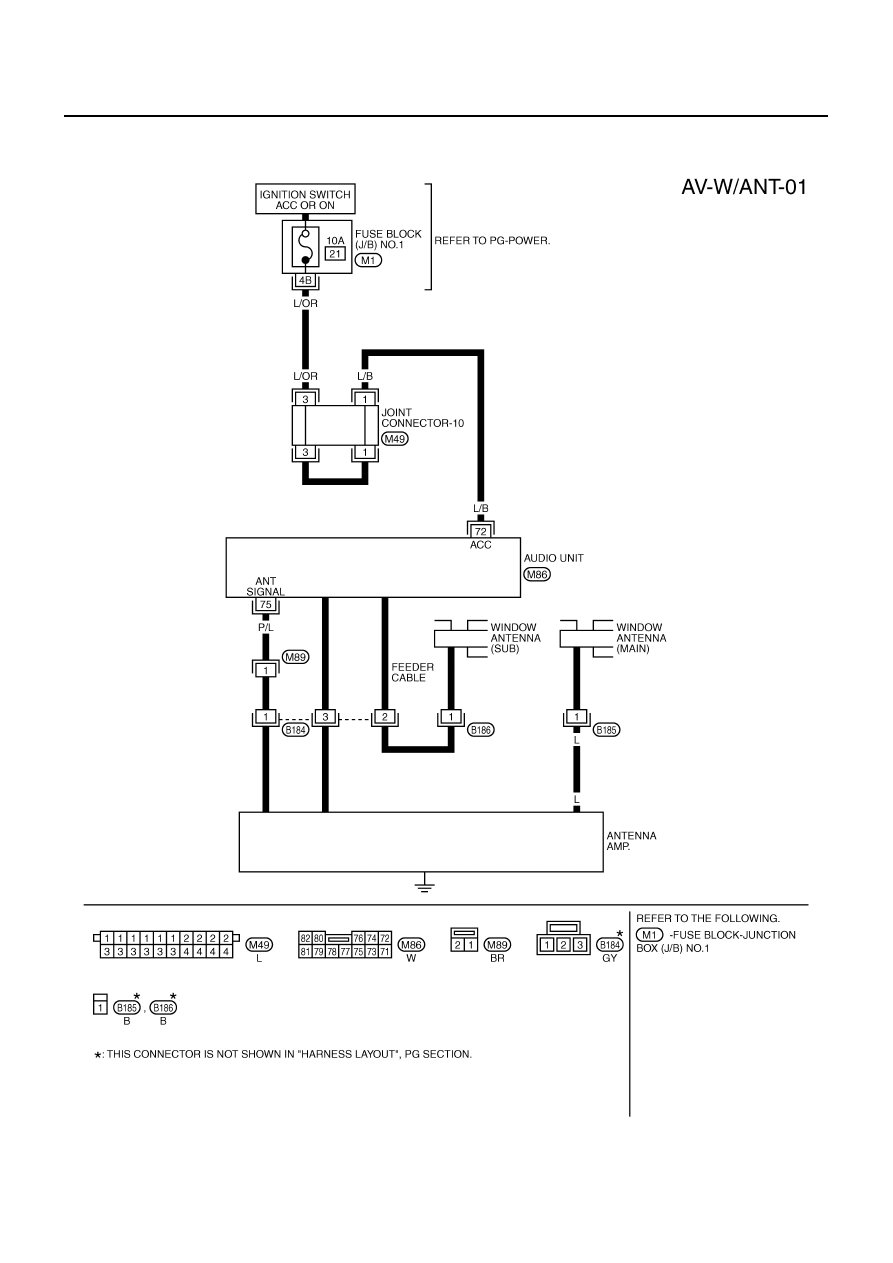

Wiring Diagram —W/ANT—

AKS002O7

TKWA1245E

AUDIO ANTENNA

AV-35

C

D

E

F

G

H

I

J

L

M

A

B

AV

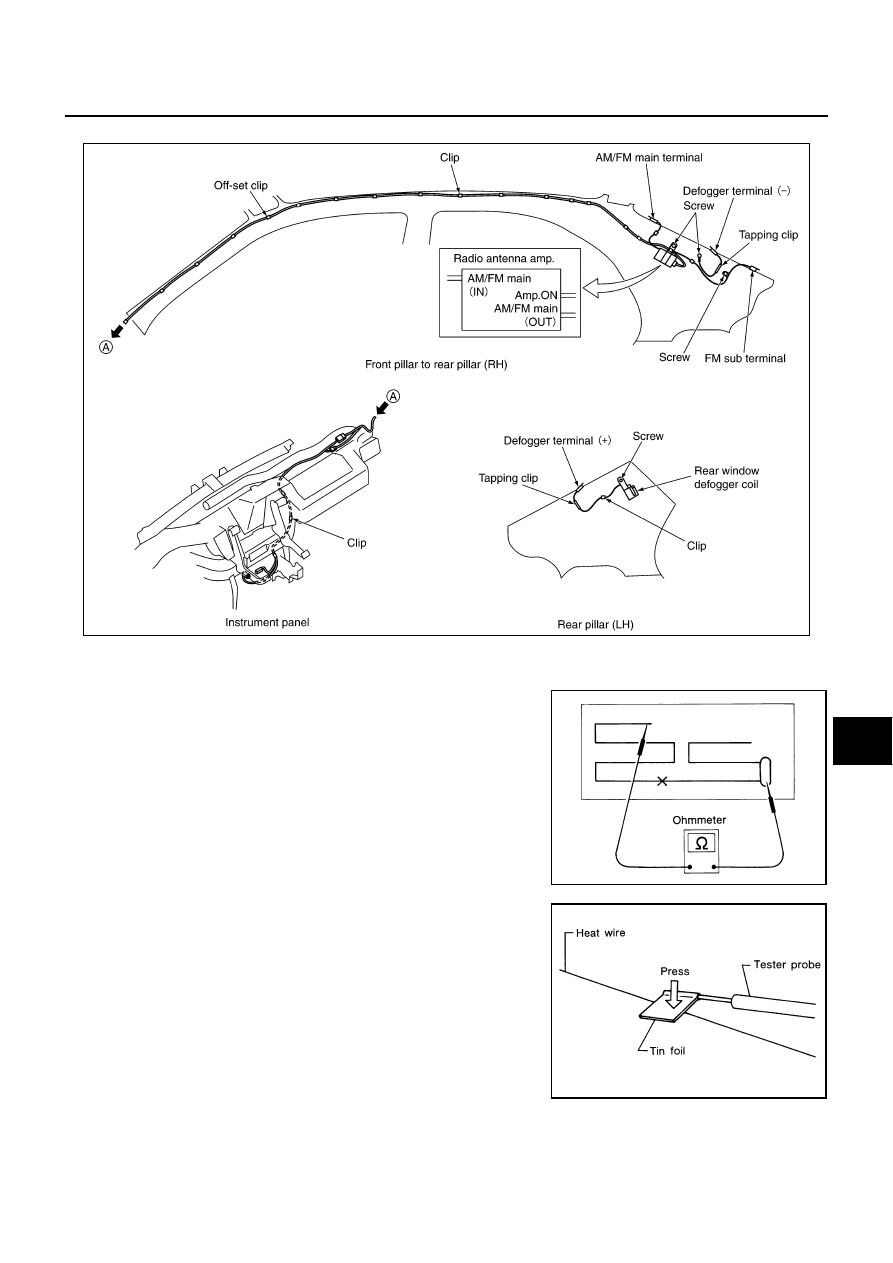

Location of Antenna

AKS002O8

Window Antenna Repair

AKS002O9

ELEMENT CHECK

1.

Attach probe circuit tester (ohm setting) to antenna terminal on
each side.

●

When measuring continuity, wrap tin foil around the top of probe.
Then, press the foil against the wire with your finger.

PKIA1687E

SEL250I

SEL122R

AV-36

AUDIO ANTENNA

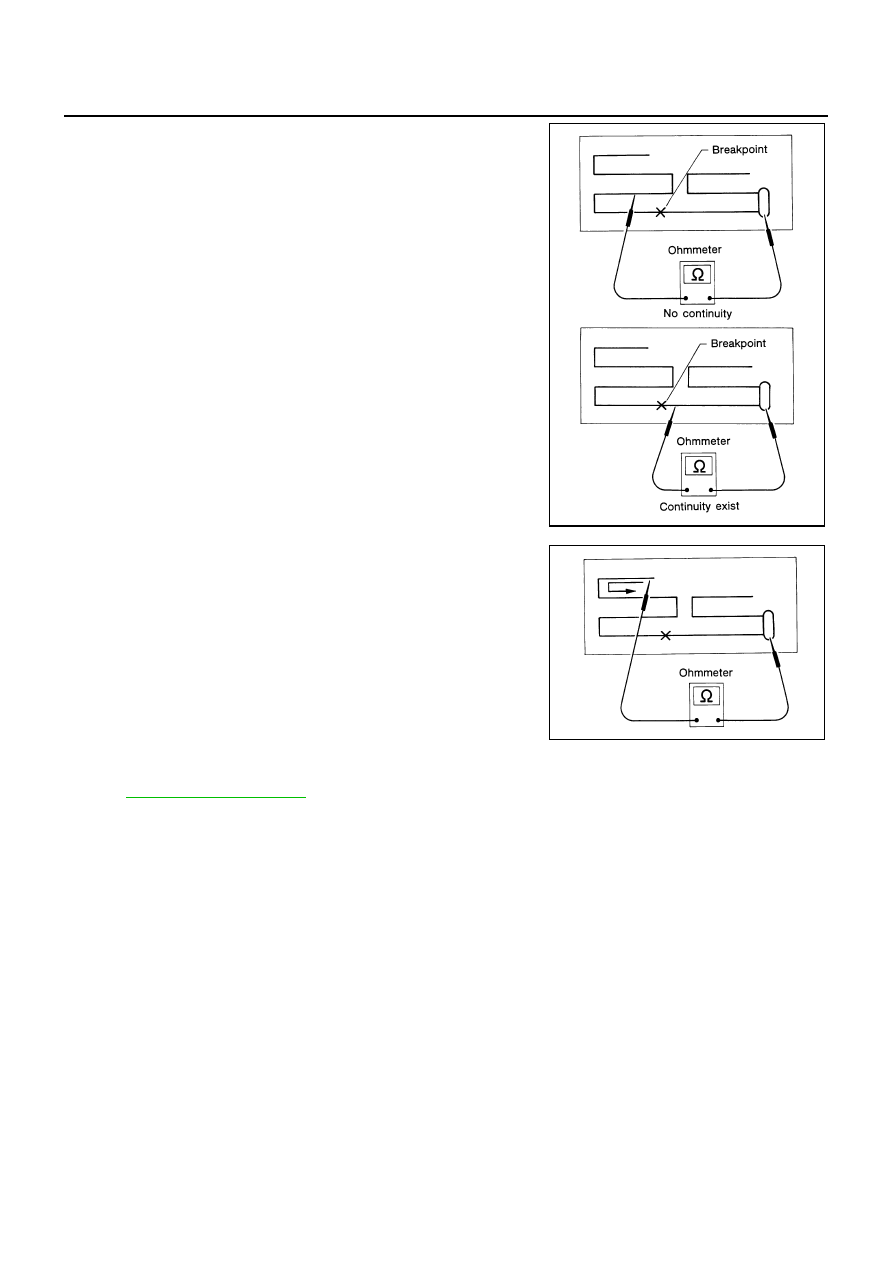

2.

If an element is broken, no continuity will exist.

3.

To locate a  break, move probe along element. Tester needle will
swing abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

GW-76, "Filament Repair"

 .

SEL252I

SEL253I
