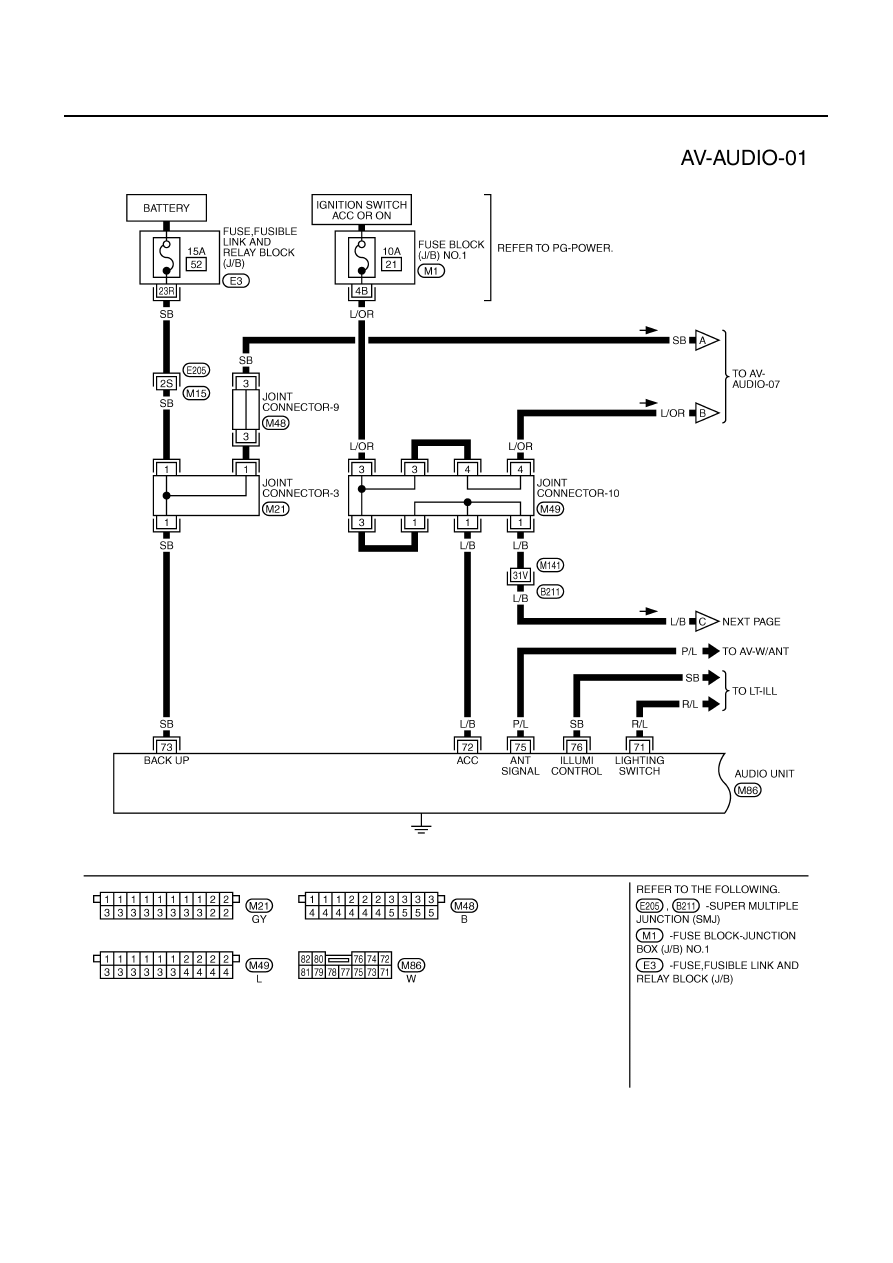

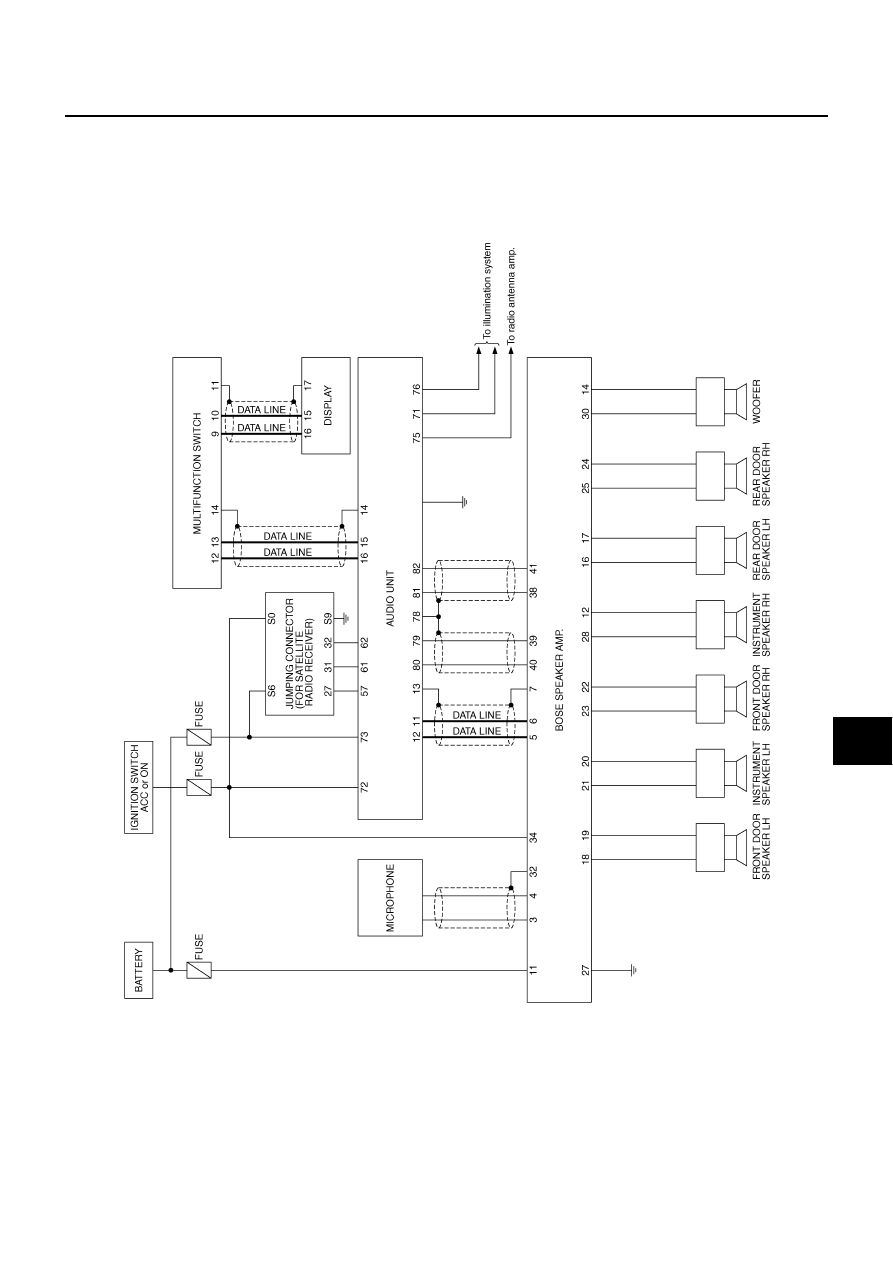

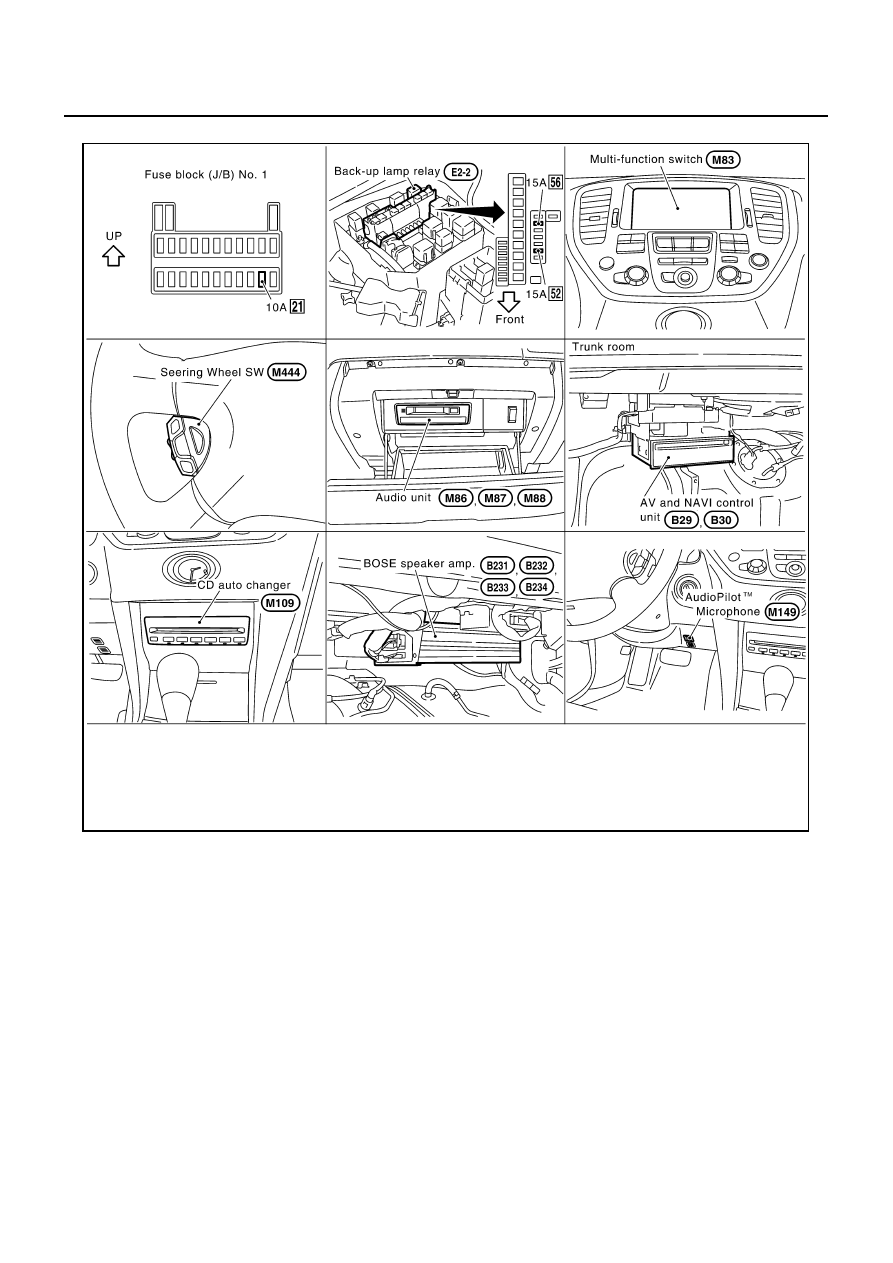

AUDIO AV-5 C D E F G H I J L M A B AV AUDIO PFP:28111 System Description AKS002NH AUDIO SYSTEM Refer to Owner’s Manual for audio system operating instructions. ● through 15A fuse [No. 52, located in the fuse, fusible link and relay block (J/B)] ● to audio unit terminal 73 ● to CD auto changer terminal 12 ● through 20A fuse (No. 75, located in the fuse, fusible link and relay box) ● to BOSE speaker amp. terminal 11. With the ignition switch in the ACC or ON position, power is supplied ● through 10A fuse [No. 21, located in the fuse block (J/B) No.1] ● to audio unit terminal 72 and BOSE speaker amp. terminal 34. ● to CD auto changer terminal 16. Ground is supplied through the case of the audio unit. ● through audio unit terminals 12,11 ● to BOSE speaker amp. terminals 5, 6. When the audio unit is turned to the ON position, audio signals are supplied. ● through terminals 79, 80, 81 and 82 of audio unit ● to terminals 39, 40, 38 and 41 of the BOSE speaker amp. ● through terminals 18, 19, 21, 20, 23, 22, 28, 12, 16, 17, 25, 24, 30 and 14 of the BOSE speaker amp. ● to instrument panel speakers, front and rear door speakers and woofer terminals 1 and 2. When steering switch pushed ON, signal is sent ● from steering switch terminal 2 ● through combination switch (spiral cable) terminals 15 and 7 ● to multi-function switch terminal 7, then ● to audio unit. AV COMMUNICATION LINE Audio system components (Audio unit, BOSE speaker amplifier, etc.) are connected by AV communication line AUDIOPILOT TM SYSTEM AudioPilot™is the sound improving system that picks up any noises or the sound of music coming into the ● If low frequency area noise from vehicle is loud, it adjusts low frequency element of music to be bigger ● If high frequency area noise from vehicle is loud, it adjusts high frequency element of music to be bigger ● If vehicle noise is smaller than the setting volume, correction is not performed. This compensate vehicle noise when listening to music. |
