DUCTS AND GRILLES

ATC-133

C

D

E

F

G

H

I

K

L

M

A

B

ATC

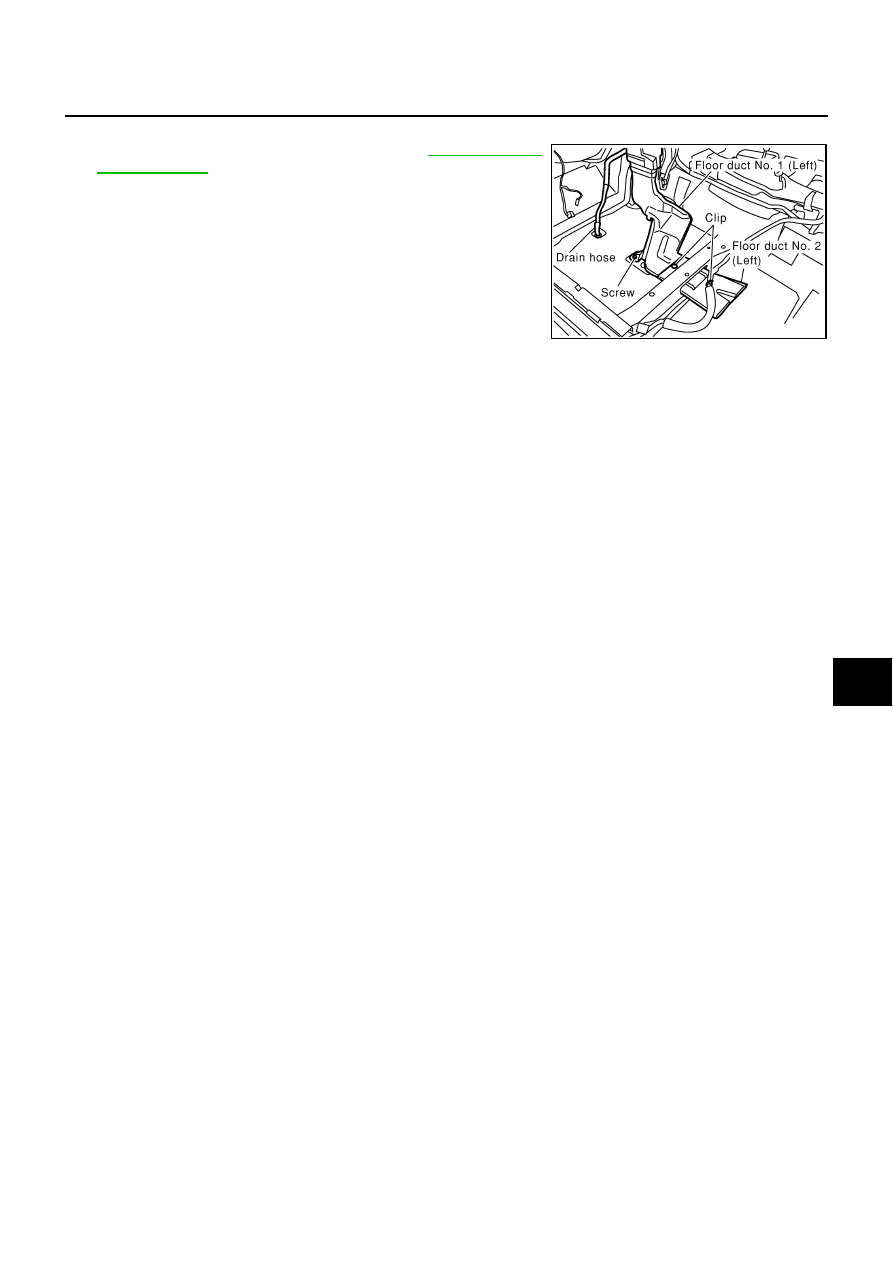

Removal of Floor Duct

1.

Remove front seats and console box. Refer to

IP-11, "Removal

and Installation"

 .

2.

Remove front kicking plate and dash side finisher.

3.

Peel back floor trim to a point where floor duct is visible.

4.

Remove floor duct No. 2 (left and right).

5.

Remove mounting screw from floor duct No. 1.

6.

Remove floor duct No. 1 (left and right).

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0128E

ATC-134

REFRIGERANT LINES

REFRIGERANT LINES

PFP:92600

HFC-134a (R-134a) Service Procedure

AJS0008M

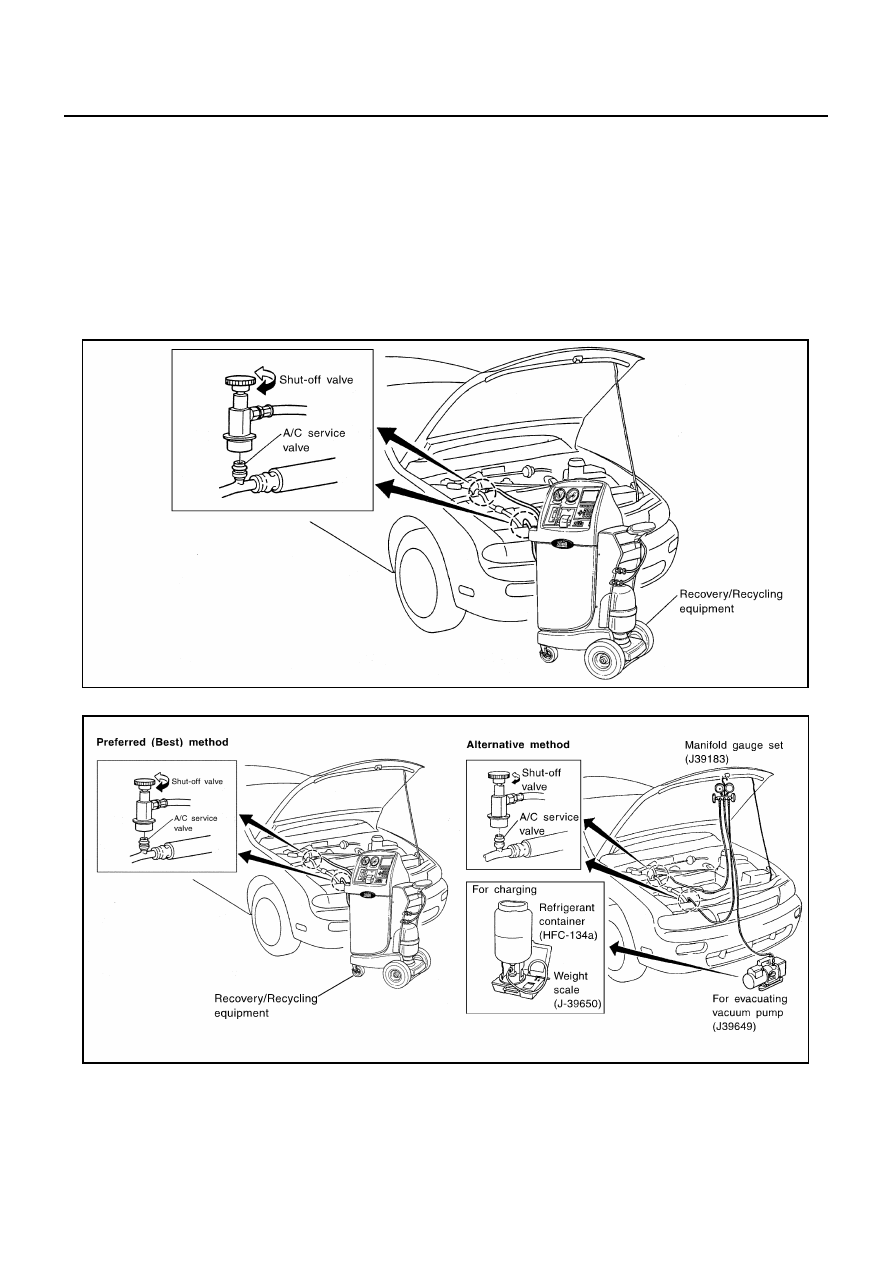

SETTING OF SERVICE TOOLS AND EQUIPMENT
Discharging Refrigerant

WARNING:

Avoid breathing A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose and
throat. Remove HFC-134a (R-134a) from A/C system using certified service equipment meeting
requirements of SAE J-2210 HFC-134a (R-134a) recycling equipment or J-2201 HFC-134a (R-134a)
recovery equipment. If accidental system discharge occurs, ventilate work area before resuming ser-
vice. Additional health and safety information may be obtained from refrigerant and lubricant manu-
facturers.

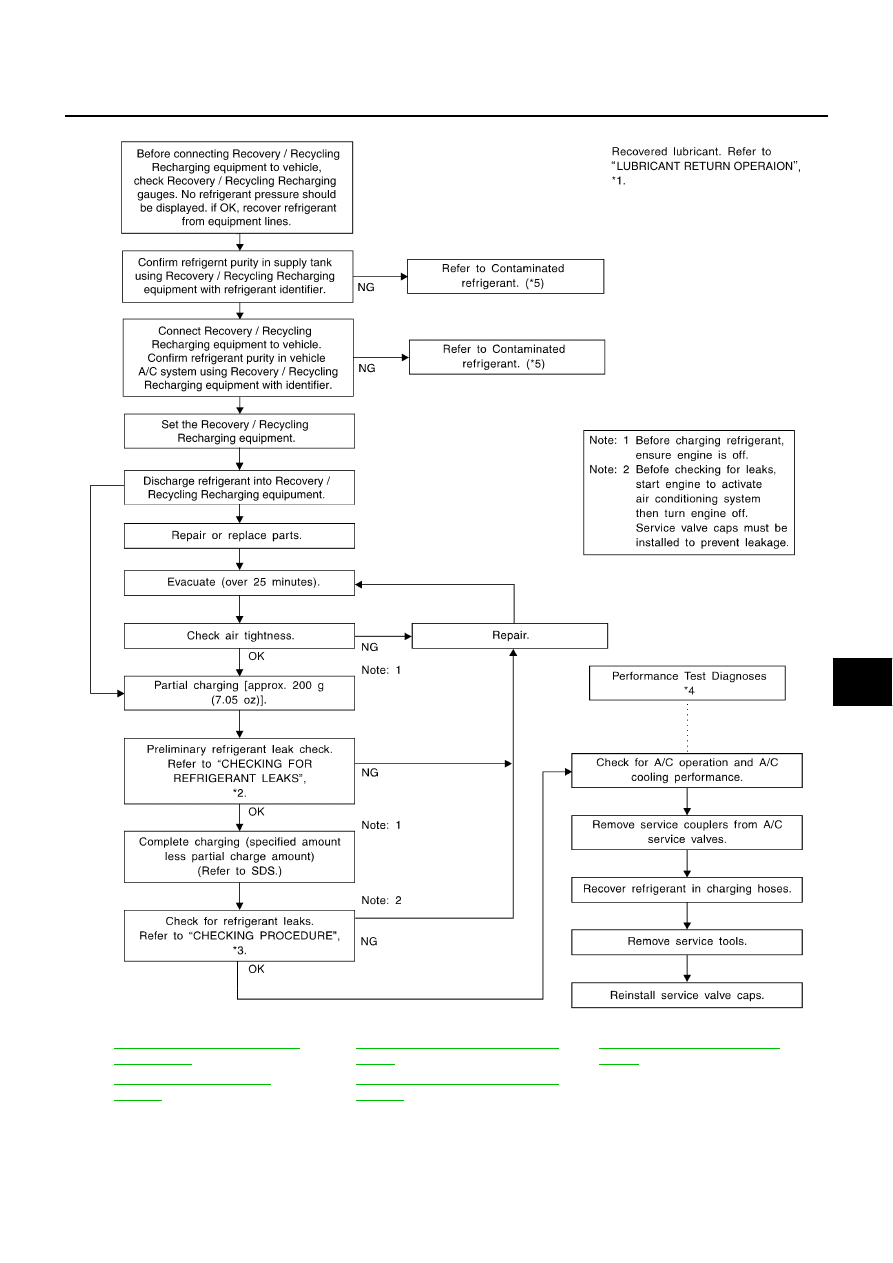

Evacuating System and Charging Refrigerant

WJIA0614E

WJIA0615E

REFRIGERANT LINES

ATC-135

C

D

E

F

G

H

I

K

L

M

A

B

ATC

*1

ATC-22, "LUBRICANT RETURN
OPERATION"

.

*2

ATC-147, "Checking for Refrigerant
Leaks"

.

*3

ATC-149, "CHECKING PROCE-
DURE"

.

*4

ATC-91, "PERFORMANCE
CHART"

.

*5

ATC-4, "CONTAMINATED REFRIG-
ERANT"

.

RJIA3006E

ATC-136

REFRIGERANT LINES

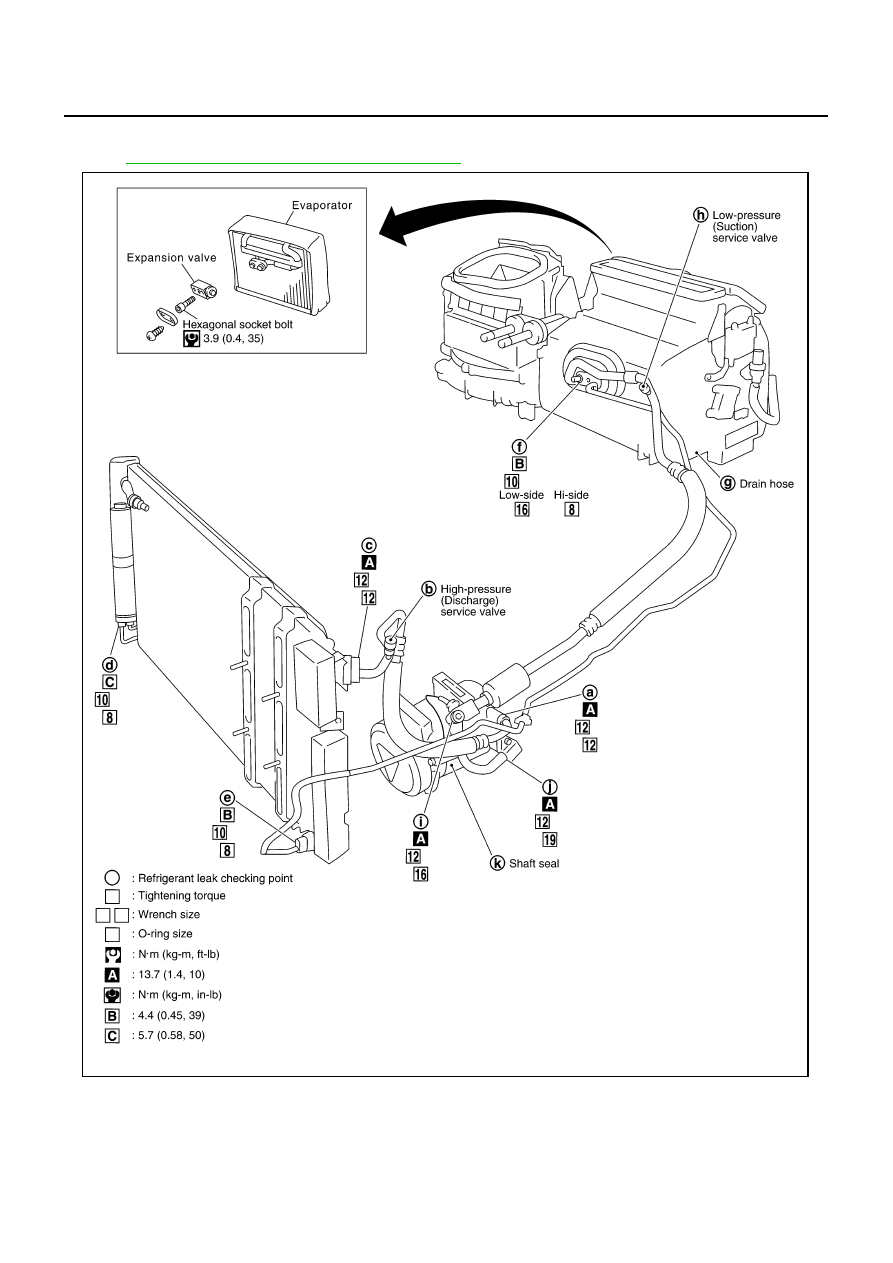

Components

AJS0008N

Refer to

ATC-5, "Precautions for Refrigerant Connection"

 .

RJIA3087E
