TROUBLE DIAGNOSIS

ATC-69

C

D

E

F

G

H

I

K

L

M

A

B

ATC

Air Mix Door Motor Circuit

AJS001EZ

SYMPTOM:

Discharge air temperature does not change.

Air mix door motor does not operate.

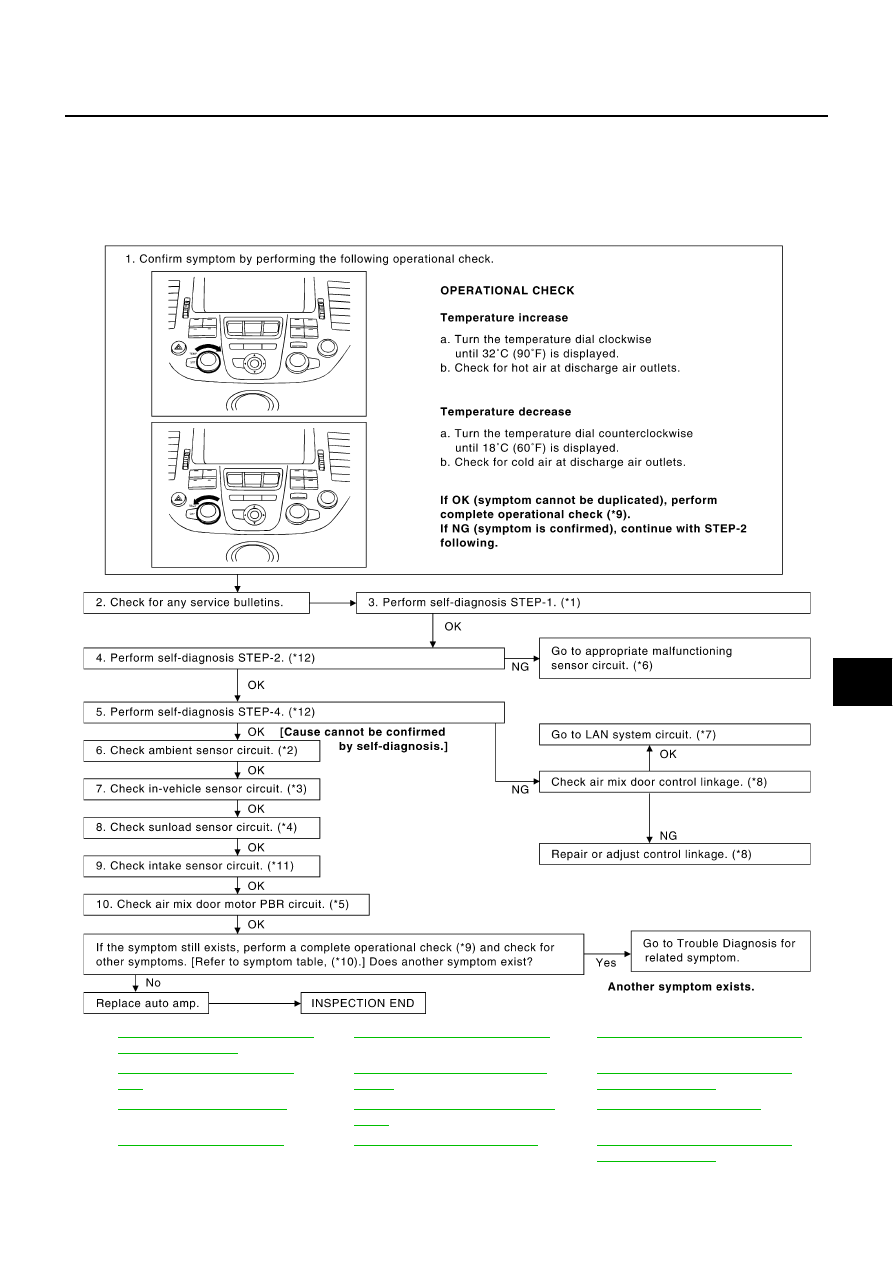

INSPECTION FLOW

*1

ATC-50, "FUNCTION CONFIRMA-
TION PROCEDURE"

, see No.1.

*2

ATC-101, "Ambient Sensor Circuit"

.

*3

ATC-103, "In-Vehicle Sensor Circuit"

.

*4

ATC-106, "Sunload Sensor Cir-
cuit"

.

*5

ATC-71, "Air Mix Door Motor PBR
Circuit"

.

*6

ATC-50, "FUNCTION CONFIRMA-
TION PROCEDURE"

, see No. 14.

*7

ATC-62, "LAN System Circuit"

.

*8

ATC-71, "COMPONENT DESCRIP-
TION"

 for Air mix door.

*9

ATC-57, "Operational Check"

.

*10

ATC-34, "SYMPTOM TABLE"

.

*11

ATC-109, "Intake Sensor Circuit"

.

*12

ATC-50, "FUNCTION CONFIRMA-
TION PROCEDURE"

, see No. 5 to 7.

RJIA1288E

ATC-70

TROUBLE DIAGNOSIS

SYSTEM DESCRIPTION
Component Parts

Air mix door control system components are:

Auto amp.

Air mix door motor (LCU)

A/C LAN system (PBR built-in mode door motor, air mix door motor and intake door motor)

In-vehicle sensor

Ambient sensor

Sunload sensor

Intake sensor

System Operation

The auto amp. receives data from each of the sensors. The auto amp. sends air mix door, mode door and
intake door opening angle data to the air mix door motor LCU, mode door motor LCU and intake door motor
LCU.
The air mix door motor, mode door motor and intake door motor read their respective signals according to the
address signal. Opening angle indication signals received from the auto amp. and each of the motor position
sensors are compared by the LCUs in each motor with the existing decision and opening angles. Subse-
quently, HOT/COLD or DEFROST/VENT or FRESH/RECIRCULATION operation is selected. The new selec-
tion data is returned to the auto amp.

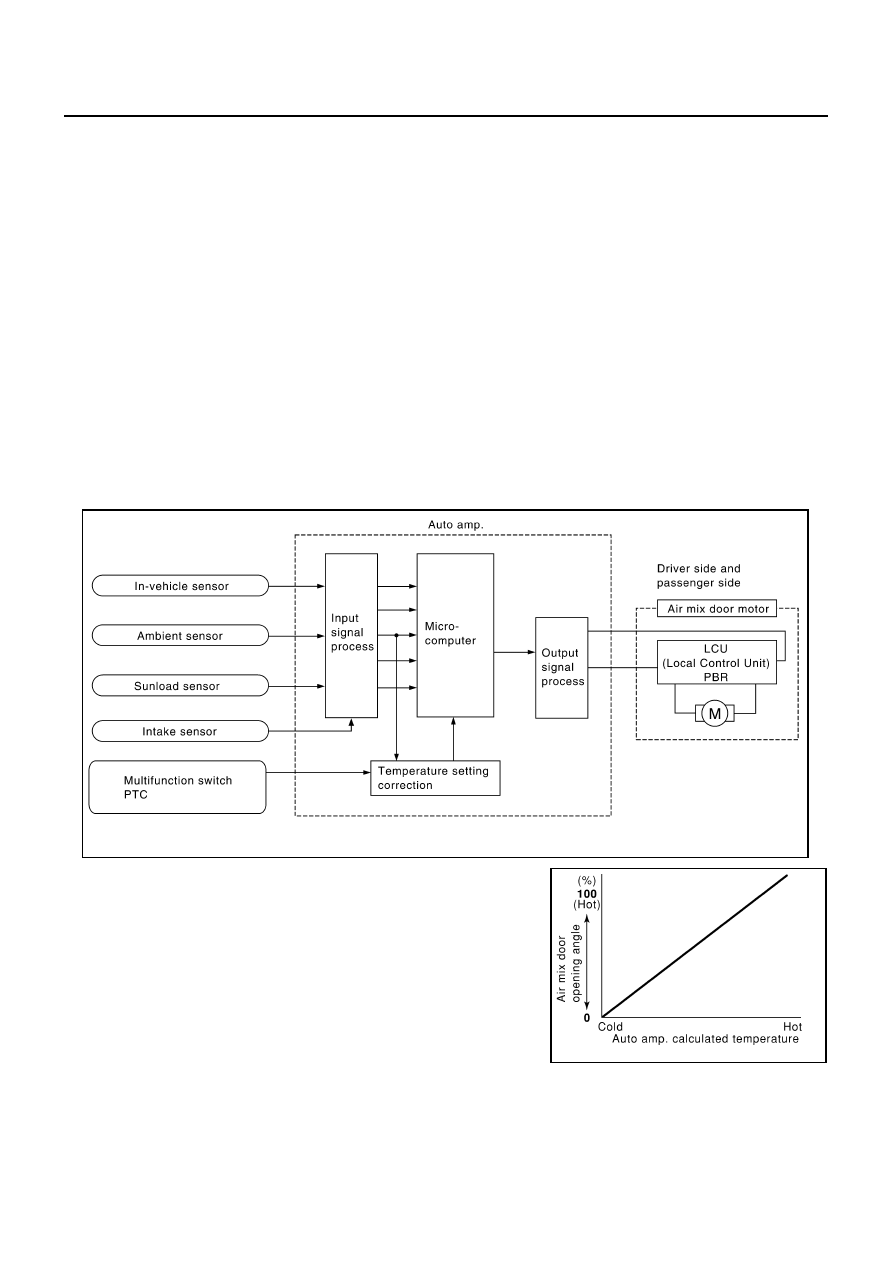

Air Mix Door Control Specification

RJIA1289E

RHA457H

TROUBLE DIAGNOSIS

ATC-71

C

D

E

F

G

H

I

K

L

M

A

B

ATC

COMPONENT DESCRIPTION
Air Mix Door Motor

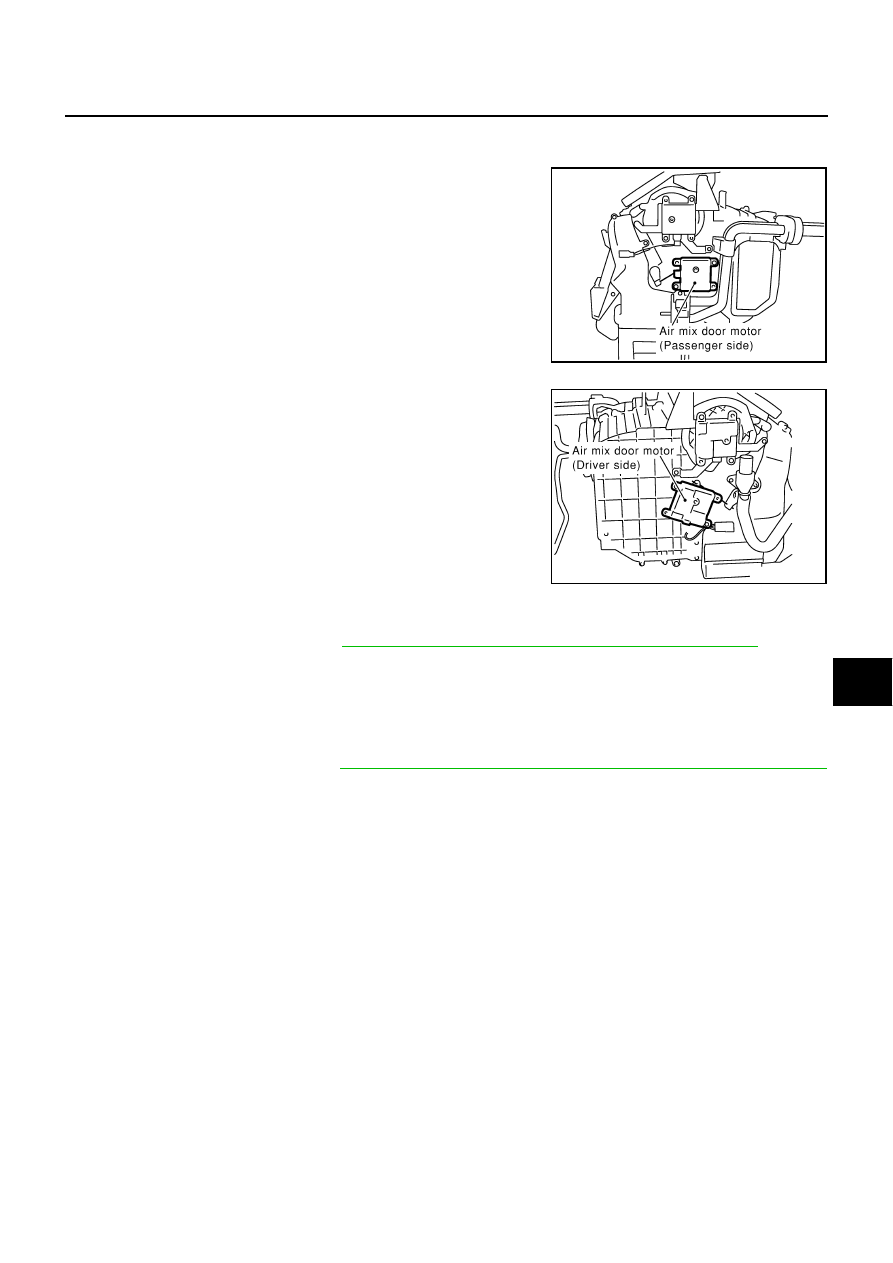

The air mix door motor is attached to the heater & cooling unit. It
rotates so that the air mix door is opened or closed to a position set
by the auto amp. Motor rotation is conveyed through a shaft and the
air mix door position is then feedback to the auto amp. by PBR built-
in air mix door motor.

DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR

SYMPTOM: Discharge air temperature does not change.
Perform diagnostic procedure. Refer to

ATC-62, "DIAGNOSTIC PROCEDURE FOR LAN CIRCUIT"

 .

Air Mix Door Motor PBR Circuit

AJS000QX

SYMPTOM: If PBR circuit is open or shorted. (26/-26 or 27/-27 is indicated on auto amp. as a result of con-
ducting Self-diagnosis STEP-2.)

DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR PBR

Perform diagnostic procedure. Refer to

ATC-71, "DIAGNOSTIC PROCEDURE FOR AIR MIX DOOR MOTOR"

.

RJIA0287E

RJIA0288E

ATC-72

TROUBLE DIAGNOSIS

Intake Door Motor Circuit

AJS001F0

SYMPTOM:

Intake door does not change.

Intake door motor does not operate normally.

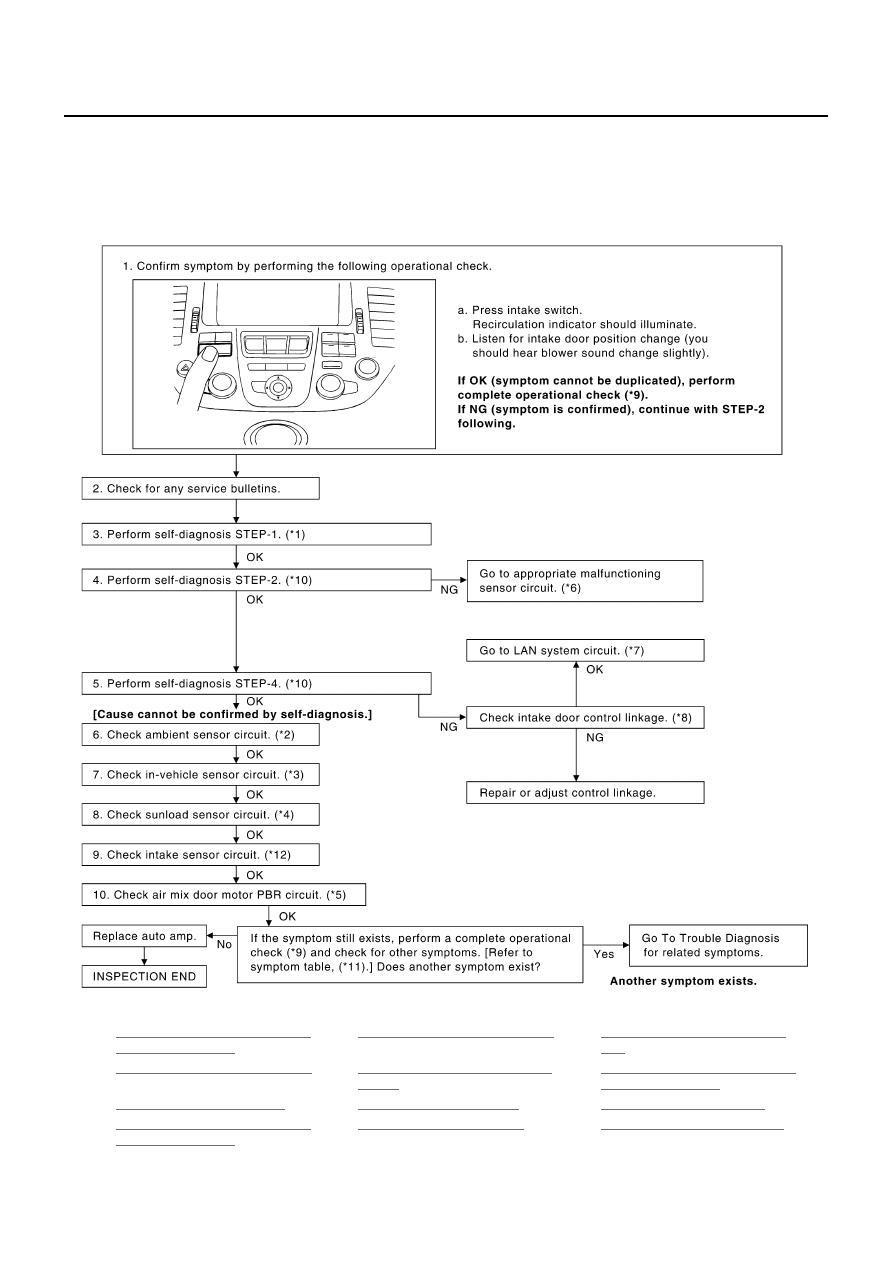

INSPECTION FLOW

*1

ATC-50, "FUNCTION CONFIRMA-
TION PROCEDURE"

, see No.1.

*2

ATC-101, "Ambient Sensor Circuit"

.

*3

ATC-103, "In-Vehicle Sensor Cir-
cuit"

.

*4

ATC-106, "Sunload Sensor Circuit"

.

*5

ATC-71, "Air Mix Door Motor PBR
Circuit"

.

*6

ATC-50, "FUNCTION CONFIRMA-
TION PROCEDURE"

, see No. 14.

*7

ATC-62, "LAN System Circuit"

.

*8

ATC-74, "Intake Door Motor"

.

*9

ATC-57, "Operational Check"

.

*10

ATC-50, "FUNCTION CONFIRMA-
TION PROCEDURE"

, see No.5 to 7.

*11

ATC-34, "SYMPTOM TABLE"

.

*12

ATC-109, "Intake Sensor Circuit"

.

RJIA1290E
