TROUBLE DIAGNOSIS

ATC-65

C

D

E

F

G

H

I

K

L

M

A

B

ATC

10.

CHECK MODE DOOR MOTOR OPERATION

1.

Turn ignition switch OFF.

2.

Reconnect mode door motor (driver side) connector.

3.

Turn ignition switch ON.

4.

Confirm the mode door motor (driver side) operation.

OK or NG

OK

>>  [Mode door motor (driver side) operates normally.]

Replace mode door motor (passenger side).

NG

>> [Mode door motor (driver side) does not operate normally.]

Replace mode door motor (driver side).

11.

CHECK AIR MIX DOOR MOTOR OPERATION

1.

Turn ignition switch OFF.

2.

Reconnect air mix door motor (driver side) connector.

3.

Turn ignition switch ON.

4.

Confirm the air mix door motor (driver side) operation.

OK or NG

OK

>>  [Air mix door motor (driver side) operates normally.]

Replace air mix door motor (passenger side).

NG

>> [Air mix door motor (driver side) does not operate normally.]

Replace air mix door motor (driver side).

TROUBLE DIAGNOSIS

ATC-67

C

D

E

F

G

H

I

K

L

M

A

B

ATC

SYSTEM DESCRIPTION
Component Parts

Mode door control system components are:

Auto amp.

Mode door motor (LCU)

A/C LAN system (PBR built-in mode door motor, air mix door motor and intake door motor)

In-vehicle sensor

Ambient sensor

Sunload sensor

Intake sensor

System Operation

The auto amp. receives data from each of the sensors. The auto amp. sends air mix door, mode door and
intake door opening angle data to the air mix door motor LCU, mode door motor LCU and intake door motor
LCU.
The air mix door motor, mode door motor and intake door motor read their respective signals according to the
address signal. Opening angle indication signals received from the auto amp. and each of the motor position
sensors are compared by the LCUs in each motor with the existing decision and opening angles. Subse-
quently, HOT/COLD or DEFROST/VENT or FRESH/RECIRCULATION operation is selected. The new selec-
tion data is returned to the auto amp.

Mode Door Control Specification

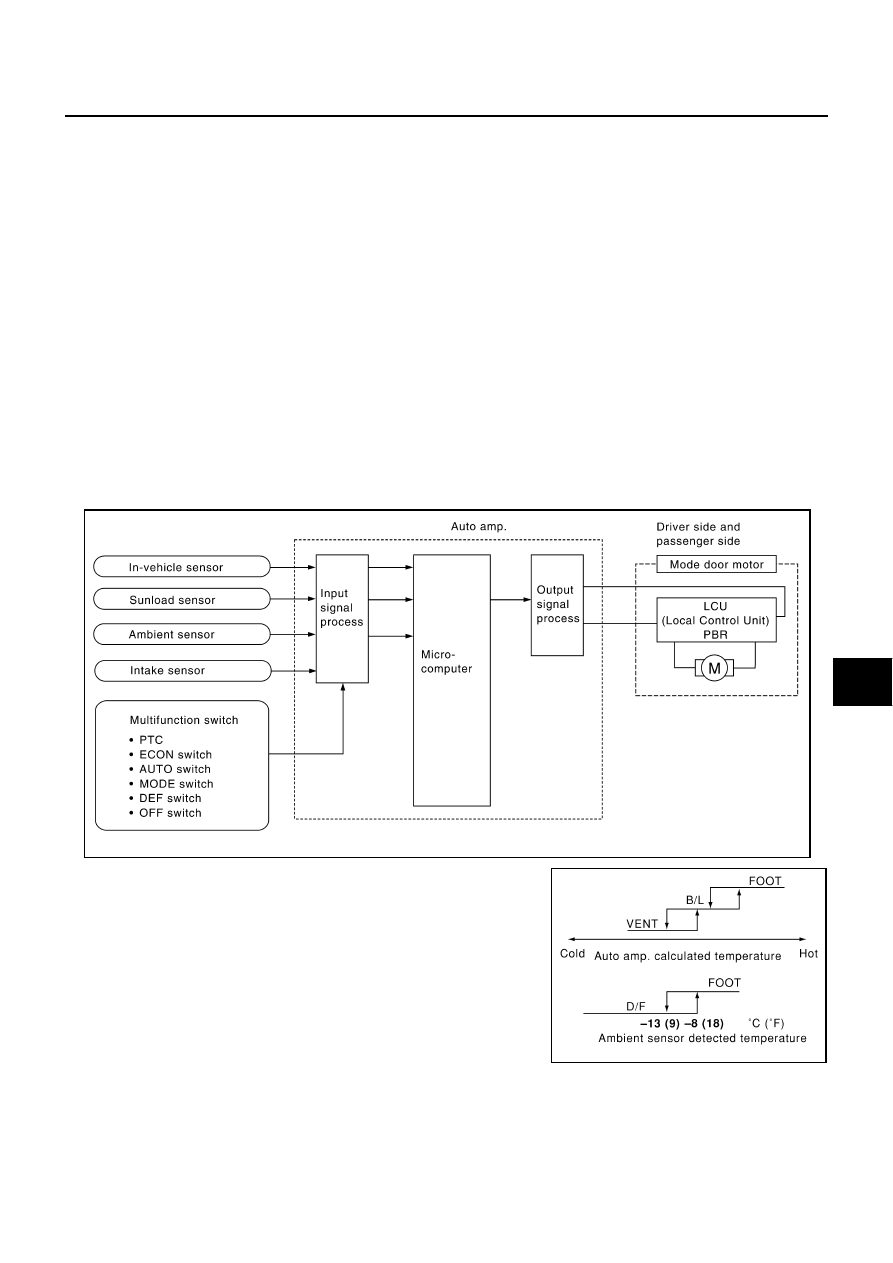

RJIA1287E

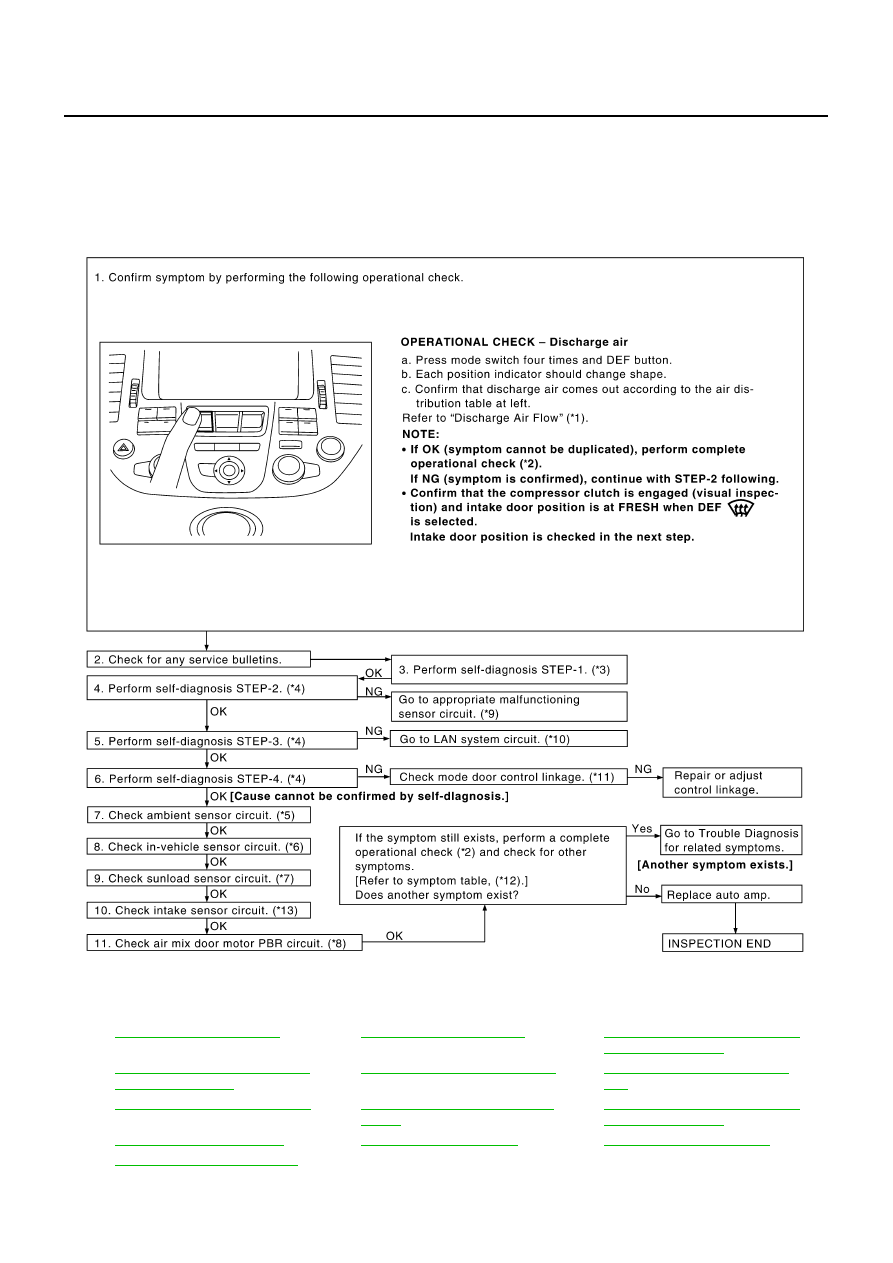

RHA384HA

ATC-68

TROUBLE DIAGNOSIS

COMPONENT DESCRIPTION
Mode Door Motor

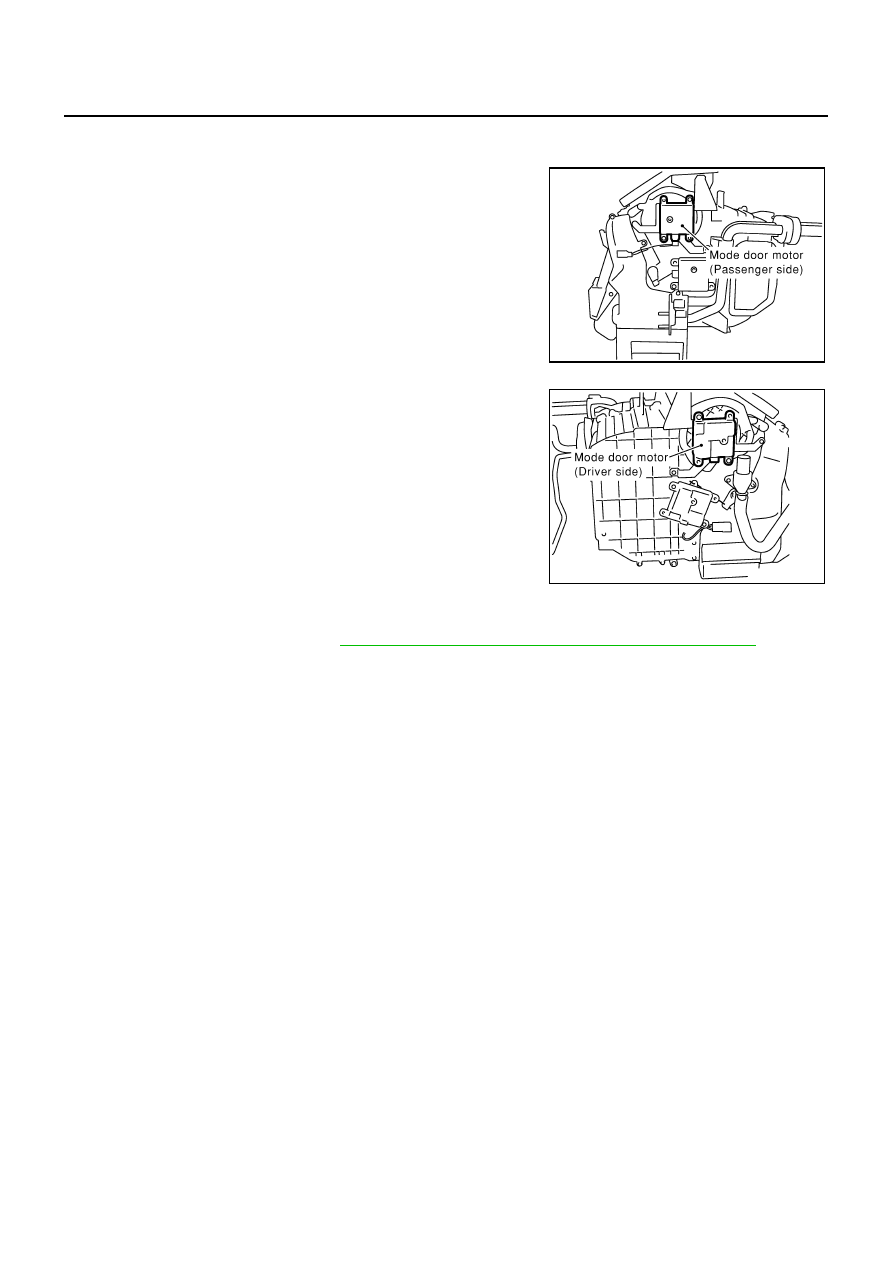

The mode door motor is attached to the heater & cooling unit. It
rotates so that air is discharged from the outlet set by the auto amp.
Motor rotation is conveyed to a link which activates the mode door.

DIAGNOSTIC PROCEDURE FOR MODE DOOR MOTOR

SYMPTOM: Mode door motor does not operate normally.
Perform diagnostic procedure. Refer to

ATC-62, "DIAGNOSTIC PROCEDURE FOR LAN CIRCUIT"

 .

RJIA0283E

RJIA0284E
