TROUBLE DIAGNOSIS

ATC-53

C

D

E

F

G

H

I

K

L

M

A

B

ATC

9.

STEP-5: TEMPERATURE OF EACH SENSOR IS CHECKED

1.

Turn the temperature dial (driver side) clockwise.

2.

Code No. 51 appears on the display.

>> GO TO 10.

10.

CHECK AMBIENT SENSOR

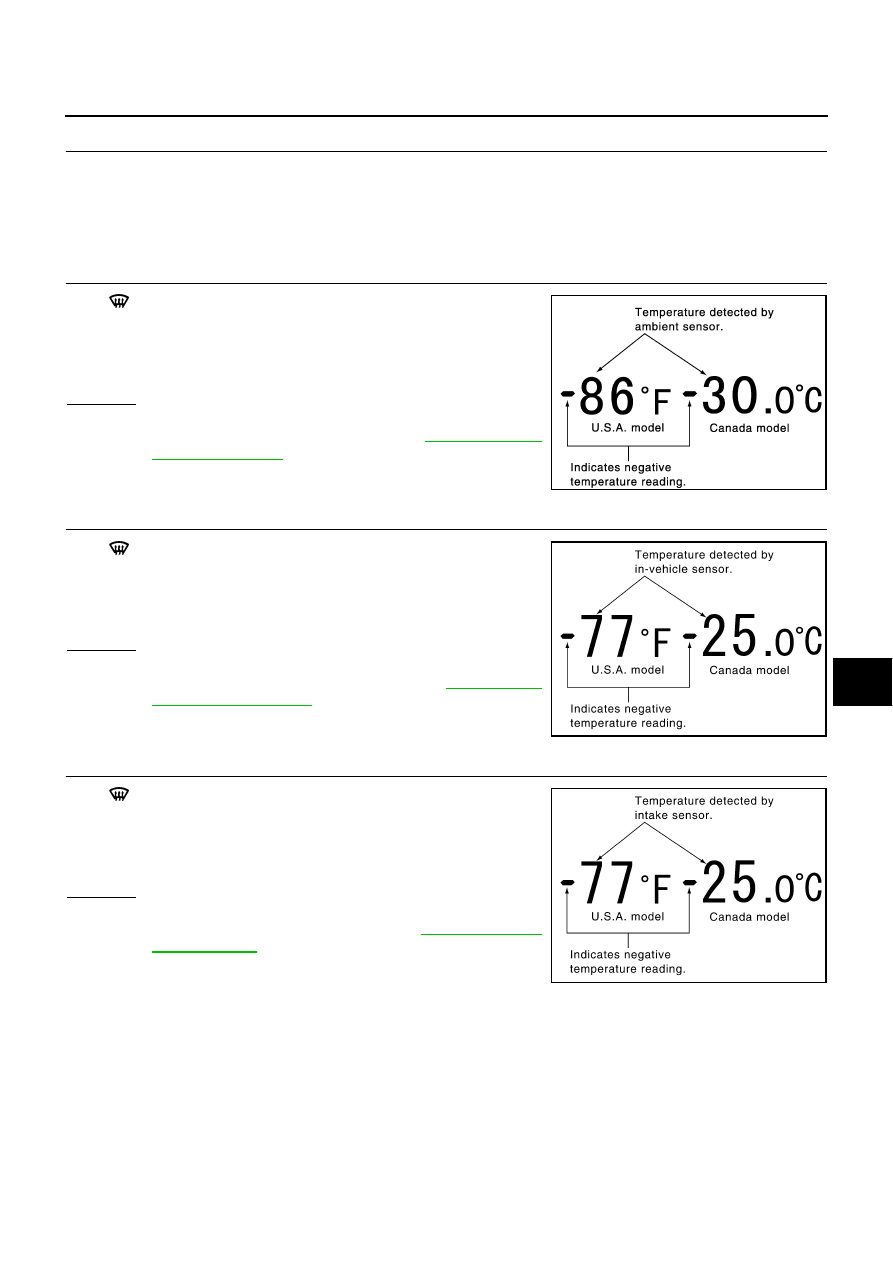

Press

(DEF) switch one time, temperature detected by ambient

sensor is indicated on the display.

NOTE:
If temperature shown on display greatly differs from actual tempera-
ture, check sensor circuit first, then inspect sensor.

OK or NG

OK

>> GO TO 11.

NG

>> Go to Ambient Sensor Circuit. Refer to

ATC-101, "Ambi-

ent Sensor Circuit"

 .

11.

CHECK IN-VEHICLE SENSOR

Press

(DEF) switch the second time, temperature detected by in-

vehicle sensor is indicated on the display.

NOTE:
If temperature shown on display greatly differs from actual tempera-
ture, check sensor circuit first, then inspect sensor.

OK or NG

OK

>> GO TO 12.

NG

>> Go to In-Vehicle Sensor Circuit. Refer to

ATC-103, "In-

Vehicle Sensor Circuit"

 .

12.

CHECK INTAKE SENSOR

Press

(DEF) switch the third time, temperature detected by intake

sensor is indicated on the display.

NOTE:
If temperature shown on display greatly differs from actual tempera-
ture, check sensor circuit first, then inspect sensor.
OK or NG

OK

>> GO TO 13.

NG

>> Go to Intake Sensor Circuit. Refer to

ATC-109, "Intake

Sensor Circuit"

 .

RJIA0223E

RJIA1271E

RJIA1272E

ATC-54

TROUBLE DIAGNOSIS

13.

CHECK MULTIPLEX COMMUNICATION ERROR

1.

Press intake switch.

2.

Multiplex communication error between AV C/U (AV and NAVI
C/U) and auto amp. is detected.

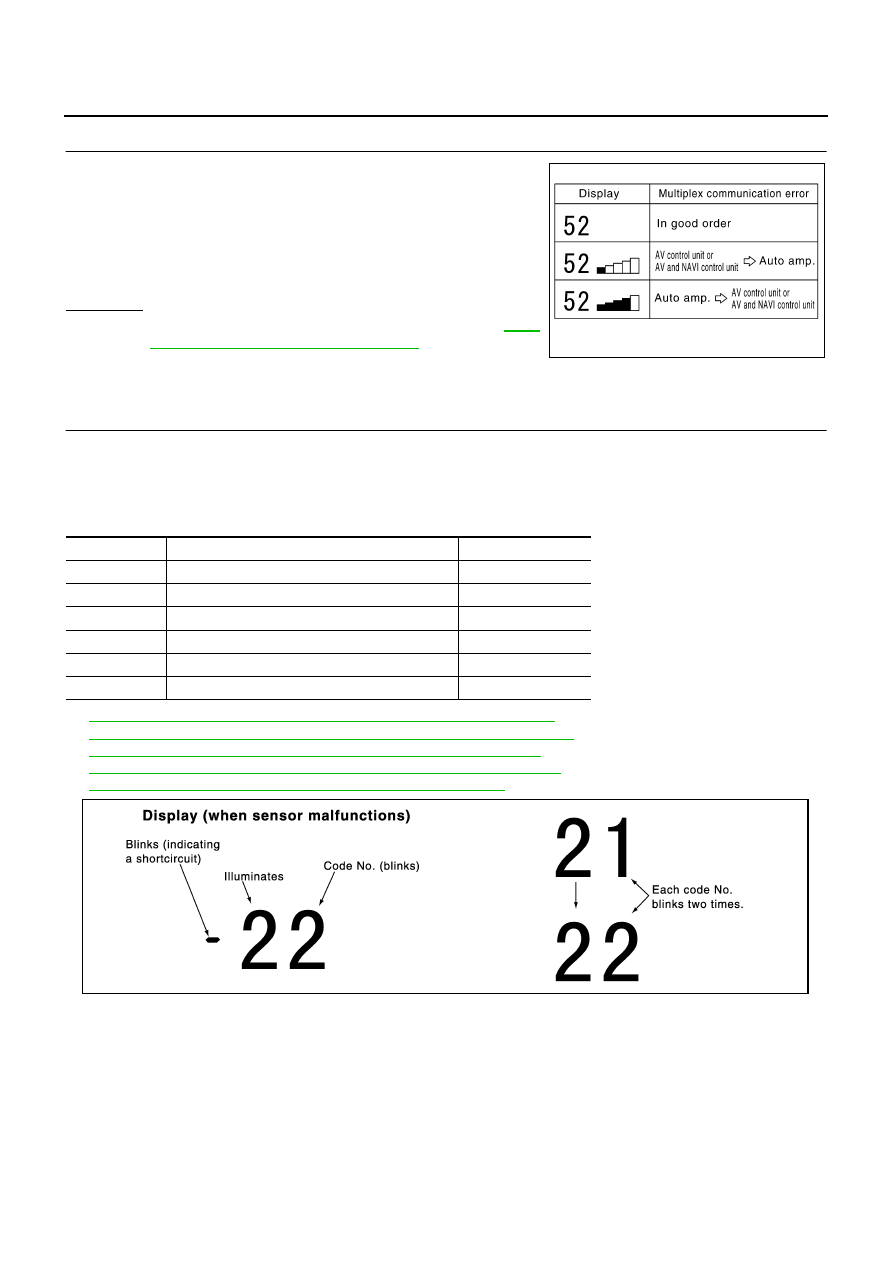

(If plural errors occur, the display of each error will blink two
times for 0.5 second intervals.)

3.

Is multiplex communication error detected as self-diagnosis
results?

YES or NO

YES

>> Go to Multiplex Communication Circuit. Refer to

ATC-

111, "Multiplex Communication Circuit"

 .

NO

>> 1. Turn ignition switch OFF or AUTO switch ON.

2. INSPECTION END

14.

CHECK MALFUNCTIONING SENSOR

Refer to the following chart for malfunctioning code No.
(If two or more sensors malfunction, corresponding code Nos. blink respectively two times.)
*1:Conduct self-diagnosis STEP-2 under sunshine.
When conducting indoors, aim a light (more than 60W) at sunload sensor, otherwise code No. 25 will indicate
despite that sunload sensor is functioning properly.

*2

ATC-101, "DIAGNOSTIC PROCEDURE FOR AMBIENT SENSOR"

 .

*3

ATC-104, "DIAGNOSTIC PROCEDURE FOR IN-VEHICLE SENSOR"

 .

*4

ATC-109, "DIAGNOSTIC PROCEDURE FOR INTAKE SENSOR"

 .

*5

ATC-106, "DIAGNOSTIC PROCEDURE FOR SUNLOAD SENSOR"

 .

*6

ATC-62, "DIAGNOSTIC PROCEDURE FOR LAN CIRCUIT"

 .

>> INSPECTION END

RJIA1273E

Code No.

Malfunctioning sensor (Including circuits)

Reference page

21 / -21

Ambient sensor

*2

22 / -22

In-vehicle sensor

*3

24 / -24

Intake sensor

*4

25 / -25

Sunload sensor

*5

26 / -26

Air mix door motor (LCU) PBR (Driver side)

*6

27 / -27

Air mix door motor (LCU) PBR (Passenger side)

*6

RJIA0227E

TROUBLE DIAGNOSIS

ATC-55

C

D

E

F

G

H

I

K

L

M

A

B

ATC

15.

CHECK MALFUNCTIONING DOOR MOTOR POSITION SWITCH

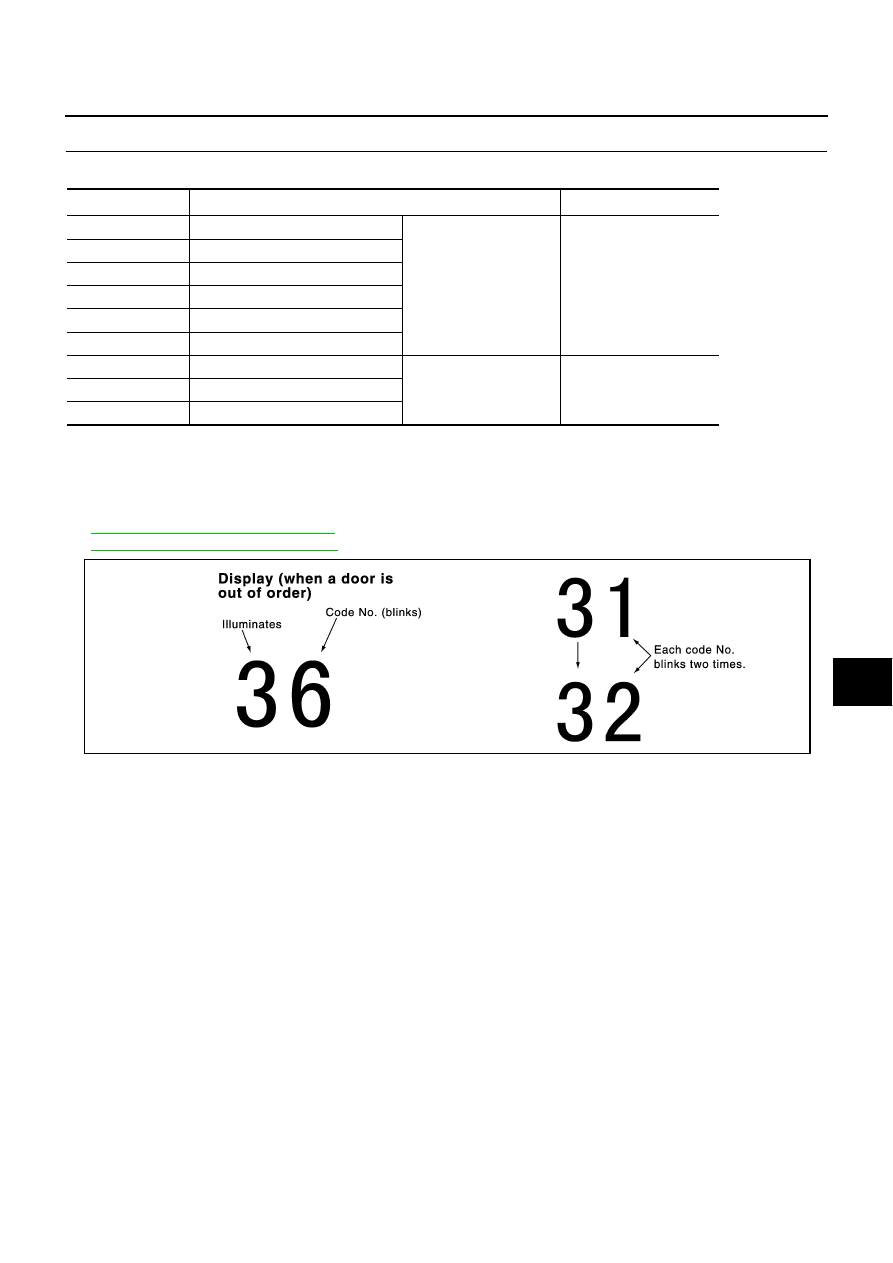

Mode and/or intake door motor PBR(s) is/are malfunctioning.

(If two or more mode or intake doors are out of order, corresponding code numbers blink respectively twice.)
*1: If mode door motor harness connector is disconnected, the following display pattern will appear.
31

32

33

34

35

36

Return to 31

*2: If intake door motor harness connector is disconnected, the following display pattern will appear.
37

38

39

Return to 37

*3:

ATC-66, "Mode Door Motor Circuit"

 .

*4:

ATC-72, "Intake Door Motor Circuit"

 .

>> INSPECTION END

Code No.

*1 *2

Mode or intake door position

Reference page

31

VENT (Driver side)

Mode door motor

*3

32

FOOT (Driver side)

33

DEF (Driver side)

34

VENT (Passenger side)

35

FOOT1 (Passenger side)

36

DEF (Passenger side)

37

FRE

Intake door motor

*4

38

20% FRE

39

REC

RJIA0228E

ATC-56

TROUBLE DIAGNOSIS

AUXILIARY MECHANISM: TEMPERATURE SETTING TRIMMER

The trimmer compensates for differences in range of

±

3

°

C (

±

6

°

F) between temperature setting (displayed dig-

itally) and temperature felt by driver.
Operating procedures for this trimmer are as follows:

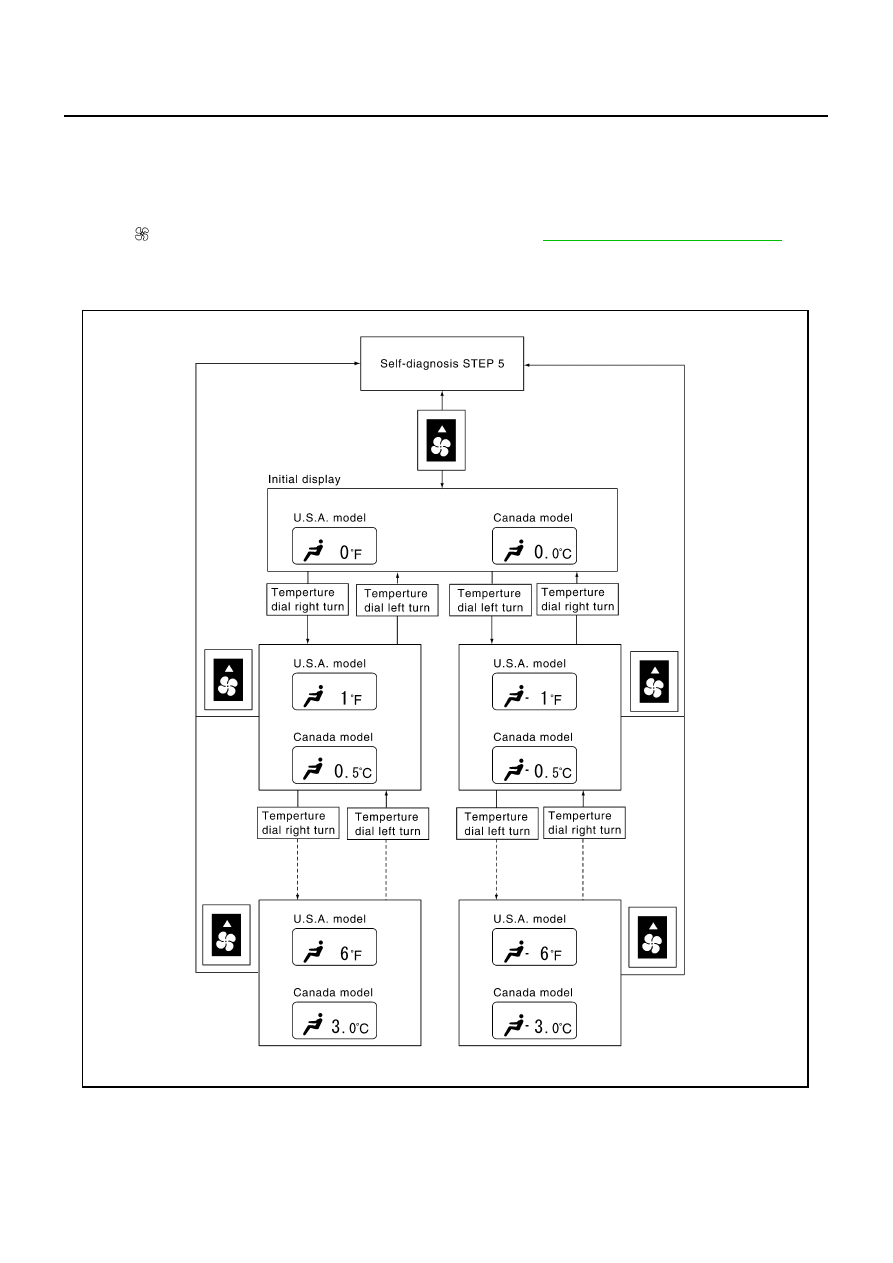

Begin Self-diagnosis STEP-5 mode.

Press (fan) UP switch to set system in auxiliary mode. Refer to

ATC-49, "Self-Diagnosis Function"

 .

Display shows 61 in auxiliary mechanism. It takes approximately 3 seconds.

Turn the temperature dial as desired. Temperature will change at a rate of 0.5

°

C (1.0

°

F) each time a dial

is turned.

When battery cable is disconnected, trimmer operation is canceled. Temperature set becomes that of ini-
tial condition, i.e. 0

°

C (0

°

F).

RJIA1274E
