Infiniti M45 (Y34). Manual - part 124

ASSEMBLY

AT-381

D

E

F

G

H

I

J

K

L

M

A

B

AT

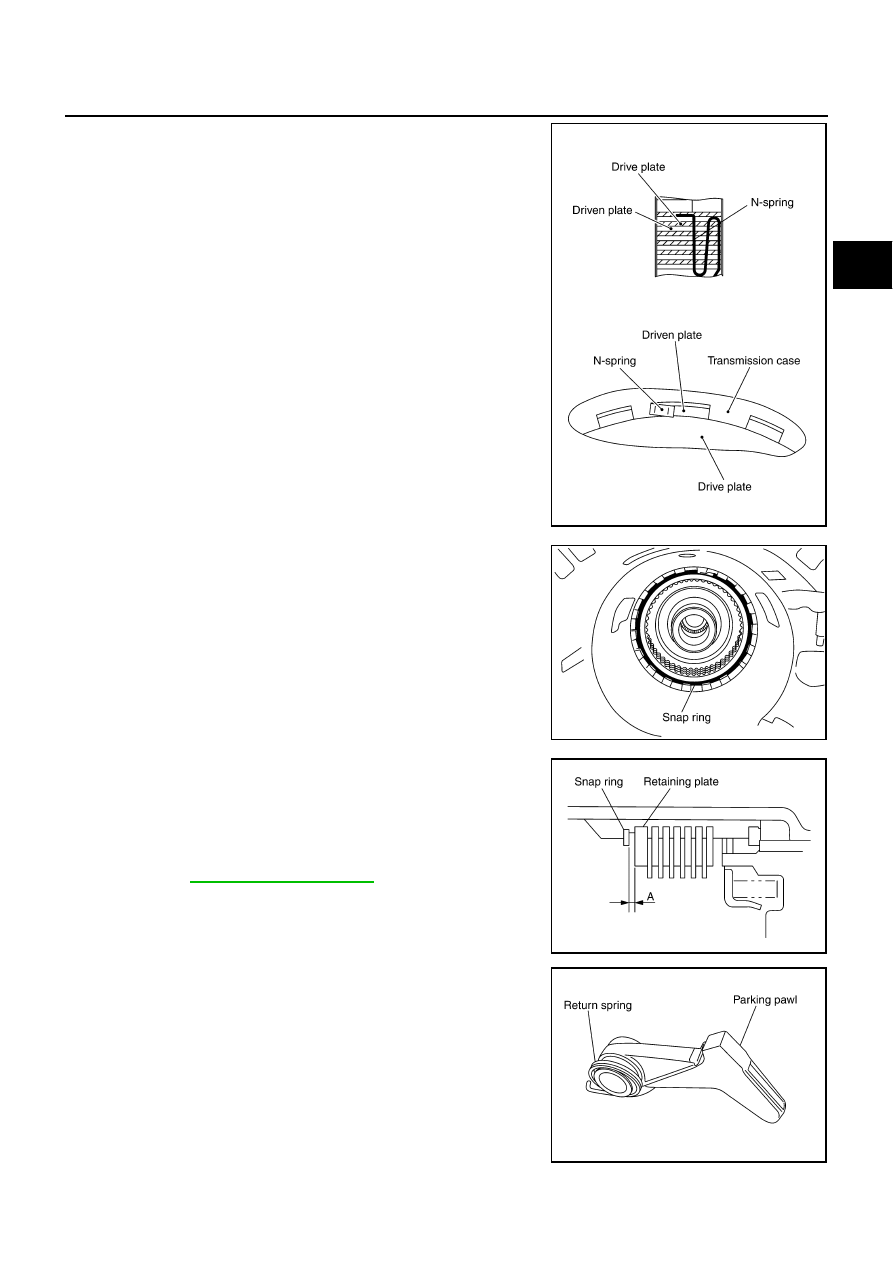

21. Assemble N-spring.

22. Install reverse brake retaining plate in transmission case.

23. Install snap ring in transmission case.

24. Measure clearance between retaining plate and snap ring. If not

within specified clearance, select proper retaining plate.

25. Install return spring in parking pawl.

SCIA5249E

SCIA2439E

Specified clearance “A”:

Standard: 0.7 - 1.1mm (0.028 - 0.043 in)

Retaining plate:

Refer to

AT-398, "Reverse Brake"

 .

SCIA3129E

SCIA2445E

AT-382

ASSEMBLY

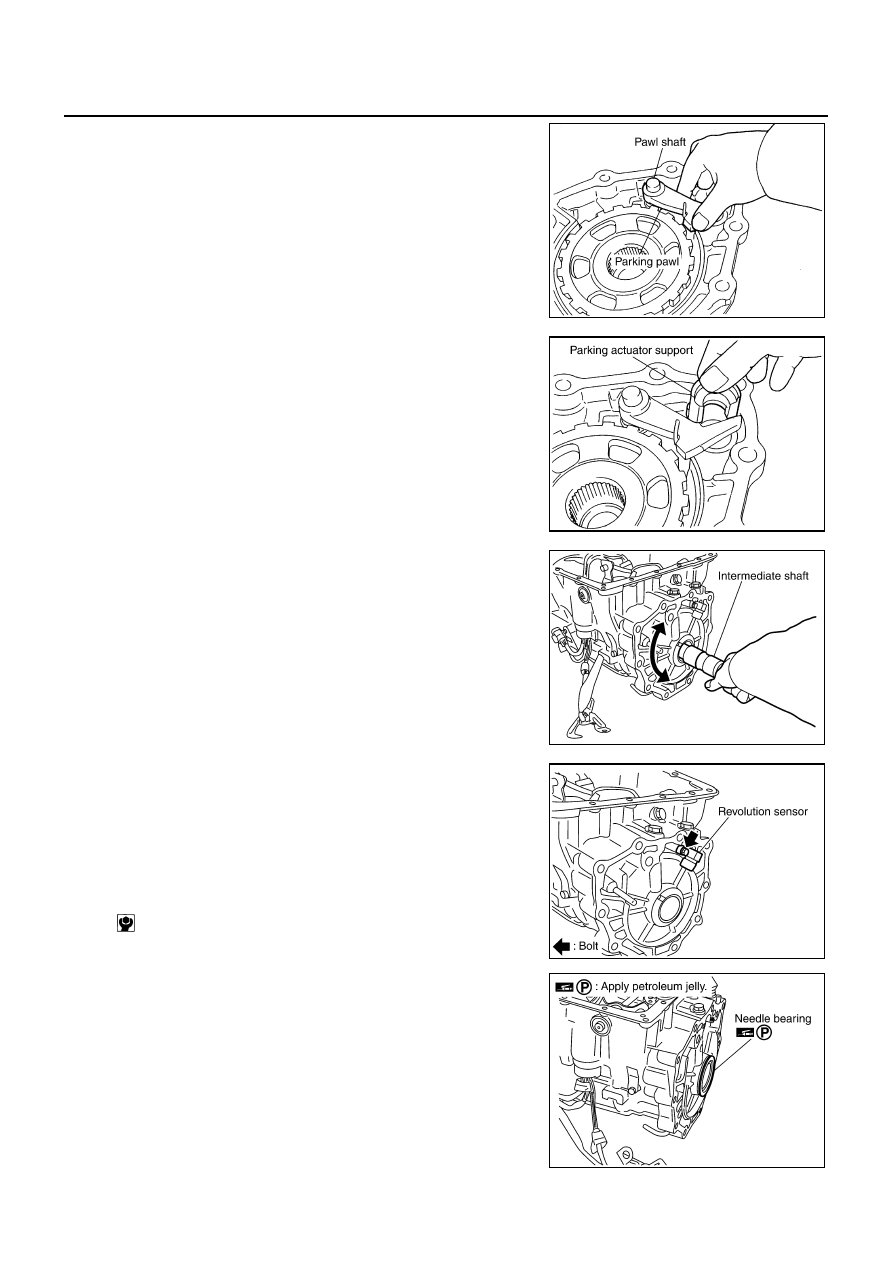

26. Install parking pawl and pawl shaft in output shaft & companion

flange complement.

27. Install parking actuator support in output shaft & companion

flange complement.

28. Install intermediate shaft in transmission case.

CAUTION:

Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)

29. Install revolution sensor in transmission case.

CAUTION:

●

Do not subject it to impact by dropping or hitting it.

●

Do not disassemble.

●

Do not allow metal filings, etc., to get on the sensor's
front edge magnetic area.

●

Do not place in an area affected by magnetism.

30. Install needle bearing in transmission case.

CAUTION:

Apply petroleum jelly to needle bearing.

SCIA4631E

SCIA2335E

SCIA4632E

: 5.8 N·m (0.59 kg-m, 51 in-lb)

SCIA2320E

SCIA2440E

ASSEMBLY

AT-383

D

E

F

G

H

I

J

K

L

M

A

B

AT

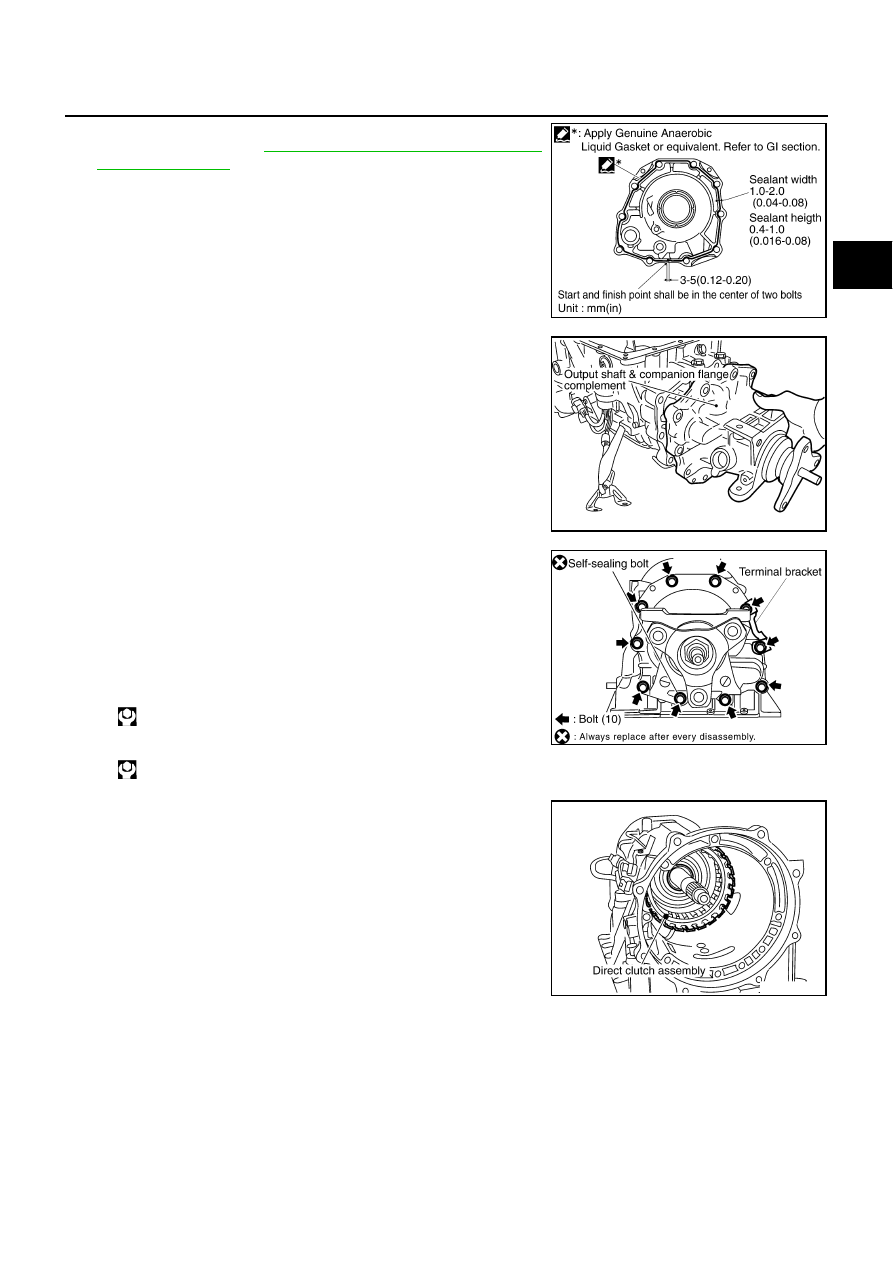

31. Apply recommended sealant (Genuine Anaerobic Liquid Gasket

or equivalent. Refer to

GI-46, "Recommended Chemical Prod-

ucts and Sealants"

 .) to output shaft & companion flange com-

plement as shown in the figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
From the transmission case and output shaft & companion
flange complement mounting surfaces.

32. Install output shaft & companion flange complement in transmis-

sion case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the output
shaft & companion flange complement.

33. Tighten output shaft & companion flange complement mounting

bolts to specified torque. (Because terminal bracket is tightened
together with output shaft & companion flange, it should be
installed before procedure 32.)

CAUTION:

Do not reuse self-sealing bolt.

34. Install direct clutch assembly in reverse brake.

CAUTION:

Make sure that drum support edge surface and direct clutch
inner boss edge surface come to almost same place.

SCIA5212E

SCIA2318E

Output shaft & companion flange complement
mounting bolt:

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt:

: 61 N·m (6.2 kg-m, 45 ft-lb)

SCIA5170E

SCIA2307E

AT-384

ASSEMBLY

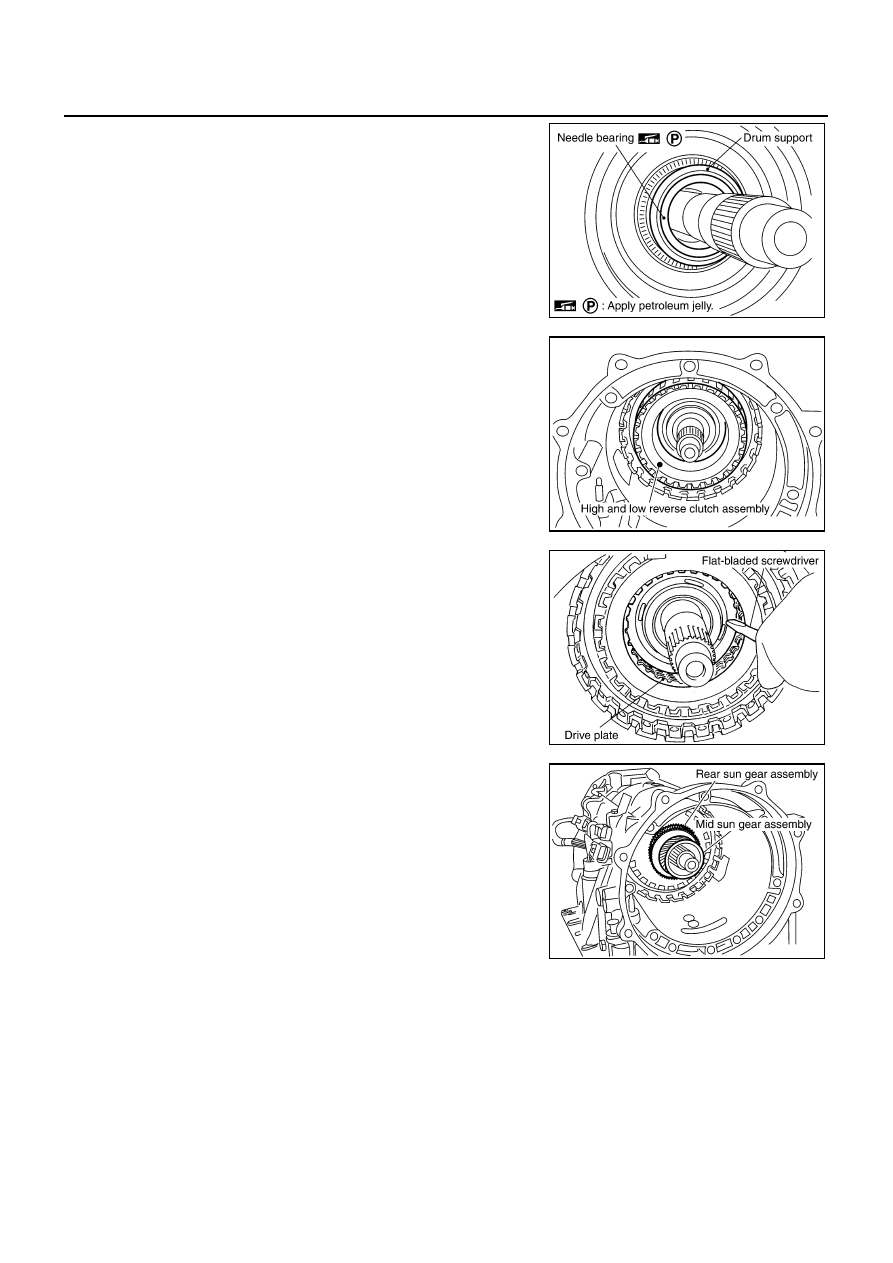

35. Install needle bearing in drum support edge surface.

CAUTION:

Apply petroleum jelly to needle bearing.

36. Install high and low reverse clutch assembly in direct clutch

assembly.

CAUTION:

Be sure to replace high and low reverse clutch and mid sun
gear as a set.

37. Using a flat-bladed screwdriver, range drive plates.

38. Install high and low reverse clutch hub, mid sun gear assembly

and rear sun gear assembly as a unit.

SCIA5198E

SCIA2306E

SCIA3169E

SCIA2305E
