DISASSEMBLY

AT-349

D

E

F

G

H

I

J

K

L

M

A

B

AT

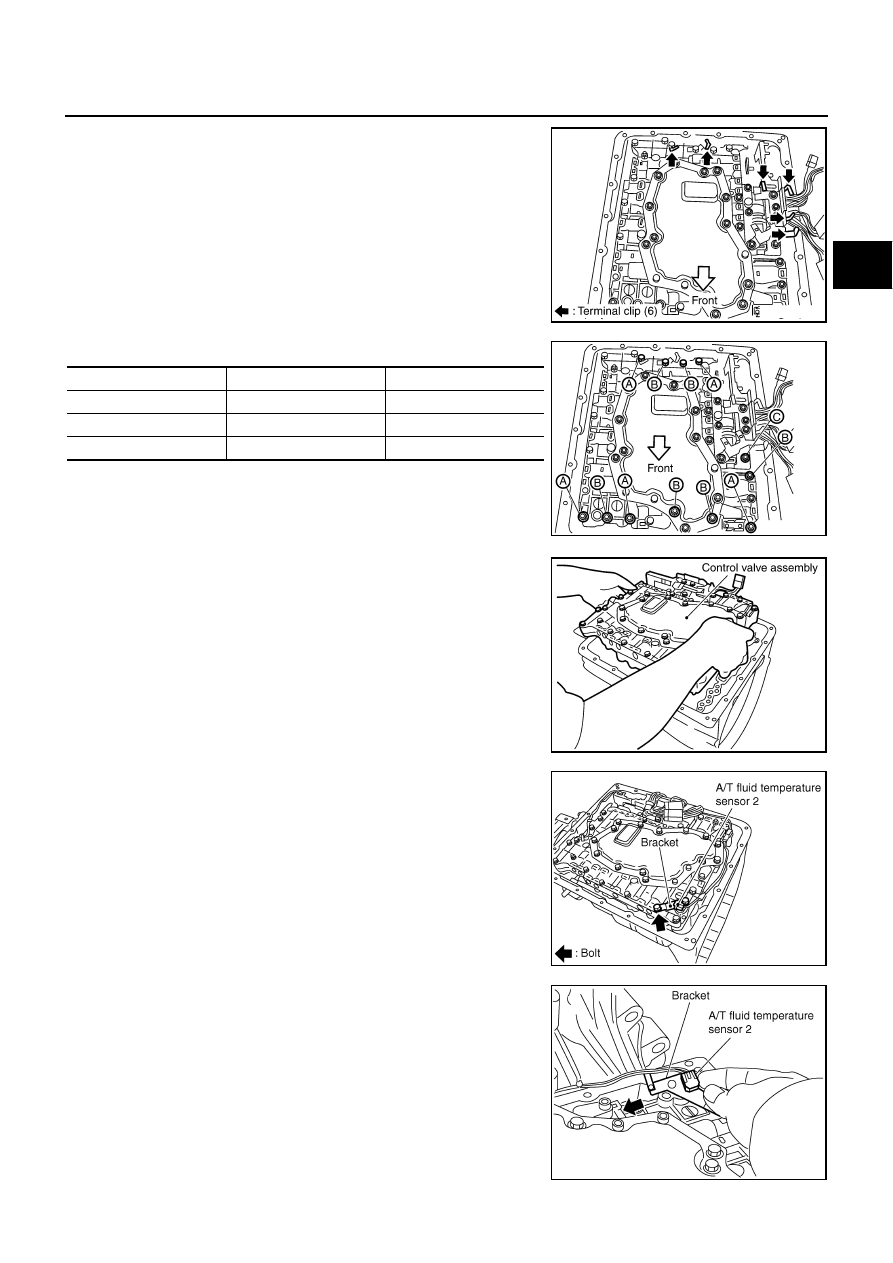

33. Straighten terminal clips to free terminal cord assembly and rev-

olution sensor harness then remove terminal clips.

CAUTION:

Hang down terminal cord assembly and revolution sensor
harness toward outside so as not to disturb removal of con-
trol valve assembly.

34. Remove bolts A, B and C from control valve assembly.

35. Remove control valve assembly from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.

36. Remove A/T fluid temperature sensor 2 with bracket from con-

trol valve assembly.

37. Remove bracket from A/T fluid temperature sensor 2.

SCIA2314E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA2312E

SCIA2315E

SCIA5126E

SCIA5127E

AT-350

DISASSEMBLY

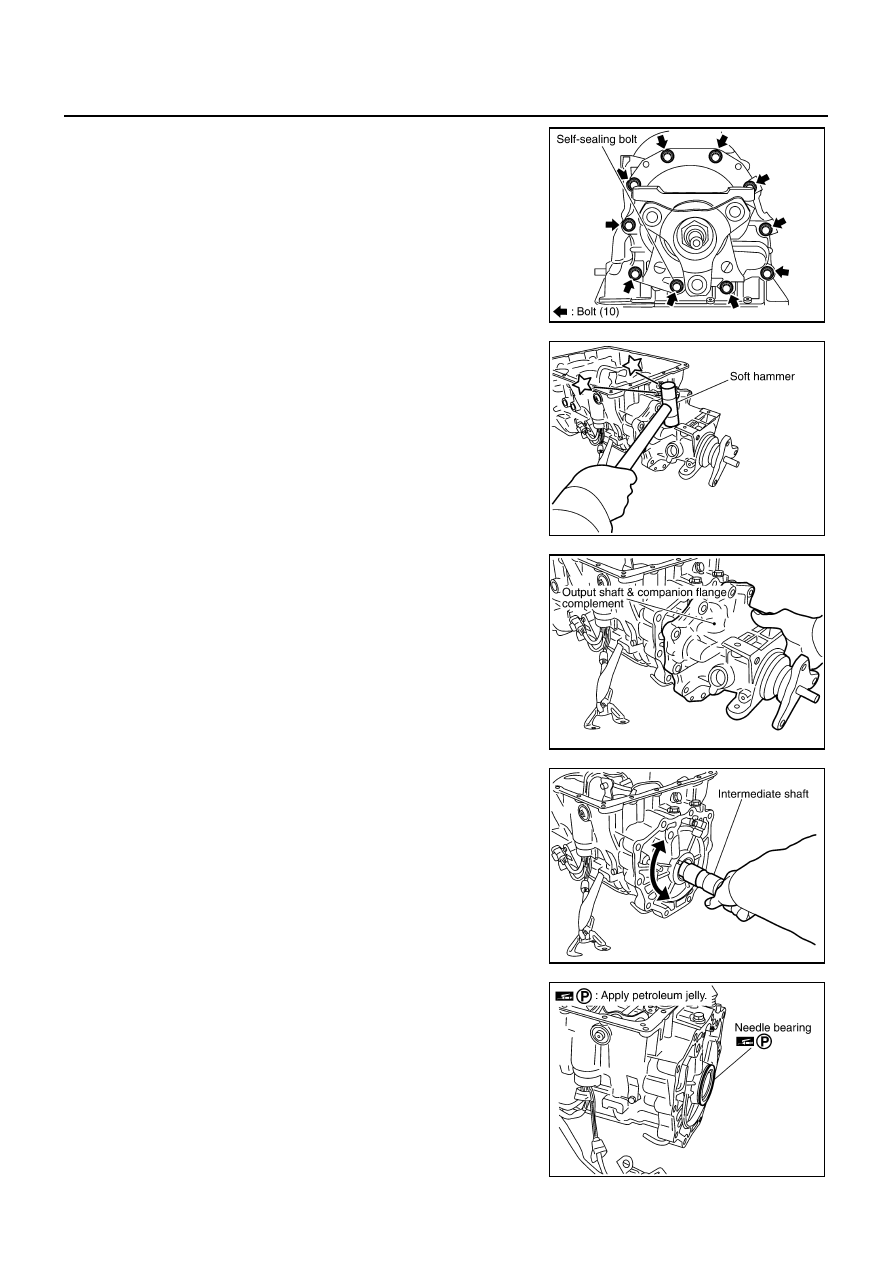

38. Remove tightening bolts for output shaft & companion flange

complement and transmission case.

39. Tap output shaft & companion flange complement with a soft

hammer.

40. Remove output shaft & companion flange complement from

transmission case.

41. Remove intermediate shaft from transmission case by rotating

left/right.

42. Remove needle bearing from transmission case.

SCIA2316E

SCIA2317E

SCIA2318E

SCIA4632E

SCIA2440E

DISASSEMBLY

AT-351

D

E

F

G

H

I

J

K

L

M

A

B

AT

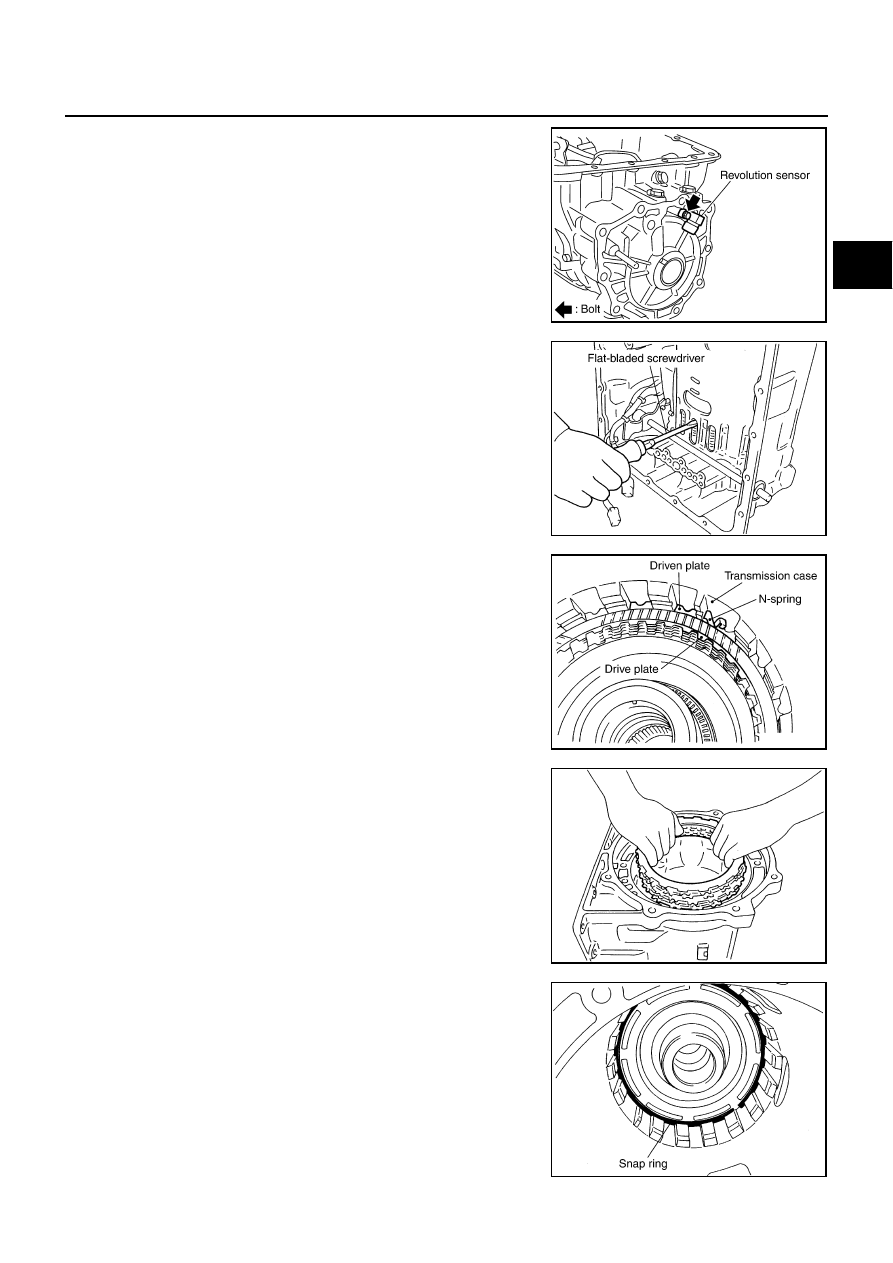

43. Remove revolution sensor from transmission case.

CAUTION:

Do not subject it to impact by dropping or hitting it.

Do not disassemble.

Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.

Do not place in an area affected by magnetism.

44. Remove reverse brake snap ring (fixing plate) using 2 flat-

bladed screwdrivers.

NOTE:
Press out snap ring from the transmission case oil pan side gap
using the flat-bladed screwdriver, and remove it using another
screwdriver.

45. Remove reverse brake retaining plate from transmission case.

Check facing for burns, cracks or damage. If necessary,
replace the plate.

46. Remove N-spring from transmission case.

47. Remove reverse brake drive plates, driven plates and dish plate

from transmission case.

Check facing for burns, cracks or damage. If necessary,
replace the plate.

48. Remove snap ring (fixing spring retainer) using a flat-bladed

screwdriver.

SCIA2320E

SCIA2321E

SCIA5214E

SCIA2322E

SCIA2323E

AT-352

DISASSEMBLY

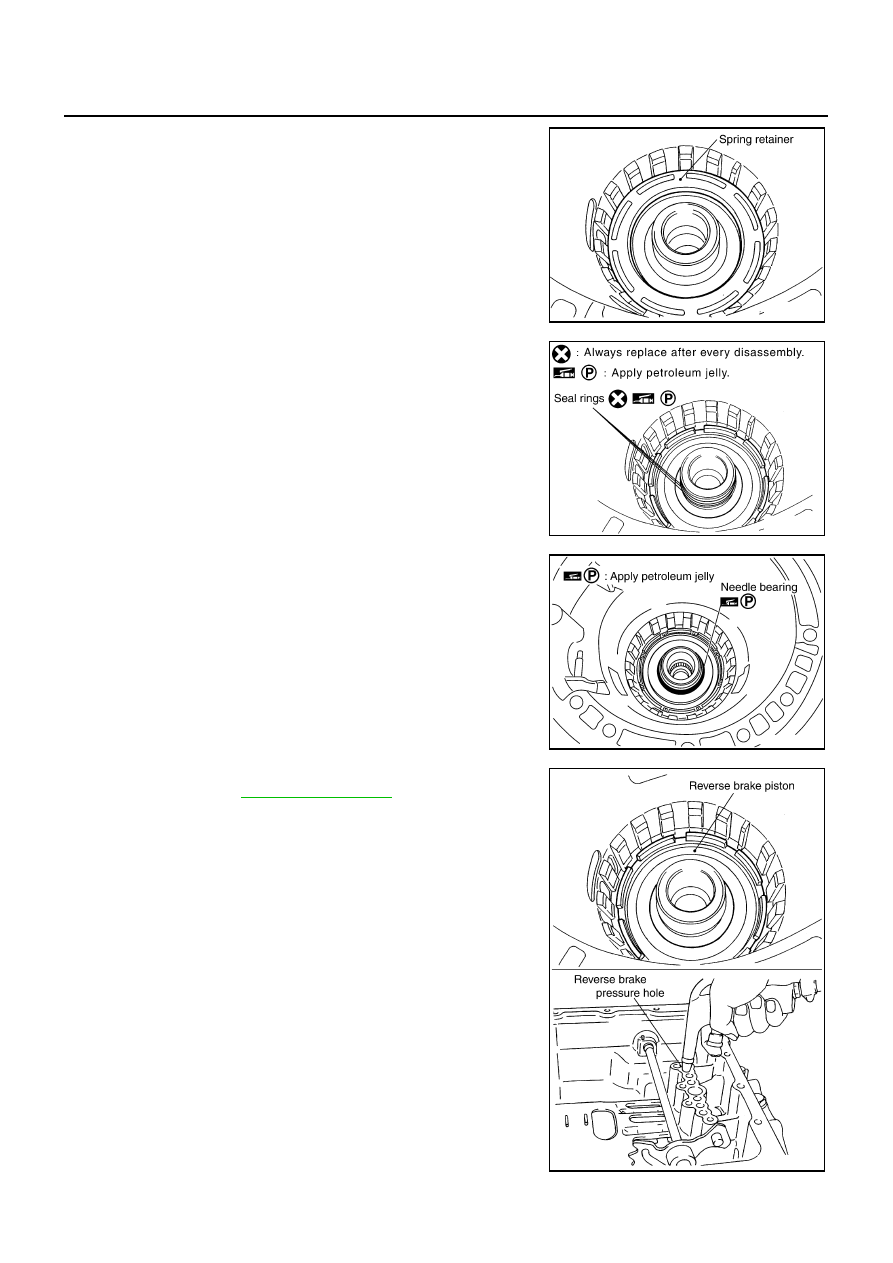

49. Remove spring retainer and return spring from transmission

case.

50. Remove seal rings from drum support.

51. Remove needle bearing from drum support edge surface.

52. Remove reverse brake piston from transmission case with com-

pressed air. Refer to

AT-340, "Oil Channel"

 .

CAUTION:

Care should be taken not to abruptly blow air. It makes pis-
tons incline, as the result, it becomes hard to disassemble
the pistons.

SCIA2324E

SCIA3333E

SCIA2796E

SCIA5047E
