OVERHAUL

AT-337

D

E

F

G

H

I

J

K

L

M

A

B

AT

7.

Reverse brake driven plate

8.

N-sprig

9.

Reverse brake drive plate

10. Reverse brake retaining plate

11.

Snap ring

12. Lip seal

13. D-ring

14. Reverse brake piston

15. Return spring

16. Spring retainer

17. Snap ring

AT-338

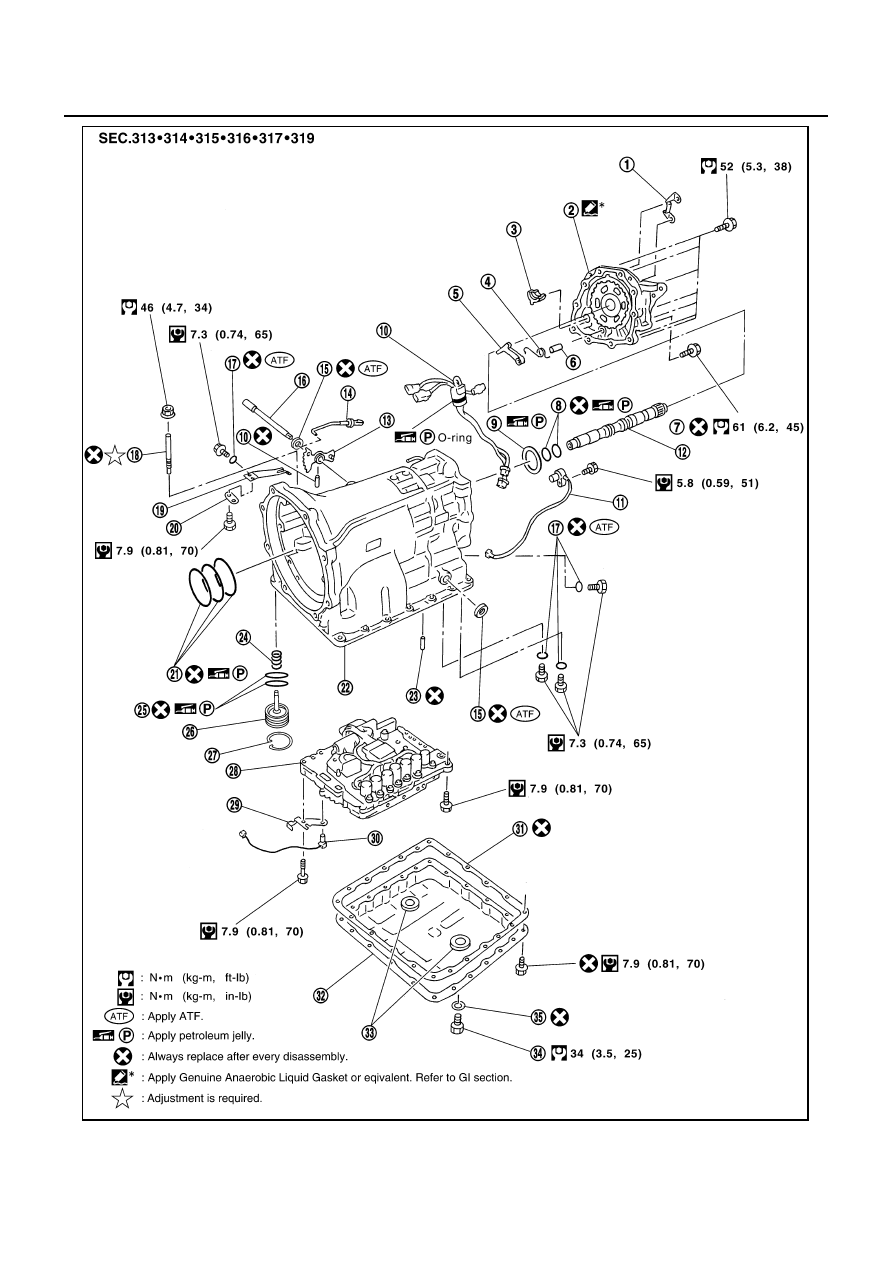

OVERHAUL

1.

Terminal bracket

2.

Output shaft & companion flange
complement

3.

Parking actuator support

4.

Return spring

5.

Parking pawl

6.

Pawl shaft

SCIA6845E

OVERHAUL

AT-339

D

E

F

G

H

I

J

K

L

M

A

B

AT

7.

Self sealing bolt

8.

Seal ring

9.

Needle bearing

10. Terminal cord assembly

11.

Revolution sensor

12. Intermediate shaft

13. Manual plate

14. Parking rod

15. Manual shaft oil seal

16. Manual shaft

17. O-ring

18. Band servo anchor end pin

19. Detent spring

20. Spacer

21. Seal ring

22. Transmission case

23. Retaining pin

24. Return spring

25. O-ring

26. Servo assembly

27. Snap ring

28. Control valve assembly

29. Bracket

30. Fluid temperature sensor 2

31. Oil pan gasket

32. Oil pan

33. Magnet

34. Drain plug

35. Drain plug gasket

AT-340

OVERHAUL

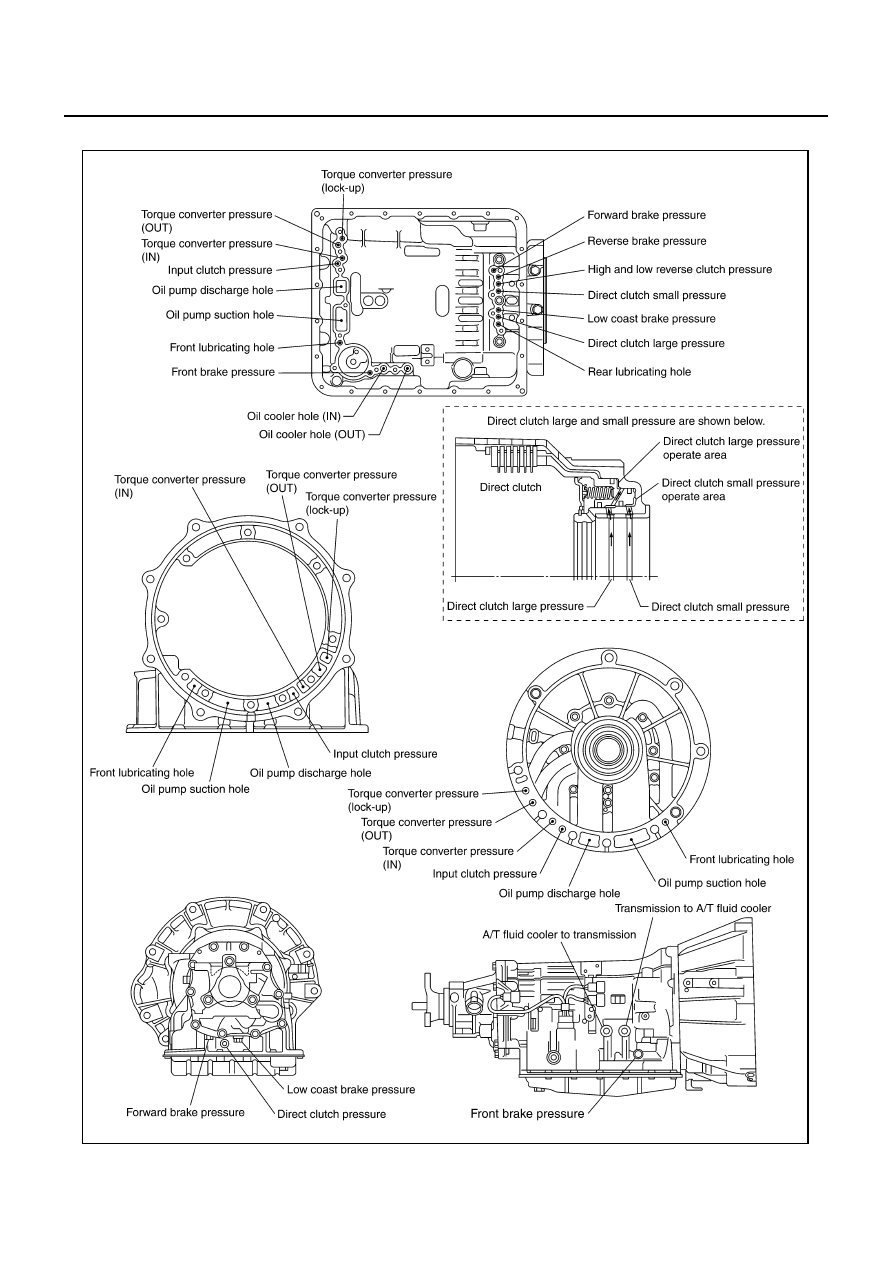

Oil Channel
