TRANSMISSION ASSEMBLY

AT-333

D

E

F

G

H

I

J

K

L

M

A

B

AT

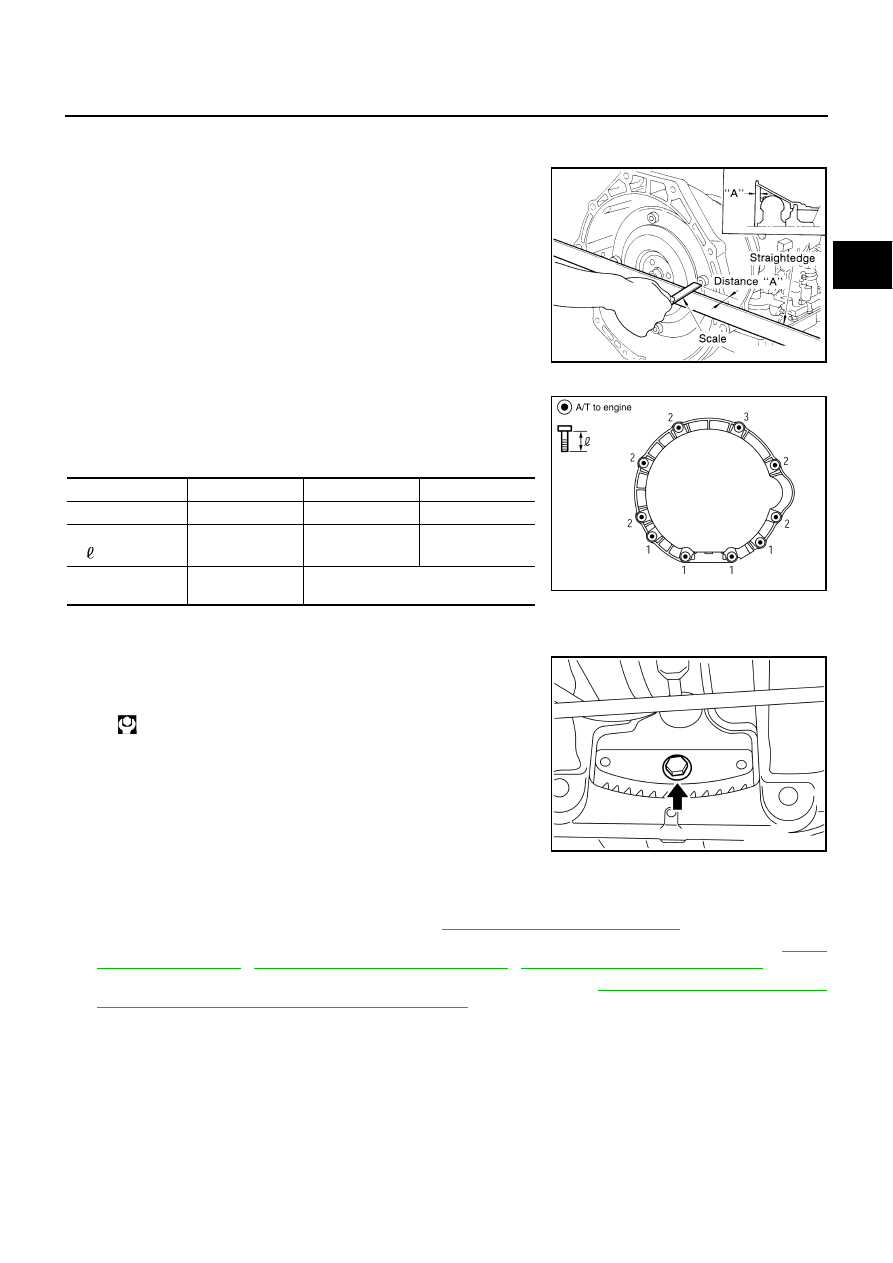

INSPECTION
Installation and Inspection of Torque Converter

After inserting torque converter to transmission, be sure to
check distance A to ensure it is within the reference value limit.

INSTALLATION

Install the removed parts in the reverse order of the removal, while
paying attention to the following work.

When installing transmission to the engine, attach the fixing
bolts in accordance with the following standard.

*: Tightening the bolt with A/T fluid charging pipe.

Align the positions of tightening bolts for drive plate with those of
the torque converter, and temporarily tighten the bolts. Then,
tighten the bolts with the specified torque.

CAUTION:

When turning crankshaft, turn it clockwise as viewed
from the front of the engine.

When tightening the tightening bolts for the torque con-
verter after fixing the crankshaft pulley bolts, be sure to
confirm the tightening torque of the crankshaft pulley
mounting bolts.

After converter is installed to drive plate, rotate crankshaft several turns and check to be sure
that transmission rotates freely without binding.

Install crankshaft position sensor (POS). Refer to

EM-25, "Removal and Installation"

 .

After completing installation, check fluid leakage, fluid level, and the positions of A/T. Refer to

AT-14,

"Checking A/T Fluid"

 ,

AT-305, "Adjustment of A/T Position"

 ,

AT-305, "Checking of A/T Position"

 .

When replacing the A/T assembly, erase EEP ROM in TCM. Refer to

AT-8, "Precautions for TCM, A/T

Assembly and Control Valve Assembly Replacement"

 .

Distance “A”

: 22.0 mm (0.87 in) or more

SCIA5694E

Bolt No.

1

2

3*

Number of bolts

4

5

1

Bolt length

 “

”mm (in)

65 (2.56)

70 (2.76)

70 (2.76)

Tightening torque
N·m (kg-m, ft-lb)

74

(7.5, 55)

114

(12.0, 84)

: 51 N·m (5.2 kg-m, 38 ft-lb)

PCIA0044E

PCIA0045J

AT-334

OVERHAUL

OVERHAUL

PFP:00000

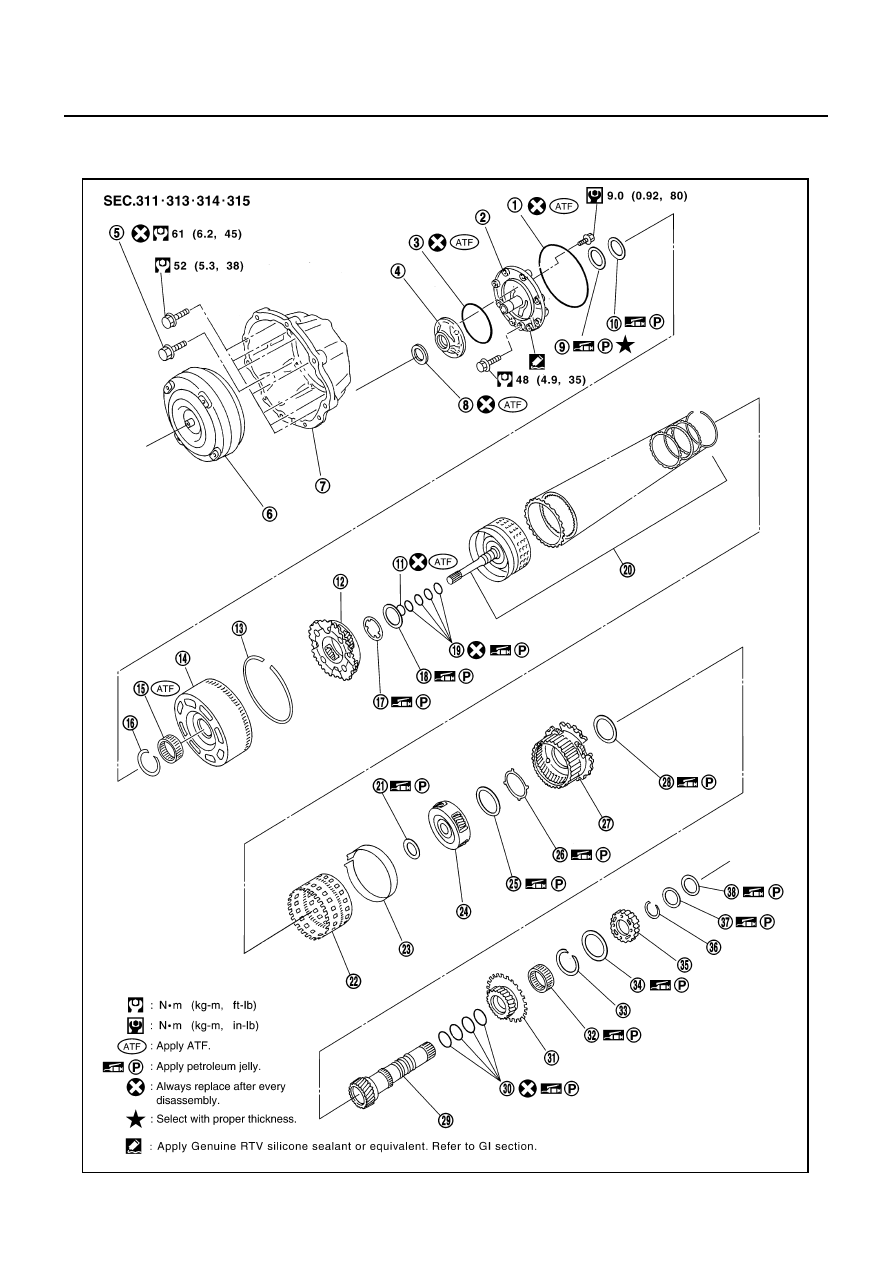

Components

ACS004H8

SCIA5422E

OVERHAUL

AT-335

D

E

F

G

H

I

J

K

L

M

A

B

AT

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Self-sealing bolt

6.

Torque converter

7.

Converter housing

8.

Oil pump housing oil seal

9.

Bearing race

10. Needle bearing

11.

O-ring

12. Front carrier assembly

13. Snap ring

14. Front sun gear

15. 3rd one-way clutch

16. Snap ring

17. Bearing race

18. Needle bearing

19. Seal ring

20. Input clutch assembly

21. Needle bearing

22. Rear internal gear

23. Brake band

24. Mid carrier assembly

25. Needle bearing

26. Bearing race

27. Rear carrier assembly

28. Needle bearing

29. Mid sun gear

30. Seal ring

31. Rear sun gear

32. 1st one-way clutch

33. Snap ring

34. Needle bearing

35. High and low reverse clutch hub

36. Snap ring

37. Bearing race

38. Needle bearing

AT-336

OVERHAUL

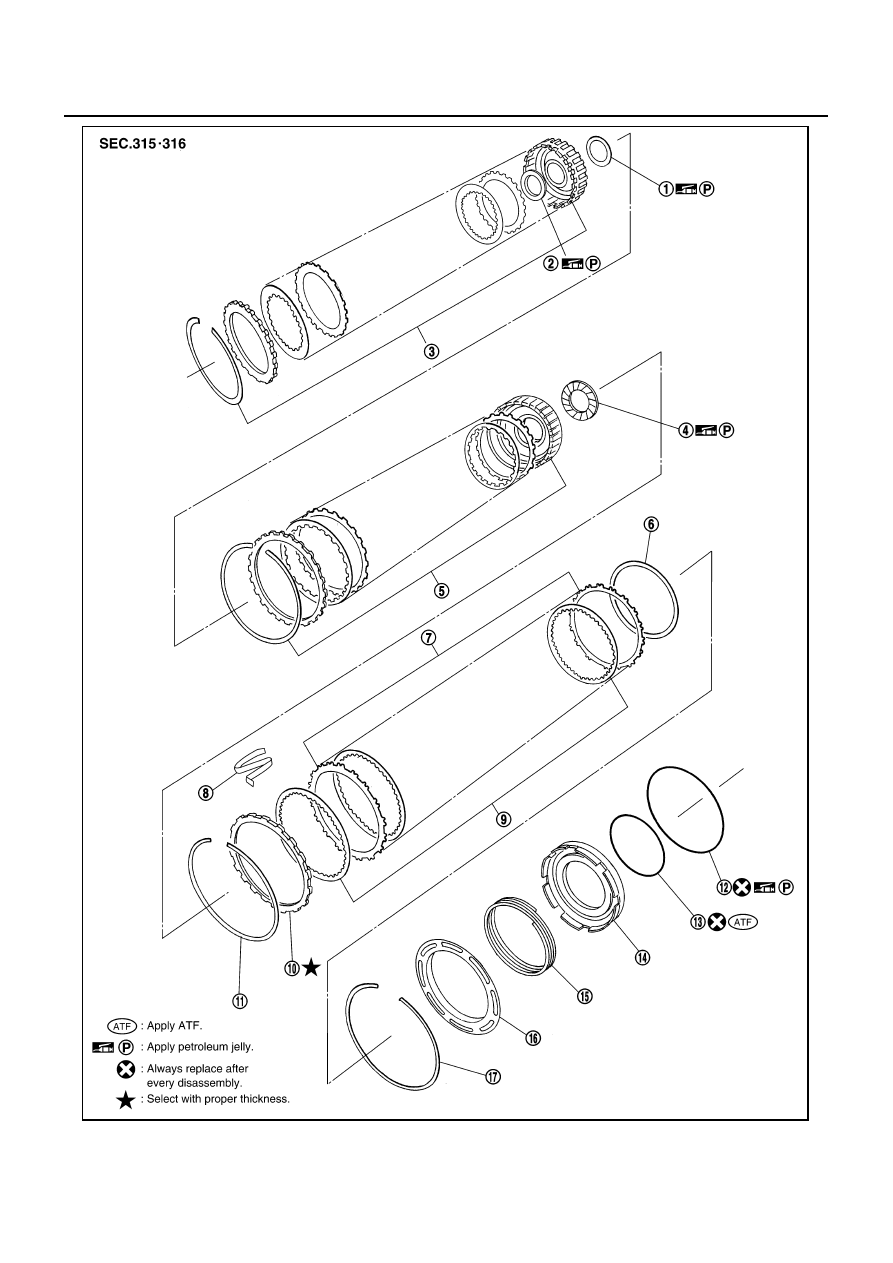

1.

Needle bearing

2.

Bearing race

3.

High and low reverse clutch assem-
bly

4.

Needle bearing

5.

Direct clutch assembly

6.

Reverse brake dish plate

SCIA5043E
