Infiniti M45 (Y34). Manual - part 82





DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE

AT-213

D

E

F

G

H

I

J

K

L

M

A

B

AT

5.

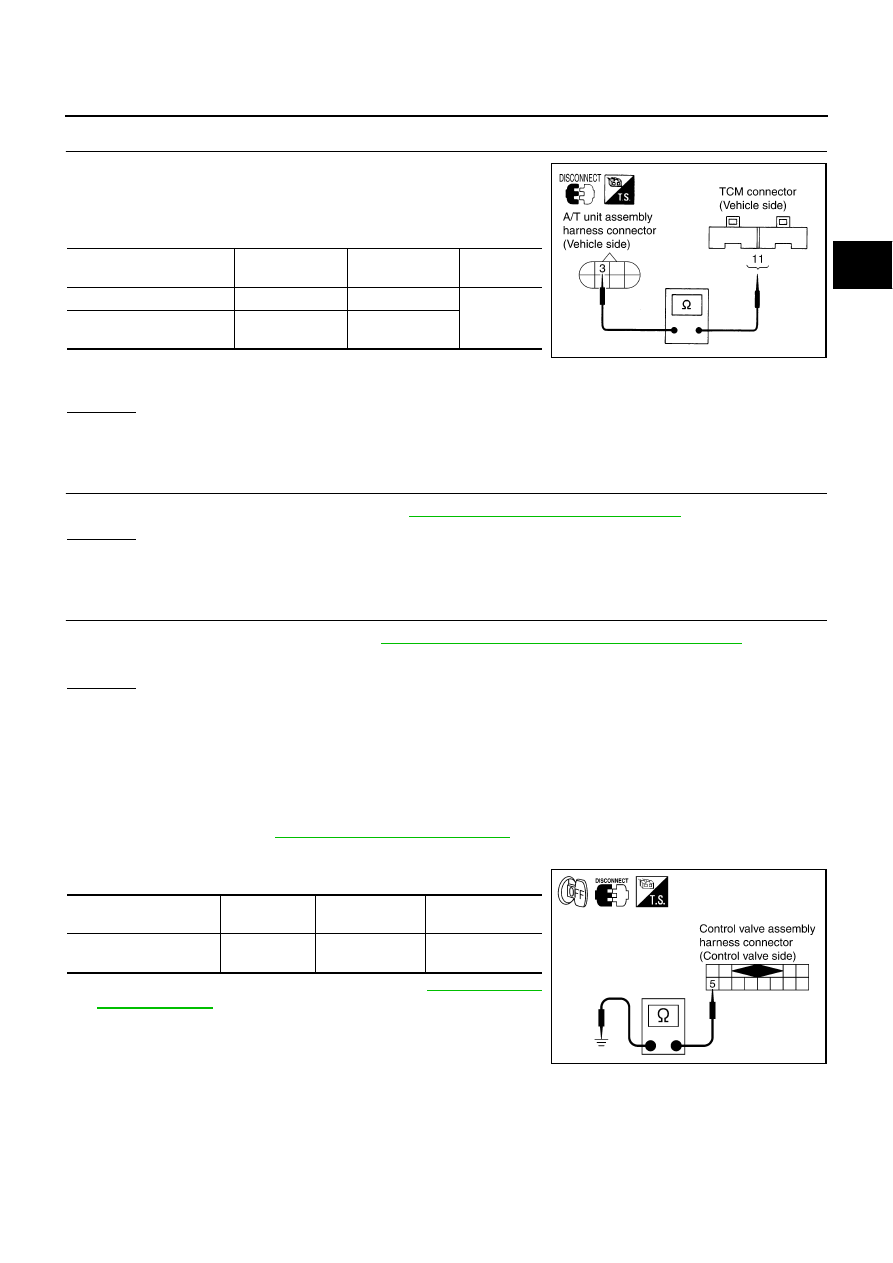

CHECK POWER SOURCE CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect TCM connector.

3.

Check continuity between A/T unit assembly harness connector
and TCM connector.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

OK or NG

OK

>> GO TO 6.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK DTC

Perform “DTC Confirmation Procedure”. Refer to

AT-209, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 7.

7.

CHECK TCM

1.

Check TCM input/output signal. Refer to

AT-86, "TCM Input/Output Signal Reference Values"

 .

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Component Inspection

ACS0049Z

HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE
Resistance Check

1.

Turn ignition switch OFF.

2.

Remove oil pan. Refer to

AT-312, "Control Valve Assembly"

 .

3.

Disconnect control valve assembly harness connector.

4.

Check resistance between terminal and ground.

5.

If NG, replace control valve assembly. Refer to

AT-312, "Control

Valve Assembly"

 .

Item

Connector No.

Terminal No.

(Wire color)

Continuity

TCM

F103

11 (R/L)

Yes

A/T unit assembly harness
connector

F27

3 (R/L)

SCIA1844E

Solenoid Valve

Connector No.

Terminal No.

(Wire color)

Resistance

(Approx.)

High and low reverse
clutch solenoid valve

F301

5 (R) - Ground

3 - 9

SCIA3088E

AT-214

DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE

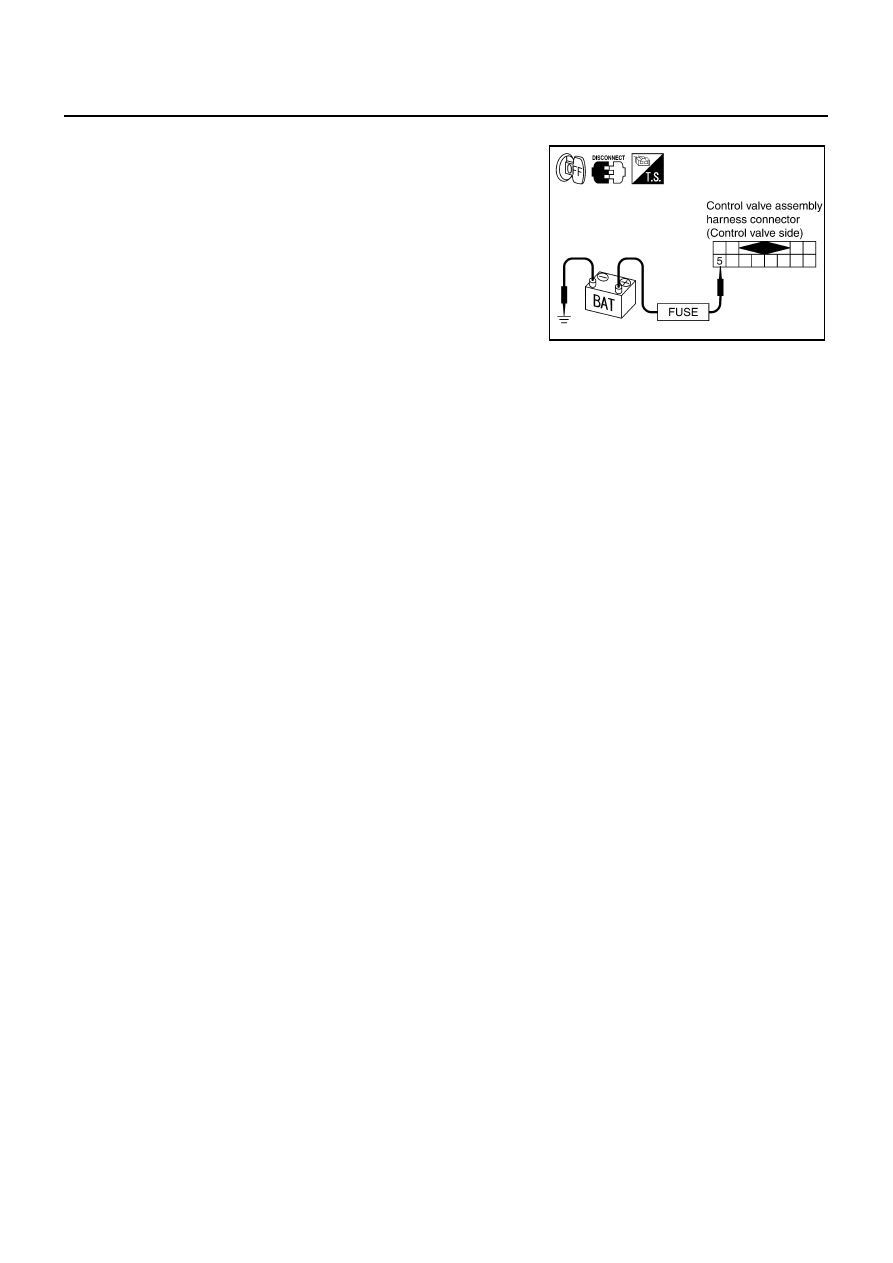

Operation Check

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal 5 and ground.

SCIA3089E

DTC P1769 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE FUNCTION

AT-215

D

E

F

G

H

I

J

K

L

M

A

B

AT

DTC P1769 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE FUNCTION

PFP:31940

Description

ACS004A0

High and low reverse clutch solenoid valve is controlled by the TCM in response to signals sent from the
PNP switch, vehicle speed sensor and accelerator pedal position sensor (throttle position sensor). Gears
will then be shifted to the optimum position.

This is not only caused by electrical malfunction (circuits open or shorted) but also by mechanical mal-
function such as control valve sticking, improper solenoid valve operation.

CONSULT-II Reference Value

ACS004PO

On Board Diagnosis Logic

ACS004A1

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “HLR/C SOL FNCTN” with CONSULT-II or P1769 without CONSULT-II is
detected under the following conditions.

When TCM detects that actual gear ratio is irregular, and relation between gear position and condition of
ATF pressure switch 6 is irregular during depressing accelerator pedal. (Other than during shift change)

When TCM detects that relation between gear position and condition of ATF pressure switch 6 is irregular
during releasing accelerator pedal. (Other than during shift change)

Possible Cause

ACS004A2

Harness or connectors
(The solenoid and switch circuits are open or shorted.)

High and low reverse clutch solenoid valve

ATF pressure switch 6

DTC Confirmation Procedure

ACS004A3

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Start engine.

2.

Accelerate vehicle to maintain the following condition.
ACCELE POS: 1.5/8 - 2.0/8
Selector lever: “D” position
Gear position: 2nd

Þ

 3rd Gear (HLR/C ON/OFF)

3.

Perform step “2” again.

4.

Turn ignition switch OFF, then perform step “1” to “3” again.

5.

Check “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II. If DTC (P1769) is detected, refer to

AT-217, "Diagnostic Pro-

cedure"

 .

If DTC (P1767) is detected, go to

AT-211, "Diagnostic Proce-

dure"

 .

If DTC (P1846) is detected, go to

AT-248, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “With CONSULT-II”.

Item name

Condition

Display value

ATF PRES SW 6

High and low reverse clutch solenoid valve operates.

OFF

Other conditions

ON

SAT014K

AT-216

DTC P1769 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE FUNCTION

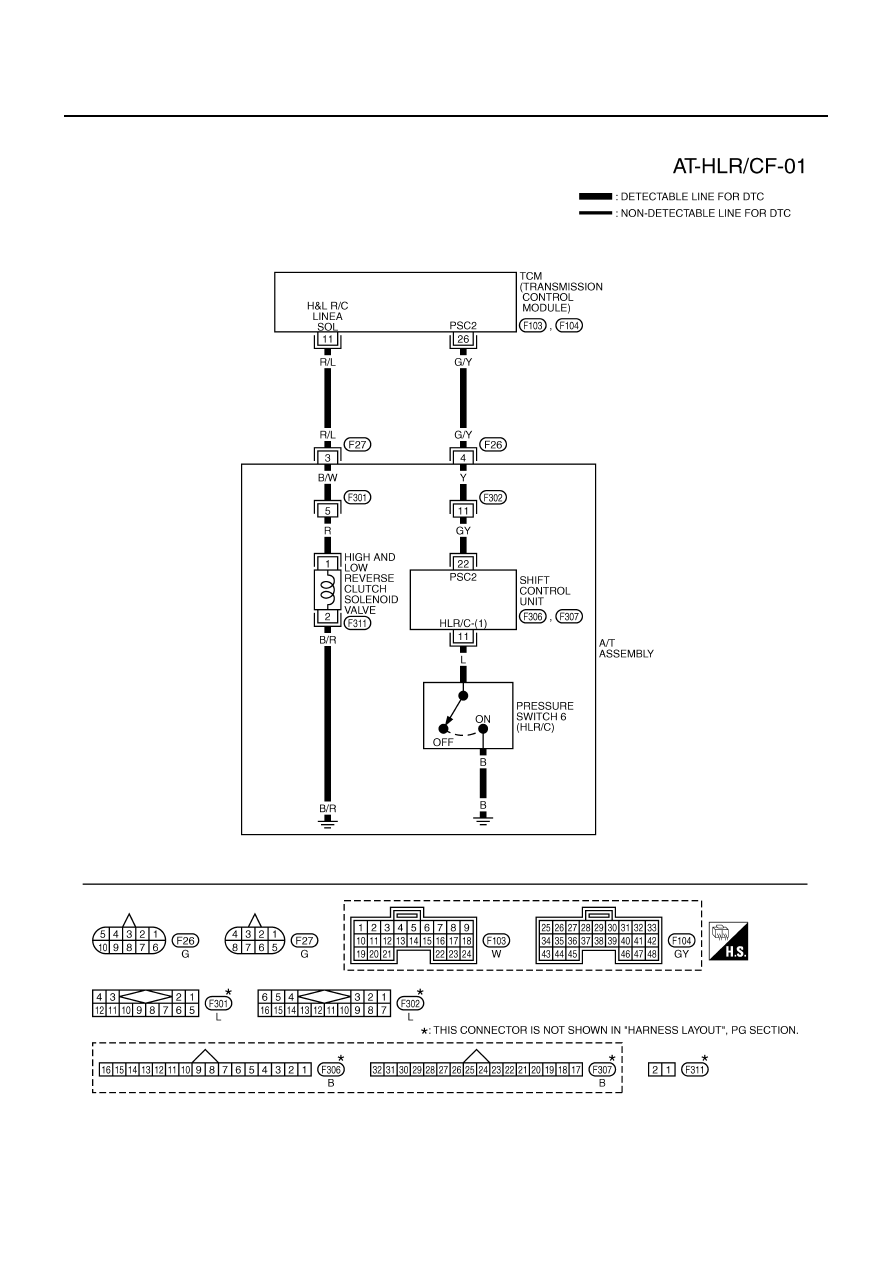

Wiring Diagram — AT — HLR/CF

ACS004A4

TCWA0132E
