DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION

AT-197

D

E

F

G

H

I

J

K

L

M

A

B

AT

2.

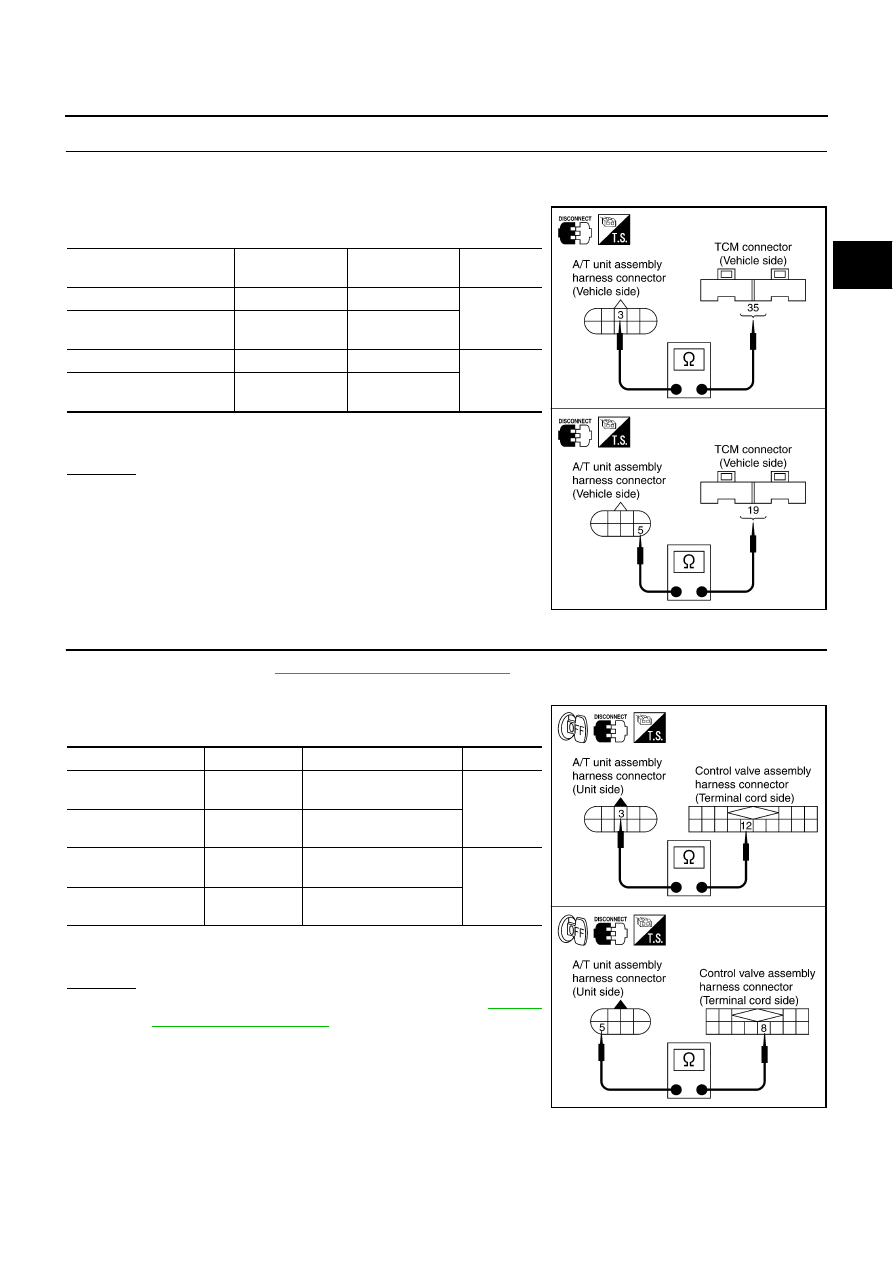

CHECK HARNESS BETWEEN TCM AND A/T UNIT ASSEMBLY HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect TCM connector.

3.

Check continuity between A/T unit assembly harness connector
and TCM connector.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

3.

CHECK TERMINAL CORD ASSEMBLY

1.

Remove oil pan. Refer to

AT-312, "Control Valve Assembly"

 .

2.

Disconnect A/T unit assembly harness connector and control valve assembly harness connector.

3.

Check continuity between A/T unit assembly harness connector
and control valve assembly harness connector.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

OK or NG

OK

>> Replace the control valve assembly. Refer to

AT-312,

"Control Valve Assembly"

 .

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

Item

Connector No.

Terminal No.

(Wire color)

Continuity

TCM

F104

35 (B/Y)

Yes

A/T unit assembly harness
connector

F26

3 (B/Y)

TCM

F103

19 (R)

Yes

A/T unit assembly harness
connector

F27

5 (R)

SCIA3080E

Item

Connector No.

Terminal No. (Wire color)

Continuity

A/T unit assembly
harness connector

F26

3 (G)

Yes

Control valve assem-
bly harness connector

F302

12 (G)

A/T unit assembly
harness connector

F27

5 (W/R)

Yes

Control valve assem-
bly harness connector

F301

8 (W/R)

SCIA3081E

AT-198

DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION

4.

CHECK DTC

Perform “DTC Confirmation Procedure”. Refer to

AT-194, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 5.

5.

CHECK TCM

1.

Check TCM input/output signal. Refer to

AT-86, "TCM Input/Output Signal Reference Values"

 .

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

DTC P1762 DIRECT CLUTCH SOLENOID VALVE

AT-199

D

E

F

G

H

I

J

K

L

M

A

B

AT

DTC P1762 DIRECT CLUTCH SOLENOID VALVE

PFP:31940

Description

ACS0049G

Direct clutch solenoid valve is controlled by the TCM in response to signals sent from the PNP switch, vehicle
speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be shifted to the
optimum position.

CONSULT-II Reference Value

ACS004PL

On Board Diagnosis Logic

ACS0049H

●

This is an OBD-II self-diagnostic item.

●

Diagnostic trouble code “D/C SOLENOID/CIRC” with CONSULT-II or P1762 without CONSULT-II is
detected under the following conditions.

–

When TCM detects an improper voltage drop when it tries to operate the solenoid valve.

–

When TCM detects as irregular by comparing target value with monitor value.

Possible Cause

ACS0049I

●

Harness or connectors
(The solenoid circuit is open or shorted.)

●

Direct clutch solenoid valve

DTC Confirmation Procedure

ACS0049J

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Start engine.

4.

Maintain the following conditions for at least 5 consecutive sec-
onds.
ACCELE POS: 1.5/8 - 2.0/8
Selector lever: “D” position
Gear position: 1st

Þ

 2nd Gear (D/C ON/OFF)

5.

If DTC is detected, go to

AT-201, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “With CONSULT-II”.

Item name

Condition

Display value (Approx.)

D/C SOLENOID

Direct clutch solenoid valve operates.

0.6 - 0.8 A

Other conditions

0 - 0.05 A

SAT014K

AT-200

DTC P1762 DIRECT CLUTCH SOLENOID VALVE

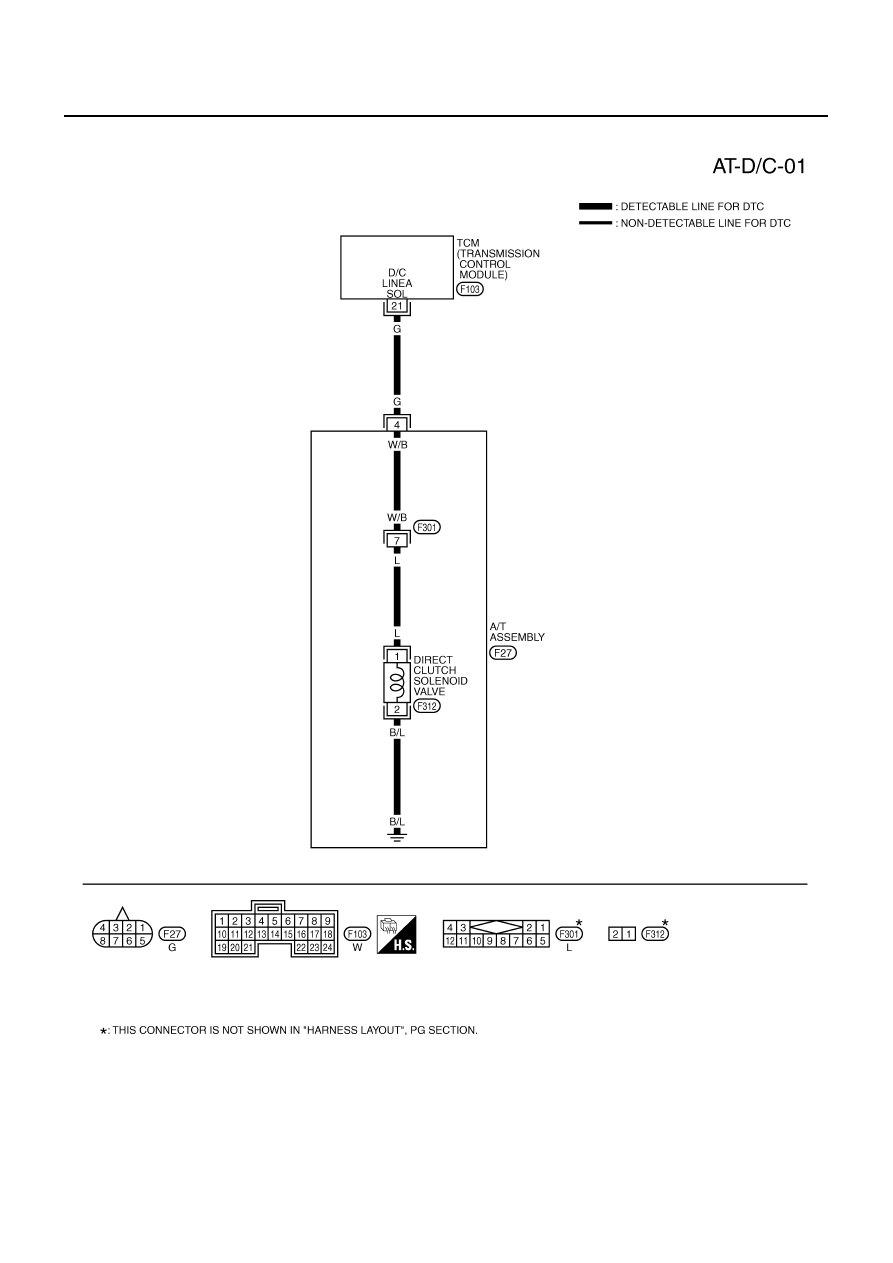

Wiring Diagram — AT — D/C

ACS0049K

TCWA0129E
