DTC P1705 THROTTLE POSITION SENSOR

AT-153

D

E

F

G

H

I

J

K

L

M

A

B

AT

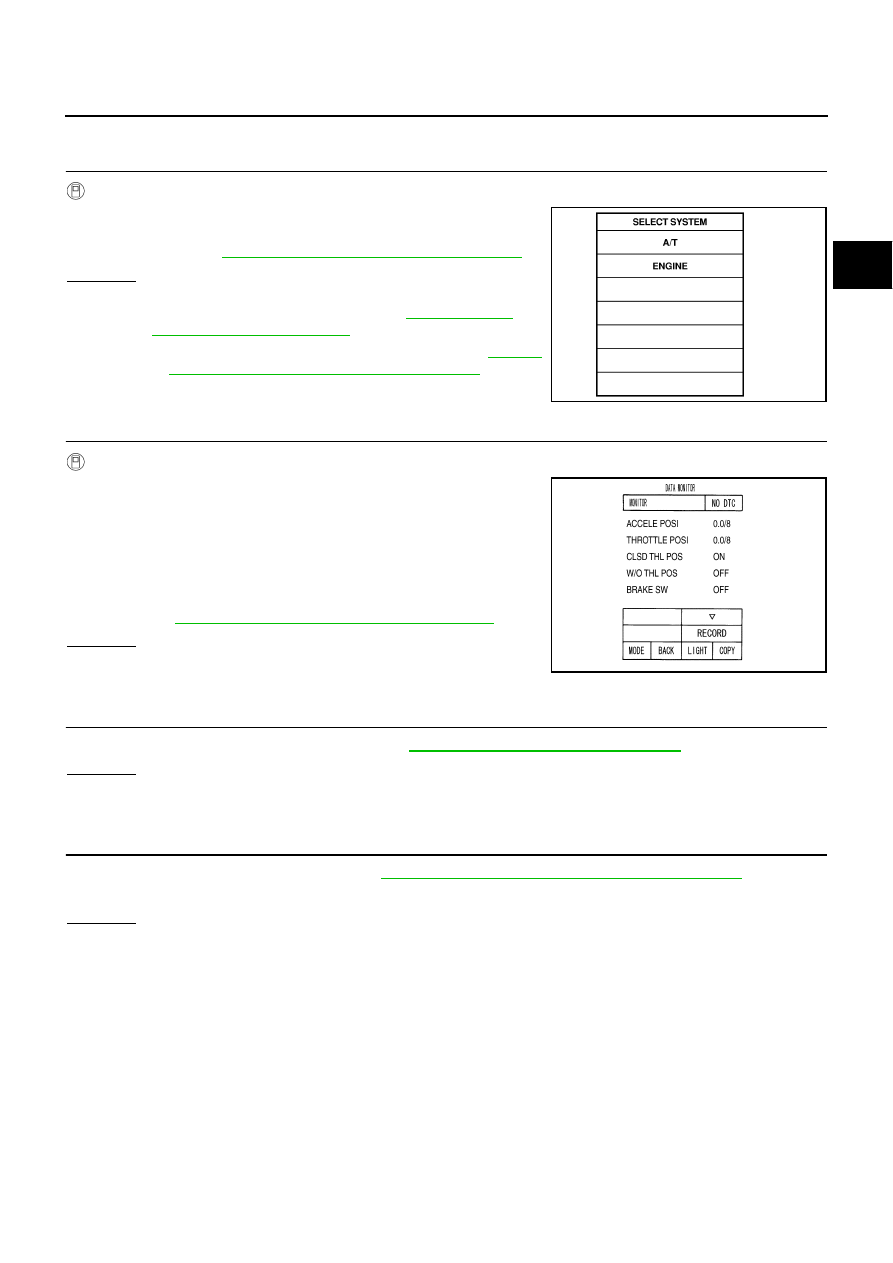

Diagnostic Procedure

ACS001C7

1.

CHECK DTC WITH ECM

 With CONSULT-II

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “SELF-DIAG RESULTS” mode for “ENGINE” with CON-
SULT-II. Refer to

EC-108, "CONSULT-II Function (ENGINE)"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Check the DTC detected item.Go to

EC-108, "CON-

SULT-II Function (ENGINE)"

 .

If CAN communication line is detected, go to

AT-103,

"DTC U1000 CAN COMMUNICATION LINE"

 .

2.

CHECK DTC WITH TCM

 With CONSULT-II

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Depress accelerator pedal and read out the value of “ACCLE
POS”.
Check engine speed changes according to throttle position.

4.

Select “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II. Refer to

AT-92, "SELF-DIAGNOSTIC RESULT MODE"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

CHECK DTC

Perform “DTC Confirmation Procedure”. Refer to

AT-152, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 4.

4.

CHECK TCM

1.

Check TCM input/output signal. Refer to

AT-86, "TCM Input/Output Signal Reference Values"

 .

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

SAT014K

PCIA0070E

AT-154

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

PFP:31940

Description

ACS00486

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

CONSULT-II Reference Value

ACS00487

On Board Diagnosis Logic

ACS00488

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “ATF TEMP SEN/CIRC” with CONSULT-II or P1710 (A/T), P0710 (ENGINE) with-
out CONSULT-II is detected when TCM receives an excessively low or high voltage from the sensor.

Possible Cause

ACS00489

Harness or connectors
(The sensor circuit is open or shorted.)

A/T fluid temperature sensors 1, 2

DTC Confirmation Procedure

ACS0048A

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Start engine and maintain the following conditions for at least 10
minutes (Total). (It is not necessary to maintain continuously.)
VHCL SPEED SE: 10 km/h (6 MPH) or more
THROTTLE POSI: More than 1.0/8
Selector lever: “D” position

4.

If DTC is detected, go to

AT-156, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “With CONSULT-II”.

Item name

Condition

Display value (Approx.)

ATF TEMP SE 1

0

°

C (32

°

F) - 20

°

C (68

°

F) - 80

°

C (176

°

F)

3.2 - 2.5 - 0.8V

ATF TEMP SE 2

3.2 - 2.4 - 0.65V

SAT014K

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

AT-155

D

E

F

G

H

I

J

K

L

M

A

B

AT

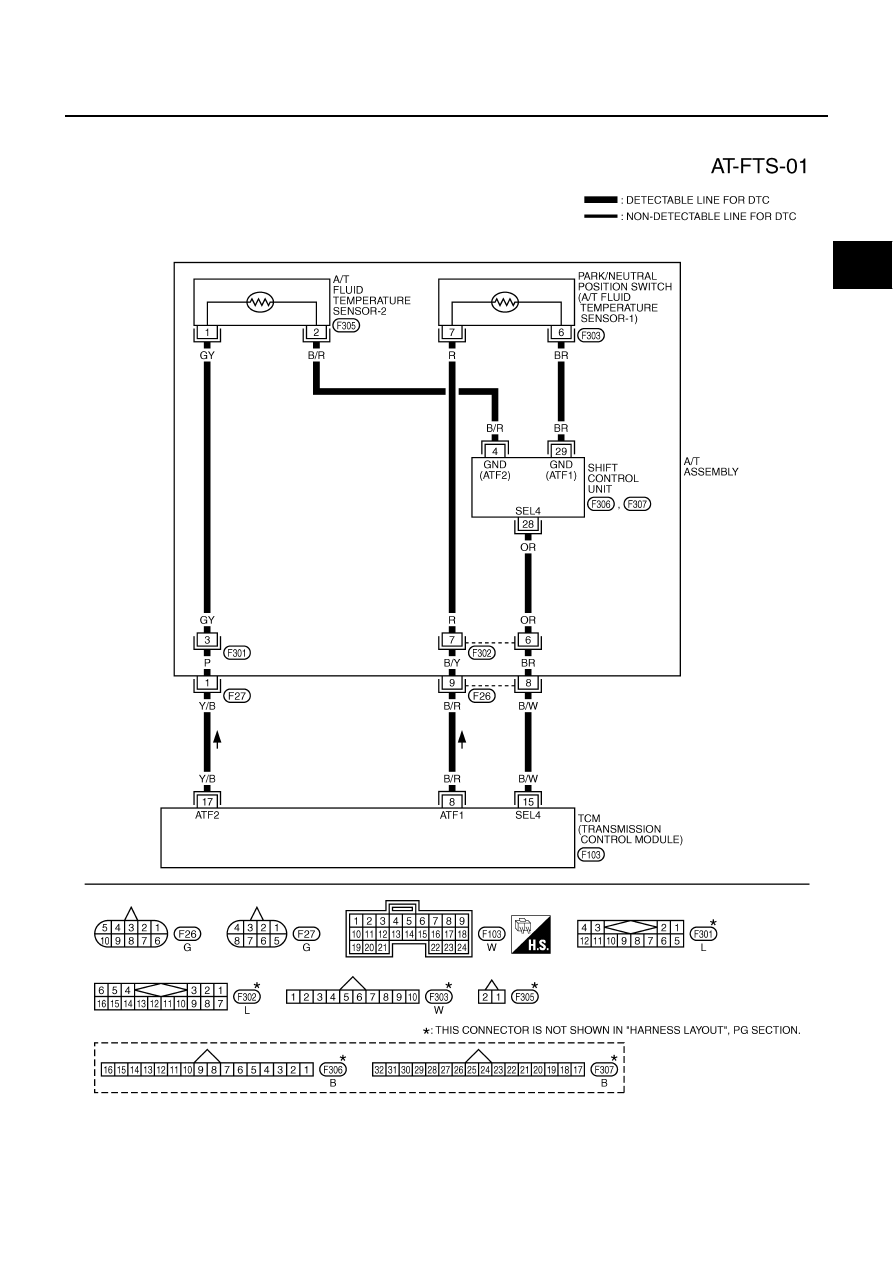

Wiring Diagram — AT — FTS

ACS0048B

TCWA0119E

AT-156

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

TCM terminals and data are reference value. Measured between each terminal and ground.

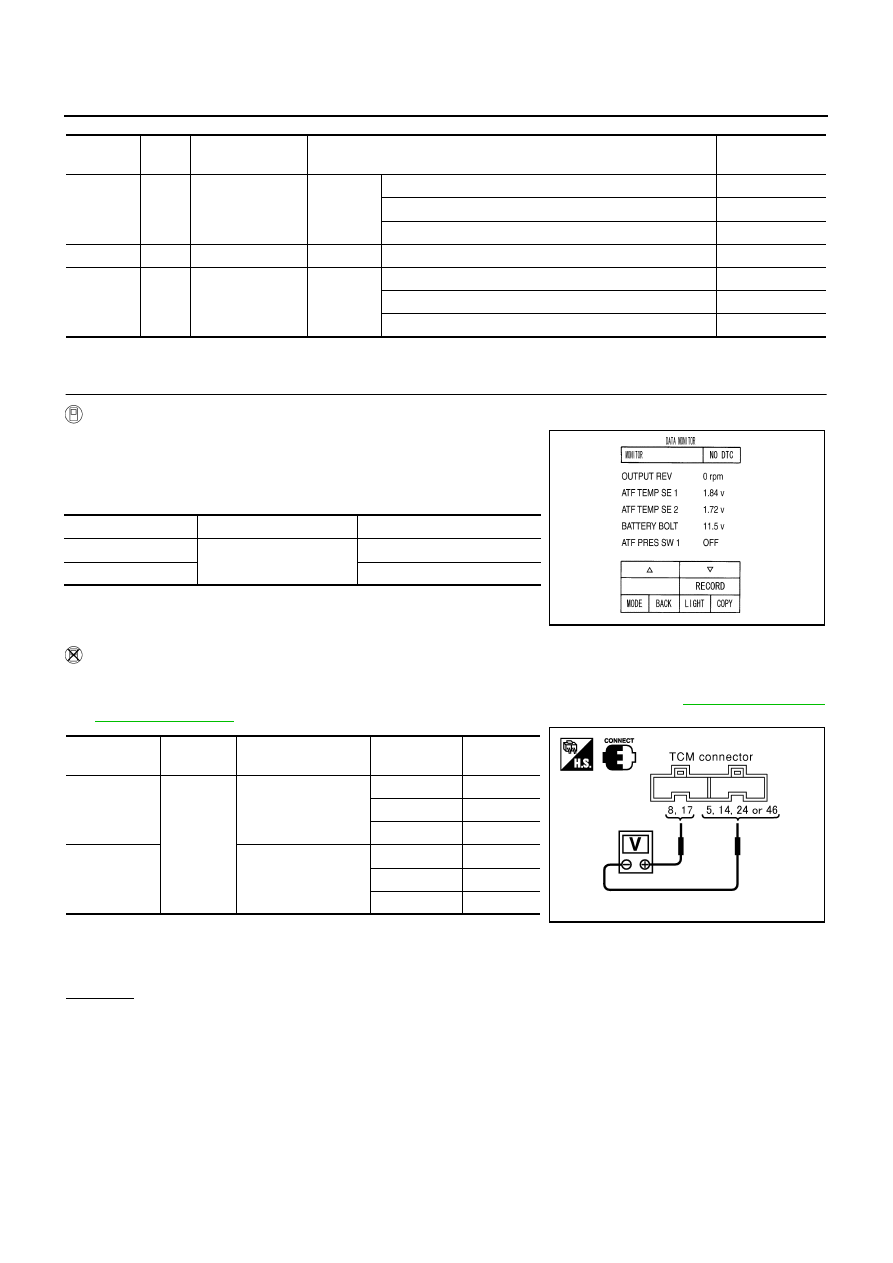

Diagnostic Procedure

ACS0048C

1.

CHECK INPUT SIGNALS

 With CONSULT-II

1.

Start engine.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Read out the value of “ATF TEMP SE 1” or “ATF TEMP SE 2”.

 Without CONSULT-II

1.

Turn ignition switch ON.

2.

Check voltage between TCM connector and ground while warming up A/T. Refer to

AT-155, "Wiring Dia-

gram — AT — FTS"

 .

3.

Turn ignition switch OFF.

4.

Disconnect the TCM connector.

5.

Check if there is continuity between the connector terminal and ground.

OK or NG

OK >> GO

TO

7.

NG

>> GO TO 2.

Terminal

No.

Wire

color

Item

Condition

Data (Approx.)

8

B/R

A/T fluid tempera-
ture sensor 1

IGN ON

When ATF temperature 0

°

C (32

°

F)

3.2V

When ATF temperature 20

°

C (68

°

F)

2.5V

When ATF temperature 80

°

C (176

°

F)

0.8V

15

B/W

SEL4

17

Y/B

A/T fluid tempera-
ture sensor 2

IGN ON

When ATF temperature about 0

°

C (32

°

F)

3.2V

When ATF temperature about 20

°

C (68

°

F)

2.4V

When ATF temperature about 80

°

C (176

°

F)

0.65V

Item name

Condition

°

C (

°

F)

Display value (Approx.)

ATF TEMP SE 1

0 (32) - 20 (68) - 80 (176)

3.2 - 2.5 - 0.8V

ATF TEMP SE 2

3.2 - 2.4 - 0.65V

PCIA0039E

Name

Connector

No.

Terminal No.

Temperature

°

C (

°

F)

Voltage (V)

(Approx.)

A/T fluid tem-
perature sen-
sor 1

F103

8 (B/R) - 5 (B), 14

(B), 24 (B) or 46 (B)

(ground)

0 (32)

3.2

20 (68)

2.5

80 (176)

0.8

A/T fluid tem-
perature sen-
sor 2

17 (Y/B) - 5 (B), 14

(B), 24 (B) or 46 (B)

(ground)

0 (32)

3.2

20 (68)

2.4

80 (176)

0.65

SCIA1162E
