Infiniti M45 (Y34). Manual - part 15

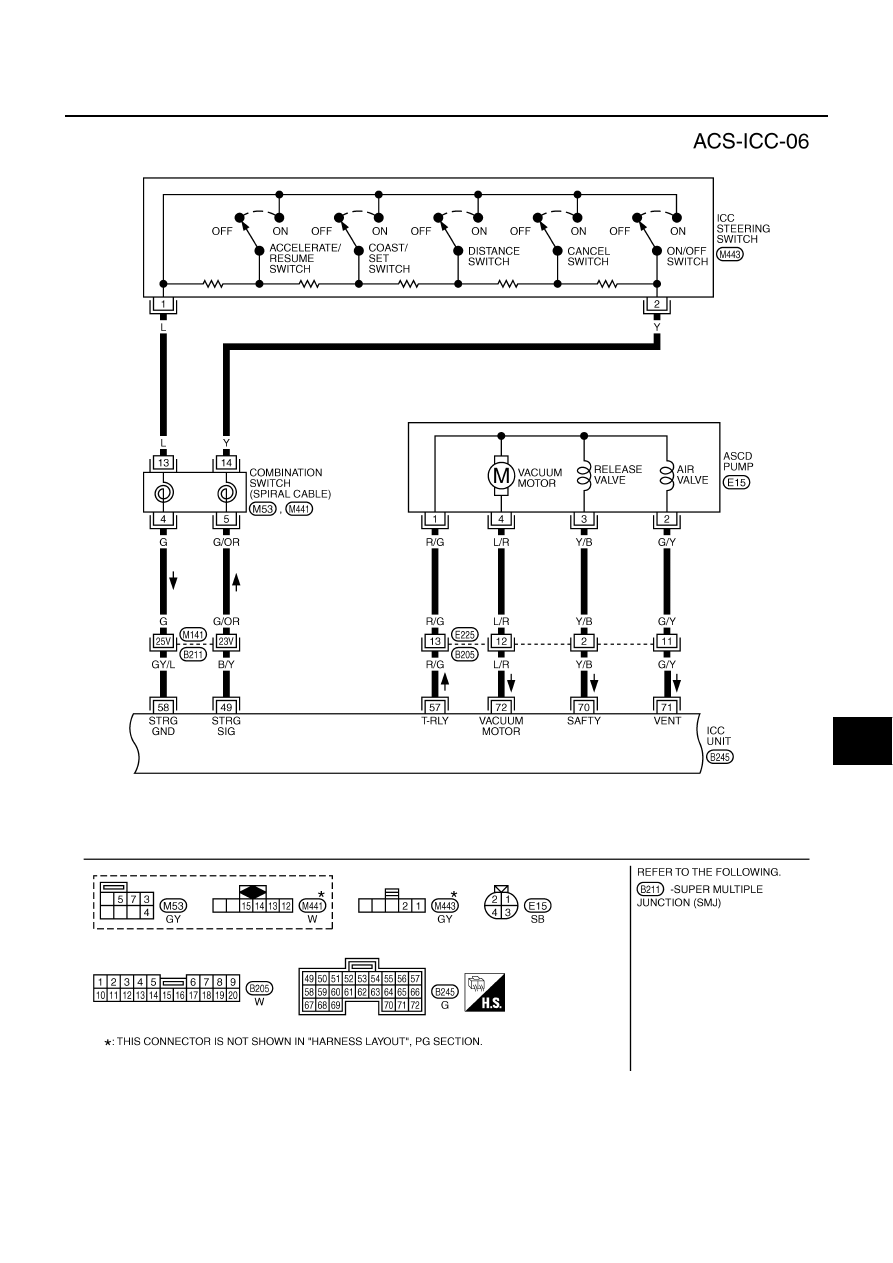

WIRING DIAGRAM

ACS-53

[ICC]

C

D

E

F

G

H

I

J

L

M

A

B

ACS

TKWA0680E

ACS-54

[ICC]

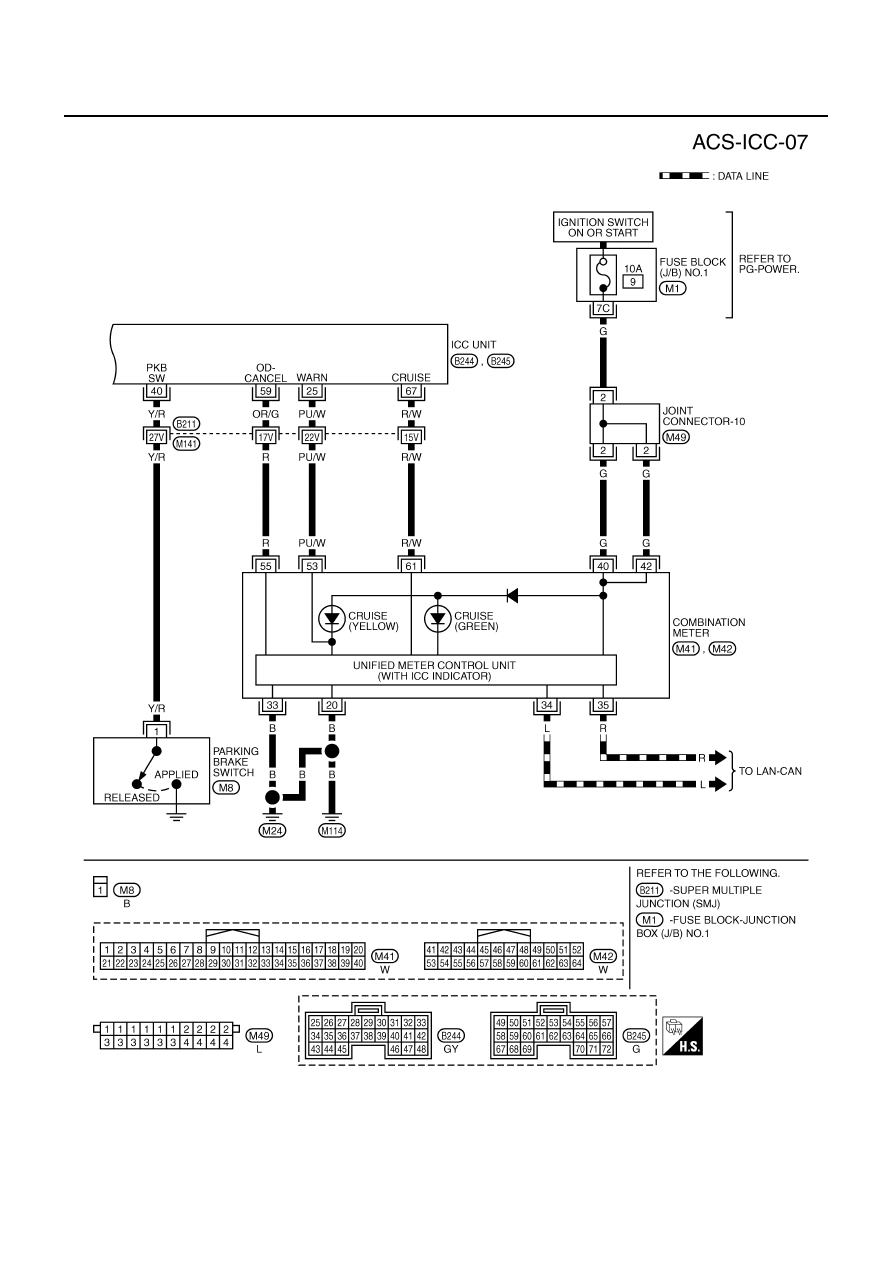

WIRING DIAGRAM

TKWA0681E

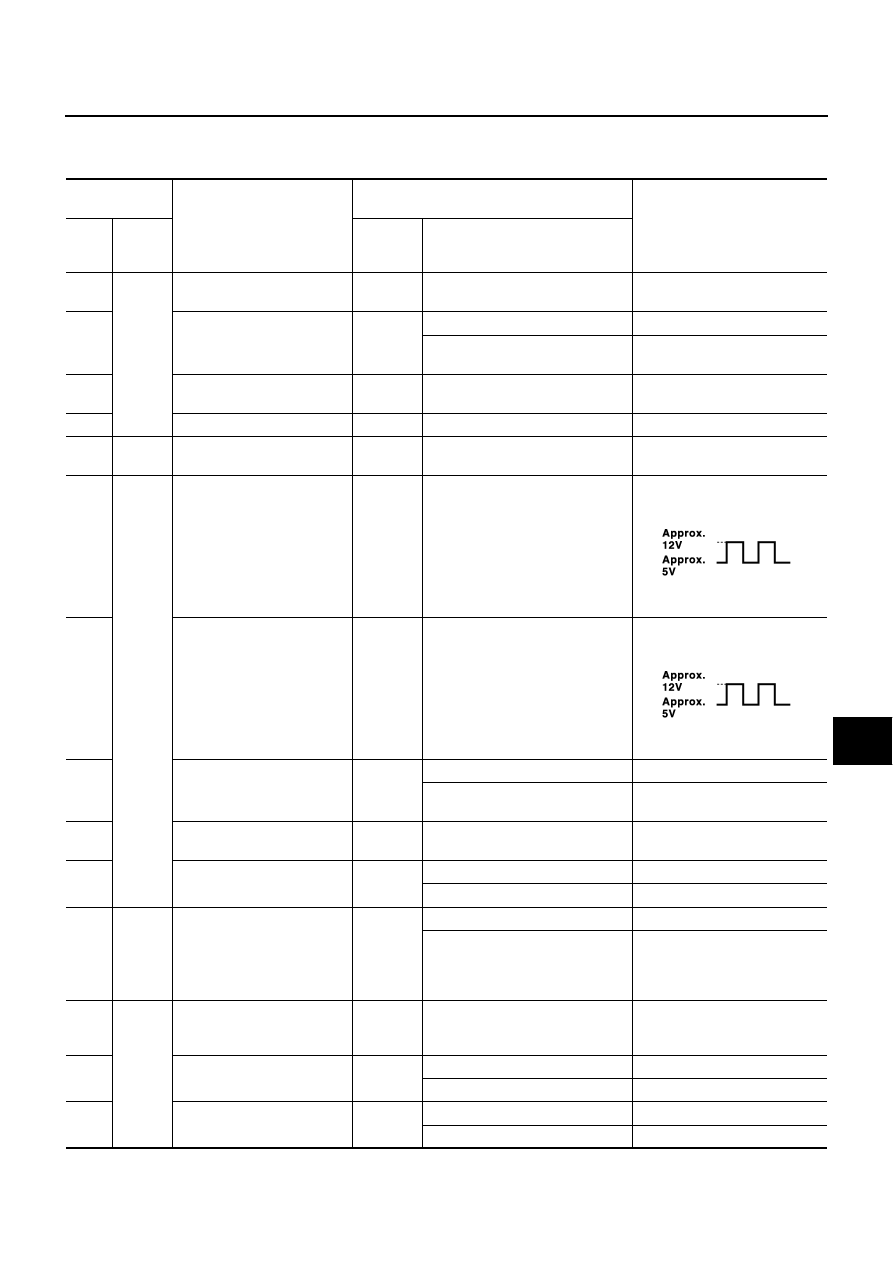

TERMINALS AND REFERENCE VALUE

ACS-55

[ICC]

C

D

E

F

G

H

I

J

L

M

A

B

ACS

TERMINALS AND REFERENCE VALUE

PFP:00000

Terminals and Reference Value for ICC Unit

AKS002Q7

TERMINALS

(WIRE COLOR)

ITEM

CONDITION

VOLTAGE (V)

+

-

IGNI-
TION

SWITCH

OPERATION

1(P)
2(P)

Ground

Battery power supply

OFF

—

Power supply voltage (Approx.

12)

4

(L/W)

Wiper motor HI signal

ON

Wiper HI operating

Approx. 0

Wiper HI not operating

Power supply voltage (Approx.

12)

5

(R)

CAN L

ON

—

—

6 (L)

Release switch power supply

ON

—

Approx. 10

8 (G/

OR)

24(OR)

Brake pressure sensor power

supply

ON

—

Approx. 5

10

(R)

Ground

Brake booster solenoid

(+) side

ON

—

12

(W)

Brake booster solenoid

(–) side

ON

—

13

(L/Y)

Wiper motor LO signal

ON

Wiper LO operating

Approx. 0

Wiper LO not operating

Power supply voltage (Approx.

12)

14

(L)

CAN H

ON

—

—

15

(P)

Brake release switch

(normal closed)

ON

Depress the brake pedal.

Approx. 0

Release the brake pedal.

Approx. 10

17

(B/Y)

24(OR)

Brake pressure sensor signal

ON

Release the brake pedal.

Approx. 0.5

Depress the brake pedal.

Approx. 0.5 - 5

(Note) Voltage becomes higher

depending on effectiveness of

depressing brakes.

19(B)
20(B)
46(B)

Ground

Ground

ON

—

Approx. 0

21(Y)

ICC warning chime

ON

Activated

Approx. 0 - 12

Not activated

Approx. 12

22

(R/B)

Brake release switch

(normally open)

ON

Depress the brake pedal.

Approx. 10

Release the brake pedal.

Approx. 0

SKIA1243E

SKIA1243E

ACS-56

[ICC]

TERMINALS AND REFERENCE VALUE

25

(PU/

W)

Ground

ICC system warning lamp

signal

ON

When warning lamp is ON

Approx. 0

When warning lamp is OFF

Power supply voltage (Approx.

12)

29(G)

ICC brake switch (normal

closed)

ON

Selector

lever: Not in

“N” or “P”

position

Depress the brake
pedal.

Approx. 0

Release the brake
pedal.

Power supply voltage (Approx.

12)

33(W

/G)

42(W

/G)

Ignition switch ON or START

ON

—

Battery voltage (Approx.12)

38

(R/W)

Stop lamp switch

(normally open)

ON

Depress the brake pedal.

Battery voltage (Approx.12)

Release the brake pedal.

Approx. 0

40

(Y/R)

parking brake signal

ON

Parking brake is ON

Power supply voltage (Approx.

12)

Parking brake is OFF

Approx. 0

47

(L/W)

Stop lamp drive output signal

ON

Brake operating with ICC system

Battery voltage (Approx.12)

Brake not operating with ICC sys-

tem

Approx. 0

49

(B/Y)

58

(GY/L)

ICC steering switch signal

ON

When ON/OFF switch is pressed

Approx. 0

When CANCEL switch is pressed

Approx. 1.1

When DISTANCE adjusting switch

is pressed

Approx. 2.1

When COAST/SET switch is

pressed

Approx. 2.9

When ACCELERATE/RESUME

switch is pressed

Approx. 3.6

When no switch is pressed

Approx. 4.2

57(R/

G)

Ground

Vacuum motor/air valve/

release valve output signal

ON

Being controlled

Power supply voltage (Approx.

12)

59

(OR/

G)

A/T OD cancel signal

ON

When O/D is canceled

Approx. 2 or less

O/D

Approx. 5 - 10

67

(R/W)

Cruise output signal

ON

Being controlled

Approx. 8

Not controlled

Approx. 0

69

(R/Y)

68

(B)

Throttle opening angle signal

ON

When accelerator pedal is fully

released

Approx. 0.5

When accelerator pedal is fully

depressed

Approx. 4.0

70

(Y/B)

Ground

Release valve signal

ON

When motor is not driving

Power supply voltage (Approx.

12)

When motor is driving

Approx. 0

71

(G/Y)

Air valve signal

ON

When motor is not driving

Power supply voltage (Approx.

12)

When motor is driving

Approx. 0

TERMINALS

(WIRE COLOR)

ITEM

CONDITION

VOLTAGE (V)

+

-

IGNI-
TION

SWITCH

OPERATION
