SMJ (SUPER MULTIPLE JUNCTION)

PFP:B4341

Terminal Arrangement

NKS004EX

CKIT0685E

PG-110

SMJ (SUPER MULTIPLE JUNCTION)

CKIT0822E

SMJ (SUPER MULTIPLE JUNCTION)

PG-111

C

D

E

F

G

H

I

J

L

M

A

B

PG

CKIT0158E

PG-112

STANDARDIZED RELAY

STANDARDIZED RELAY

PFP:00011

Description

NKS004EY

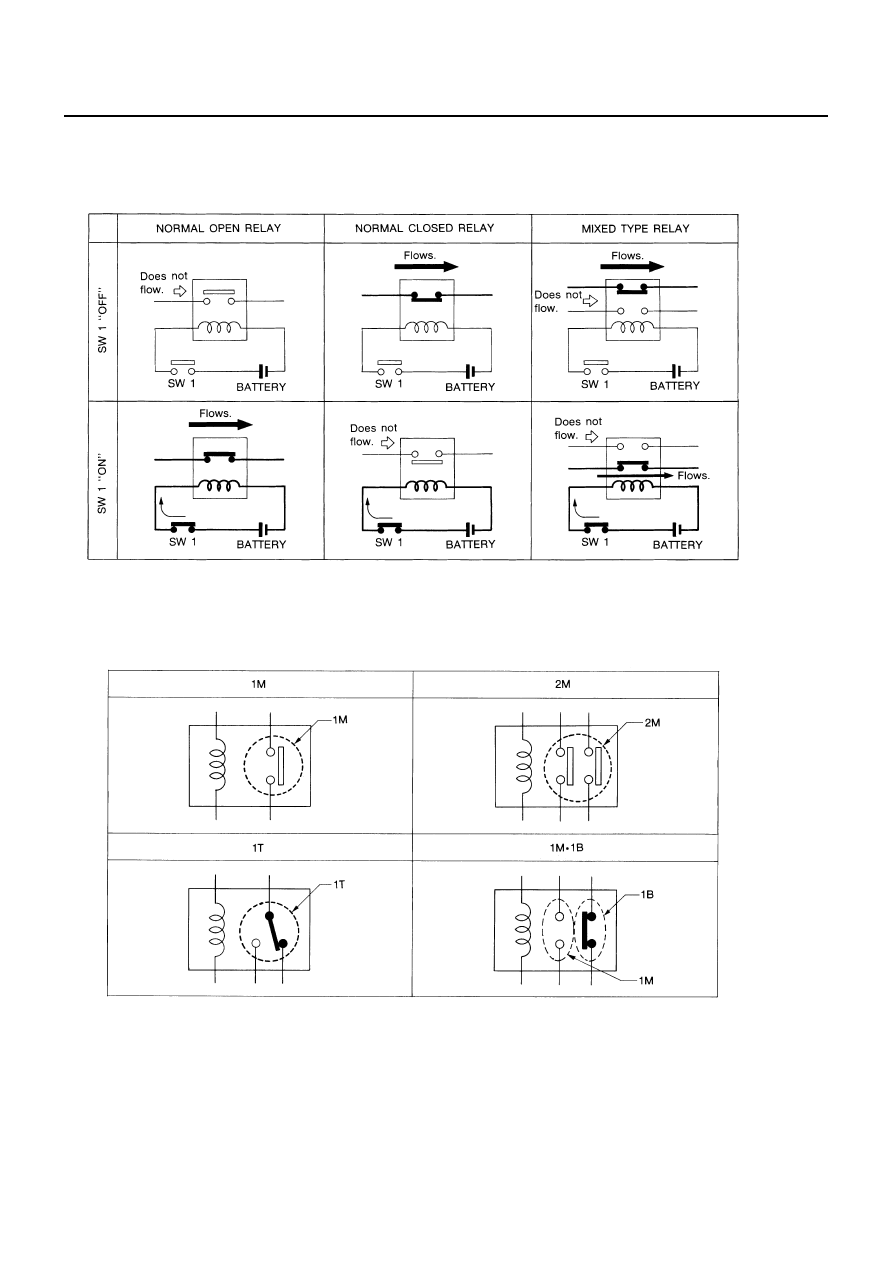

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

TYPE OF STANDARDIZED RELAYS

SEL881H

1M  ····················  1 Make

2M       ····················  2 Make

1T   ····················  1 Transfer

1M·1B  ····················  1 Make 1 Break

SEL882H
