ENGINE OIL

LU-27

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

ENGINE OIL

PFP:KLA92

Inspection

NBS004QC

ENGINE OIL LEVEL

NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop
it and allow 15 minutes before checking.

1.

Pull out oil level gauge and wipe it clean.

2.

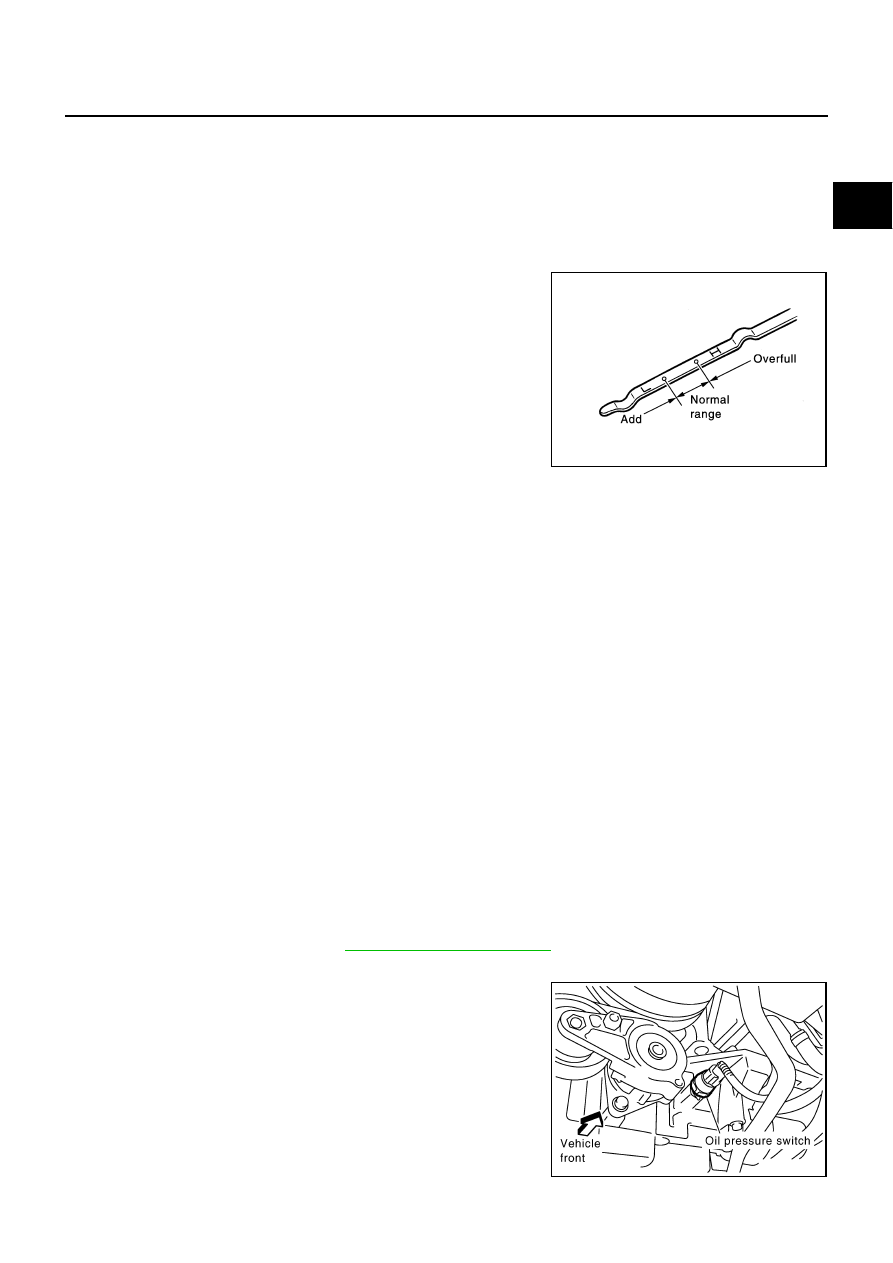

Insert oil level gauge and make sure the engine oil level is within
the range shown in the figure.

3.

If it is out of range, adjust it.

ENGINE OIL APPEARANCE

Check engine oil for white turbidity or heavy contamination.

If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.
Repair or replace damaged parts.

ENGINE OIL LEAKAGE

Check for oil leakage around the following area.

Oil pan

Oil pan drain plug

Oil pressure switch

Oil filter

Intake valve timing control cover

Intake valve timing control solenoid valve

Front cover

Chain tensioner cover

Mating surface between cylinder block and cylinder head

Mating surface between cylinder head and rocker cover

Crankshaft oil seals (front and rear)

OIL PRESSURE CHECK

WARNING:

Be careful not to burn yourself, as engine oil may be hot.

Oil pressure check should be done in “Parking position”.

1.

Check the engine oil level. Refer to

LU-27, "ENGINE OIL LEVEL"

 .

2.

Remove front engine undercover with power tool.

3.

Disconnect harness connector at oil pressure switch, and
remove oil pressure switch using deep socket (commercial ser-
vice tool).

CAUTION:

Do not drop or shock oil pressure switch.

PBIC0801E

PBIC1524E

LU-28

[VK45DE]

ENGINE OIL

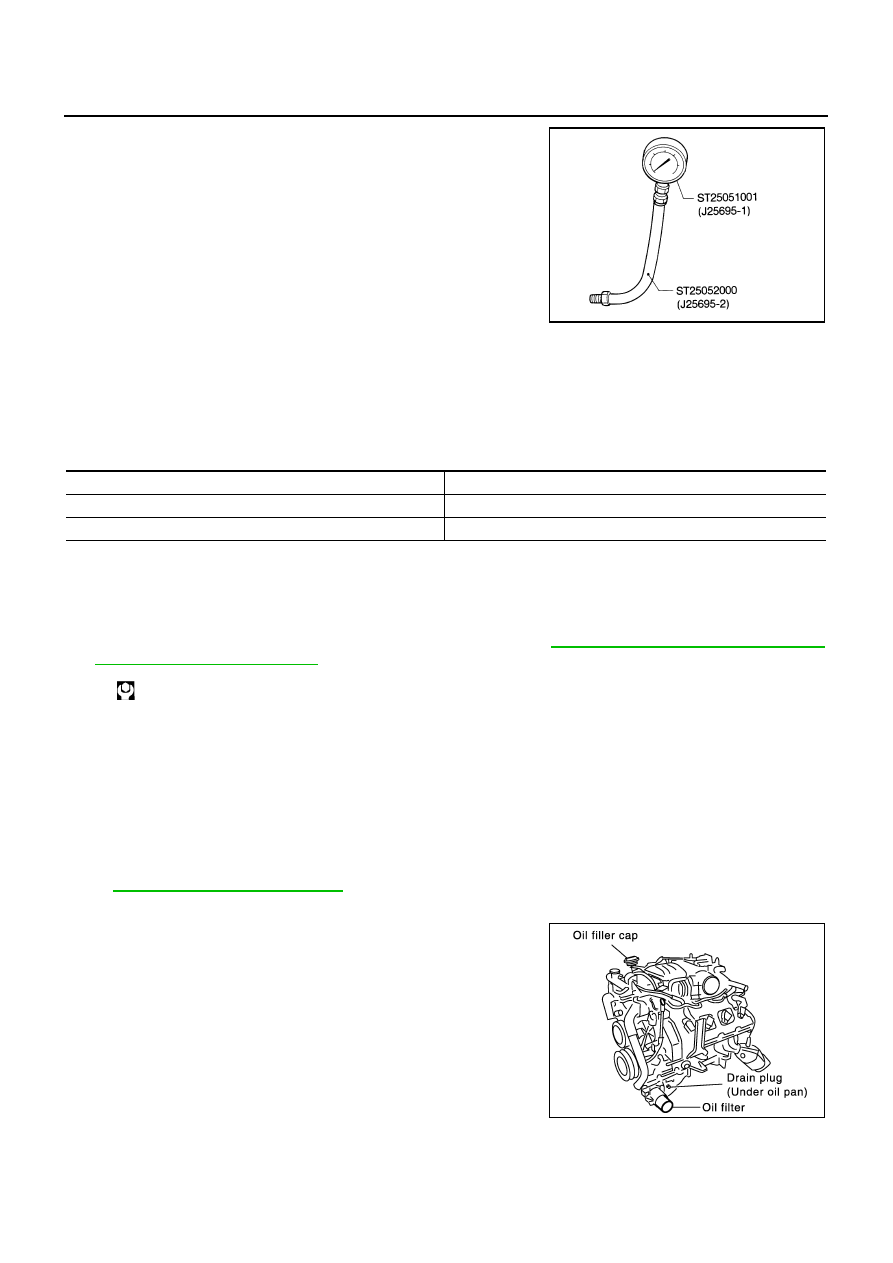

4.

Install oil pressure gauge and hose (SST).

5.

Start engine and warm it up to normal operating temperature.

6.

Check the engine oil pressure with engine running under no-load.

NOTE:
When engine oil temperature is low, engine oil pressure becomes high.

Engine oil pressure [Engine oil temperature at 80

°

C (176

°

F)]

Unit: kPa (kg/cm

2

 , psi)

If difference is extreme, check oil passage and oil pump for oil leaks.

7.

After the inspections, install oil pressure switch as follows:

a.

Remove old liquid gasket adhering to oil pressure switch and engine.

b.

Apply liquid gasket and tighten oil pressure switch to the specification.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-47, "RECOMMENDED CHEMICAL

PRODUCTS AND SEALANTS"

 .

c.

After warming up engine, make sure there is no leakage of engine oil with running engine.

Changing Engine Oil

NBS004QD

WARNING:

Be careful not to burn yourself, as engine oil may be hot.

Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct
skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand
cleaner as soon as possible.

1.

Warm up engine, put vehicle horizontally and check for engine oil leakage from engine components. Refer
to

LU-27, "ENGINE OIL LEAKAGE"

 .

2.

Stop engine and wait for 15 minutes.

3.

Loosen oil filler cap.

4.

Remove mounting bolts, and then pull down the rear of front engine undercover and secure it using clip.

5.

Remove drain plug and then drain engine oil.

SLC926

Engine speed

Approximate discharge pressure

Idle speed

More than 98 (1.0, 14)

2,000 rpm

More than 294 (3.0, 43)

 : 14.8 N·m (1.5 kg-m, 11 ft-lb)

PBIC0993E

ENGINE OIL

LU-29

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

6.

Install drain plug with new washer. Refer to

EM-187, "OIL PAN AND OIL STRAINER"

 .

CAUTION:

Be sure to clean drain plug and install with new washer.

7.

Refill with new engine oil.
Engine oil specification and viscosity:
Refer to

MA-12, "RECOMMENDED FLUIDS AND LUBRICANTS"

 .

Engine oil capacity (Approximate):

Unit:

 (US qt, Imp qt)

CAUTION:

The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.

Always use oil level gauge to determine the proper amount of engine oil in engine.

8.

Warm up engine and check area around drain plug and oil filter for oil leakage.

9.

Stop engine and wait for 15 minutes.

10. Check the engine oil level. Refer to

LU-27, "ENGINE OIL LEVEL"

 .

Oil pan drain plug:

 : 34.3 N·m (3.5 kg-m, 25 ft-lb)

Drain and refill

With oil filter change

5.5 (5-3/4, 4-7/8)

Without oil filter change

4.9 (5-1/8, 4-1/4)

Dry engine (engine overhaul)

6.7 (7-1/8, 5-7/8)

LU-30

[VK45DE]

OIL FILTER

OIL FILTER

PFP:15208

Removal and Installation

NBS004QE

REMOVAL

1.

Remove front engine undercover with power tool.

2.

Using the oil filter wrench (SST), remove the oil filter.

CAUTION:

Oil filter is provided with relief valve. Use Genuine Nissan
Oil Filter or equivalent.

Be careful not to get burned when engine and engine oil
may be hot.

When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.

Do not allow engine oil to adhere to drive belts.

Completely wipe off any engine oil that adhere to engine
and vehicle.

INSTALLATION

1.

Remove foreign materials adhering to oil filter installation surface.

2.

Apply new engine oil to the oil seal circumference of the new oil
filter.

3.

Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-27, "ENGINE OIL"

 .

2.

Start engine, and check there is no leaks of engine oil.

3.

Stop engine and wait for 15 minutes.

4.

Check the engine oil level and adjust engine oil. Refer to

LU-27, "ENGINE OIL"

 .

PBIC1525E

SMA010

Oil filter:

 :17.7 N·m (1.8 kg-m, 13 ft-lb)

SMA229B
