ILLUMINATION

LT-309

C

D

E

F

G

H

I

J

L

M

A

B

LT

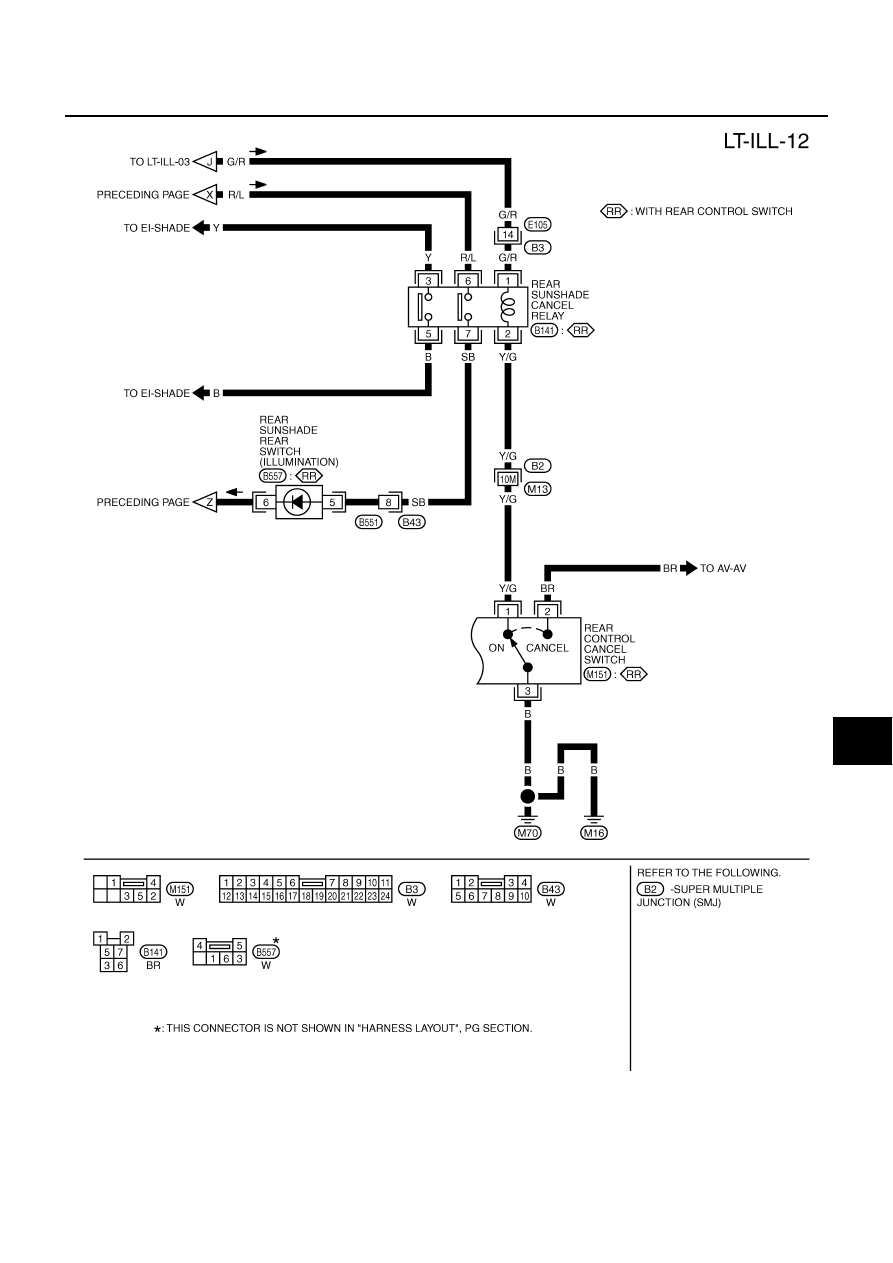

TKWT5273E

LT-310

ILLUMINATION

TKWT3594E

ILLUMINATION

LT-311

C

D

E

F

G

H

I

J

L

M

A

B

LT

Glove Box Lamp

NKS003TM

BULB REPLACEMENT, REMOVAL AND INSTALLATION
Removal

1.

Remove glove box cover. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Turn globe box lamp bulb socket (1) counterclockwise and
unlock it.

3.

Remove bulb (2).

Installation

Installation is the reverse order of removal.

Cigarette Lighter Illumination

NKS003TN

BULB REPLACEMENT, REMOVAL AND INSTALLATION
Removal

1.

Remove A/T console finisher. Refer to

IP-11, "Removal and Installation of Instrument Panel & Pad"

 .

2.

Remove screws (A).

3.

Use a screwdriver to undo hooks, remove bulb sockets (1).

4.

Remove bulb (2).

Installation

Installation is the reverse order of removal.

Glove box lamp

: 12V - 1.4W

SKIB4206E

SKIB4207E

Front ashtray and cigarette lighter
illumination

: 12V - 1.4W

SKIB4209E

LT-312

ILLUMINATION

Front Ashtray Illumination

NKS003TO

BULB REPLACEMENT, REMOVAL AND INSTALLATION

Refer to

LT-312, "Front Ashtray Illumination"

 .

Rear Ashtray Illumination

NKS003TP

REMOVAL AND INSTALLATION

1.

Remove rear door finisher. Refer to

EI-34, "DOOR FINISHER"

 .

2.

Turn rear ashtray illumination bulb socket (1) counterclockwise
and unlock it.

3.

Remove bulb (2).

INSTALLATION

Installation is the reverse order of removal.

Rear ashtray illumination

: 12V - 1.4W

SKIB4210E
