INTERIOR ROOM LAMP

LT-289

C

D

E

F

G

H

I

J

L

M

A

B

LT

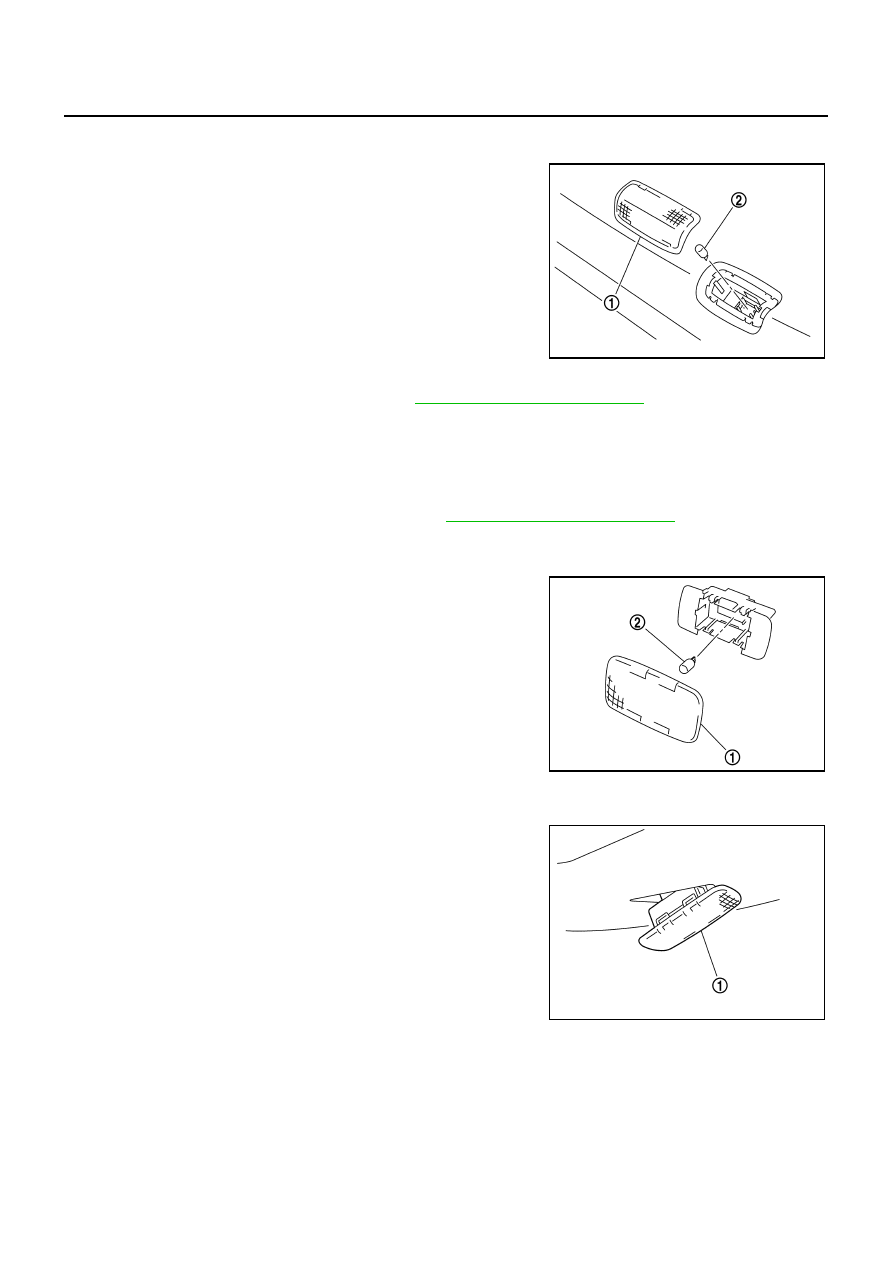

Map Lamp

NKS003T9

BULB REPLACEMENT

1.

Remove lens (1) using clip driver or suitable tool.

2.

Remove bulb (2).

REMOVAL AND INSTALLATION

Refer to

EI-52, "HEADLINING"

 .

Personal Lamp

NKS003TA

BULB REPLACEMENT

1.

Insert a screwdriver or similar tool and remove lens (1).

2.

Remove bulb (2).

REMOVAL AND INSTALLATION
Removal

1.

Remove screw (A).

2.

Use a clip driver or similar tool and remove personal lamp (1).

3.

Disconnect connector.

Installation

Installation is the reverse order of removal.

Map lamp

: 12V - 8 W

SKIB4195E

Personal lamp

: 12V - 8W

SKIB4200E

SKIB4201E

LT-290

INTERIOR ROOM LAMP

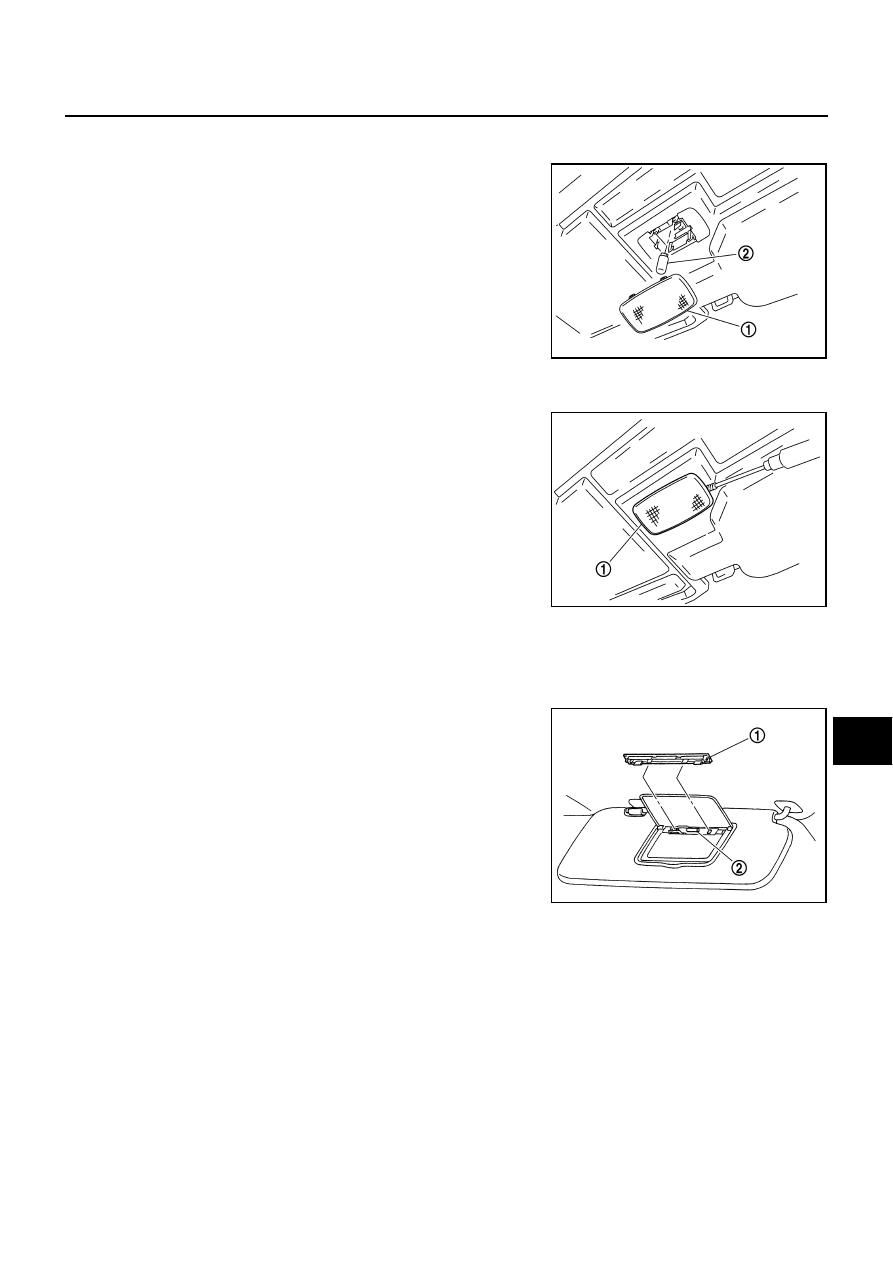

Foot Lamp (Driver Side)

NKS003TB

BULB REPLACEMENT

1.

Insert a screwdriver or similar tool and remove lens (1).

2.

Remove bulb (2).

REMOVAL AND INSTALLATION
Removal

1.

Use a clip driver or similar tool and remove foot lamp (driver
side) (1).

2.

Disconnect connector.

Installation

Installation is the reverse order of removal.

Foot lamp (Driver side)

: 12V - 3.4W

SKIB4202E

SKIB4203E

INTERIOR ROOM LAMP

LT-291

C

D

E

F

G

H

I

J

L

M

A

B

LT

Foot Lamp (Passenger Side)

NKS003TC

BULB REPLACEMENT

1.

Insert a screwdriver or similar tool and remove lens (1).

2.

Remove bulb (2).

REMOVAL AND INSTALLATION
Removal

1.

Use a clip driver or similar tool and remove foot lamp (passenger
side) (1).

2.

Disconnect connector.

Installation

Installation is the reverse order of removal.

Vanity Mirror Lamp

NKS003TD

BULB REPLACEMENT

1.

Insert a thin screwdriver in the lens end and remove lens (1).

2.

Remove bulb (2).

Foot lamp (Passenger side)

: 12V - 3.4W

SKIB4204E

SKIB4205E

Vanity mirror lamp

: 12V - 1.8 W

SKIB4197E

LT-292

INTERIOR ROOM LAMP

Step Lamp

NKS003TE

BULB REPLACEMENT

1.

Insert a screwdriver or similar tool and remove lens (1).

2.

Remove bulb.

REMOVAL AND INSTALLATION

Remove step lamp integral with door trim. Refer to

EI-37, "Removal and Installation"

 .

Kicking Plate Illumination

NKS003TF

BULB REPLACEMENT

Replacement integral with front kicking plate inner.

REMOVAL AND INSTALLATION

Remove integral with front kicking plate inner. Refer to

EI-37, "Removal and Installation"

 .

Trunk Room Lamp (Upper/Lower)

NKS003TG

BULB REPLACEMENT

1.

Insert a screwdriver or similar tool and remove lens (1).

2.

Remove bulb (2).

REMOVAL AND INSTALLATION
Removal

1.

Insert a screwdriver or similar tool and remove trunk room lamp
(1).

2.

Disconnect connector.

Installation

Installation is the reverse order of removal.

Step lamp

: 12V - 5W

SKIB4188E

Trunk room lamp (upper/lower)

: 12V - 5W

SKIB4198E

SKIB4199E
