Infiniti M35/M45 Y50. Manual - part 927





PARKING, LICENSE PLATE AND TAIL LAMPS

LT-253

C

D

E

F

G

H

I

J

L

M

A

B

LT

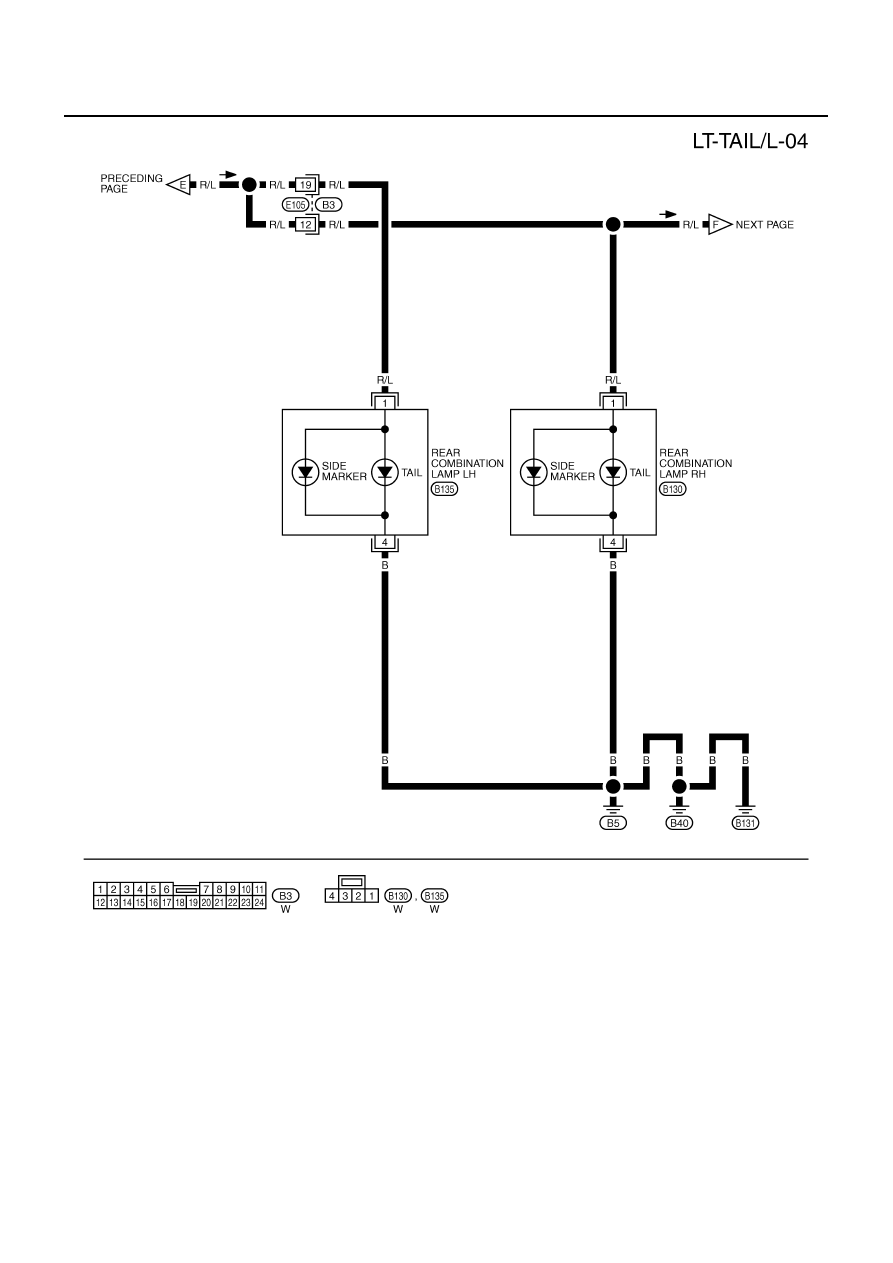

TKWT5266E

LT-254

PARKING, LICENSE PLATE AND TAIL LAMPS

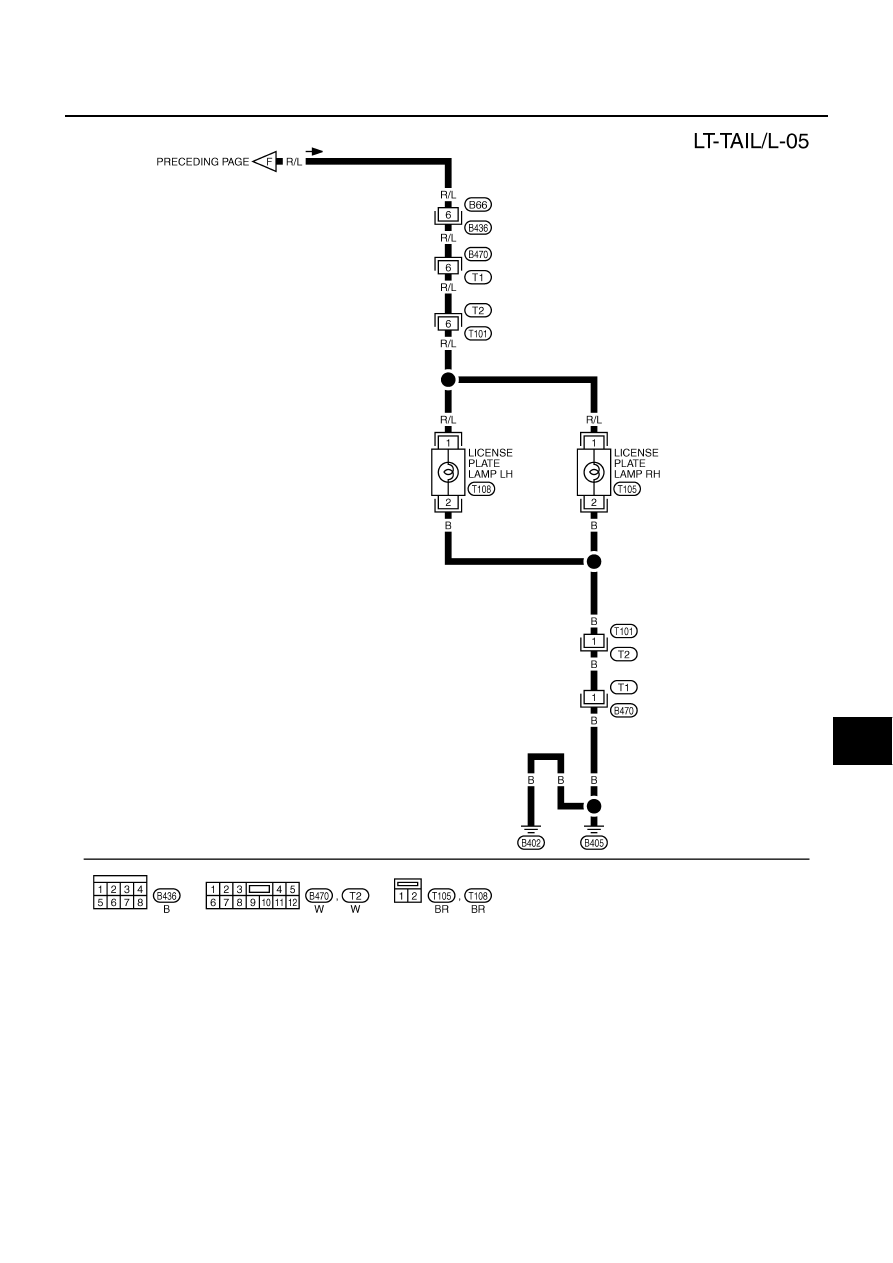

TKWT5267E

PARKING, LICENSE PLATE AND TAIL LAMPS

LT-255

C

D

E

F

G

H

I

J

L

M

A

B

LT

TKWT5268E

LT-256

PARKING, LICENSE PLATE AND TAIL LAMPS

Terminals and Reference Values for BCM

NKS003SN

CAUTION:

Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-II. Refer to

LT-238, "DATA MONITOR"

 .

Terminal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

2

L/R

Combination
switch input 5

ON

Lighting, turn, wiper
switch
(Wiper dial position 4)

Lighting switch 1ST

Approx. 1.0 V

OFF

Approx. 0 V

11

V

Ignition switch

(ACC)

ACC

Battery voltage

33

GR

Combination
switch output 4

ON

Lighting, turn, wiper
switch
(Wiper dial position 4)

Lighting switch 1ST
(The same result with
lighting switch 2ND)

Approx. 1.2 V

OFF

Approx. 7.0 - 7.5 V

38

W

Ignition switch

(ON)

ON

Battery voltage

39

L

CAN



H

40

P

CAN



L

42

P

Battery power
supply

OFF

Battery voltage

52

B

Ground

ON

Approx. 0 V

55

W

Battery power
supply

OFF

Battery voltage

PKIB4957J

PKIB4958J

PKIB4960J
