Infiniti M35/M45 Y50. Manual - part 921





TURN SIGNAL AND HAZARD WARNING LAMPS

LT-229

C

D

E

F

G

H

I

J

L

M

A

B

LT

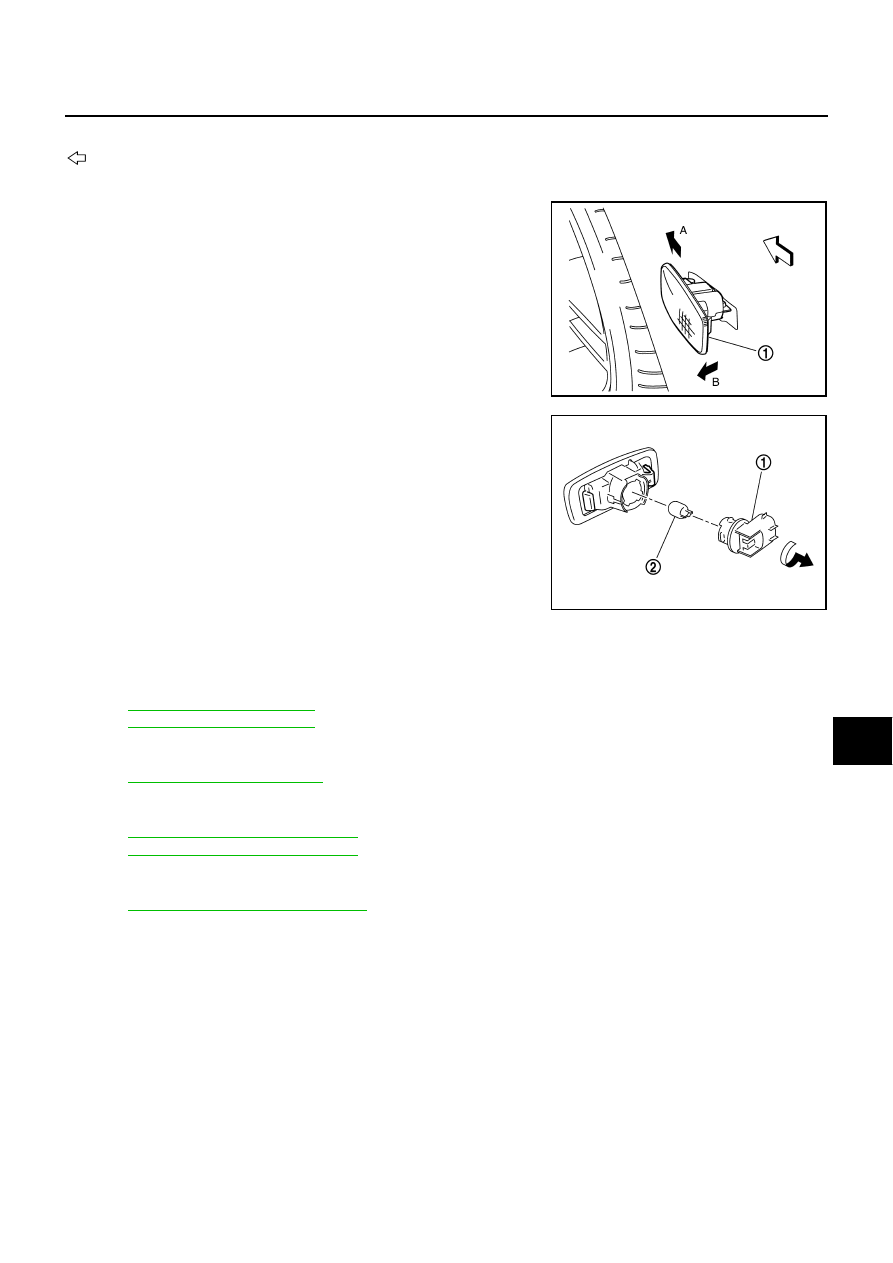

Bulb Replacement/Removal and Installation of Side Turn Signal Lamp

NKS003RX

: Vehicle front

REMOVAL

1.

While pressing the side turn signal lamp (1) to direction A (Vehi-
cle front), pull direction B of it and remove.

2.

Disconnect side turn signal lamp connector.

CAUTION:

Support side turn signal lamp harness with tape so that it
won't fall into the front fender.

Fix the pawl side of side turn signal lamp housing back at
first. Then install side turn signal lamp while pushing
resin clip side.

3.

Turn bulb socket (1) counterclockwise and unlock it.

4.

Remove bulb (2).

INSTALLATION

Installation is the reverse order of removal.

Bulb Replacement (Front Turn Signal Lamp)

NKS003RY

Refer to

LT-38, "Bulb Replacement"

  in “HEADLAMP -CONVENTIONAL TYPE-”.

Refer to

LT-73, "Bulb Replacement"

  in “HEADLAMP -XENON TYPE-”.

Bulb Replacement (Rear Turn Signal Lamp)

NKS003RZ

Refer to

LT-265, "Bulb Replacement"

 .

Removal and Installation of Front Turn Signal Lamp

NKS003S0

Refer to

LT-40, "Removal and Installation"

  in “HEADLAMP -CONVENTIONAL TYPE-”.

Refer to

LT-75, "Removal and Installation"

  in “HEADLAMP -XENON TYPE-”

Removal and Installation of Rear Turn Signal Lamp

NKS003S1

Refer to

LT-265, "Removal and Installation"

 .

SKIB4184E

Side turn signal lamp

: 12V - 5W

SKIB4185E

LT-230

LIGHTING AND TURN SIGNAL SWITCH

LIGHTING AND TURN SIGNAL SWITCH

PFP:25540

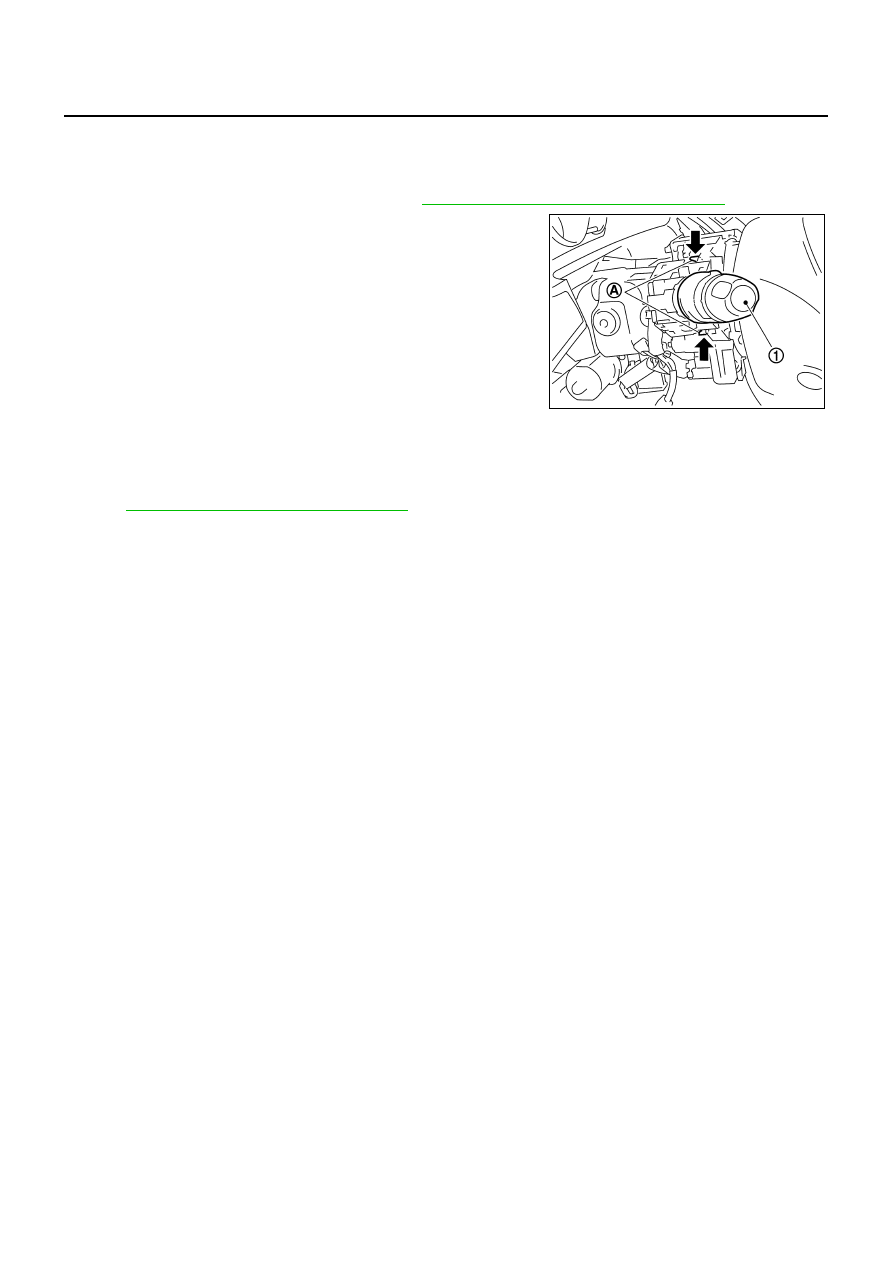

Removal and Installation

NKS003S2

REMOVAL

1.

Remove steering column lower cover. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

While pressing pawls (A) in direction as shown in the figure, pull
lighting and turn signal switch (1) toward driver door and discon-
nect from the base.

INSTALLATION

Installation is the reverse order of removal.

Switch Circuit Inspection

NKS003S3

Refer to

LT-239, "Combination Switch Inspection"

 .

SKIB4186E

HAZARD SWITCH

LT-231

C

D

E

F

G

H

I

J

L

M

A

B

LT

HAZARD SWITCH

PFP:25290

Removal and Installation

NKS003S4

REMOVAL

Refer to

AV-133, "Multifunction Switch"

 .

LT-232

COMBINATION SWITCH

COMBINATION SWITCH

PFP:25567

Wiring Diagram — COMBSW —

NKS003S5

TKWT3385E
