FRONT FOG LAMP

LT-209

C

D

E

F

G

H

I

J

L

M

A

B

LT

4.

CHECK FOG LAMP CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between IPDM E/R harness connector (A) and
front fog lamp RH or LH harness connector (B).

4.

Check continuity between IPDM E/R harness connector (A) and
ground.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-31, "Removal and Installation of IPDM E/R"

 .

NG

>> Repair harness or connector.

Front Fog Lamps Do Not Turn OFF

NKS003RG

1.

CHECK FRONT FOG LAMP TURN OFF

Make sure that lighting switch is OFF. And make sure front fog lamp turns off when ignition switch is turned
OFF.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

CHECK COMBINATION SWITCH INPUT SIGNAL

Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “FR FOG SW” turns ON-OFF linked with operation of fog
lamp switch.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-31, "Removal and

Installation of IPDM E/R"

 .

NG

>> Check combination switch (lighting switch). Refer to

LT-

239, "Combination Switch Inspection"

 .

Circuit

A

B

Continuity

Connector

Terminal

Connector

Terminal

RH

E8

36

E60

1

Yes

LH

37

E45

1

A

Ground

Continuity

Connector

Terminal

RH

E8

36

No

LH

37

SKIB4815E

When fog lamp switch is
OFF position

: FR FOG SW OFF

PKIB9378E

LT-210

FRONT FOG LAMP

3.

CHECK CAN COMMUNICATIONS BETWEEN BCM AND IPDM E/R

Select “BCM” on CONSULT-II, and perform self-diagnosis for “BCM”.

Display of self-diagnosis results

NO DTC>> Replace IPDM E/R. Refer to

PG-31, "Removal and

Installation of IPDM E/R"

 .

CAN COMM CIRCUIT>>  Refer  to

BCS-13, "CAN Communication

Inspection Using CONSULT-II (Self-Diagnosis)"

 .

Aiming Adjustment

NKS003RH

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming
adjustment, make sure of the following.

Keep all tires inflated to correct pressure.

Place vehicle on level ground.

Adjust aiming in the vertical direction by turning the adjusting screw.

1.

Set the distance between the screen and the center of fog lamp
lens as shown.

2.

Turn front fog lamps ON.

3.

Adjust front fog lamps using adjusting screw so that the top edge
of the high intensity zone is in the figure.
When performing adjustment, if necessary, cover the headlamps
and opposite fog lamp.

PKIA7627E

SKIB4160E

SKIB0897E

FRONT FOG LAMP

LT-211

C

D

E

F

G

H

I

J

L

M

A

B

LT

Bulb Replacement

NKS003RI

1.

Turn lighting switch OFF.

2.

Remove fender protector (front). Refer to

EI-20, "FENDER PROTECTOR"

 .

3.

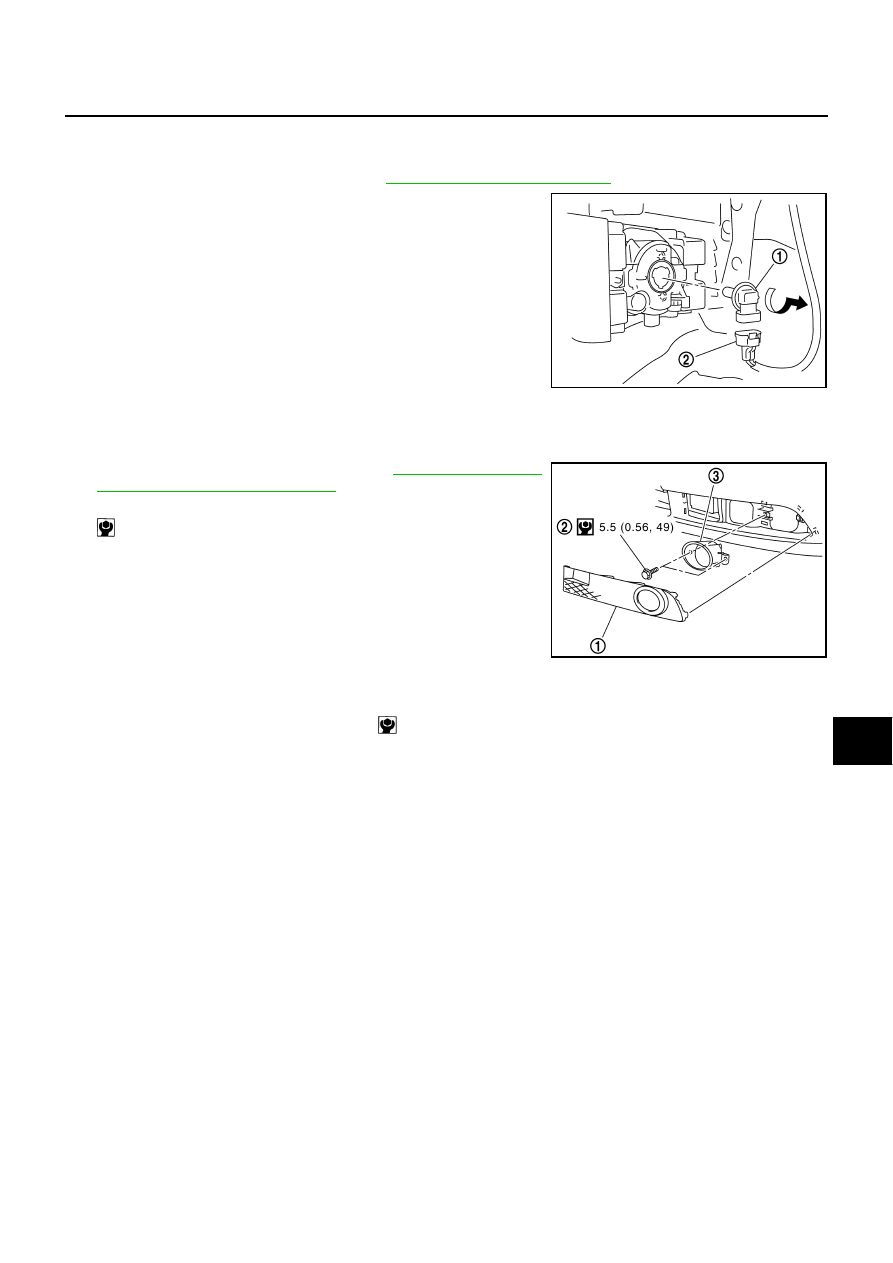

Turn bulb (1) counterclockwise and unlock it.

4.

Disconnect connector (2), and remove bulb (1).

CAUTION:

Never touch the glass of bulb directly by hand. Keep grease
and other oily matters away from it. Never touch bulb by
hand while it is lit or right after being turned off.

Never leave bulb out of fog lamp reflector for a long time
because dust, moisture smoke, etc. may affect the perfor-
mance of fog lamp. When replacing bulb, be sure to replace
it with new one.

Removal and Installation

NKS003RJ

REMOVAL

1.

Remove front bumper grille (1). Refer to

EI-13, "Removal and

Installation of Front Bumper Grille"

 .

2.

Remove screws (2) and remove front fog lamp (3) from vehicle.

: N·m (kg-m, in-lb)

INSTALLATION

Installation is the reverse order of removal.

Front fog lamp

: 12V - 55W (H11)

SKIB4161E

SKIB4162E

Front fog lamp mounting bolt

: 5.5 N·m (0.56 kg-m, 49 in-lb)

LT-212

TURN SIGNAL AND HAZARD WARNING LAMPS

TURN SIGNAL AND HAZARD WARNING LAMPS

PFP:26120

Component Parts and Harness Connector Location

NKS003RK

System Description

NKS003RL

TURN SIGNAL OPERATION

With the ignition switch is in the ON or START position, power is supplied

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM (body control module) terminal 38,

through 10A fuse [No. 14, located in fuse block (J/B)]

to combination meter terminal 12,

through 10A fuse [No. 12, located in fuse block (J/B)]

to unified meter and A/C amp. terminal 53.

Ground is supplied

to BCM terminal 52

to combination meter terminals 9, 10 and 11

to unified meter and A/C amp. terminals 55 and 71

through grounds M16 and M70.

PKIC0620E
