ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)

If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming.
Use the aiming chart shown in the figure.

●

Basic illumination area for adjustment should be within the range shown on the aiming chart.
Adjust headlamp accordingly.

Bulb Replacement

NKS003P6

HEADLAMP (INNER) HIGH BEAM

1.

Turn lighting switch OFF.

2.

Disconnect negative battery cable or remove circuit fuse.

3.

Remove air cleaner case when replacing bulb LH. Refer to

EM-19, "Removal and Installation"

  (VQ35) or

EM-177, "Removal and Installation"

  (VK45).

4.

Remove washer tank inlet when replacing bulb RH. Refer to

WW-48, "Removal and Installation of Washer

Tank"

 .

5.

Turn plastic cap counterclockwise and unlock it.

6.

Turn bulb socket counterclockwise and unlock it.

7.

Disconnect connector, and remove bulb.

SKIB4153E

Headlamp (inner) high beam

: 12V - 60W (HB3)

LT-74

HEADLAMP (FOR USA) - XENON TYPE -

HEADLAMP (OUTER) LOW BEAM

1.

Turn lighting switch OFF.

2.

Disconnect negative battery cable or remove circuit fuse.

3.

Remove fender protector (front). Refer to

EI-20, "Removal and Installation"

 .

4.

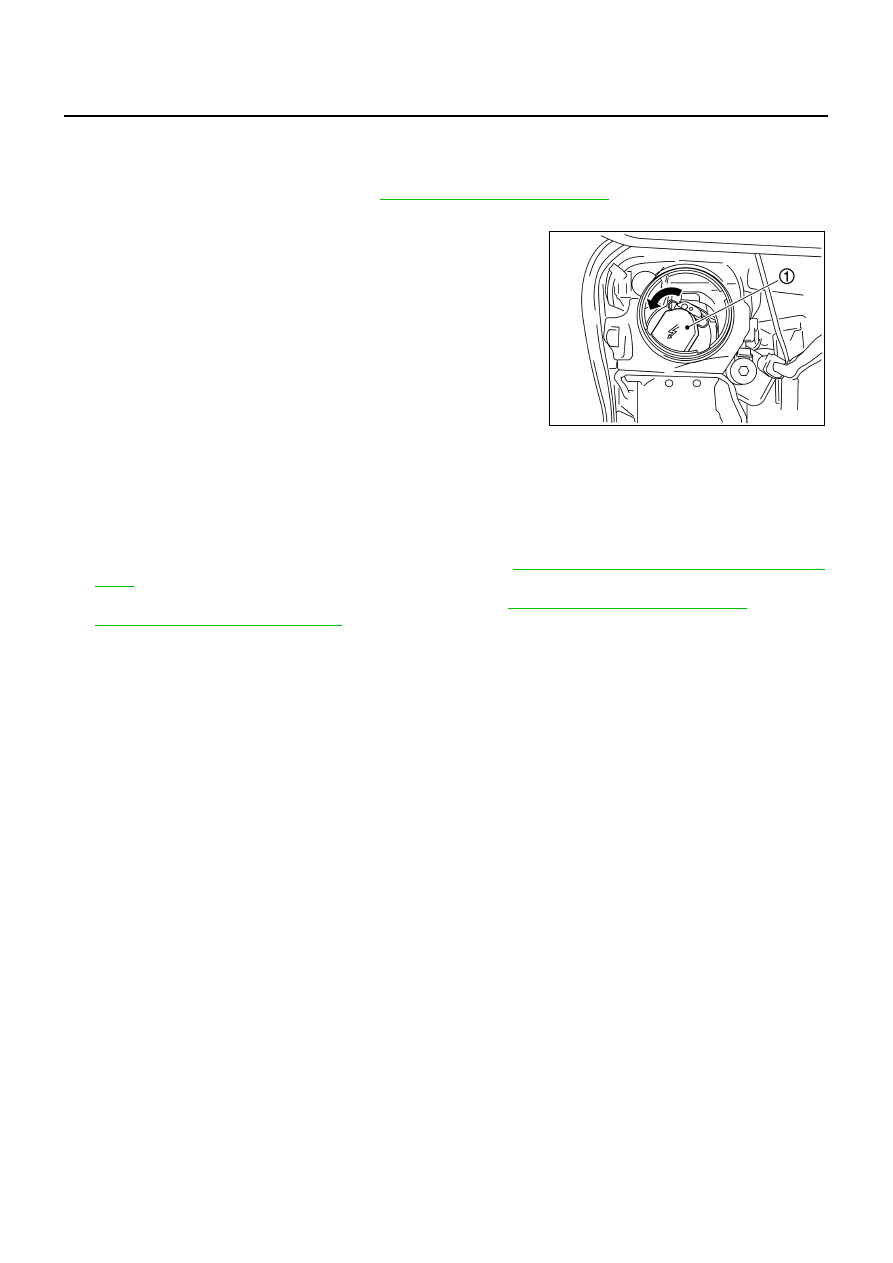

Turn plastic cap counterclockwise and unlock it.

5.

Turn bulb socket (1) counterclockwise and unlock it.

6.

Unlock retaining spring and remove bulb from headlamp.

PARKING LAMP

1.

Turn bulb socket counterclockwise and unlock it.

2.

Remove bulb from its socket.

FRONT TURN SIGNAL LAMP

1.

Remove washer tank inlet when replacing bulb RH. Refer to

WW-48, "Removal and Installation of Washer

Tank"

 .

2.

Remove air cleaner case when replacing bulb LH. Refer to

EM-19, "Removal and Installation"

  (VQ35) or

EM-177, "Removal and Installation"

  (VK45).

3.

Turn bulb socket counterclockwise and unlock it.

4.

Remove bulb from its socket.

FRONT SIDE MARKER LAMP

1.

Turn off the fender protector (front) to obtain work space between the fender protector and fender.

2.

Turn bulb socket counterclockwise and unlock it.

3.

Remove bulb from its socket.

CAUTION:

After installing bulb, be sure to install plastic cap and bulb socket securely to insure watertight-
ness.

Headlamp (outer) low beam

: 12V - 35W (D2S)

SKIB4154E

Parking lamp

: 12V - 5W

Front turn signal lamp

: 12V - 21W

Front side marker lamp

: 12V - 5W

HEADLAMP (FOR USA) - XENON TYPE -

LT-75

C

D

E

F

G

H

I

J

L

M

A

B

LT

Removal and Installation

NKS003P7

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove front bumper. Refer to

EI-11, "Removal and Installation"

  .

3.

Remove front bumper retainer (upper). Refer to

EI-11, "Removal and Installation"

  .

4.

Remove front bumper clips. Refer to

EI-11, "Removal and Installation"

  .

5.

Remove headlamp mounting bolts and nuts.

6.

Remove plastic bumper bracket, then pull headlamp toward vehicle front, disconnect connector, and
remove headlamp.

INSTALLATION

Note the following, and installation is the reverse order of removal.

NOTE:
After installation, perform aiming adjustment. Refer to

LT-72, "Aiming Adjustment"

 .

1.

Nut

2.

Bolt

3.

Headlamp assembly

4.

Bolt

: N·m (kg-m, in-lb)

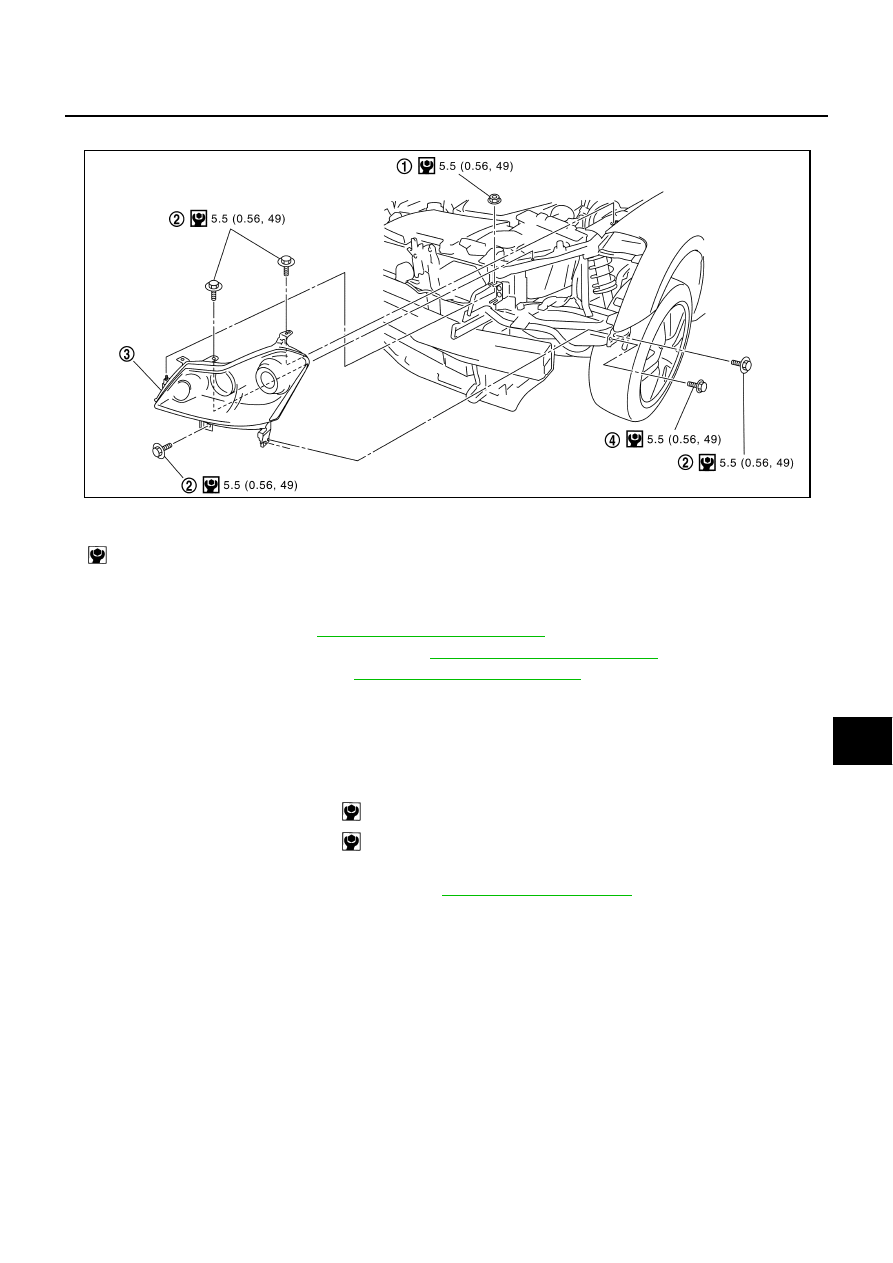

SKIB4155E

Headlamp mounting bolt

: 5.5 N·m (0.56 kg-m, 49 in-lb)

Headlamp mounting nut

: 5.5 N·m (0.56 kg-m, 49 in-lb)

LT-76

HEADLAMP (FOR USA) - XENON TYPE -

Disassembly and Assembly

NKS003P8

DISASSEMBLY

1.

Turn plastic cap counterclockwise and unlock it.

2.

Turn xenon bulb (low) socket counterclockwise and unlock it.

3.

Unlock retaining spring, and remove xenon bulb (low).

4.

Remove HID control unit screws.

5.

Remove bracket.

6.

Remove screw and ground from HID control unit.

7.

Disconnect connectors from HID control unit.

8.

Turn halogen bulb (high) counterclockwise and unlock it.

9.

Remove halogen bulb (high) and disconnect connector it.

10. Turn front turn signal lamp bulb socket counterclockwise and unlock it.

11. Remove front turn signal lamp bulb from its socket.

12. Turn parking lamp bulb from socket counterclockwise and unlock it.

13. Remove parking lamp bulb from its socket.

14. Turn front side marker lamp bulb socket counterclockwise and unlock it.

15. Remove front side marker lamp bulb from its socket.

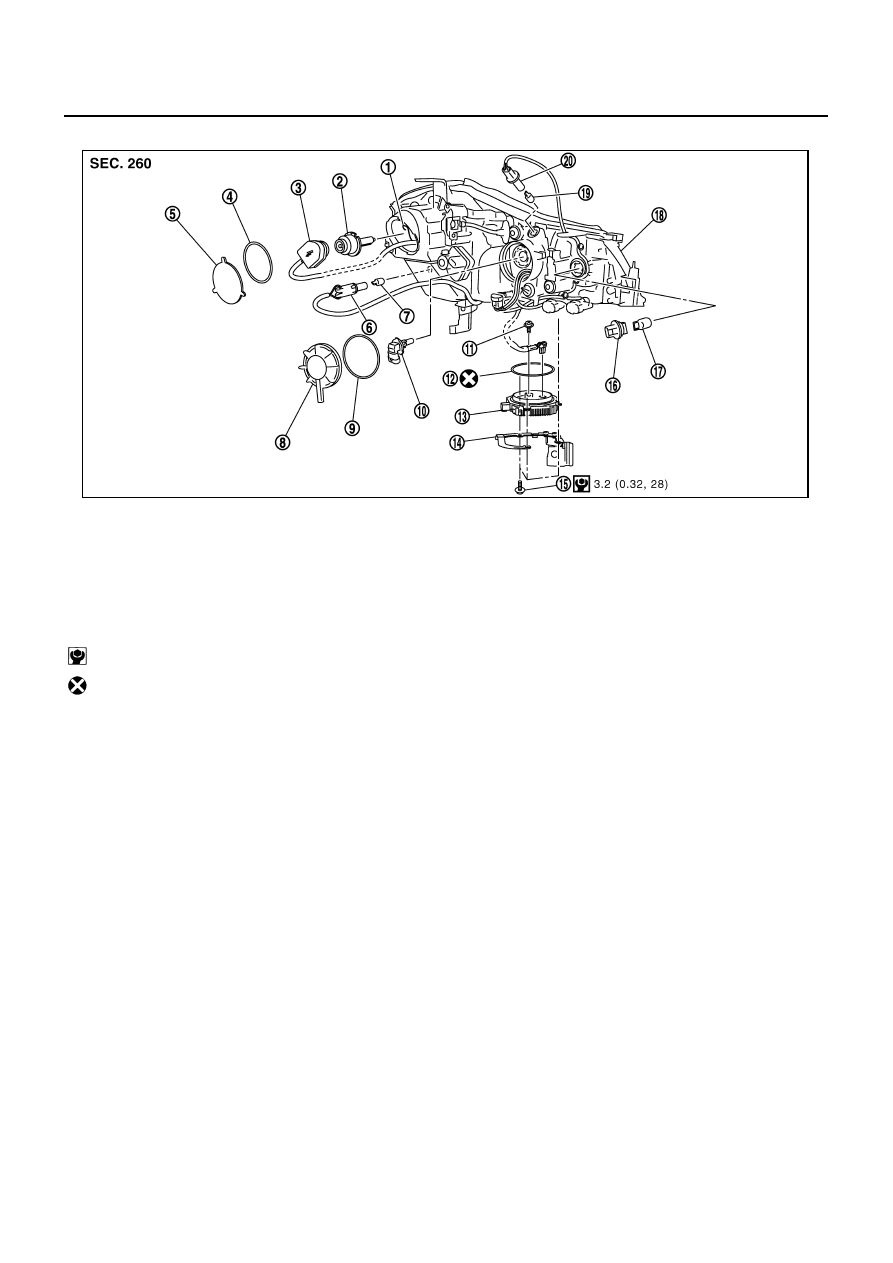

PKID0428E

1.

Retaining spring

2.

Xenon bulb (low)

3.

Xenon bulb socket (low)

4.

Seal packing

5.

Plastic cap

6.

Side marker lamp bulb socket

7.

Side marker lamp bulb

8.

Plastic cap

9.

Seal packing

10. Halogen bulb (high)

11.

Screw

12. Seal packing

13. HID control unit

14. Bracket

15. Screw

16. Front turn signal lamp bulb socket

17. Front turn signal lamp bulb

18. Headlamp housing assembly

19. Parking lamp bulb

20. Parking lamp bulb socket

: N·m (kg-m, in-lb)

: Always replace after every disassembly.
