HEADLAMP (FOR USA) - XENON TYPE -

LT-69

C

D

E

F

G

H

I

J

L

M

A

B

LT

3.

CHECK HEADLAMP GROUND

1.

Turn ignition switch OFF.

2.

Check continuity between front combination lamp RH or LH har-
ness connector and ground.

OK or NG

OK

>> Check headlamp harness and connectors.

NG

>> Repair harness or connector.

4.

CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT COMBINATION LAMP

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

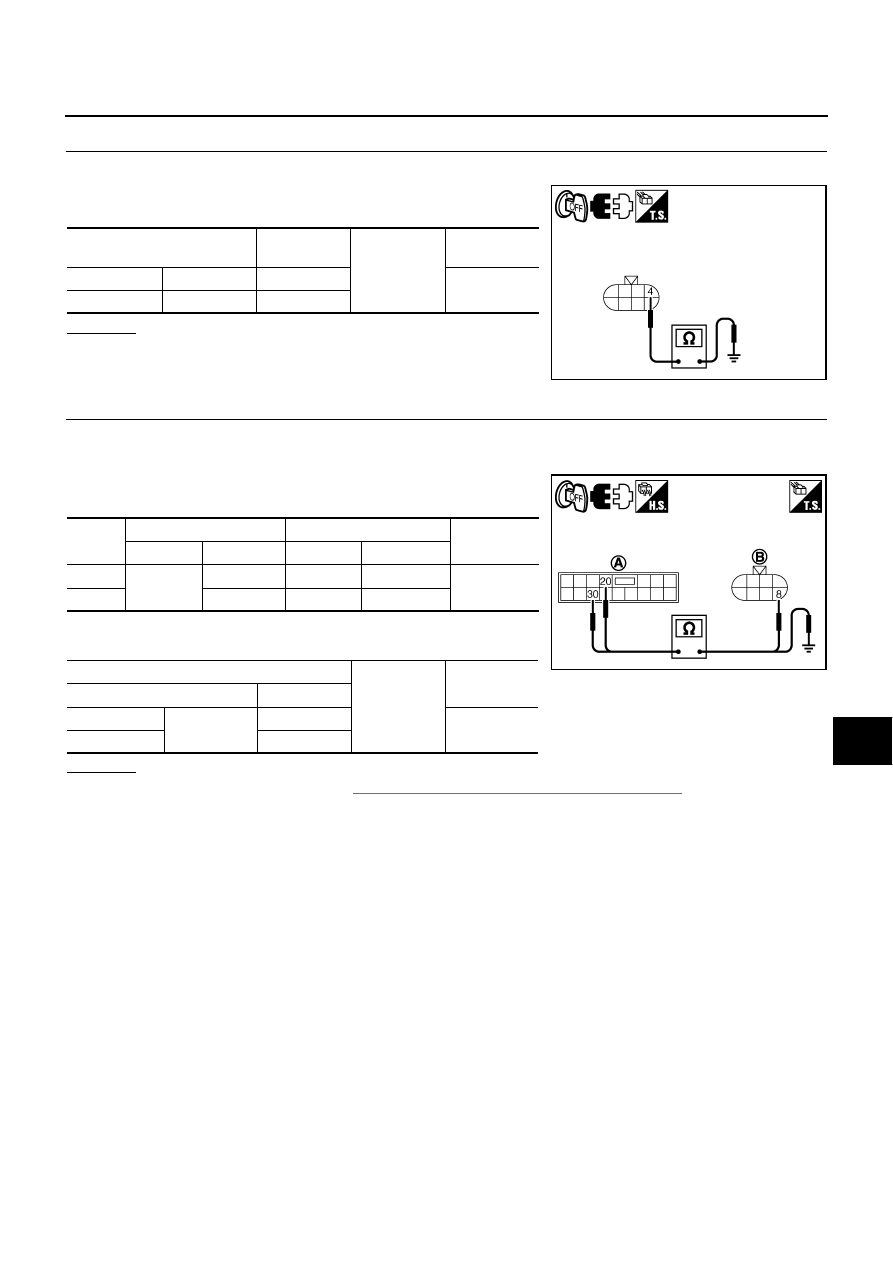

Check continuity between IPDM E/R harness connector (A) and
front combination lamp RH or LH harness connector (B).

4.

Check continuity between IPDM E/R harness connector (A) and
ground.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-31, "Removal and Installation of IPDM E/R"

 .

NG

>> Repair harness or connector.

Front combination lamp

connector

Terminal

Ground

Continuity

RH

E47

4

Yes

LH

E54

4

SKIB4759E

Circuit

A

B

Continuity

Connector

Terminal

Connector

Terminal

RH

E7

20

E47

8

Yes

LH

30

E54

8

A

Ground

Continuity

Connector

Terminal

RH

E7

20

No

LH

30

SKIB4760E

LT-70

HEADLAMP (FOR USA) - XENON TYPE -

Headlamps Do Not Turn OFF

NKS003P1

1.

CHECK HEADLAMP TURN OFF

Make sure that lighting switch is OFF. And make sure headlamp turns off when ignition switch is turned OFF.
OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

CHECK COMBINATION SWITCH INPUT SIGNAL

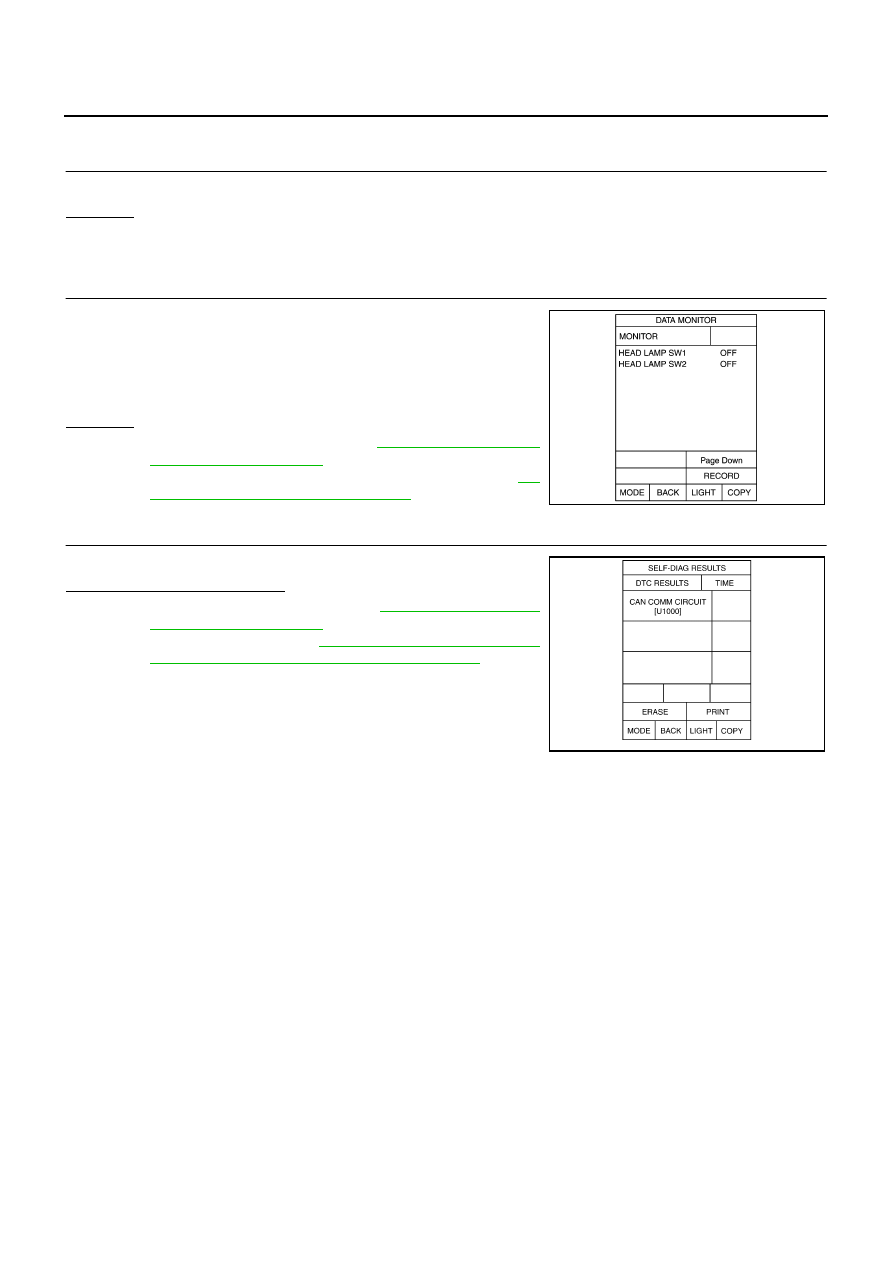

Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “HEAD LAMP SW 1” and “HEAD LAMP SW 2” turns ON-
OFF linked with operation of lighting switch.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-31, "Removal and

Installation of IPDM E/R"

 .

NG

>> Check combination switch (lighting switch). Refer to

LT-

239, "Combination Switch Inspection"

 .

3.

CHECK CAN COMMUNICATIONS BETWEEN BCM AND IPDM E/R

Select “BCM” on CONSULT-II, and perform self-diagnosis for “BCM”.
Display of self-diagnosis results

NO DTC>> Replace IPDM E/R. Refer to

PG-31, "Removal and

Installation of IPDM E/R"

 .

CAN COMM CIRCUIT>>  Refer  to

BCS-13, "CAN Communication

Inspection Using CONSULT-II (Self-Diagnosis)"

 .

When lighting switch is OFF
position

: HEAD LAMP SW 1 OFF
: HEAD LAMP SW 2 OFF

PKIA7588E

PKIA7627E

HEADLAMP (FOR USA) - XENON TYPE -

LT-71

C

D

E

F

G

H

I

J

L

M

A

B

LT

General Information for Xenon Headlamp Trouble Diagnosis

NKS003P2

In most cases, malfunction of xenon headlamp - "does not illuminate", "flickers" or "dark" - is caused by a mal-
functioning xenon bulb. A HID control unit or lamp housing, however, may be a cause of malfunction. Be sure
to perform trouble diagnosis following the steps described below.

Caution:

NKS003P3

●

Installation or removal of connector must be done with lighting switch OFF.

●

Disconnect the battery cable from the negative terminal or remove power fuse.

●

When the lamp is illuminated (when lighting switch is ON), never touch harness, HID control unit, inside of
lamp, or lamp metal parts.

●

To check illumination, temporarily install lamp in vehicle. Be sure to connect power at vehicle side connec-
tor.

●

If error can be traced directly to electrical system, first check for items such as blown fuses and fusible
links, broken wires or loose connectors, dislocated terminals, and improper connections.

●

Never work with wet hands.

●

Using a tester for HID control unit circuit trouble diagnosis is prohibited.

●

Disassembling HID control unit or harnesses (bulb socket harness, ECM harness) is prohibited.

●

Immediately after illumination, light intensity and color will fluctuate, but there is nothing wrong.

●

When bulb has come to end of its life, brightness will drop significantly, it will flash repeatedly, or light color
will turn reddish.

Xenon Headlamp Trouble Diagnosis

NKS003P4

1.

CHECK 1: XENON HEADLAMP LIGHTING

Install normal xenon bulb to corresponding xenon bulb headlamp, and check if lamp lights up.

OK or NG

OK

>> Replace xenon bulb.

NG

>> GO TO 2.

2.

CHECK 2: XENON HEADLAMP LIGHTING

Install normal HID control unit to corresponding xenon headlamp, and check if lamp lights up.

OK or NG

OK

>> Replace HID control unit.

NG

>> GO TO 3.

3.

CHECK 3: XENON HEADLAMP LIGHTING

Install normal xenon lamp housing assembly to corresponding xenon headlamp, and check if lamp lights up.
OK or NG

OK

>> Replace xenon headlamp housing assembly.

NG

>> INSPECTION END

LT-72

HEADLAMP (FOR USA) - XENON TYPE -

Aiming Adjustment

NKS003P5

PREPARATION BEFORE ADJUSTING

For details, refer to the regulations in your own country.
Before performing aiming adjustment, check the following.

1.

Keep all tires inflated to correct pressures.

2.

Place vehicle on flat surface.

3.

Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.

LOW BEAM AND HIGH BEAM

1.

Turn headlamp low beam ON.

2.

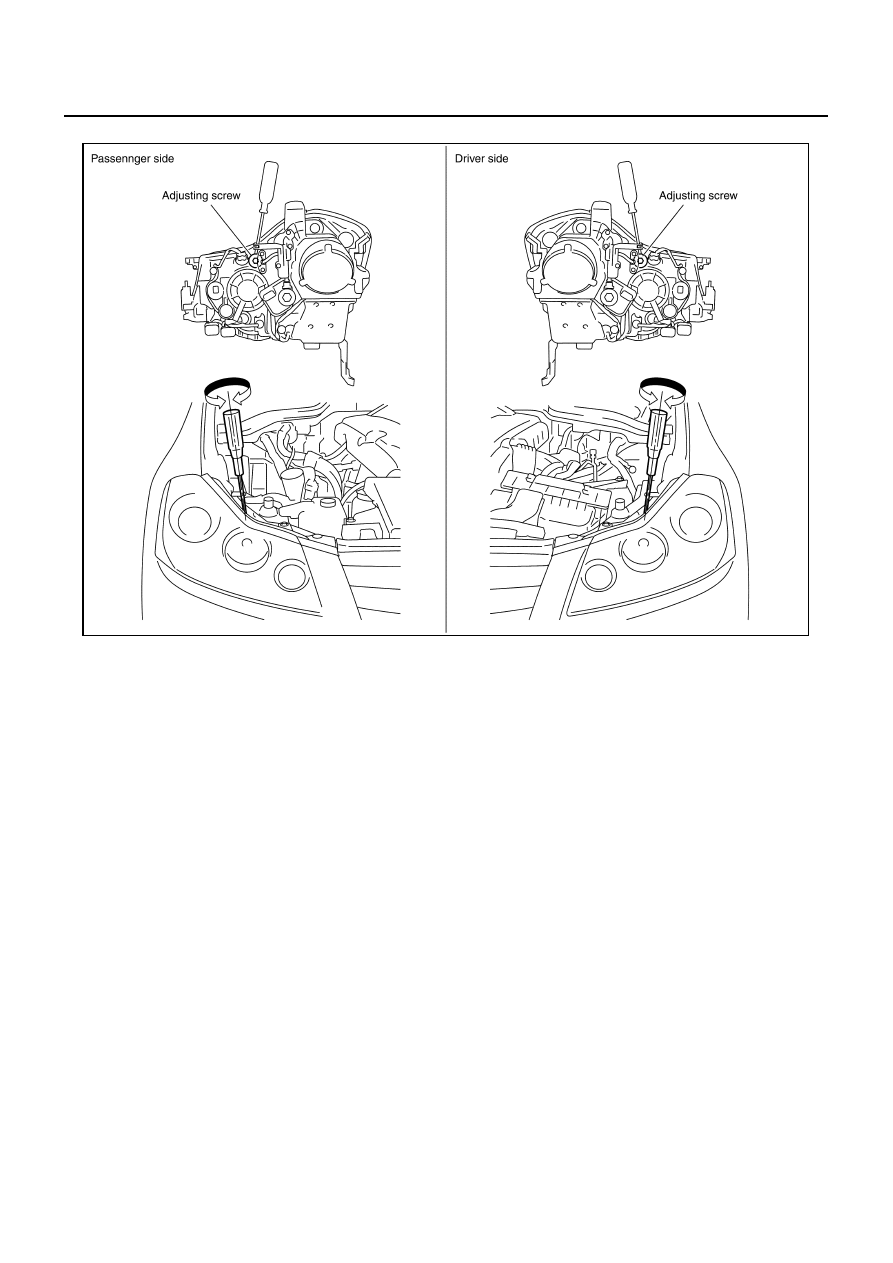

Use adjusting screws to perform aiming adjustment.

SKIB4152E
