Infiniti M35/M45 Y50. Manual - part 845





TROUBLE DIAGNOSES WORK FLOW

LAN-29

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

f.

Reception item of “METER”: On “TCM”, “UNKWN” is indicated. This means M&A cannot receive the sig-
nal from TCM. Draw a line to indicate an error between M&A and TCM (line 2-f in the figure).

g.

Reception item of “AUTO DRIVE POS.”: On “TCM”, “UNKWN” is indicated. This means ADP cannot
receive the signal from TCM. Draw a line to indicate an error between ADP and TCM (line 2-g in the fig-
ure).

h.

Reception item of “ABS”: “UNKWN” is not indicated. This indicates normal communication between ABS
and its receiving units. Do not draw any line.

SKIB8727E

LAN-30

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSES WORK FLOW

i.

Reception item of “IPDM E/R”: “UNKWN” is not indicated. This indicates normal communication between
IPDM-E and its receiving units. Do not draw any line.

3.

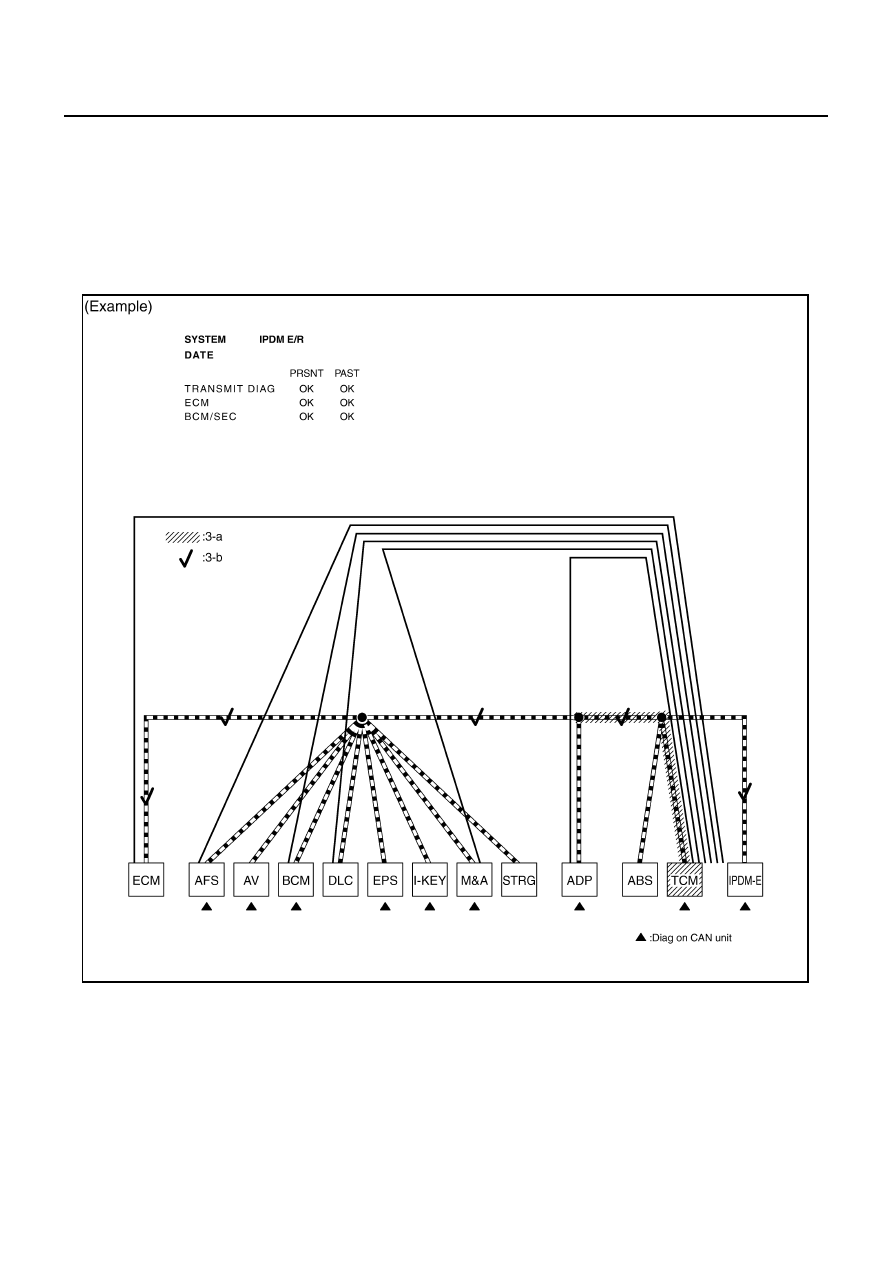

Based on information received from “CAN DIAG SUPPORT MNTR”, place a check mark on the known
good CAN communication line between ECM and IPDM-E.

a.

Through the previous procedure, the circuit between ADP splice and TCM has the most amount of lines
(shade 3-a in the figure).

b.

Place a check mark on the known good lines to establish the error circuit.
Reception item of “IPDM E/R”: On “ECM”, “OK” is indicated. IPDM-E communicates normally with ECM.
Put a check mark on the normal circuit between ECM and IPDM-E (check mark 3-b in the figure).

SKIB8728E

TROUBLE DIAGNOSES WORK FLOW

LAN-31

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

4.

Through the above procedure, the error is detected in the TCM branch line (shaded in the figure).

NOTE:
For abbreviations, refer to

LAN-41, "Abbreviation List"

 .

5.

Perform the inspection for the detected error circuit. For the inspection procedure, refer to

LAN-82, "Mal-

function Area Chart"

 .

SKIB8893E

LAN-32

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSES WORK FLOW

Present Error — Short Circuit —

When the symptoms listed below exist, a short circuit of the CAN communication line is a possible cause.

Received data

Error symptom

Most the units connected to the CAN communication system go into fail-safe mode or are deactivated.

Inspection procedure

Refer to

LAN-82, "Malfunction Area Chart"

 .

Item (CONSULT-II)

Indication

SELECT SYSTEM

All Diag on CAN units are not indicated.

CAN DIAG SUPPORT MNTR

“UNKWN” is indicated under “TRANSMIT DIAG” and most reception items.

SKIB8894E
