TROUBLE DIAGNOSES WORK FLOW

LAN-21

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

CREATE INTERVIEW SHEET

Fill out the symptom described by the customer, vehicle condition, and CAN system type on the interview
sheet.

Interview Sheet (Example)

SKIB8890E

LAN-22

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSES WORK FLOW

CREATE DATA SHEET

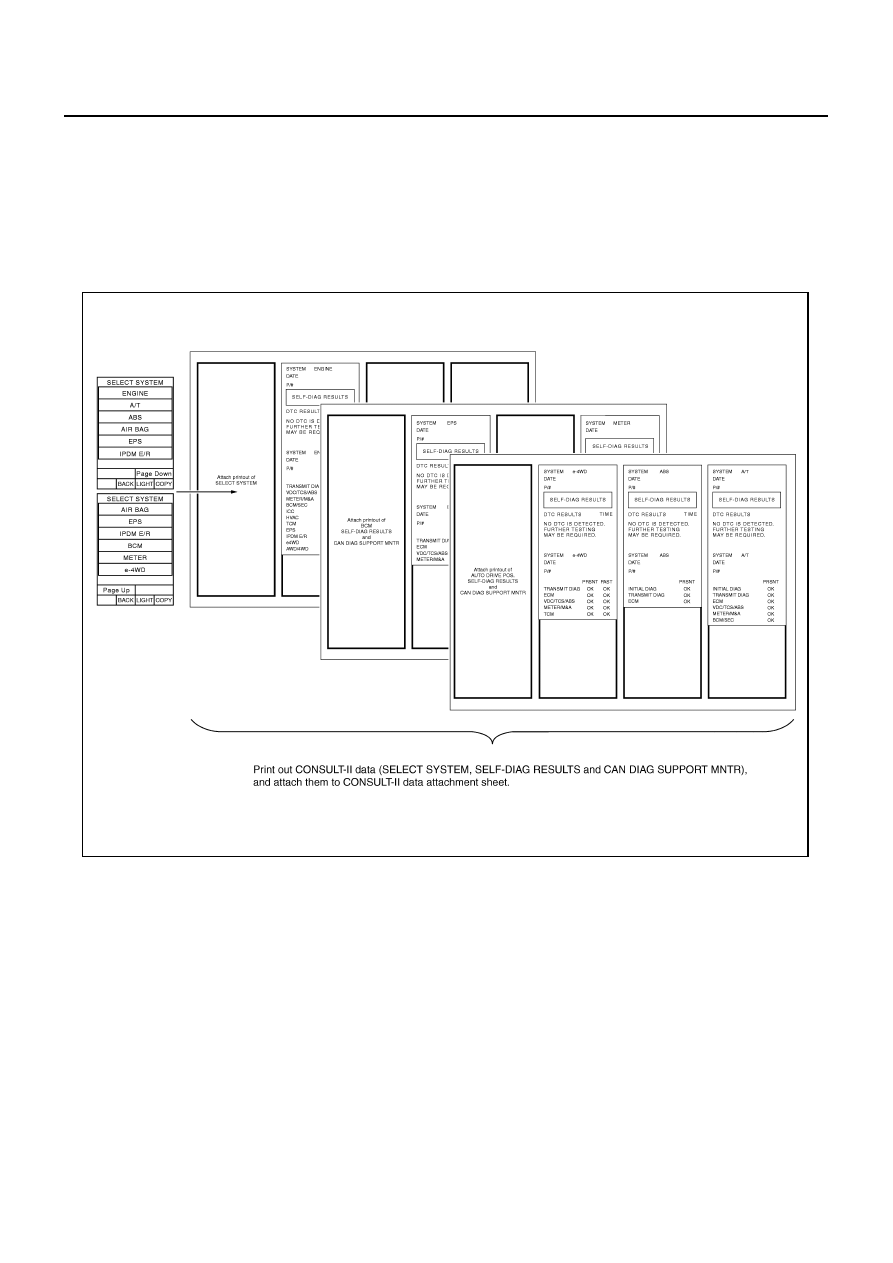

Create CONSULT-II Data Attachment Sheet

Print out the following CONSULT-II screens, and attach them to the CONSULT-II data attachment sheet.

●

SELECT SYSTEM

●

SELF-DIAG RESULTS

●

CAN DIAG SUPPORT MNTR

NOTE:
Some items may not be needed depending on CAN system type of vehicle.

SKIB8721E

TROUBLE DIAGNOSES WORK FLOW

LAN-23

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Create On-board Diagnosis Copy Sheet

Display the trouble diagnosis result of CAN communication with the on-board diagnosis function on the vehicle
monitor, etc. Copy them on the on-board diagnosis copy sheet.
NOTE:
For some models, CAN communication diagnosis result is received from the vehicle monitor. (CONSULT-II is
not available.)

SKIB8722E

LAN-24

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSES WORK FLOW

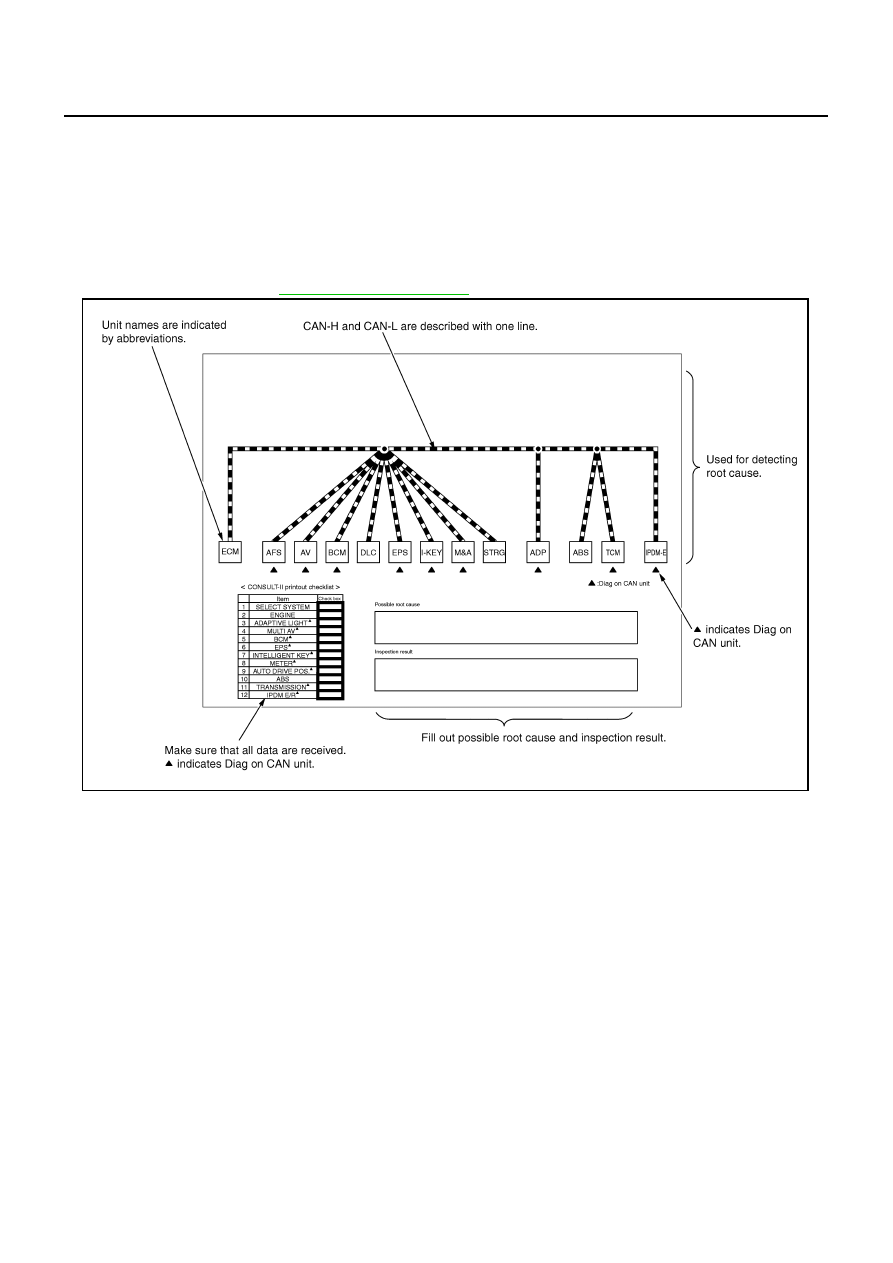

CREATE DIAGNOSIS SHEET

NOTE:
Be sure to use the diagnosis sheet for the correct CAN system type.

Print Diagnosis Sheet

Print the diagnosis sheet for the applicable CAN system type.

Check of Received Data

Check the created data sheet for missing information.

●

For abbreviations, refer to

LAN-41, "Abbreviation List"

 .

SKIB8891E
