Removal and Installation of Cluster Lid C
NIS0025F
●

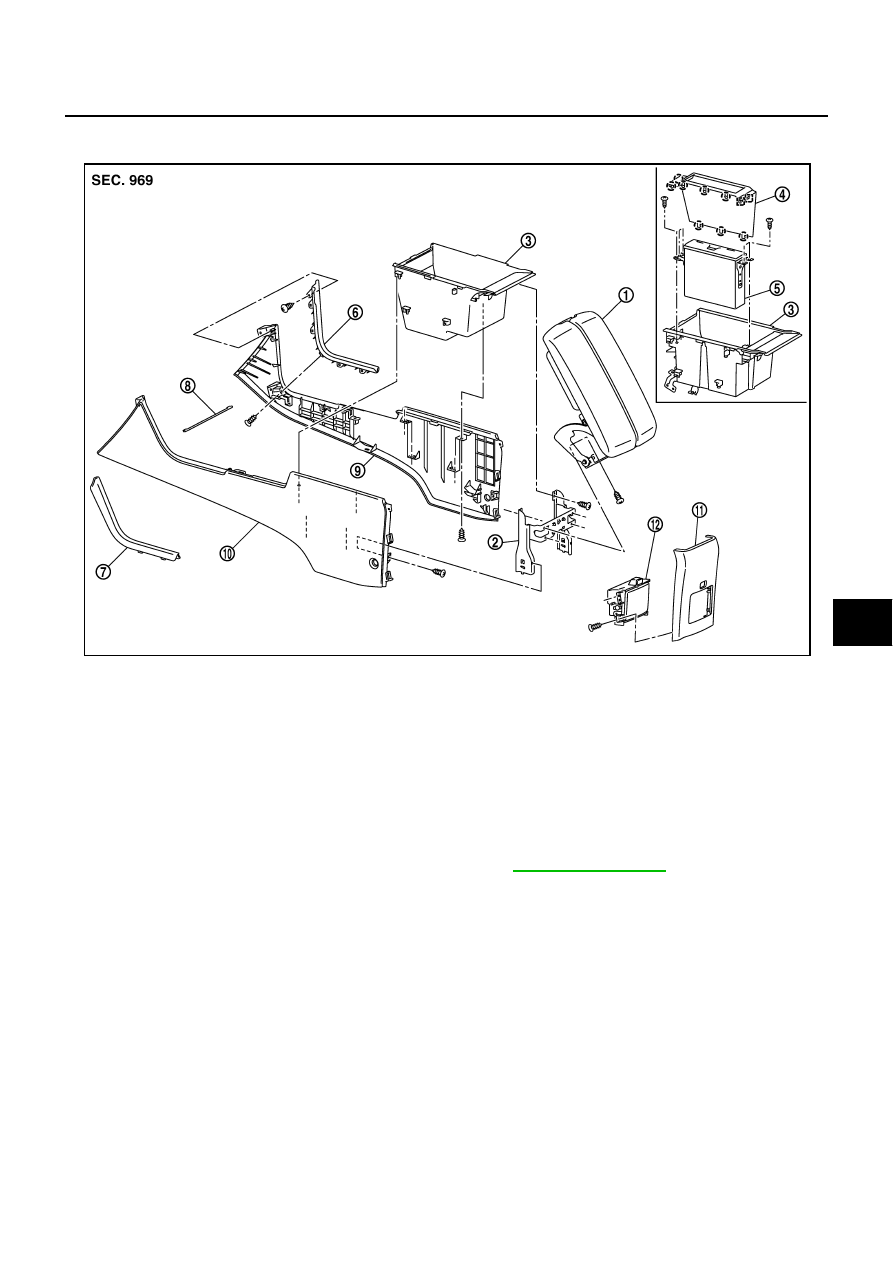

When removing cluster lid C assembly, take steps in the illustration shown by the number below.
●
:Pawl
●
:Clip
●
:Metal clip
REMOVAL
1.
Remove cup holder.
●
Backside pull up.
2.
Remove switch finisher.
●
Disconnect harness connector.
3.
Remove A/T console finisher.
●
Place the selector lever in "D" position.
●
Remove selector lever knob. Refer to
AT-222, "Control Device
Removal and Installation"
.
●
Lift up backside and pull back.
●
Disconnect harness connector.
1.
Cup holder
2.
Switch finisher
3.
A/T console finisher
4.
Cluster lid C
