Infiniti M35/M45 Y50. Manual - part 835

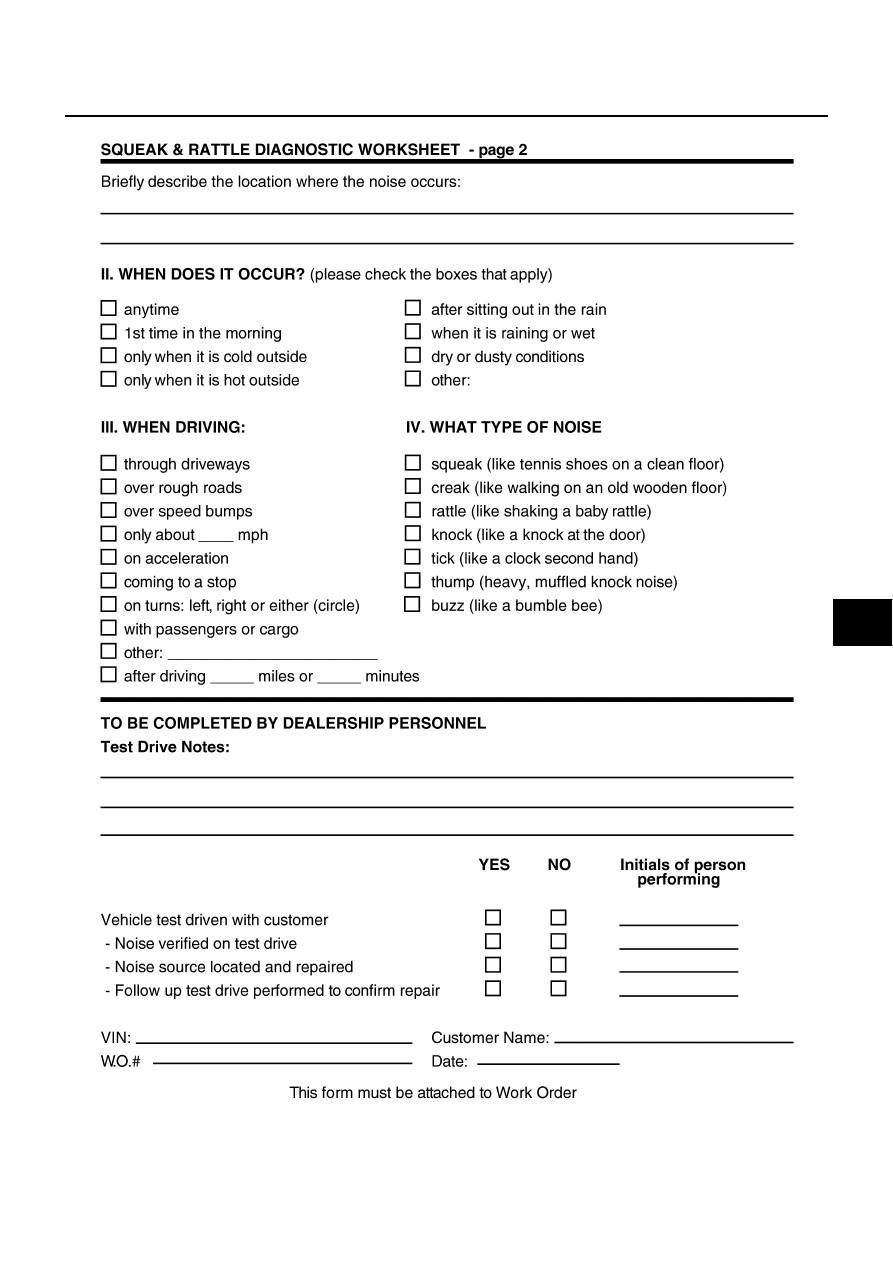

SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-9

C

D

E

F

G

H

J

K

L

M

A

B

IP

PIIB8742E

IP-10

INSTRUMENT PANEL ASSEMBLY

INSTRUMENT PANEL ASSEMBLY

PFP:68200

Component Parts Drawing

NIS0025C

PIIB3110E

INSTRUMENT PANEL ASSEMBLY

IP-11

C

D

E

F

G

H

J

K

L

M

A

B

IP

Removal and Installation of Instrument Panel & Pad

NIS0025D

REMOVAL

1.

Remove cup holder.

Backside pull up.

2.

Remove switch finisher.

Disconnect harness connector.

3.

Remove A/T console finisher.

Place the selector lever in "D" position.

Remove selector lever knob. Refer to

AT-222, "Control Device

Removal and Installation"

 .

Lift up backside and pull back.

Disconnect harness connector.

4.

Remove cluster lid C.

Pull back.

Disconnect harness connector.

1.

Cup holder

2.

Switch finisher

3.

A/T console finisher

4.

Cluster lid C

5.

Console rear finisher

6.

Center console

7.

Glove box

8.

Instrument passenger lower cover

9.

Instrument side finisher (RH)

10. Glove box cover

11.

Instrument finisher B

12. Instrument side finisher (LH)

13. Instrument driver lower panel

14.

Instrument finisher A

15. Instrument finisher C

16. Cluster lid A

17.

Combination meter

18. Steering column cover

19. Upper ventilator gurille

20.

Center ventilator grille

21. Multifunction switch

22. Front display unit

23.

Audio assembly

24. NAVI C/U

25. Side ventilator grille (RH/LH)

26.

Front defroster grille

27. Instrument panel & pad

Pawl

Clip

Metal clip

PIIB4107J

PIIB4108E

PIIB4109E

IP-12

INSTRUMENT PANEL ASSEMBLY

5.

Remove console rear finisher.

Insert a remover into upper space of console rear finisher.

6.

Remove center console with power tool.

Disconnect harness connector.

7.

Remove glove box.

Remove damper pin to left side.

8.

Remove instrument passenger lower cover.

Disconnect harness connector.

9.

Remove instrument side finisher (RH).

Insert a remover into lower space.

10. Remove glove box cover with power tool.

11. Remove instrument finisher B.

Insert a remover into right space.

12. Remove instrument side finisher (LH).

Insert a remover into lower space.

PIIB4110J

PIIB4152E

PIIB4115E

PIIB4111E
