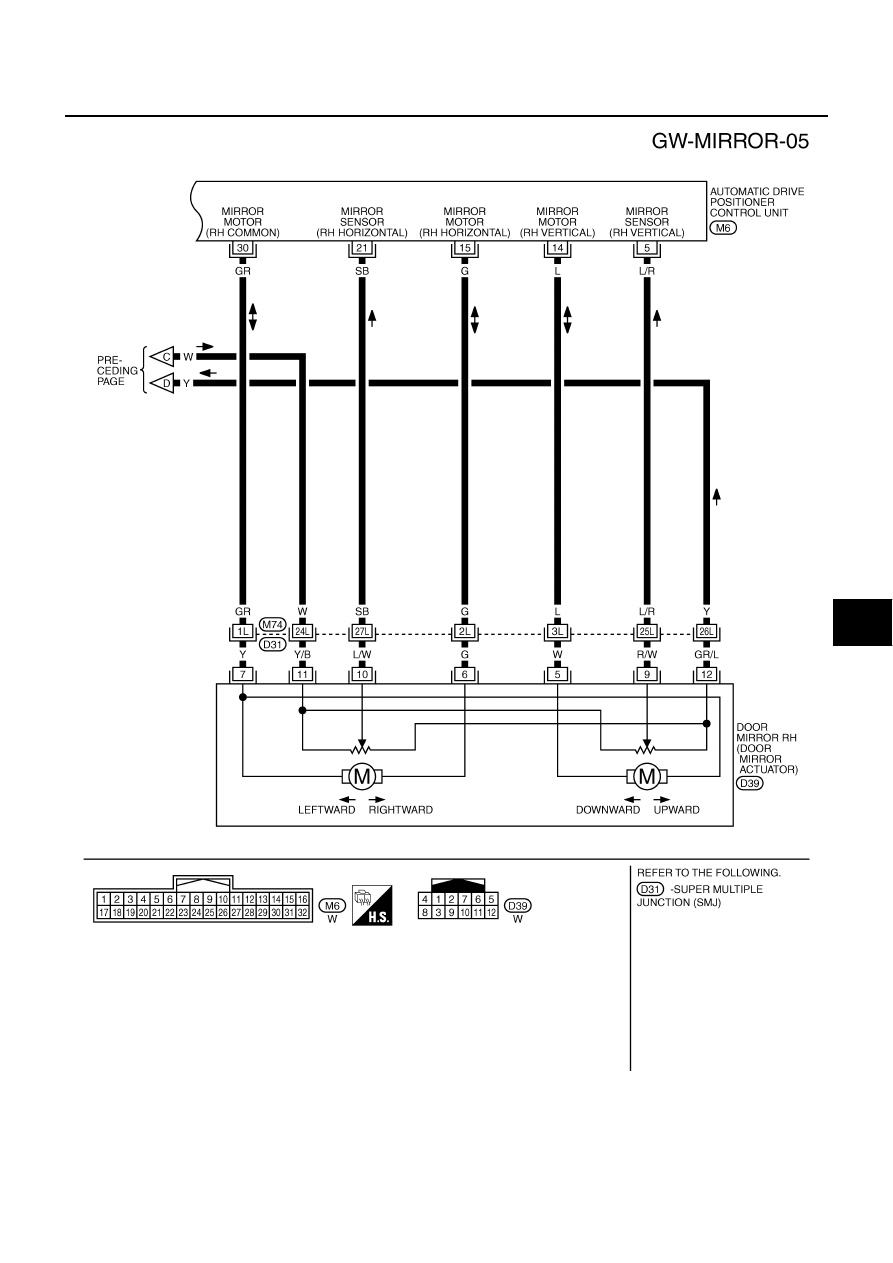

REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-101

C

D

E

F

G

H

J

K

L

M

A

B

GW

TIWT1362E

GW-102

REVERSE INTERLOCK DOOR MIRROR SYSTEM

TIWT2116E

REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-103

C

D

E

F

G

H

J

K

L

M

A

B

GW

Terminals and Reference Values for Automatic Drive Positioner Control Unit

NIS00236

Ter-

minal

Wire

color

Item

Signal

Input/

Output

Condition

Voltage (V)

(Approx.)

2

V

Changeover switch
RH signal

Input

When changeover
switch position

RH

0

Other than above

5

3

G

Mirror switch
UP signal

Input

When mirror switch
position

UP

0

Other than above

5

4

W

Mirror switch
LEFT signal

Input

When mirror switch
position

LEFT

0

Other than above

5

5

L/R

Door mirror RH sensor
vertical signal

Input

When door mirror
RH mirror face posi-
tion

Close to perk

4.2

Close to valley

0.5

6

LG

Door mirror LH sensor
vertical signal

Input

When door mirror LH
mirror face position

Close to perk

4.2

Close to valley

0.5

10

O

UART LINE (TX)

Input/

Output

Tilt switch operated

14

L

Door mirror RH mirror
motor
UP signal

Output

When door mirror
RH mirror motor
operation

UP

Battery voltage

Other than above

0

15

G

Door mirror RH mirror
motor LEFT signal

Output

When door mirror
RH mirror motor
operation

LEFT

Battery voltage

Other than above

0

16

W/L

Door mirror LH mirror
motor RIGHT or DOWN
signal

Output

When door mirror LH
mirror motor opera-
tion

RIGHT or DOWN

Battery voltage

Other than above

0

18

O

Changeover switch
LH signal

Input

When changeover
switch position

LH

0

Other than above

5

19

L

Mirror switch DOWN signal

Input

When mirror switch
position

DOWN

0

Other than above

5

20

BR

Mirror switch RIGHT signal

input

When mirror switch
position

RIGHT

0

Other than above

5

21

SB

Door mirror RH sensor
horizontal signal

Input

When door mirror
RH mirror face posi-
tion

Close to left edge

3.5

Close to right edge

0.5

22

O/L

Door mirror LH sensor
horizontal signal

Input

When door mirror LH
mirror face position

Close to left edge

0.5

Close to right edge

3.5

26

P

UART LINE (RX)

Input/

Output

Tilt switch operated

30

GR

Door mirror LH mirror
motor RIGHT or DOWN
signal

Output

When door mirror LH
mirror motor opera-
tion

RIGHT or DOWN

Battery voltage

Other than above

0

SKIA0175E

SKIA0175E

GW-104

REVERSE INTERLOCK DOOR MIRROR SYSTEM

Terminals and Reference Values for Driver Seat Control Unit

NIS00237

31

BR

Door mirror LH mirror
motor UP signal

Output

When door mirror LH
mirror motor opera-
tion

UP

Battery voltage

Other than above

0

32

V

Door mirror LH mirror
motor LEFT signal

Output

When door mirror LH
mirror motor opera-
tion

LEFT

Battery voltage

Other than above

0

33

W

Mirror sensor power supply

Output

Battery voltage

34

R

Power supply (fuse)

Input

Battery voltage

39

L

Power supply (fusible link)

Input

Battery voltage

40

B

Ground (signal)

0

41

Y

Sensor ground

0

48

B

Ground (power)

0

Ter-

minal

Wire

color

Item

Signal

Input/

Output

Condition

Voltage (V)

(Approx.)

Termi-

nal

Wire

color

Item

Signal

Input/

Output

Condition

Voltage (V)

(Approx.)

1

R/G

UART LINE (RX)

Input/

Output

Tilt switch operated

3

L

CAN-H

Input/

Output

17

W/R

UART LINE (TX)

Input/

Output

Tilt switch operated

19

P

CAN-L

Input/

Output

32

B/W

Ground (signal)

0

33

W

Power supply (fusible link)

Input

Battery voltage

40

B/W

Power supply (fuse)

Input

Battery voltage

48

B/W

Ground (power)

0

SKIA0175E

SKIA0175E
